SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Thermal Controller

Brand Name: HXCONTROLLER

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: HX120196

Origin: Mainland China

is_customized: Yes

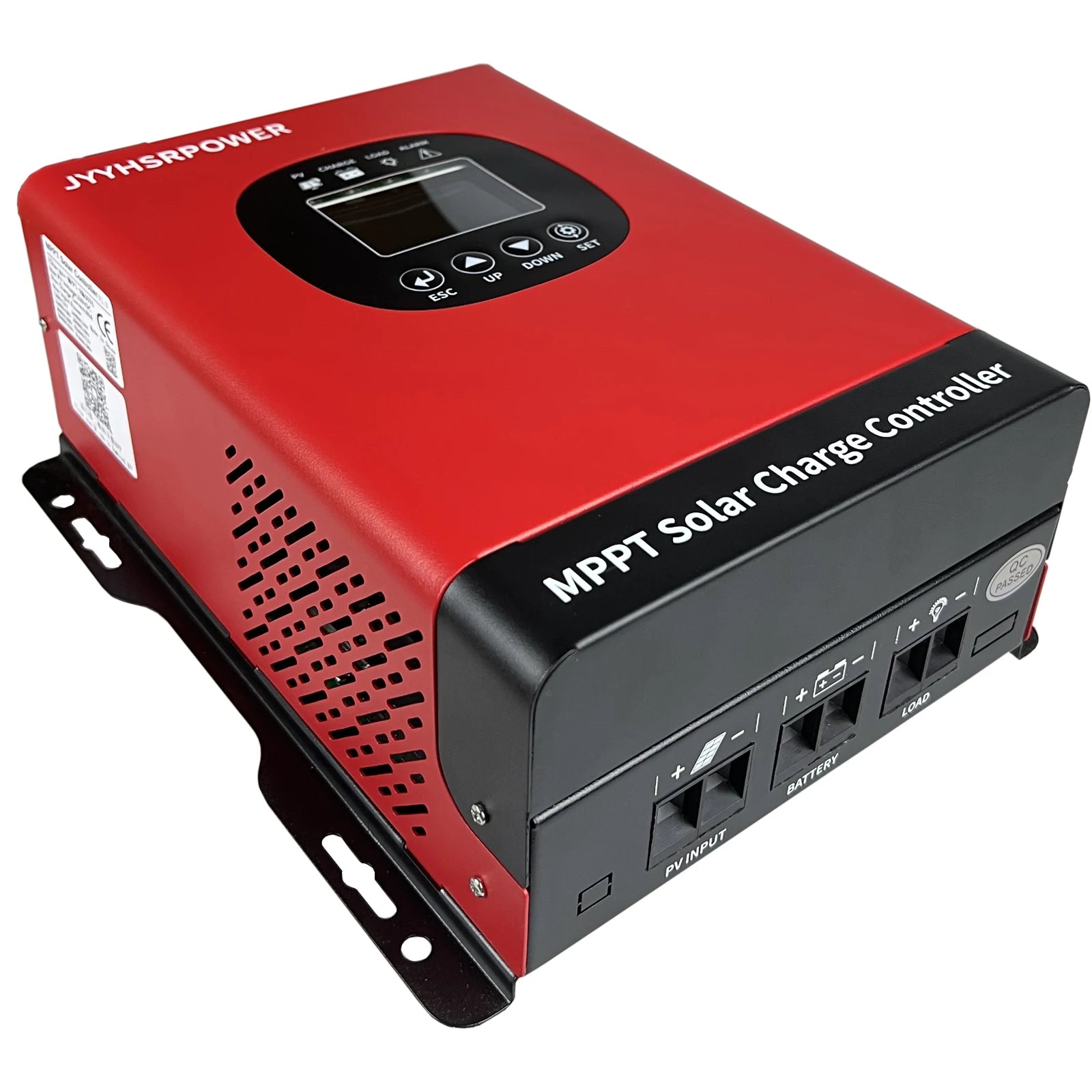

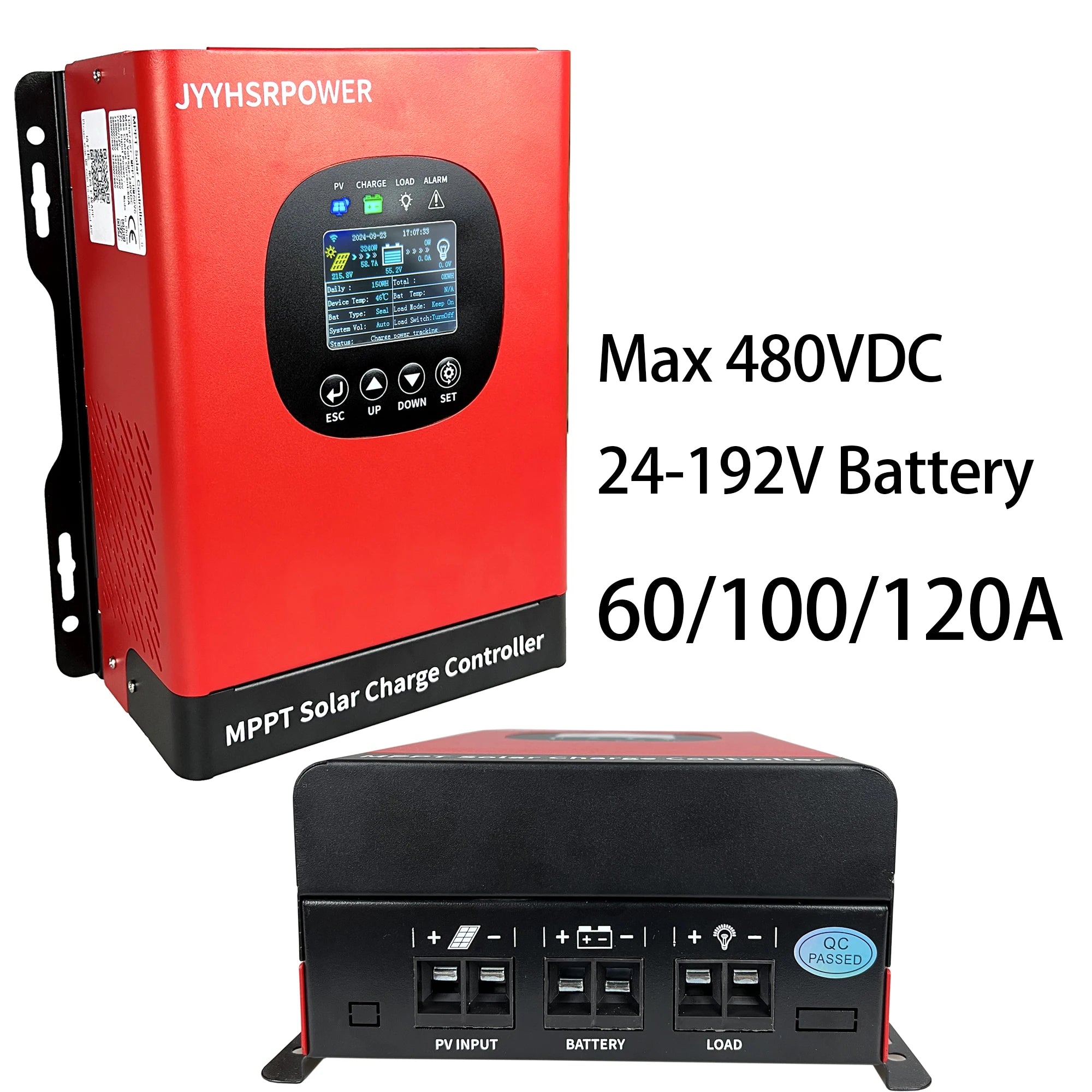

60-120A 480VDC MPPT Solar Controllelr

Why choose HXCONTROLLER?

Is your solar system performing at its peak? Conventional controllers leave precious energy on the table. Our advanced Maximum Power Point Tracking (MPPT) technology ensures you get the absolute maximum power from your solar panels, boosting energy harvest by up to 30% compared to traditional PWM controllers.

1.Maximum Energy Yield: Intelligently tracks the optimal voltage-current curve (MPP) of your panels in real-time, adapting to changing light and weather conditions to extract every available watt.

2.Superior Efficiency: Industry-leading conversion efficiency of up to 99%, minimizing losses between your panels and batteries.

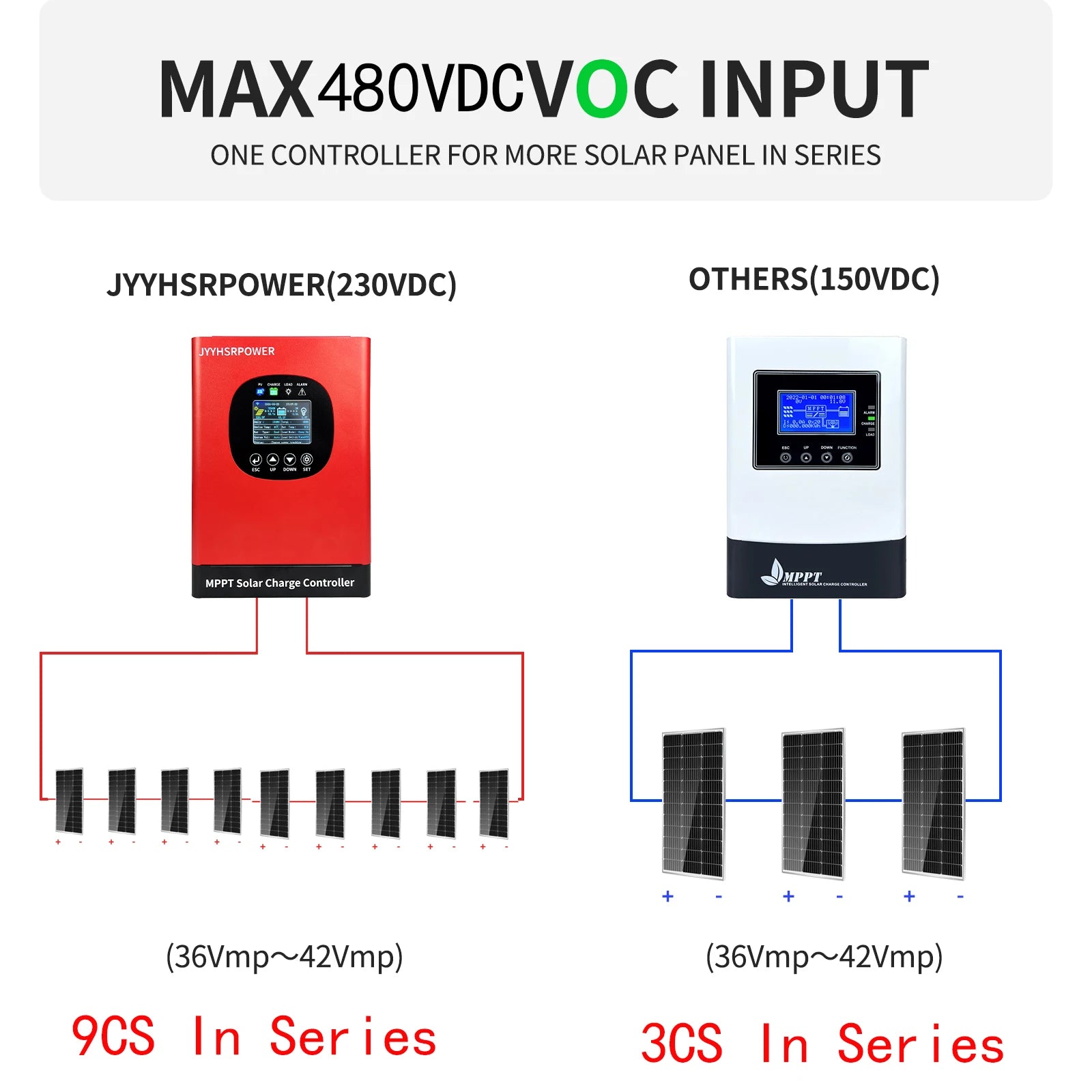

3.480VDC (voc voltage) Wide Voltage Compatibility: Handles higher panel input voltages, allowing for more flexible, cost-effective string configurations and reduced wiring costs.

4.Smarter Battery Management: Multi-stage adaptive charging (Bulk, Absorption, Float, Equalization) prolongs battery life for lead-acid, AGM, Gel, and Lithium-ion batteries.

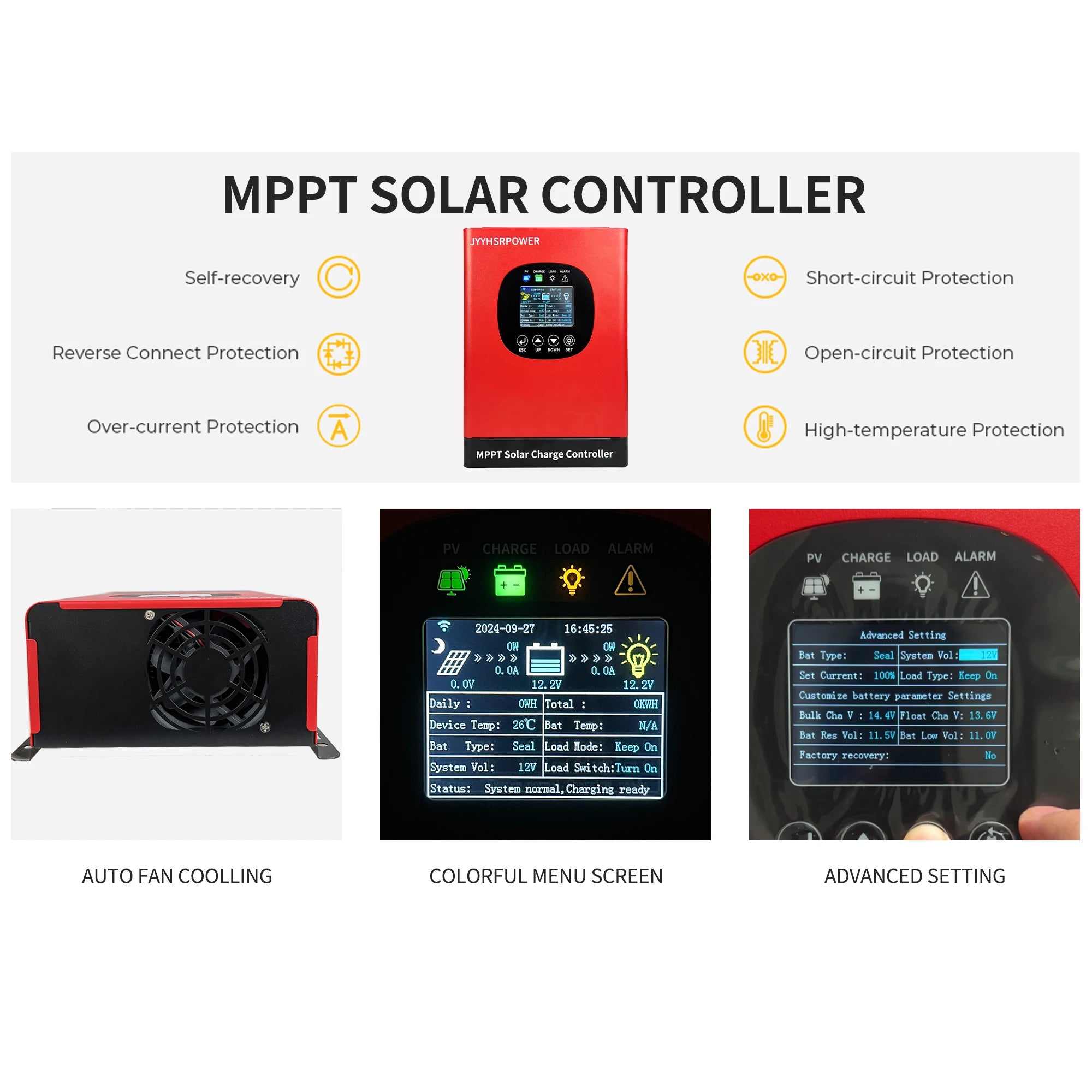

4.Robust & Reliable: Built with premium components for superior heat dissipation and protection against reverse polarity, over-current, over-temperature, and short circuits.

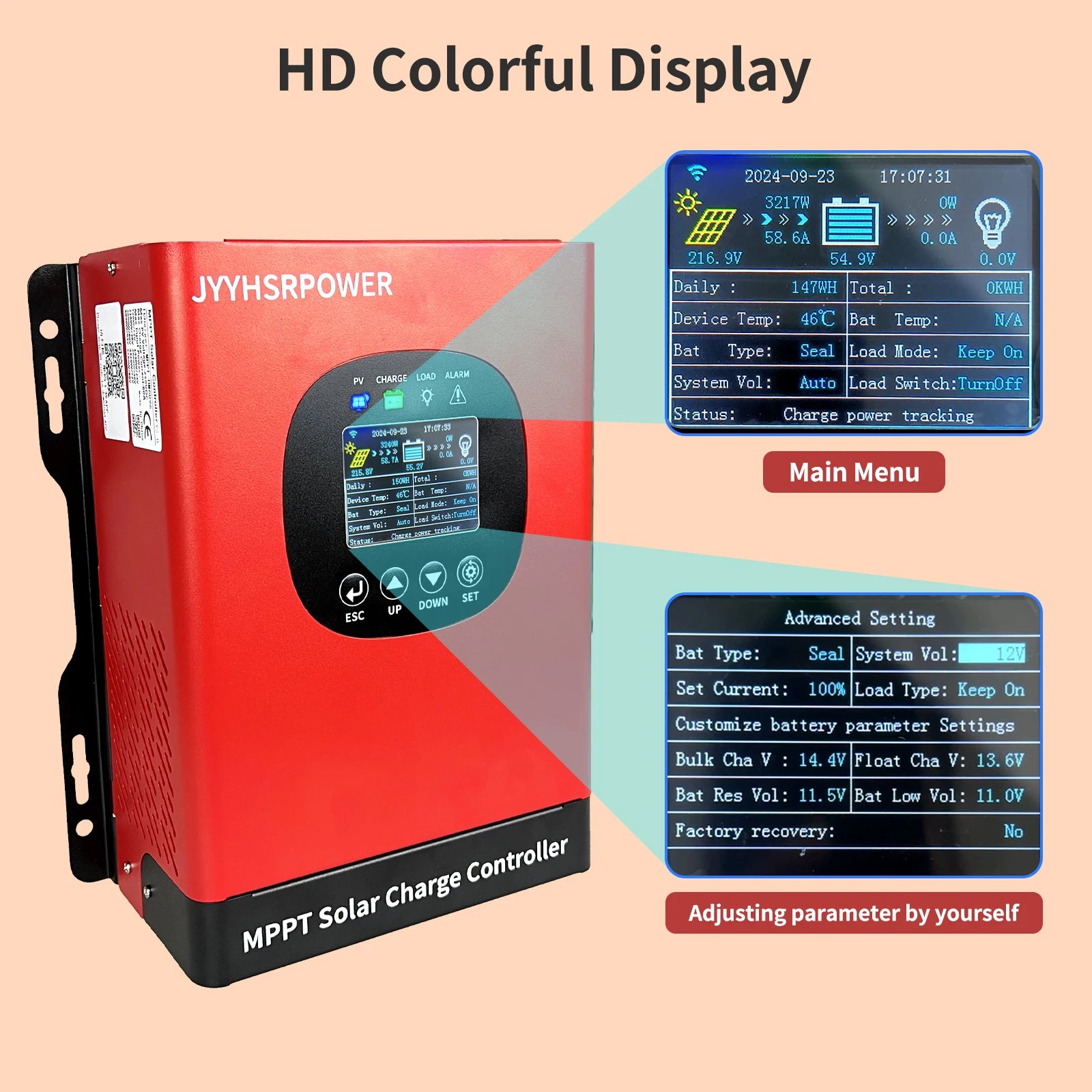

5.Intuitive Monitoring: Clear LCD display and built in Wi-Fi connectivity (on select models) provides real-time data on power, voltage, energy history, and system status right on your smartphone, and also can adjust parameter in the phone

6. Supporting 24-192V battery( 24/48/60/72/84/96/108/120/132/144/156/168/180/192V), you can using different battery type: Lithium, lifepo4, lead acid, GEL and other battery type, and you also can set battery parameter by yourself.

Ideal For:

· Off-grid solar systems (Cabins, RVs, Boats)

· Residential solar backup power

· Industrial & Telecommunication power systems

· Water pumping & remote monitoring applications

· Anyone seeking to maximize their solar ROI

Technical Excellence Made Simple:

We combine cutting-edge digital signal processing with a user-friendly design. Setup is straightforward, and our controller works tirelessly 24/7 to optimize your system's performance, giving you peace of mind and reliable, clean power.

Key Specifications:

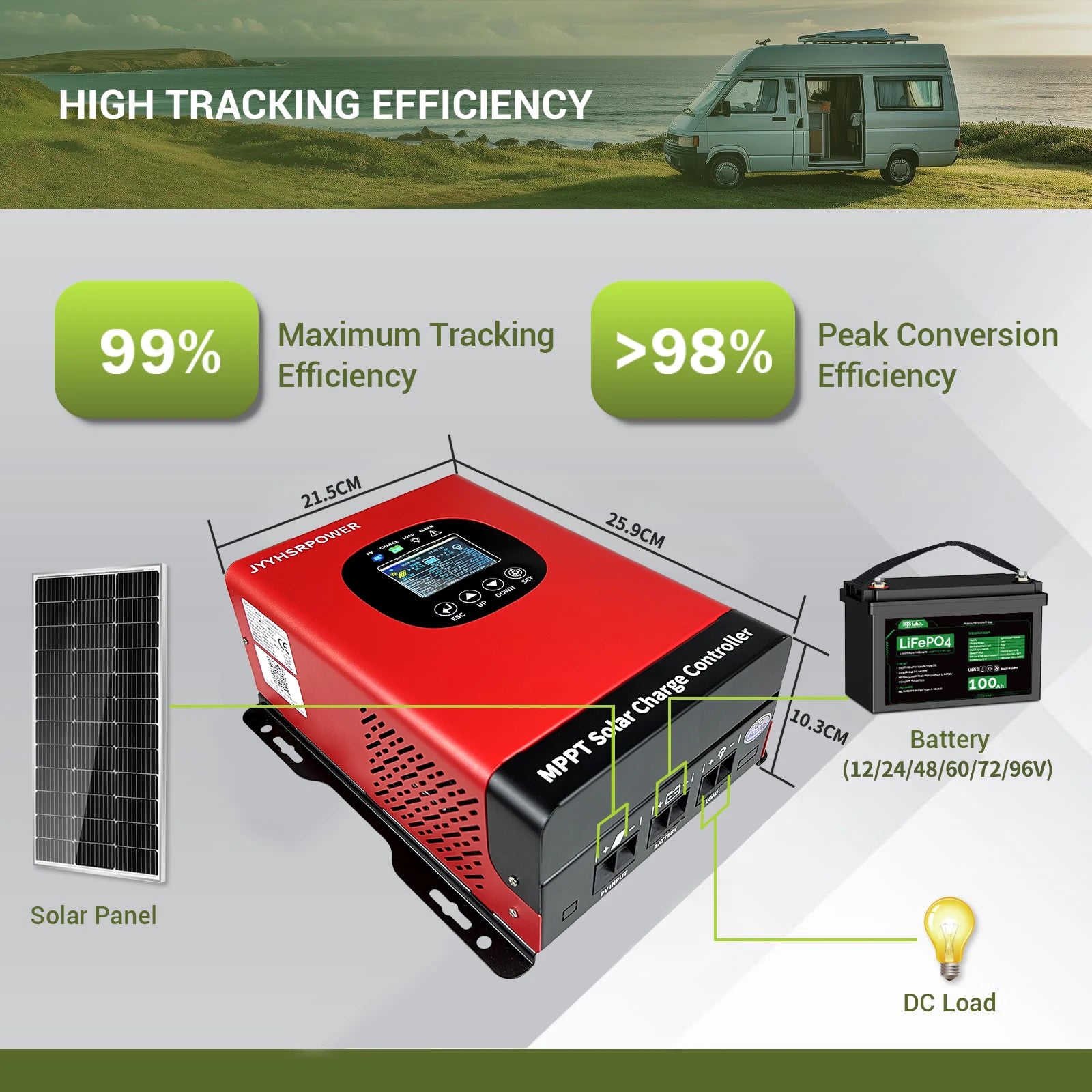

· MPPT Tracking Efficiency: > 99.5%

· Max. PV Input Voltage: 480V(VOC voltage)

· Charge Current Range: 60/100/120A

· Compatible Batteries: 24V/48V/60/72/84/96/108/120V/132/144/156/168/180/192V , Sealed, Flooded, Lithium (LiFePO4) and user battery(adjust parameter by yourself)

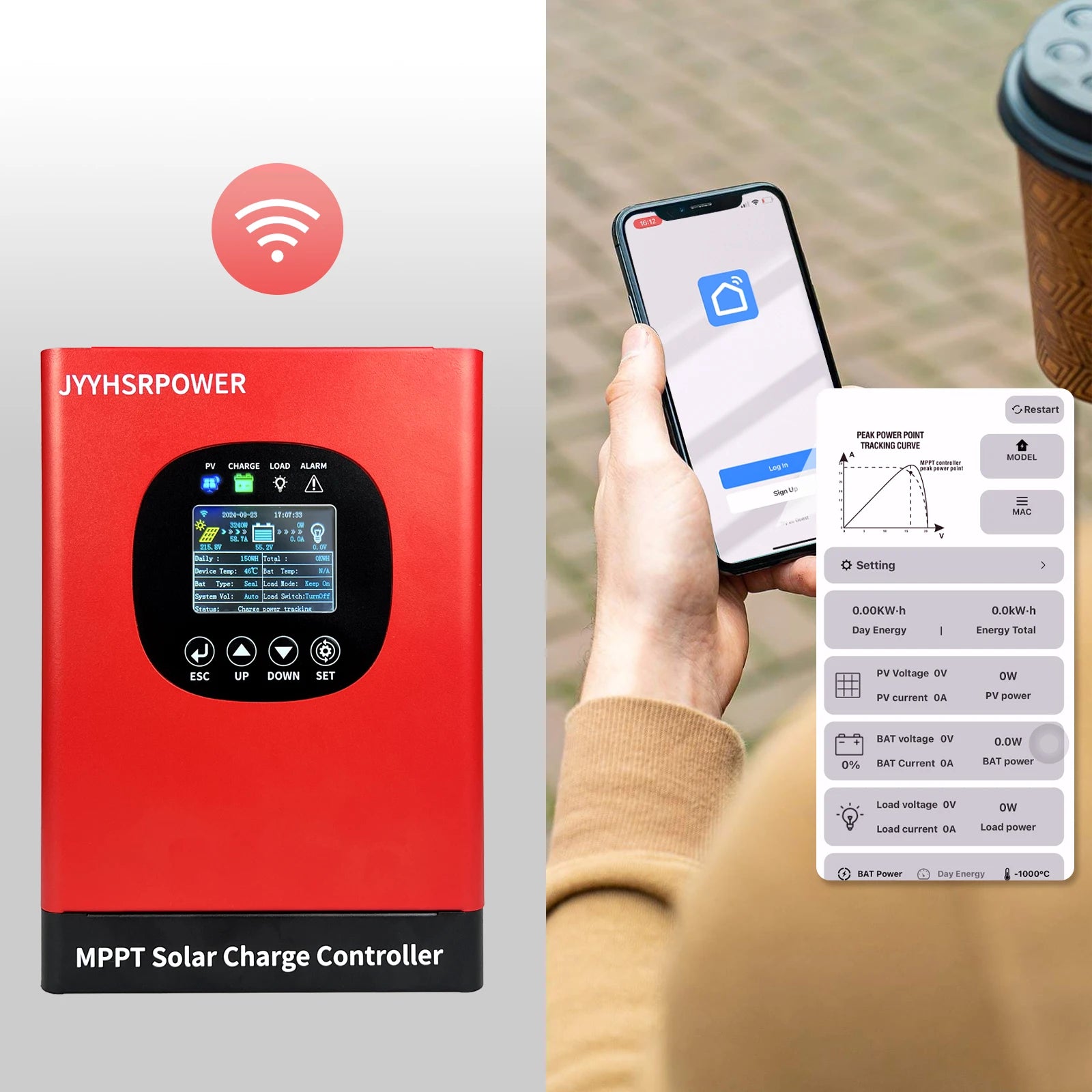

Whether built in WIFI: yes, controller has built in WIFI( Suppport IOS or Android System)

How to download WIFI APP? APP name: Tuya

· Operating Temperature: -35°C to +60°C

· Certifications: CE, RoHS, [Other relevant certifications]

Go Beyond Ordinary Solar Control.

Don't settle for less. Upgrade to intelligent energy management.

60A 100A 120A Parameter Table
