ZD421 printer Iron on name Label Tag Clothing care label barcode printer
ZD421 Printer Iron on Name Label Tag Clothing Care Label Barcode Printer
Sale price
€625,35
Regular price
€938,03
SPECIFICATIONS
Applicable Equipment: Label Printer
Brand Name: NO
Color: black
Feature: Compatible
Inking side: outside
Model Number: ZD421
Most ribbon: 110mm*74m
Place of Origin: Guangdong, China
Size: 40*300
Type: Printer Ribbon
Width: 12 mm
application: portable desktop use for personal or company
certification: ROHS
characteristic: Portable, table desktop easy for operation
material: plastic
suit substrates: coated paper, pvc pet synthetic label, garment label
Product
Product ZD421 printer Iron on name Label Tag Clothing care label barcode printer
There's main four types material printer ribbon use on barcode printer, divide into wax, wax resin, resin and wash resin.
Wax mostly suits for rough coated paper label material, wax resin suits for adhesive paper sticker and BOPP, but its anti-scratch is much better than normal wax ribbon; Resin suits for synthetic label material like pp, bopp pvc plastic, Polyester PET, synthetic paper ; another special ribbon type is wash resin suits for many kinds garment/ clothing wash care label with waterproof, washable and durable features after washed or in severe environment.
Wash ribbon is one type of durable material designed for printing on wash care labels that made of polyamide nylon taffeta, polyester fabrics satin ribbon, tyvek, iron on label, tpu and others types. Mainly used for garment, shoes, bag, present fields, with high washability and superior resistance to dry cleaning, sweat, heat and waterproof.

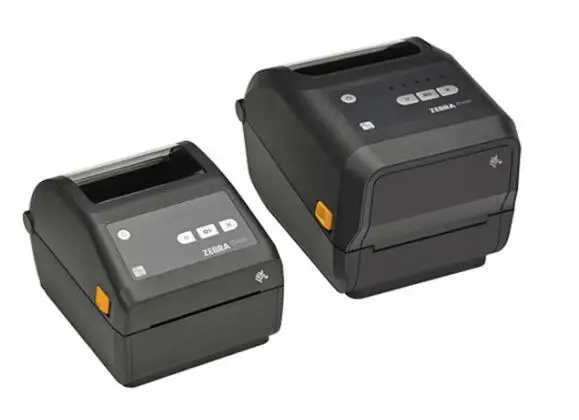

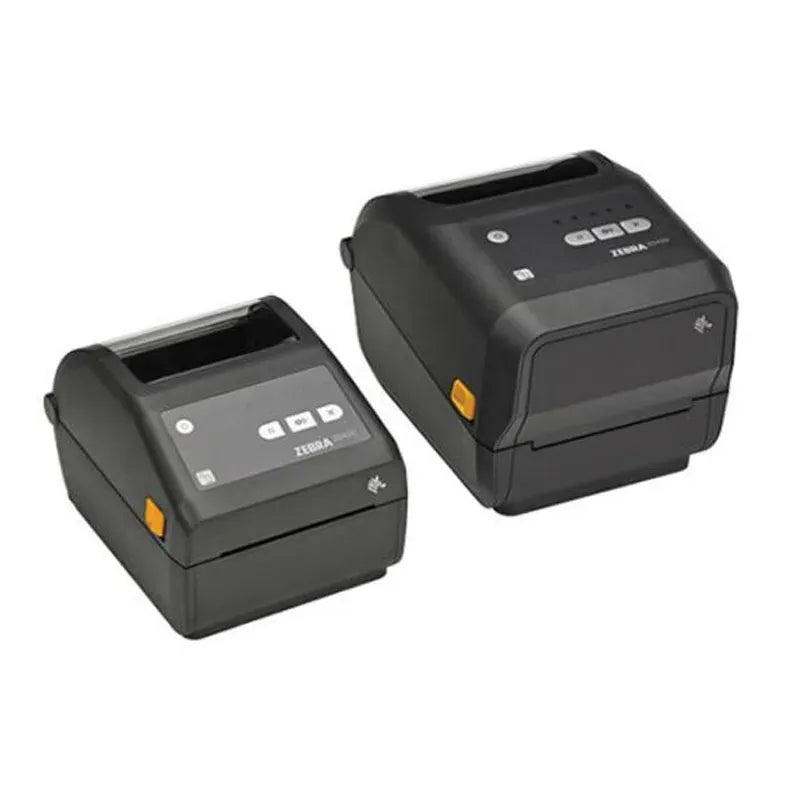

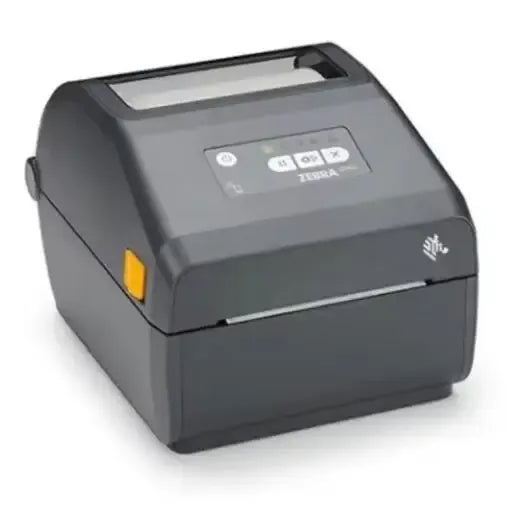

| Printer model | ZD421 |
| Printing method | Direct thermal, thermal transfer printing |
| Resolution | 203dpi, 300dpi |
| memory |
512Mb Flash;256 SDRAM, 64MB 64MB user available Non-volatile memory 8MB user available SDRAM |
| max print |
4.09 inch /104mm for 203DPI 4.27inch/ 108mm for 300DPI |
| max print speed |
6 inch/ 152mm /s 203dpi 4 inch/102mm 300dpi |
| Media sensor | Full width ,moveable reflective /black mark sensor, multi-position transmissive /gap sensor |
| Firmware | ZPL.II EPL 2, XML,PDF Direct |
| Ribbon , Media | |
| label length |
minimum: 0.25 inch/6.4mm Max: 39 inch/991mm |
| Media Width |
Direct thermal 0.585 in/15mm to 4.25 in/108mm thermal transfer 0.585 in/ 15mm to 4.41 112mm |
| max roll size |
max outer diameter :5 inch/127mm Core inner diameter: 0.5 inch(12.7mm) and 1 inch(25.4mm) standard, 1.5 inch, 2 inch, 3 inches. |
| media thickness | 0.003 inch (0.08mm)min, 0.0075in(0.19mm)max |
| media type | Roll-fed or fan-fold, diecut or continuous with or without black mark, tag stock, continous receipt paper, wristbands etc. |
| Ribbon outside | 2.6inch /66mm (300m),1.34 in/34mm(74m) |
| ribbon length |
roll: 984fts(300m) , 243 ft.(74m) Cartridge: 243 fts(74m) |
| ribbon ratio |
1:4 ribbon to media (300m) 1.1 ribbon to media (74m) |
| ribbon width |
roll: 1.33 in/33.8mm -4.3in/109.2mm cartridge: 4.3inch/109.2mm |
| Ribbon core |
300m 1 inch(25.4mm) 74m 0.5inch/12.7mm |
| Operating Characteristics | |
| Operatin Temp. |
40° to 105°F/ 4.4°- 41℃ |
| storage Temp. |
-40° to 140°/ -40° to 60℃ |
| Operating humidity |
10% -90% Non-condensing |
| storage humidity |
5% to 95% non-condensing |
Product Description
Product DescriptionFeature of printer consumables/ printer ribbon:
* Wash resin ribbon excellent with high washability and superior resistance to dry cleaning, sweat heat and water.
* High resolution suitable for printing standard and rotation barcode.
* Satisfy printing demands for different care label material, nylon taffeta, satin fabric.
* High sensitivity to ensure the great printing results.
*Anti-static back coating technics for print-head protection.
Detailed Images
Detailed Images
GC420d / gk420t
Foreign model called GC420d, China manufactured is gk420T of same characteristics.
203 dpi printer, with high printing speed of 127mm/ sec 5 inches speed, the max printing width 104mm, ribbon suits for 110mm*74m, 1/2 inch core.
This is a common option for quite large customers group.
Metallic silver wash resin
Customize for any size, 1 inch core or 1/2 inch.
Ribbon die-cutting to any dimension.
printing images for color ribbon
It has a widely application for clothing/ garment care label printing, for shoes, bag and apparel.
Printer ribbon
ribbon and label consumabels for barcode printer used, to customize
kinds of labels use on different industry.
barcode printer
brands:all barcode printer.
Barcode labels

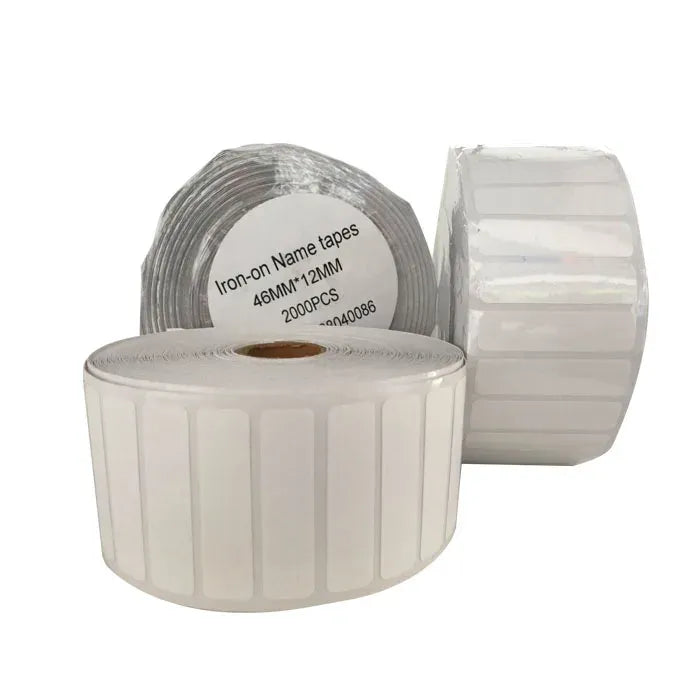

Wash resin ribbon especially applied in garment care label, like for nylon taffeta satin fabric, iron on name label etc.

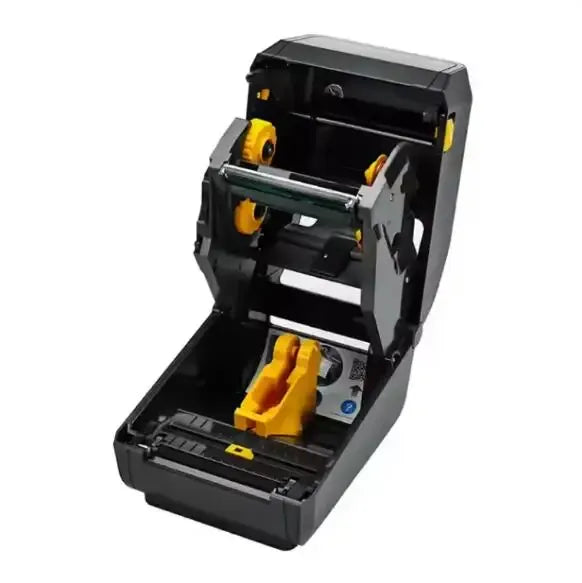

How to use it:
1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned.
2. Be sure that the inking side of ribbon will be contact with labels.
3. Ribbon material must match with label used, otherwise it can't show perfect printing images.
4. Ribbon must be a little bit wider than care labels for the protection of print head.
You might also be interested in:
various color ink ribbon suits for different types label material printing.
Ceritificate:
Packing & Delivery
Packing & DeliveryBusniess term:
EXW, C&F, FOB CIF are acceptable.
Package:
ribbon size: 130mm*300m Carton size: 43*40*40 (CM) 60 rolls/ CTN 27.5KG
ribbon size: 110mm*300m carton size: 44*41*41 (CM) 80 rolls/ CTN 31KG
ribbon size: 110mm*300m carton size: 60*43*40 (CM) 100 rolls/ CTN 39KG
Delivery:
By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you.
By sea: Please provide the specific seaport near your address.
By air: Please offer me the international custom airport for me to confirm.
Lead time:
Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
