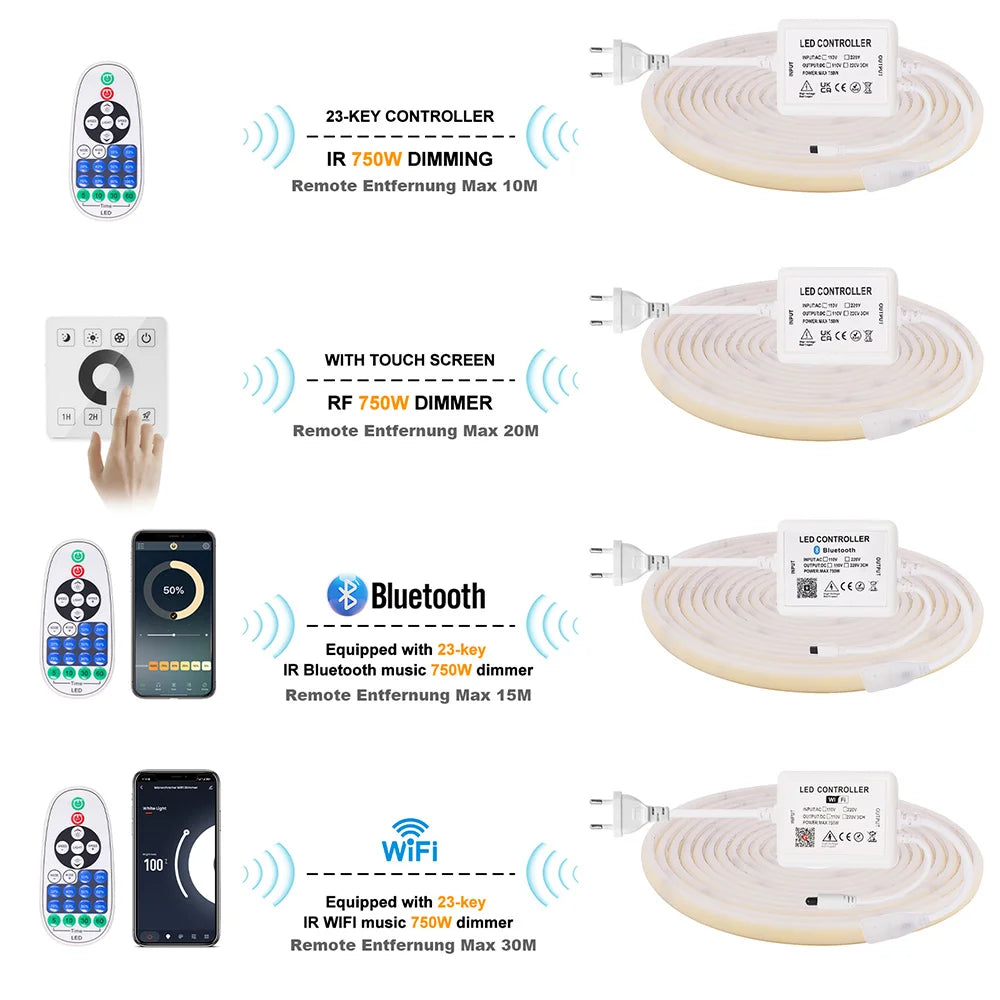

*23keys IR remote powered by: 2*AAA Batteries (not included)

*IR remote distance: about 8-10m

*Bluetooth remote distance: about 8-15m

*Wifi remote distance: about 15-30m

*RF remote distance: about 10-20m

*RA (CRI): >90

*Operation temperature: -20℃-+60℃

*Storage temperature: -20℃-+60℃

*Dimmable: YES

*Life Span: > 50000 hours

Wifi Remote Kit Features:

Voice Control:Smart dimmer works with Amazon Alexa and Google home. With our smart light dimmer, you can turn on/off your light with your voice, just say the commands and enjoy the great convenience of voice control.

APP & Remote Control:Get our wifi dimmers installed in your house, now with one tap of your smart phone app, you can switch the lights on or off. Please make sure your phone access to 2.4 GHz Wi-Fi network(Not support 5.0 GHz Wi-Fi).

Group & Share Control:By creating a group for all outdoor smart dimmer, you can control combine devices in one command. Device sharing feature allows you to share the control with your family. Let you and your family enjoy the proper atmosphere in different occasions by adjusting the brightness at any time.

1%- 100% Dimming:Smart dimmer with 1-100% adjustable brightness, which can control and adjust the light brightness of any dimmable string lights or patio lights. Customizes lighting output and creates the perfect ambiance for any occasion.

Timer & Schedule Your Life:By creating customized schedule, your lights will turn off (or turn on) automatically at the time you set on your phone. Support sunrise and sunset setting. Decrease your electrical bill.

WIFI APP Control Instructions:

1. Scan the QR code of the product to download the APP and register the account.

2. Connect the controller and LED light strip, and switch on the power supply.

3. Open the Tuya Smart App and click Add Device (reset the device, switch the power on and off 3 times, (Power on, power off, power on, power off, power on), enter the flash state and complete the network distribution operation within 3 minutes). Select Lighting → Light Strip → Confirm the indicator is in flash, enter WiFi password → Click Next → Connection is added successfully → Click Finish to complete the product network distribution.

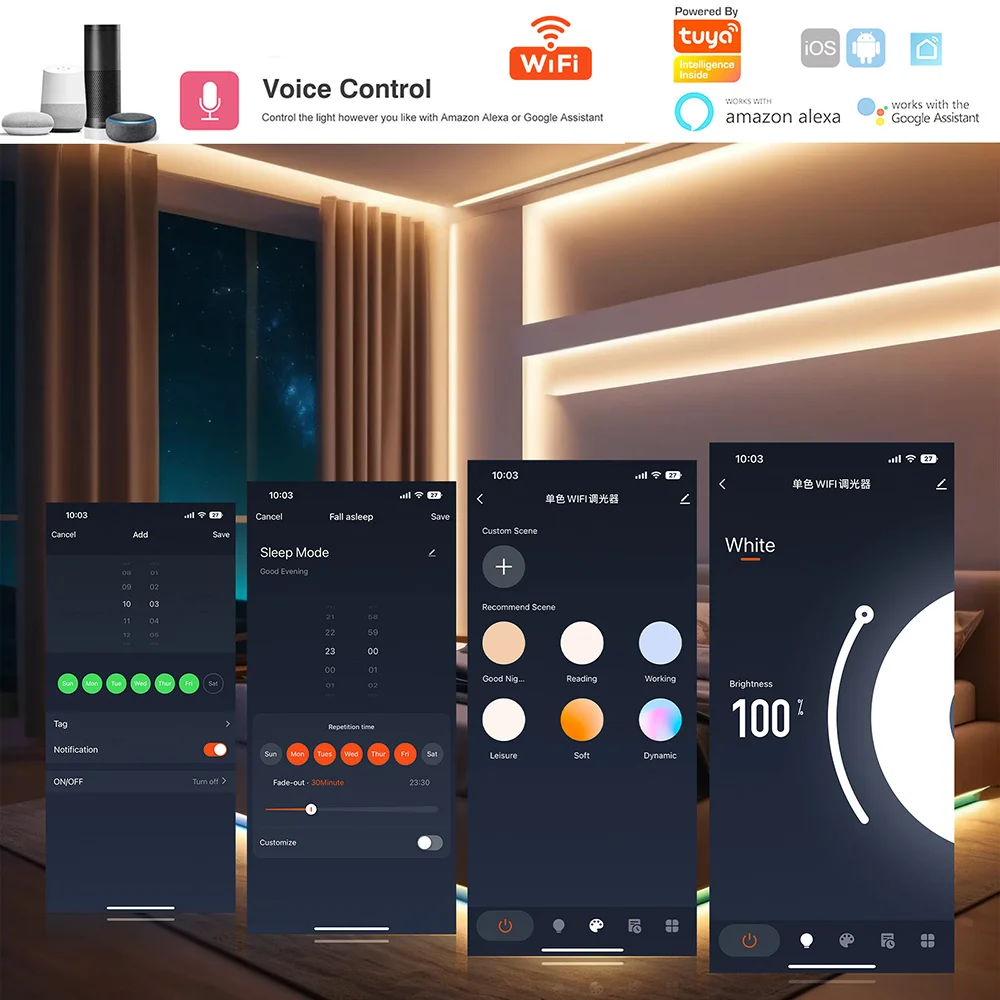

4. Enter the APP main interface in five parts: on/off, white light brightness adjustment interface, scene, plan, and Settings.

① Enter the white color ring interface to adjust the light brightness.

② When entering the scene interface, you can freely select different scenes. The scene can be edited and set, such as the light mode can be set to static, jump, breath, etc., and the scene can be freely named.

③ Enter the schedule interface (you can select the timing type, sleep and wake up)

④Enter the setting interface for timing (lights off, lights on, lights on and dimming, lights on and setting scene), countdown (delayed lights off), power response.

Bluetooth Remote Kit Features:

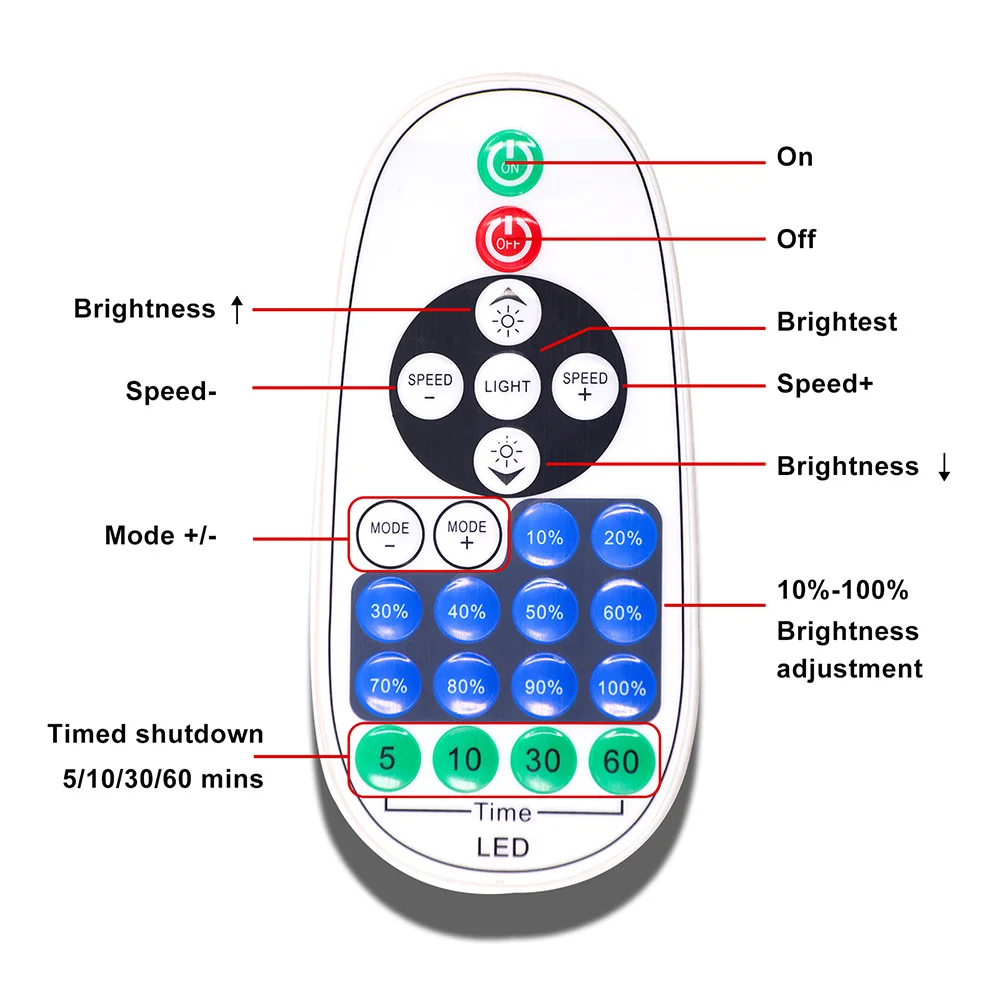

1. Bluetooth Remote Set uses 23 key remote control and mobile phone Bluetooth APP control, remote control can adjust brightness and speed, can set delay shutdown, power off memory function, no need to set frequently.

2. Bluetooth Remote Set is suitable for all kinds of high voltage LED single color light strip, module, neon strip, luminous words and so on.

3. Bluetooth Remote Set comes with a microphone, the light can follow the change of music rhythm when the music mode.

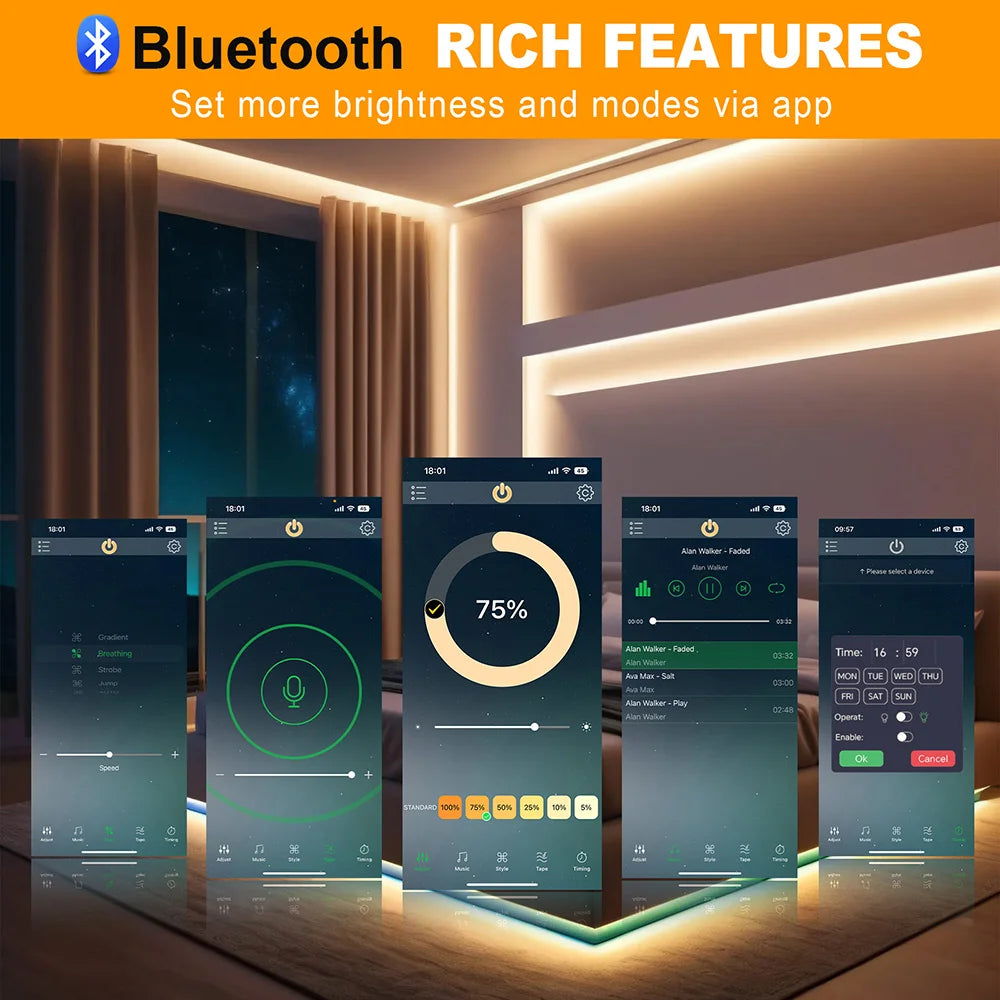

Bluetooth APP Control Instructions:

1. Scan the QR code of the product to download and install the APP. APP name: Trick Light, applicable to mobile phone operating system: IOS version 6.0 or Android version 4.3 or above, software language: English, automatic language recognition according to the operating system.

2. Open Trick Light APP of mobile phone, connect LED Light bar and dimmer correctly, power on, software will automatically scan Bluetooth device, and automatically connect the device. Use APP or remote control to make the controller work as required.

3. When installing the infrared controller, the remote receiver should be installed in the position without obstacles to avoid remote control failure.

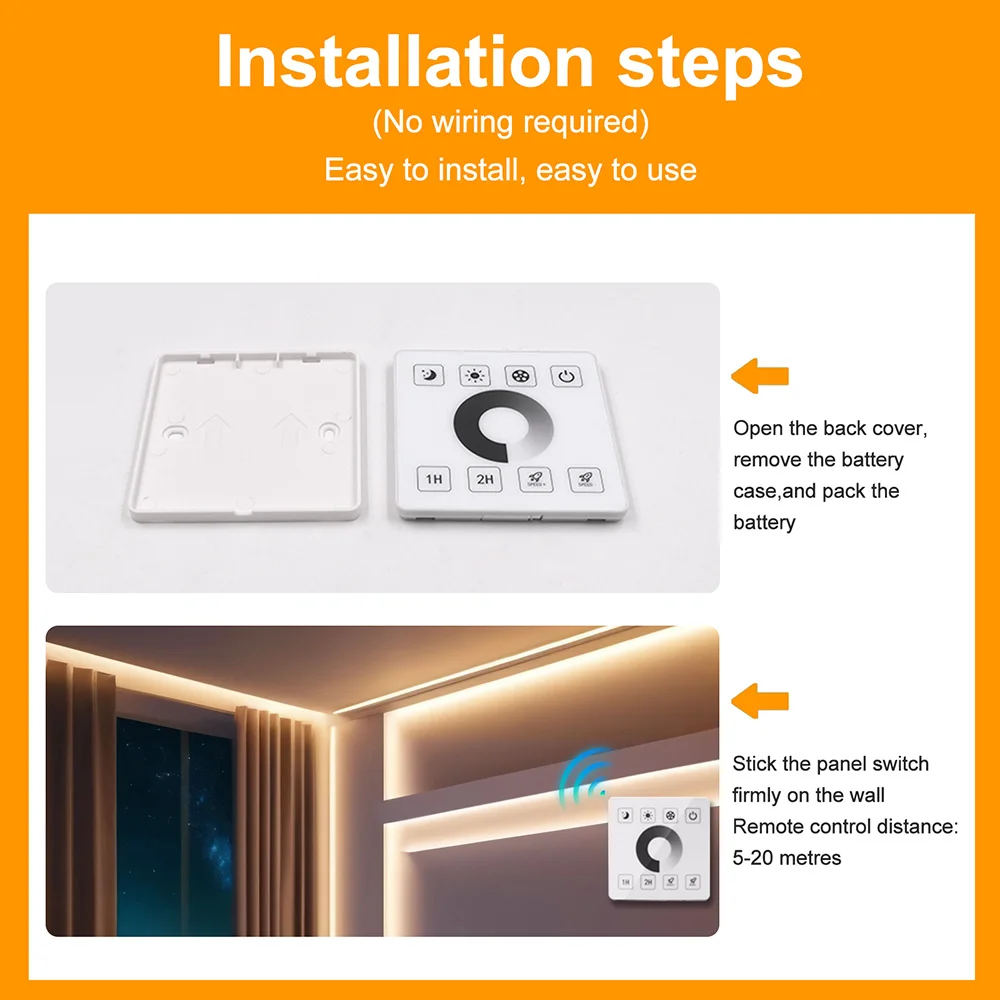

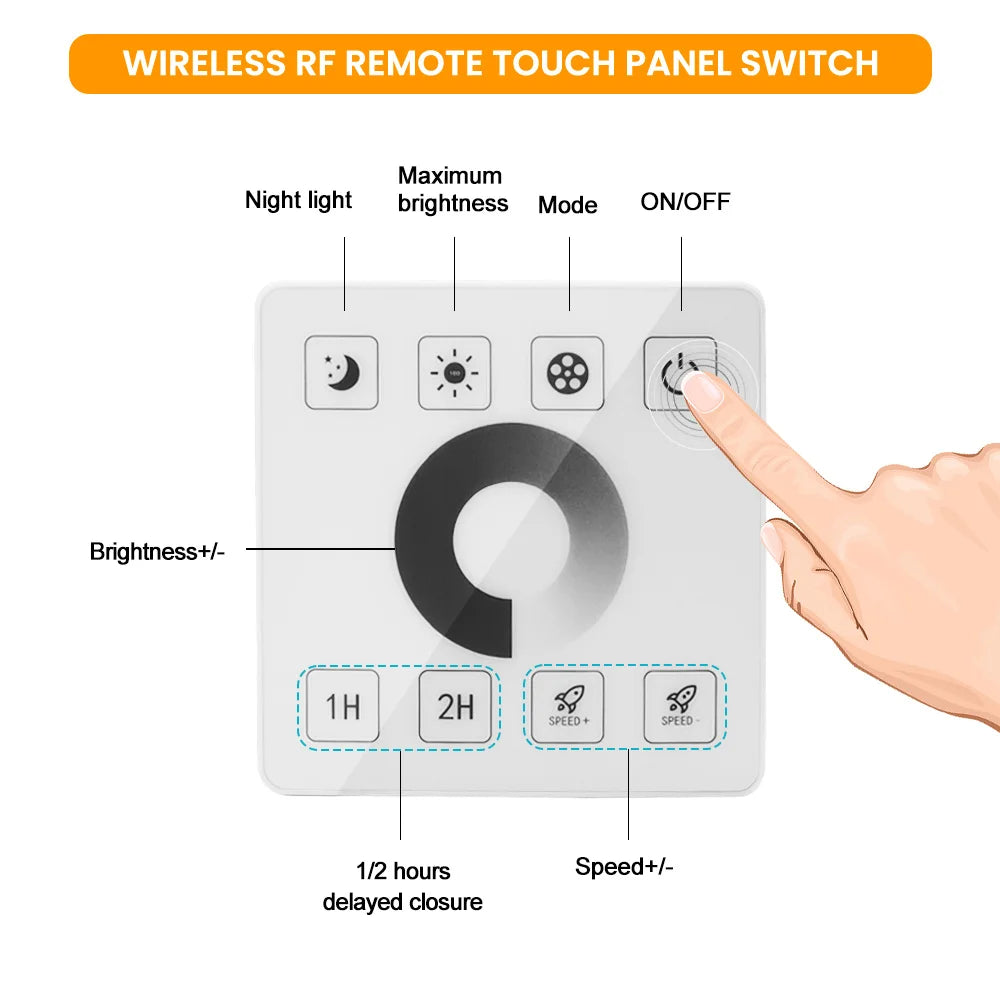

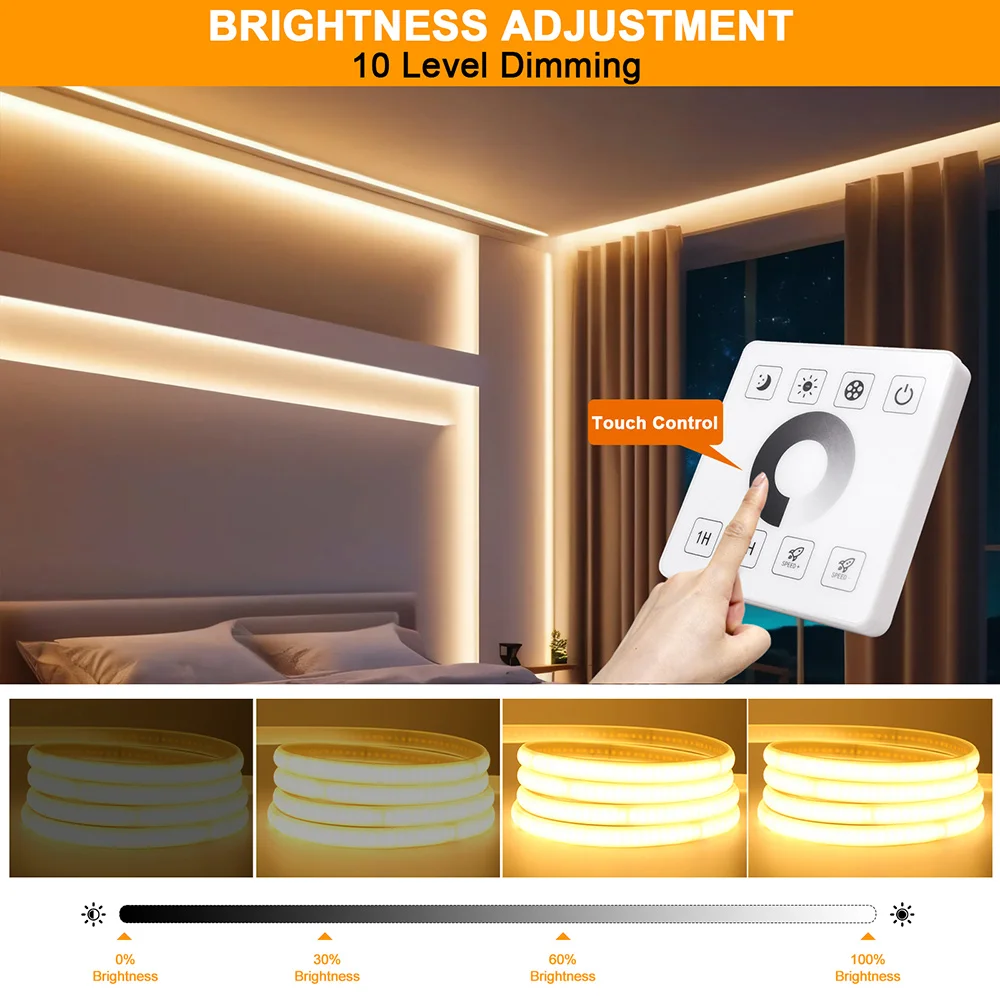

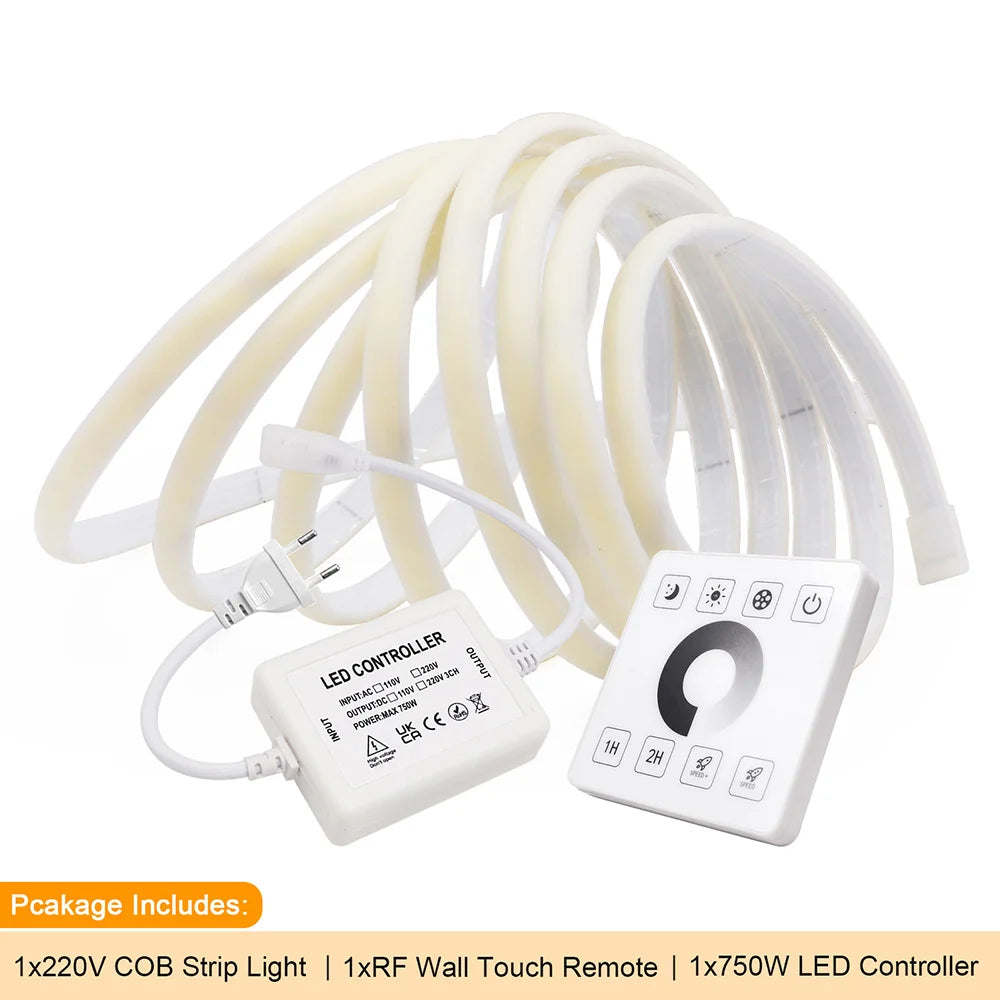

Wall Touch Panel Remote Instructions:

Brightness up/down: stepless dimming.

Speed plus or minus: 10 levels.

Description of product code matching and code clearing:

Code matching: keep press the Night light button within 5 seconds after the controller is powered on, and the light flashes slowly for 3 times.

Code clearing: keep press the Maximum brightness key within 5 seconds after the controller is powered on, and the light flashes quickly for 3 times.

About Wall Touch Panel Remote:

Dear customer,

We understand that you are facing some issues with our product's touch panel COB, which is causing the automatic dimming or automatic shutdown problems. We would like to provide you with a troubleshooting guide to help you resolve this issue.

To pair the panel remote control and the controller, please follow these steps:

1. Turn off the power to the dimming unit.

2. Please wait for a few seconds and then turn on the power again.

Immediately after turning on the power, press and hold the power button for 3 to 5 seconds. If the light strip flashes three times, it means that the pairing has been successful.

3. Press the power button as soon as possible after turning on the power (not too late). If the pairing is successful, the light strip will flash three times. (If it has been successfully paired before, it will not flash.)

In addition, we would like to provide you with a reference video that demonstrates the troubleshooting process. You can view it here: https://v.youku.com/v_show/id_XNjE2MTk1MzE0NA==.html

Please follow the instructions in the video carefully and if you encounter any further issues, please feel free to contact us for assistance.

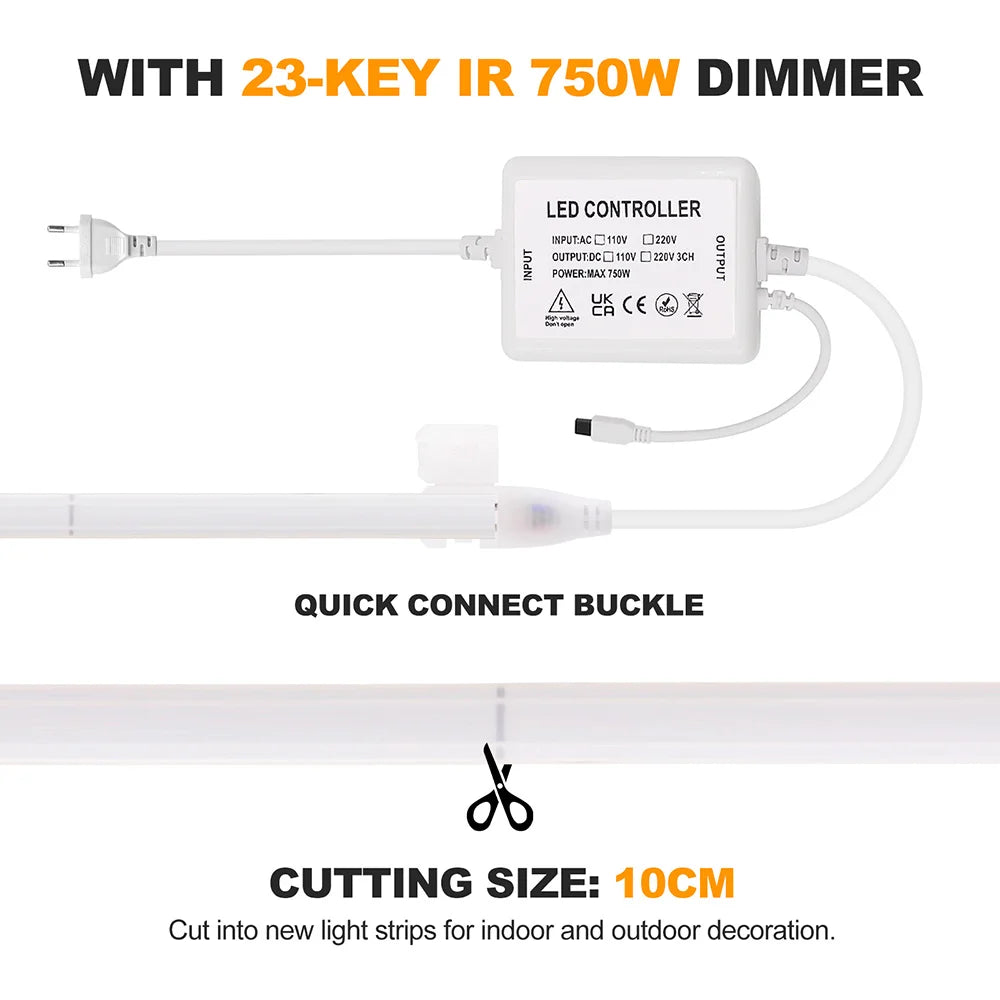

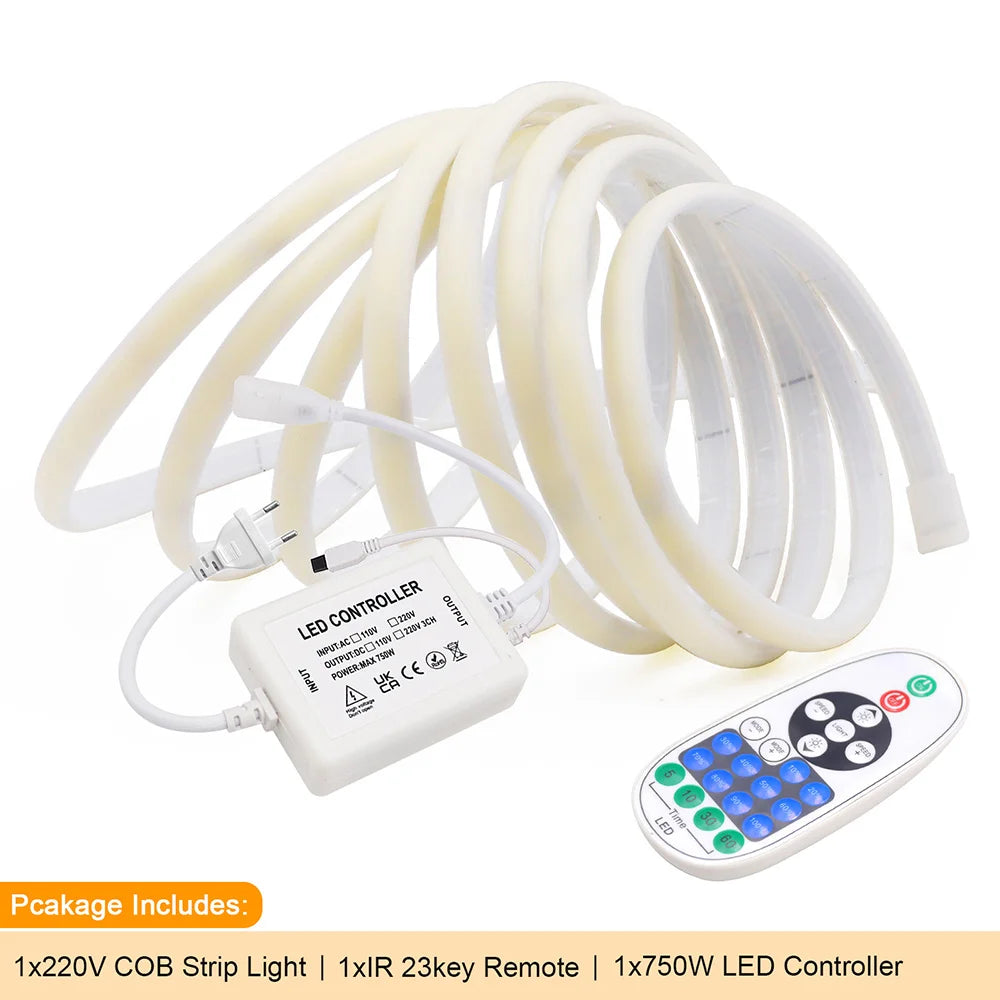

23key IR  Remote Kit:

Bluetooth(Blueteeth)  23key Remote Kit:

Package Includes:
