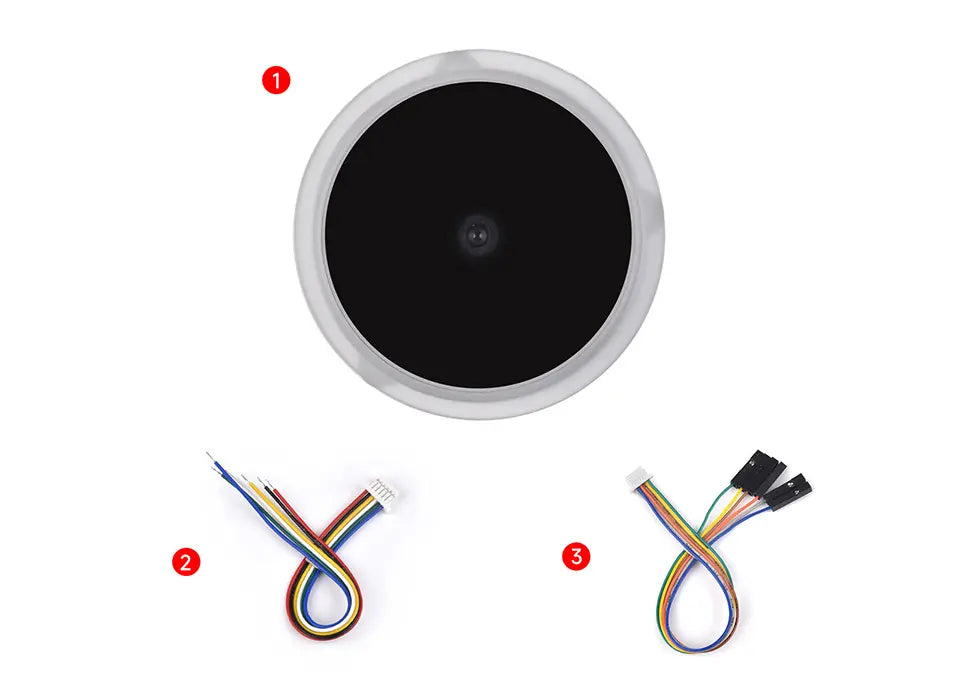

PACKAGE CONTENT

Weight: 0.004 kg

  1. Barcode Scanner Module (D) x1

  2. 6PIN squid cable without header x1

  3. 6PIN squid cable x1

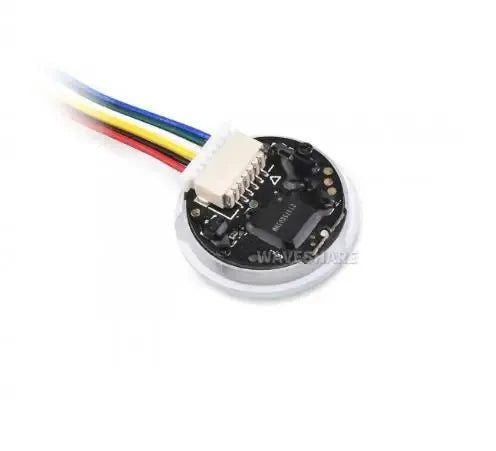

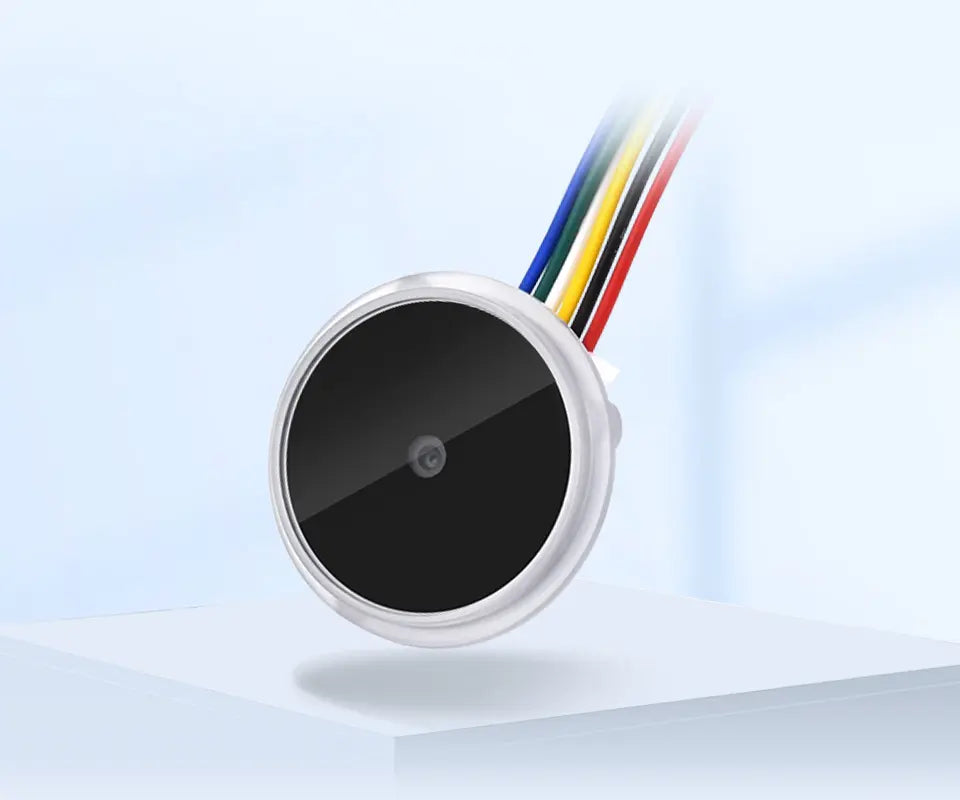

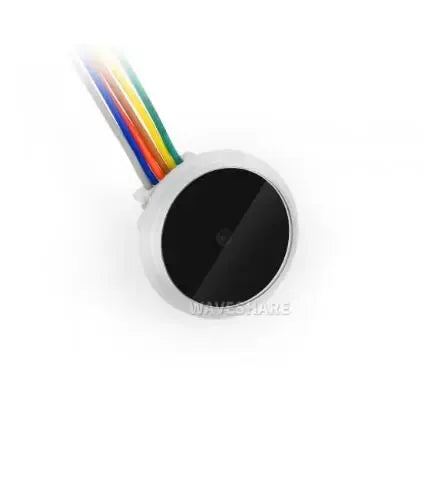

Round 2D Codes Scanner Module, Barcode/QR Code Reader, With LED Indicator, Small Size, Easy To Integrate
2D Codes Scanner Module

1D/2D Codes Recognition | Small Size | Screen Scanning



The Barcode Scanner Module (D) is a round 2D barcode scanner module with LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices.


Specifications

RESOLUTION

640 × 480

SCAN ANGELS

horizontal 70°, vertical 55°, roll 360°

SCAN MODE

Sensing, Continuous

ACCURACY

1D code ≥5mil
2D code ≥10mil

COMMUNICATION INTERFACE

UART port (9600 8N1 by default)

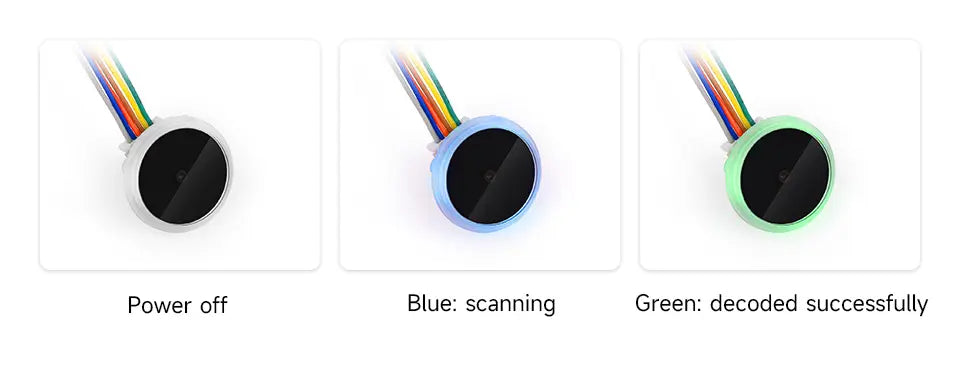

LED INDICATOR

Blue: scanning
Green: decoded successfully

POWER SUPPLY

3.3V

CURRENT

120mA

PROTECTION

ESD PROTECTION

contact discharge 6 kV, air discharge ±12KV

IP PROTECTION

IP54 (front side)

TEMPERATURE

OPERATING

-30 ~ +70°C

STORAGE

-40 ~ +80°C

WORKING HUMIDITY

5%RH ~ 95%RH (non-condensing)

Decoding Capability

CODE TYPE

BARCODE

DEFAULT READABLE

DEFAULT DISABLE

2D

QR Code

√


DataMatrix

√


PDF417

√


1D

EAN-13

√


EAN-8

√


UPC-A

√


UPC-E

√


Codabar

√


Code 128

√


Code 93

√


Code 39

√


Code 11


√

Interleaved 2 of 5


√

Industrial 2 of 5


√

Matrix 2 of 5


√

CS Databar(RSS)


√

MSI-Plessey


√

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

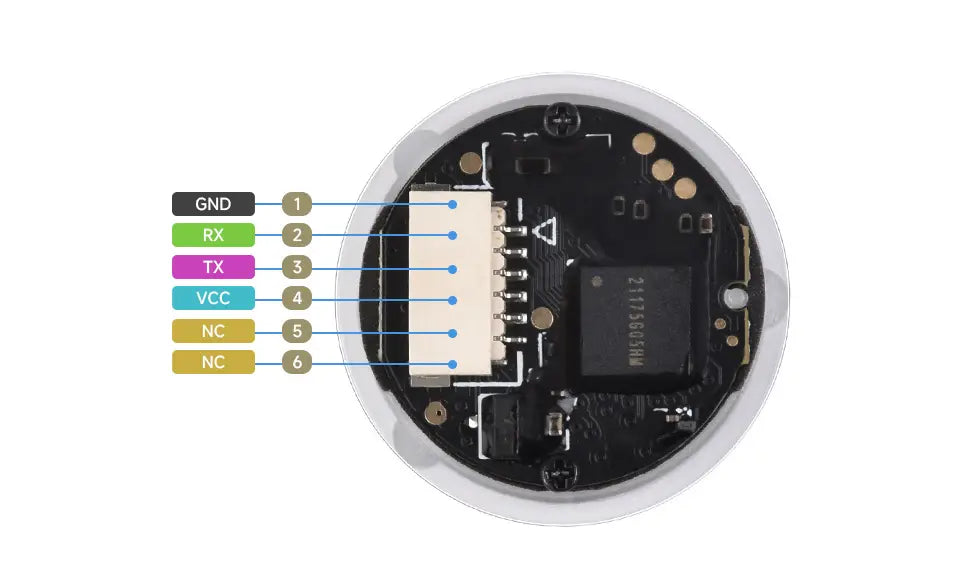

Pin Description

PIN

INPUT/OUTPUT

DEFINITION

DESCRIPTION

PIN1

Ground

GND

-

PIN2

Input

RX

Module TTL receive

PIN3

Output

TX

Module TTL transmit

PIN4

Power

VCC

3.3V power supply

PIN5

-

NC

Reserved

PIN6

-

NC

Reserved

LED Indicator

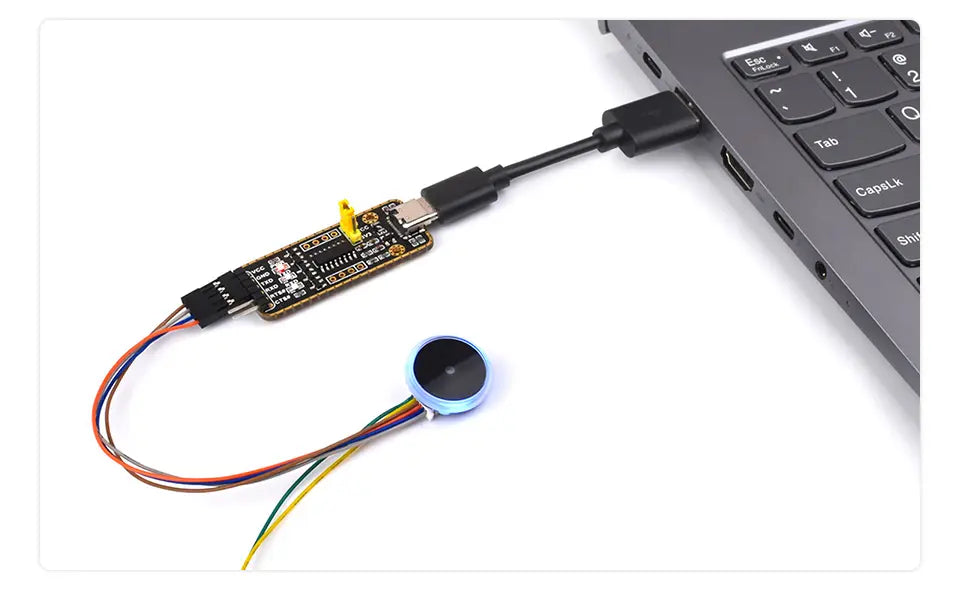

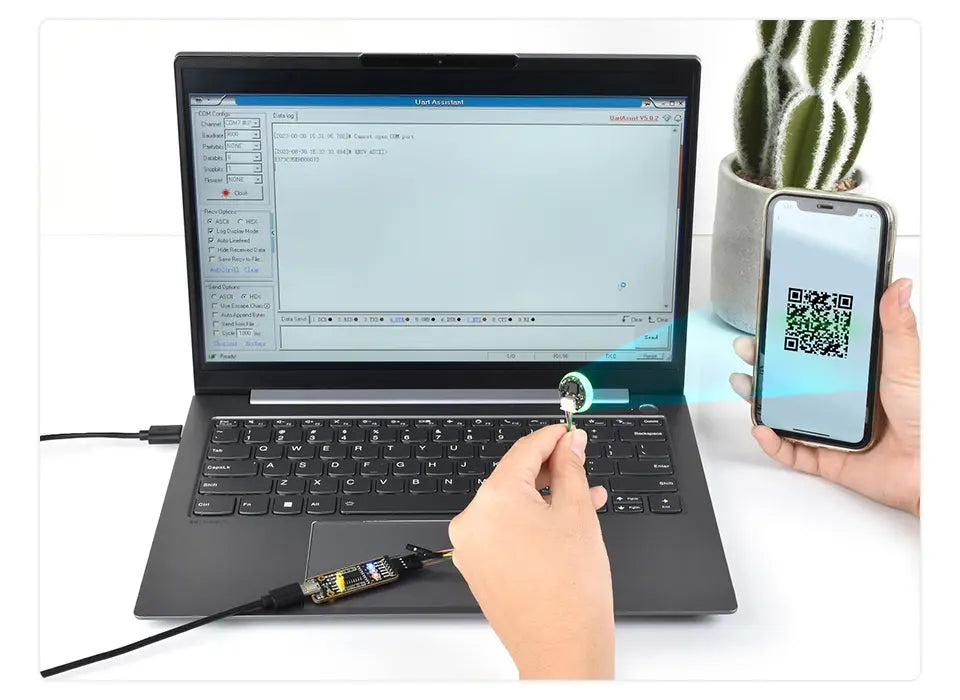

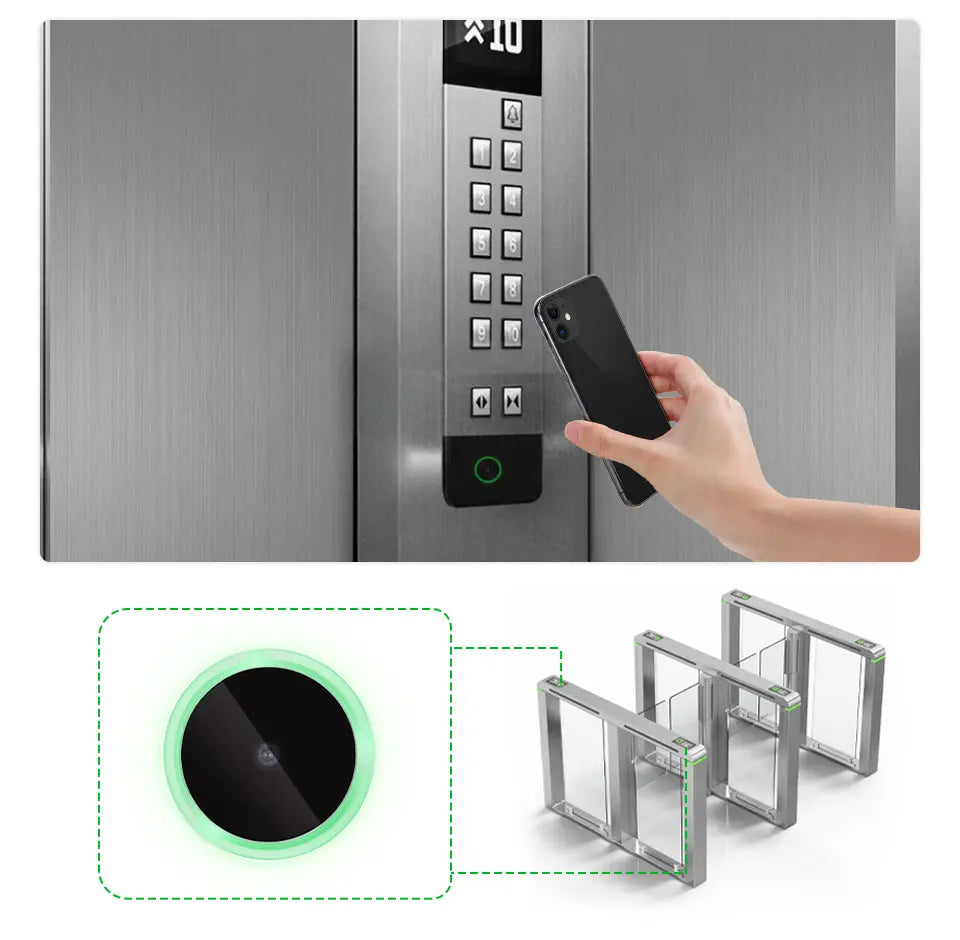

Application Example


* for reference only, please refer to the Package Content for the detailed part list


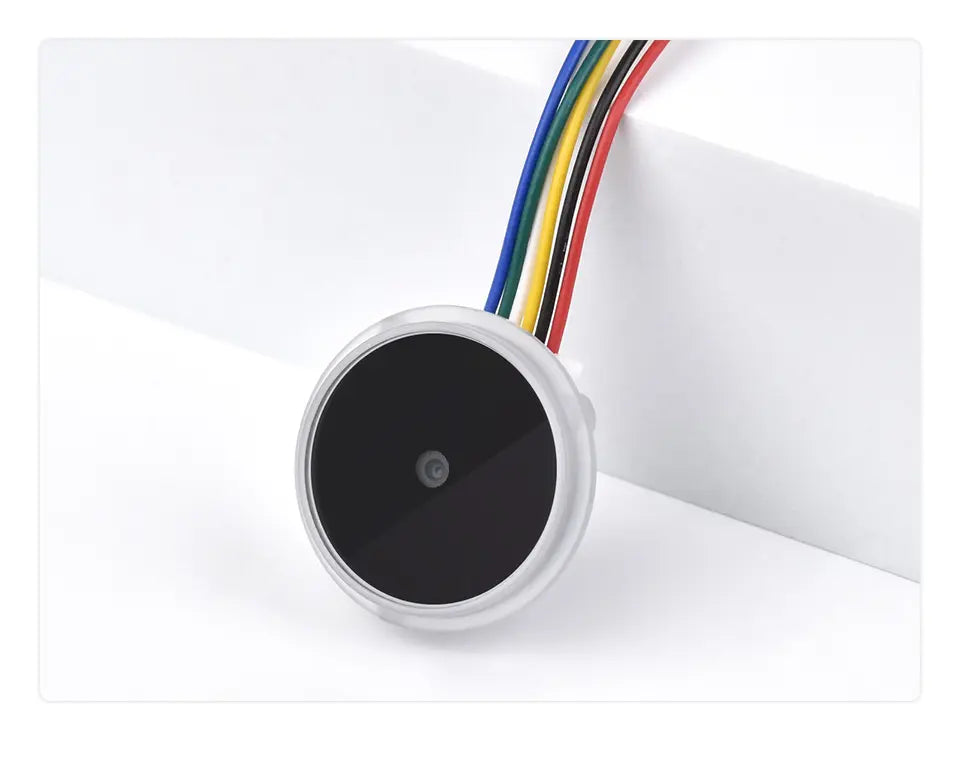

Product Show

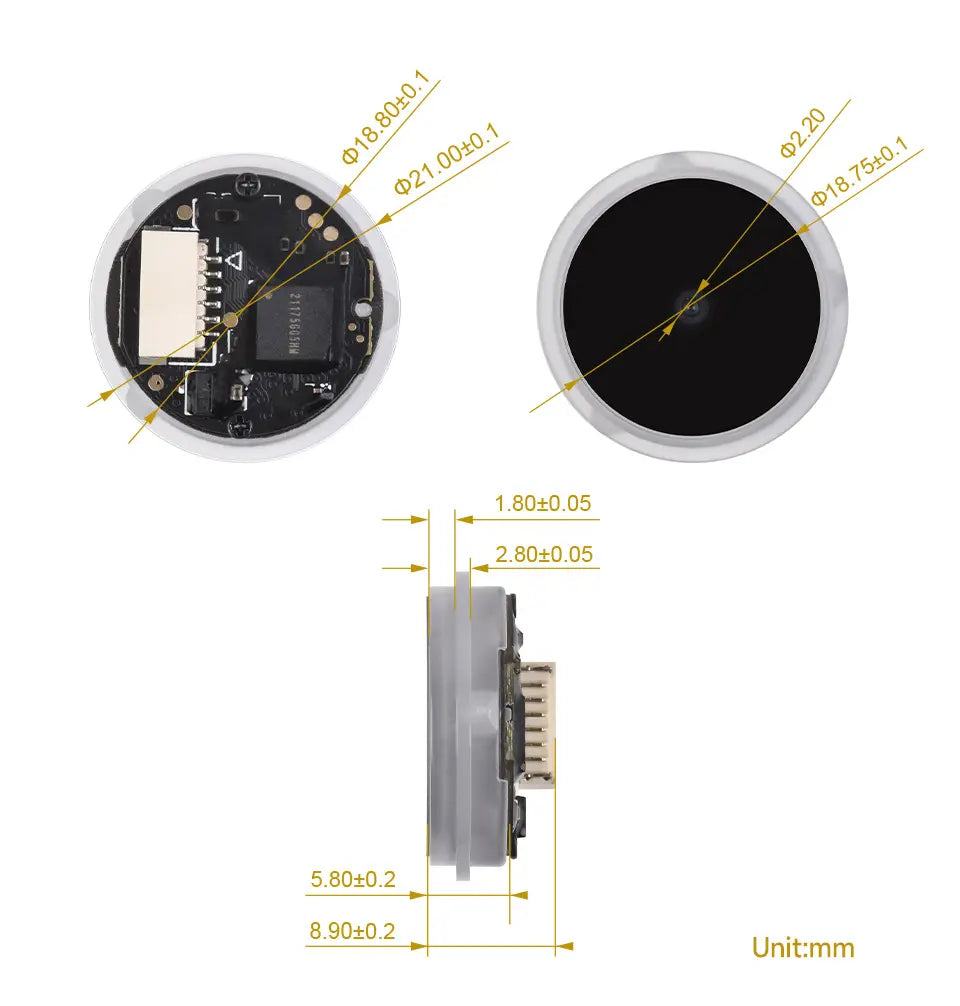

Outline Dimensions
