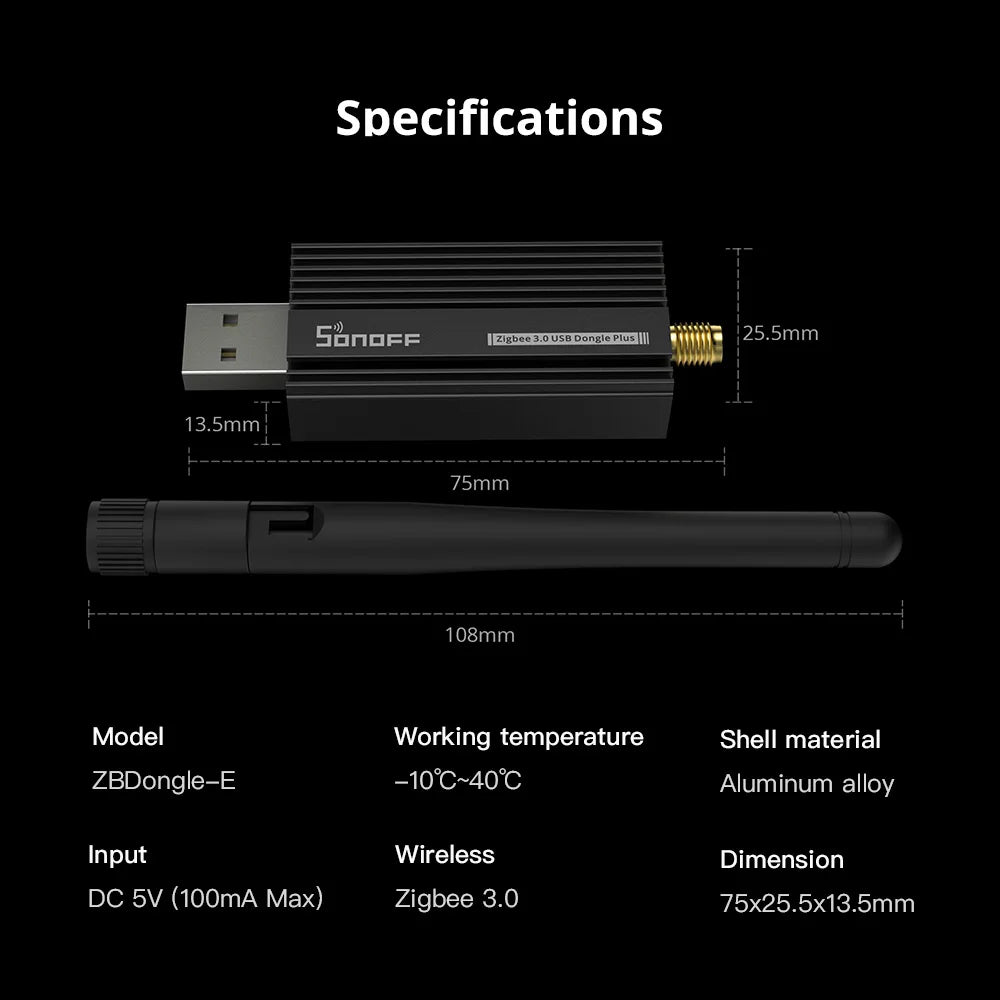

SPECIFICATIONS

Brand Name: SONOFF

Certification: CE,FCC

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: ZBDongle-E

Origin: Mainland China

semi_Choice: yes

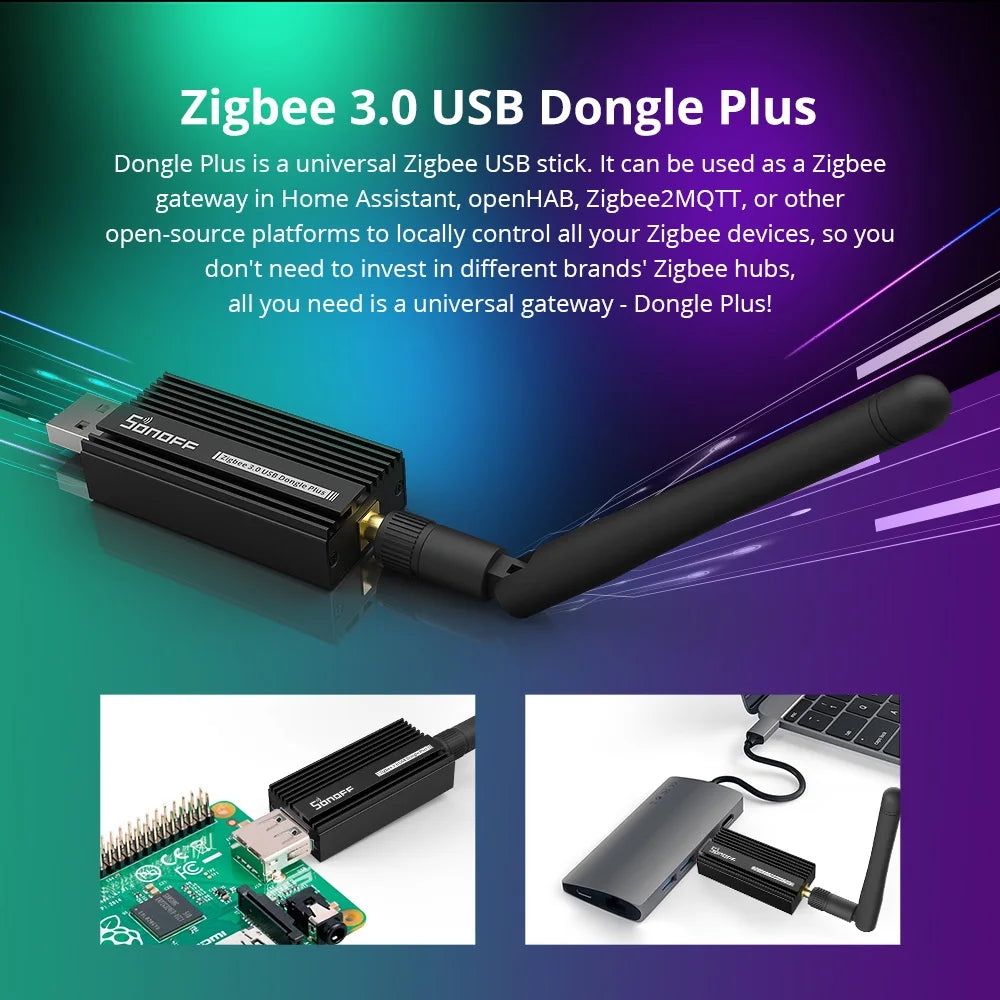

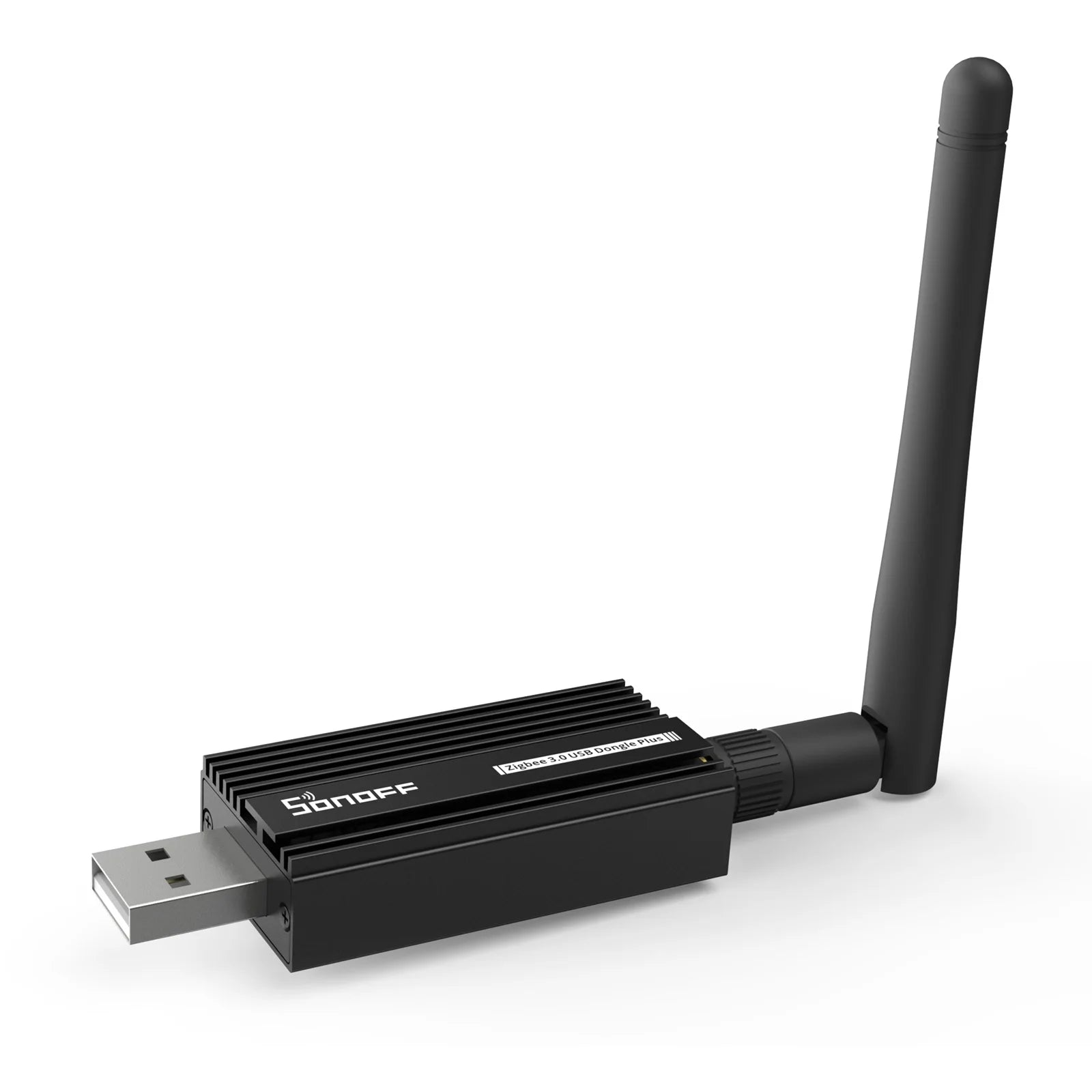

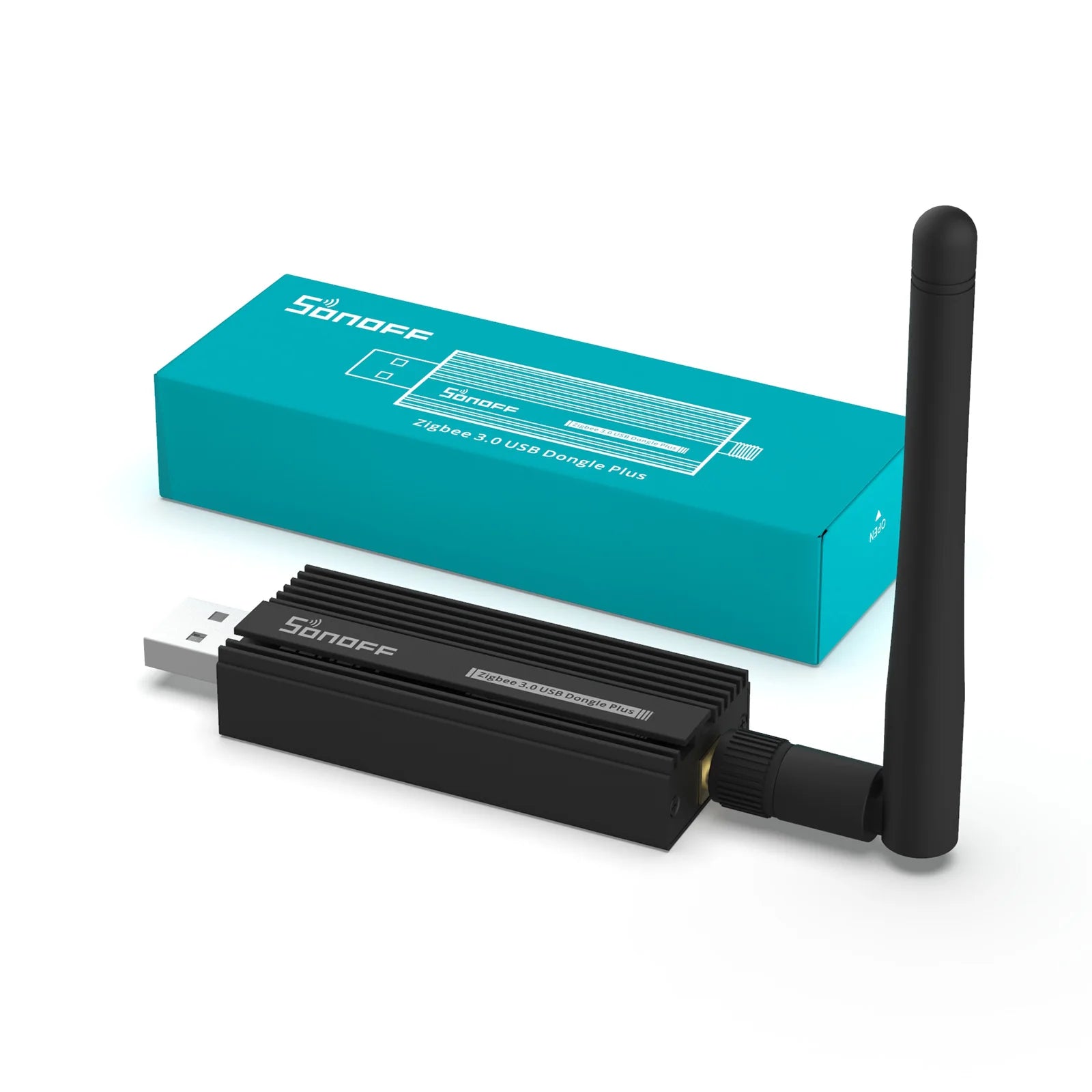

SONOFF ZBDongle-E is a universal Zigbee USB stick. It can be used as a Zigbee gateway in Home Assistant, openHAB, Zigbee2MQTT, or other open-source platforms to locally control all your Zigbee devices, so you don't need to invest in different brands' Zigbee hubs, all you need is a universal gateway - ZBDongle-E!

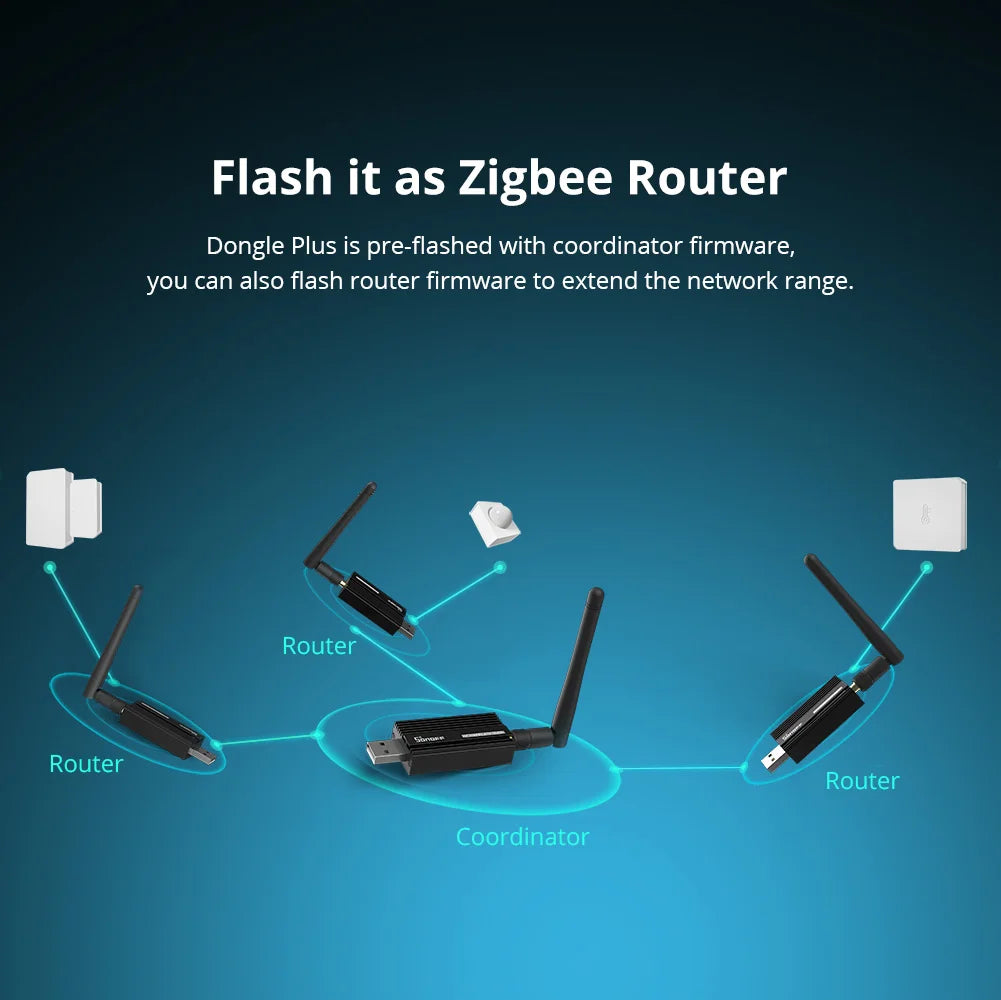

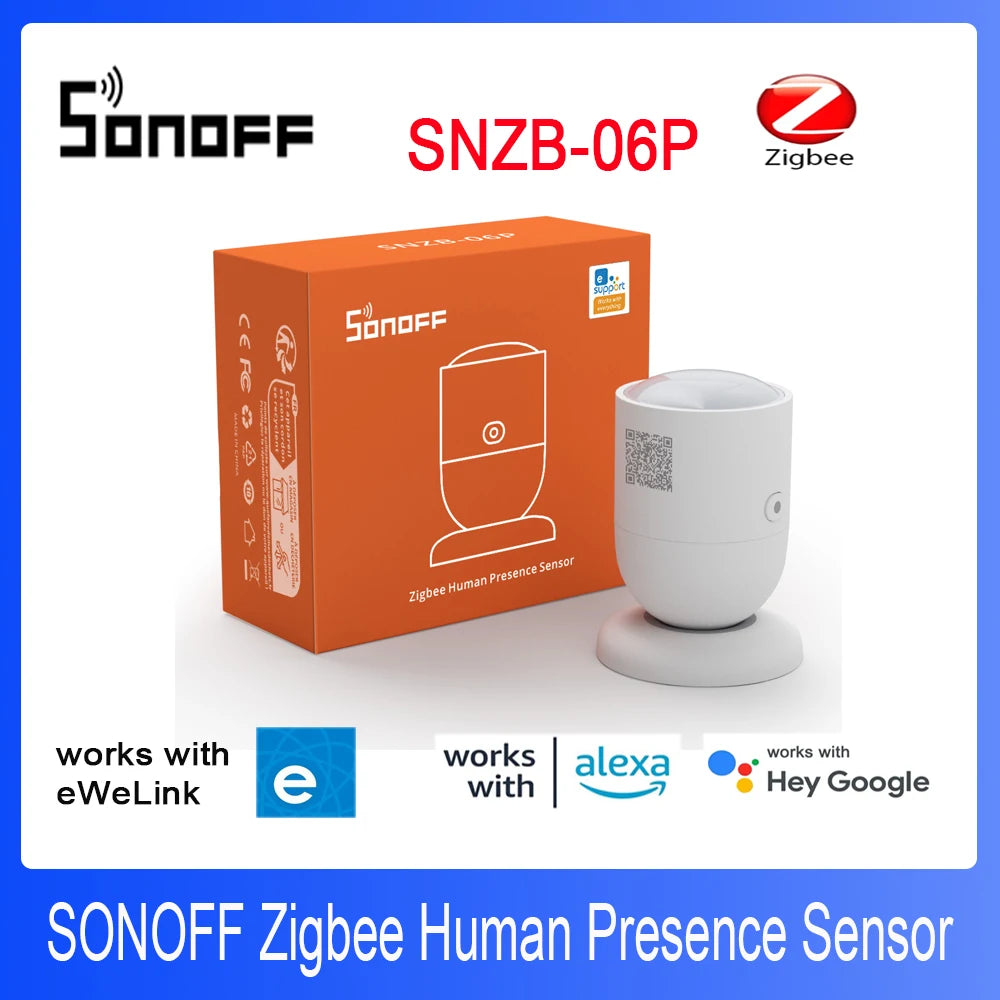

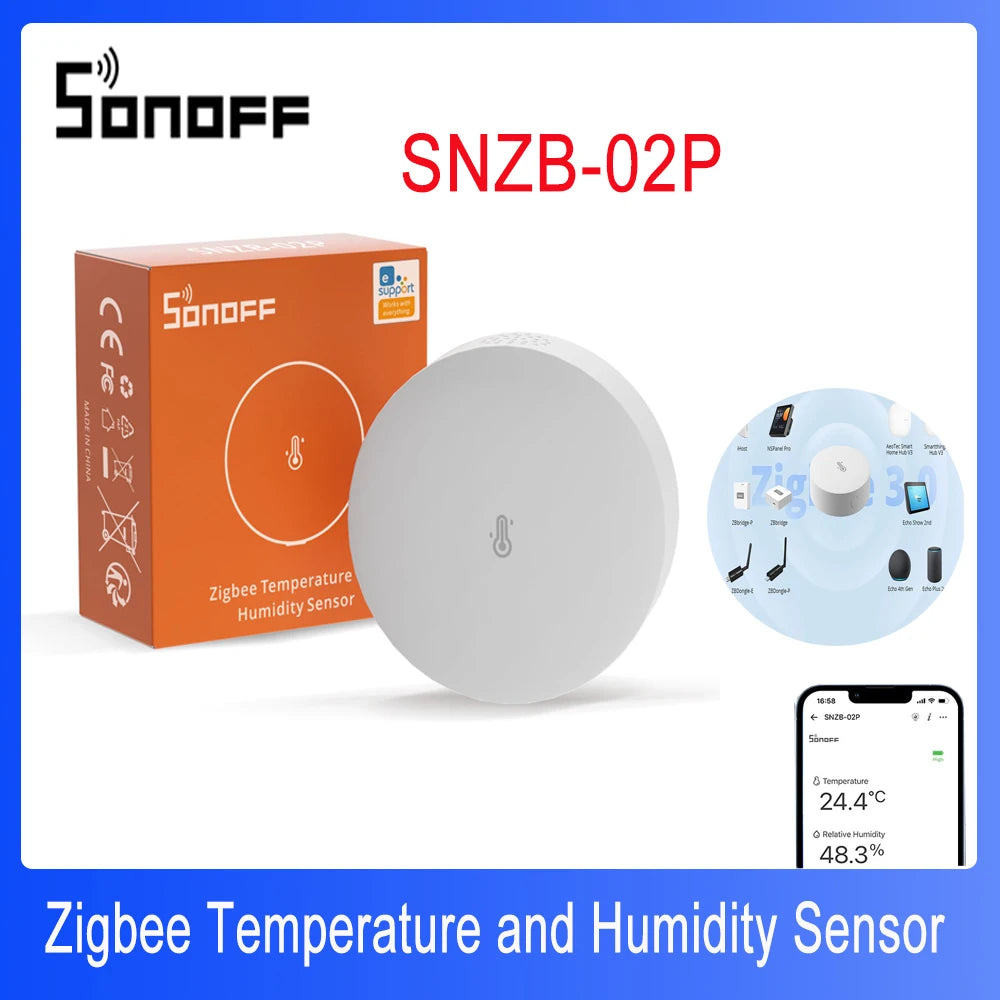

The dongle plus has a wide range of supported devices, such as ZBMINI R2,ZBMINI-L2, SNZB-01P, SNZB-02P, TRVZB, SNZB-06P, S26R2ZB, SNZB-02D,SNZB-03P,SNZB-04P,SNZB-05P,ZBMicro. Dongle Plus is pre-flashed with coordinator firmware, you can also flash router firmware to extend the network range.

Dongle Plus support a variety of common systems, like Linux, Ubuntu, Raspbian, Windows, macOS (Windows and macOS require corresponding driver installation).

Raspberry Pi (Linux) is recommended, if you use Windows or macOS, you need to install Driver first.

The official firmware supports 21 direct children by default and up to 40 children. You can modify the relevant configuration to support up to 100 children.

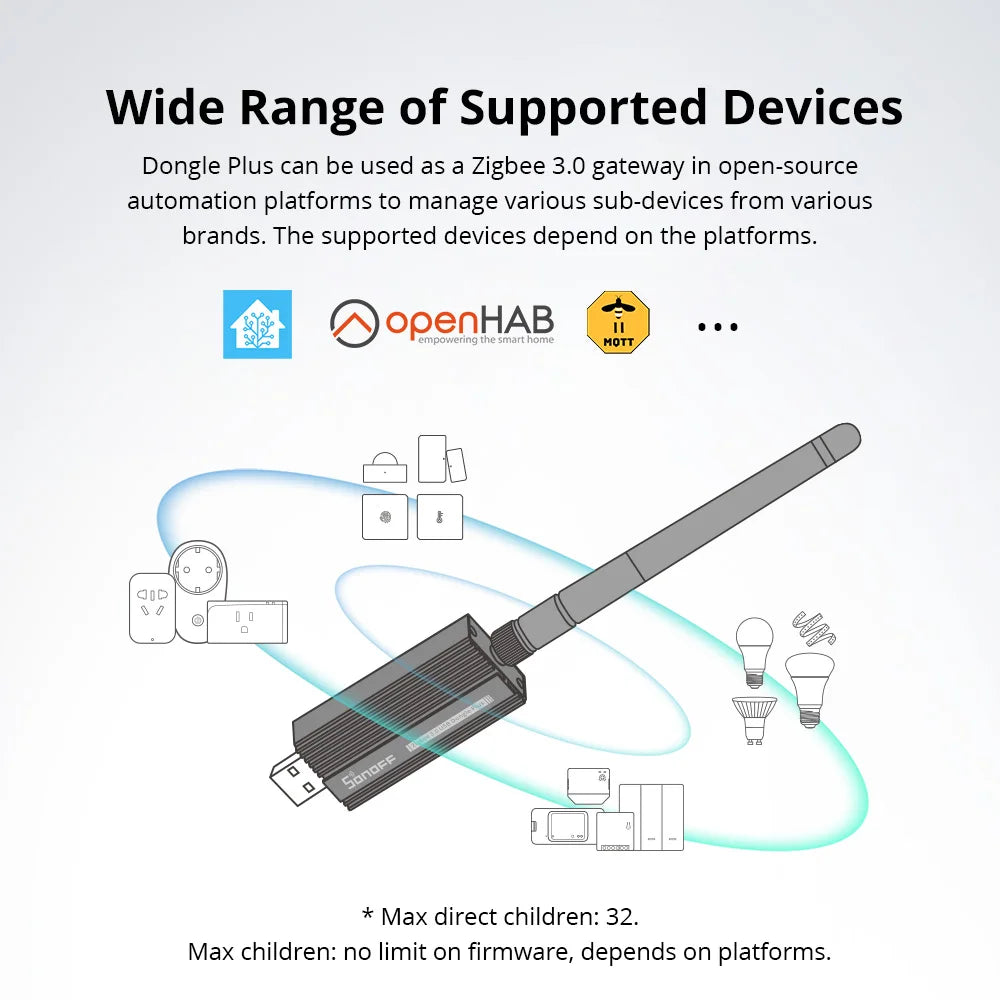

Wide Range of Supported Devices

Dongle can be used as a Zigbee 3.0 gateway in open-source automation platforms to manage various sub-devices from various brands or flash router firmware to extend the network range.

* The official firmware supports 21 direct children by default and up to 40 children. You can modify the relevant configuration to support up to 100 children.

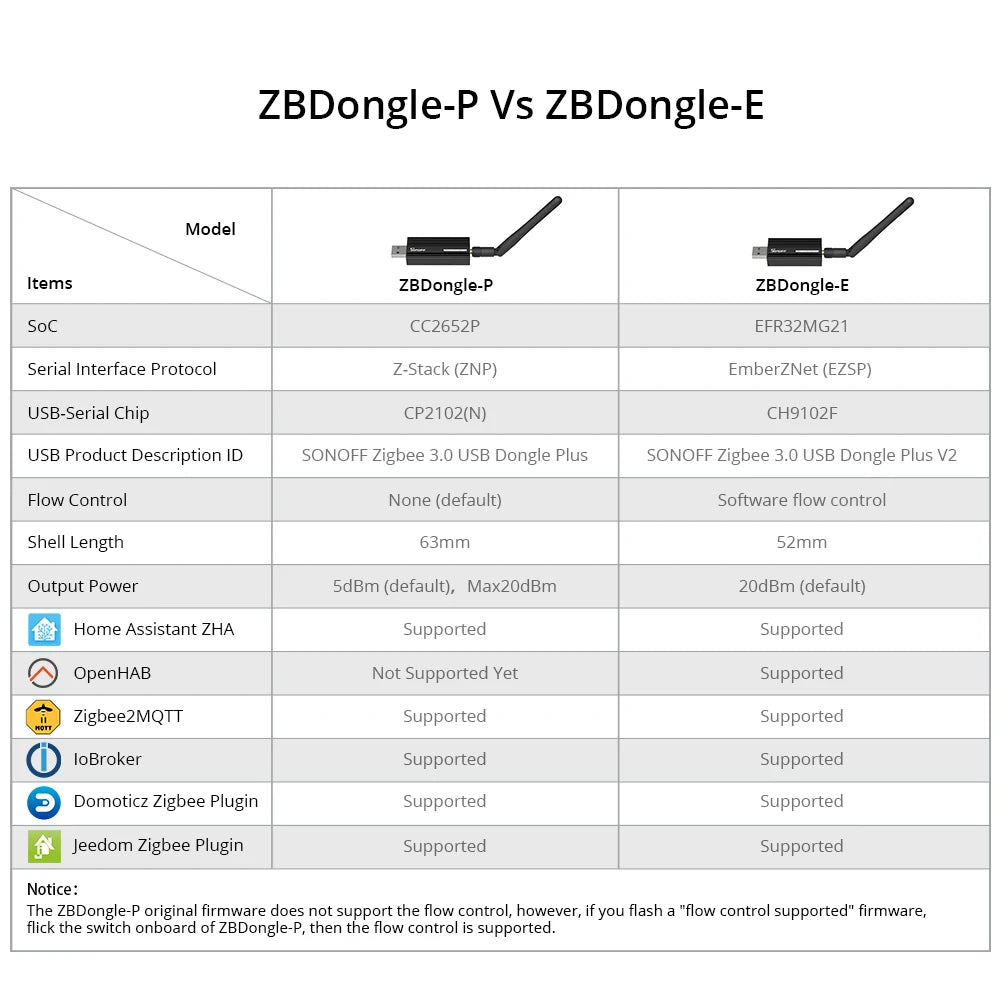

NOTE:The serial usb chip is not CP21x as it says on the Zigbee2MQTT homepage, but CH9102F.

Going to try different drivers. When changing the serial driver from CP21x to CH9102F, everything works fine.

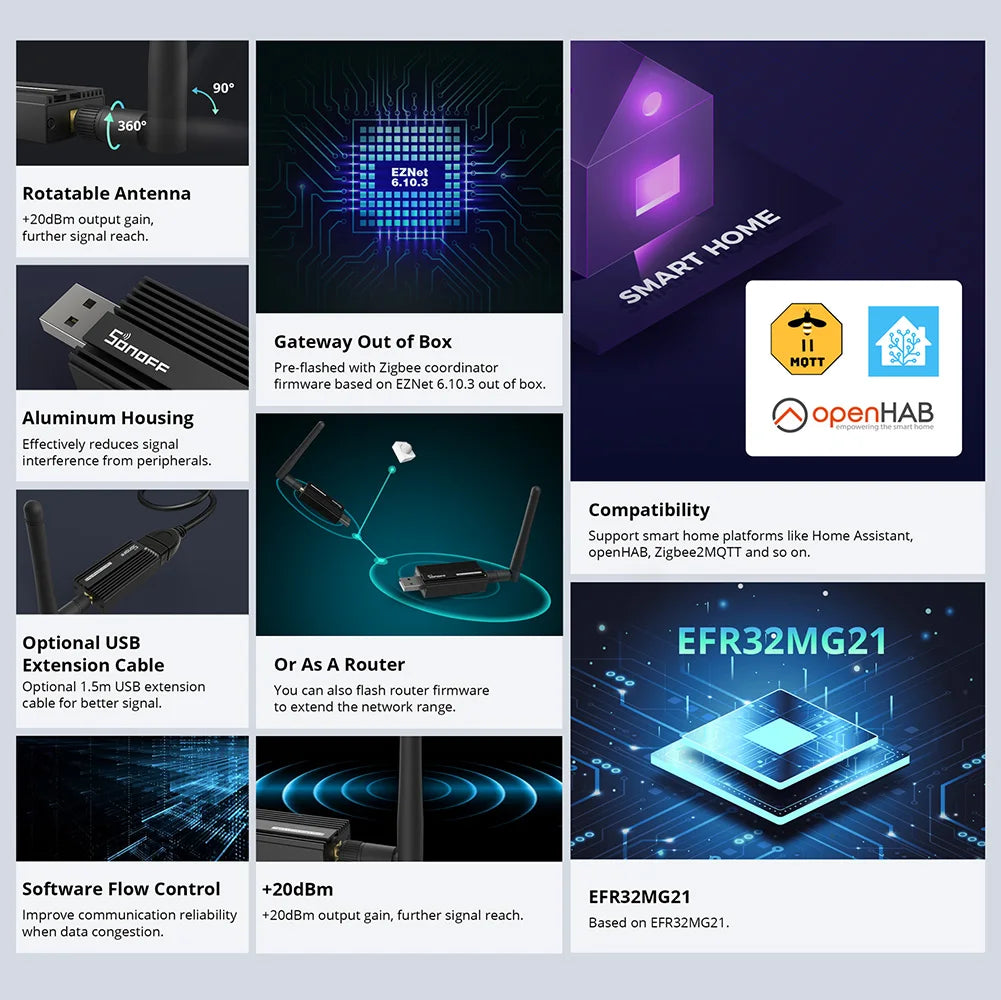

• Pre-flashed with Zigbee coordinator firmware based on EZNet 6.10.3 out of box

• Support smart home platforms like Home Assistant, openHAB, Zigbee2MQTT and so on

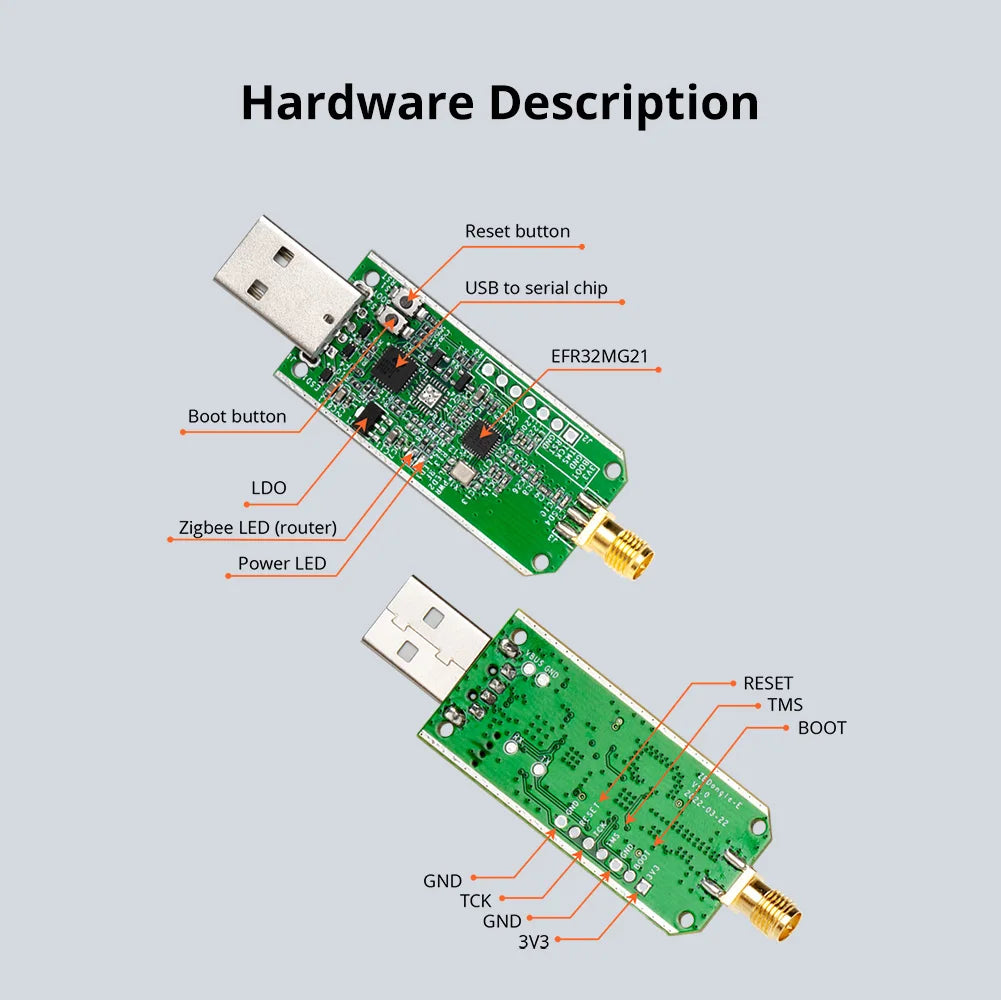

• Based on EFR32MG21

• +20dBm output gain

• Aluminum housing effectively reduces signal interference from peripherals

• Optional 1.5m USB extension cable for better signal range

Note: The ZBDongle-E supports the Green Power devices, If you want to add the Hue Zigbee Green Power device, you need to switch the channel of ZBDongle-E to 11/15/20/25 at your specific application.
