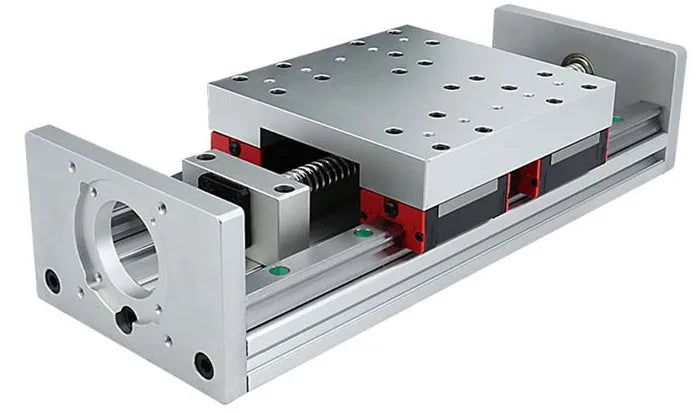

SPECIFICATIONS

Ball Screw: SFU1610(can be changed to 1605)

Brand Name: HLTNC

Certification: CE,NONE

Guide Length: Requirement

Guide Width or Diameter: 20mm

High-concerned chemical: None

Linear rail name: HGR20

Model Number: HGR20 SFU1605

Name: linear translation stage

Origin: Mainland China

Size: Customer's Request

Usage: laboratory precision displacement, demonstration and study

Use of bearings: Three Angular Contact Bearings

X axis length: 100mm~2000mm

Y axis length: 100mm~2000mm

Z axis length: 100mm~500mm

linear blocks: 4pcs HGH20CA



●1610 For 57 86 Motor:
1* Sliding Table for 57/86 Motor

●1605 For 57 86 Motor:
1* Sliding Table for 57/86 Motor

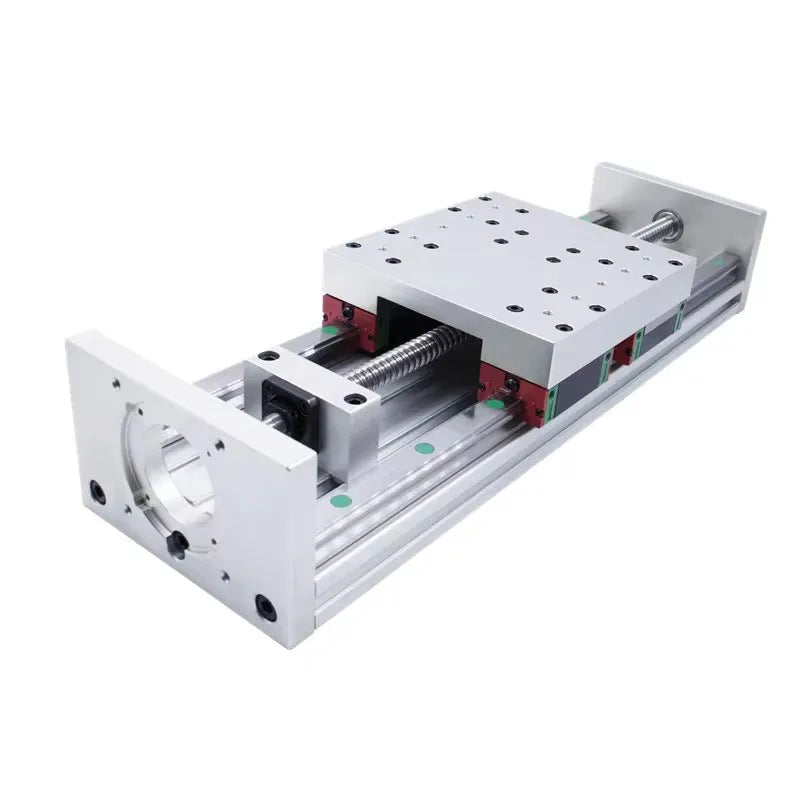

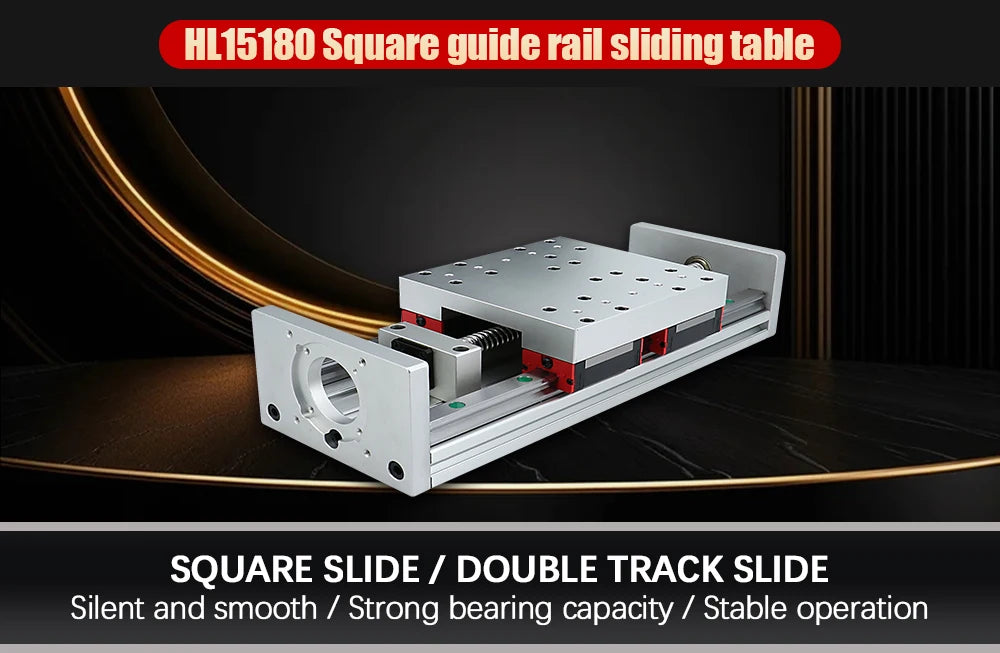

●Model:HL15180
●Material:Industrial Aluminum Profile
●Ballscrew type:SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy:C7 level
●Slider type: HGR20 *2
●Guide Type:Guide rail *2
●Guide size: 20mm
●Horizontal load: 150KG (Max)
●Vertical load:50KG (Max)
●Motor bracket type:
For stepper motor: 57mm/86mm Optional
●Effective stroke:100mm-2000mm Optional
●Total slide table length:
Electric version:Effective stroke+84mm
●Maximum speed:1000mm/s
●Ballscrew Repeat positioning accuracy:0.02-0.03mm


Please note
1. Picture just as a reference. the actual delivered goods shall prevail !
2. Please check which Size and the Length you need.

Note:
1.3D Model (Click to open directly)

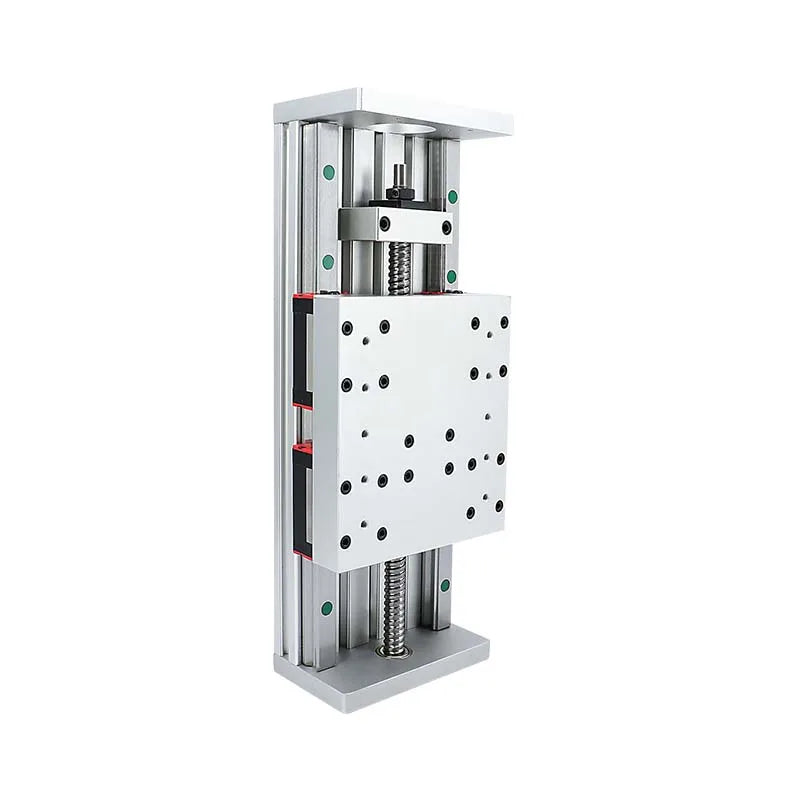

2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.

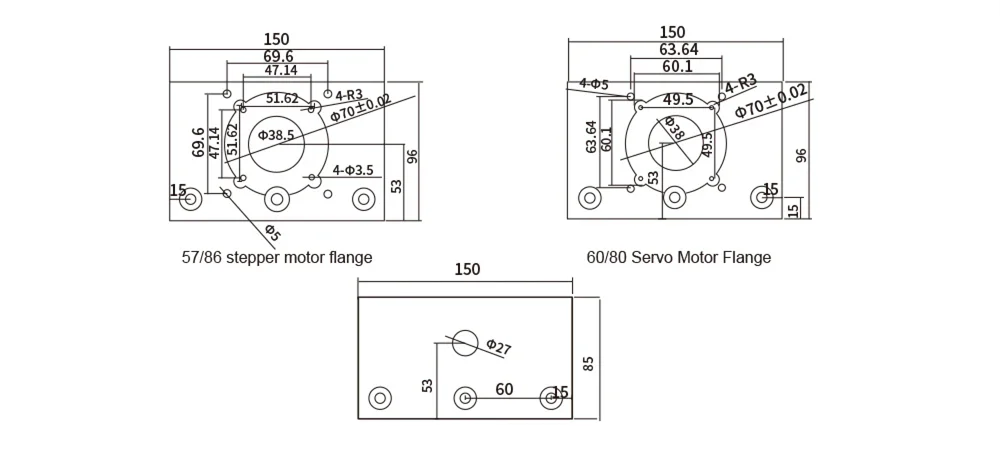

3.The slide table is configured with Nema23/86 motor bracket by default, other brackets can be customized, please contact customer service for details.

Black miniature guide rail sliding table GX1204,

suitable for 3D printers.

Black optical axis sliding table GX80,

suitable for small CNC machines and 3D printers

SBR16 sliding table, suitable for light load,

small and medium CNC machines

GX150 square guide rail sliding table, suitable for heavy loads,

medium and large CNC machines

Fully enclosed sliding table, suitable for high-precision, large dust,

medium and large CNC machines





 1* Sliding Table ( the effective length as your choice)






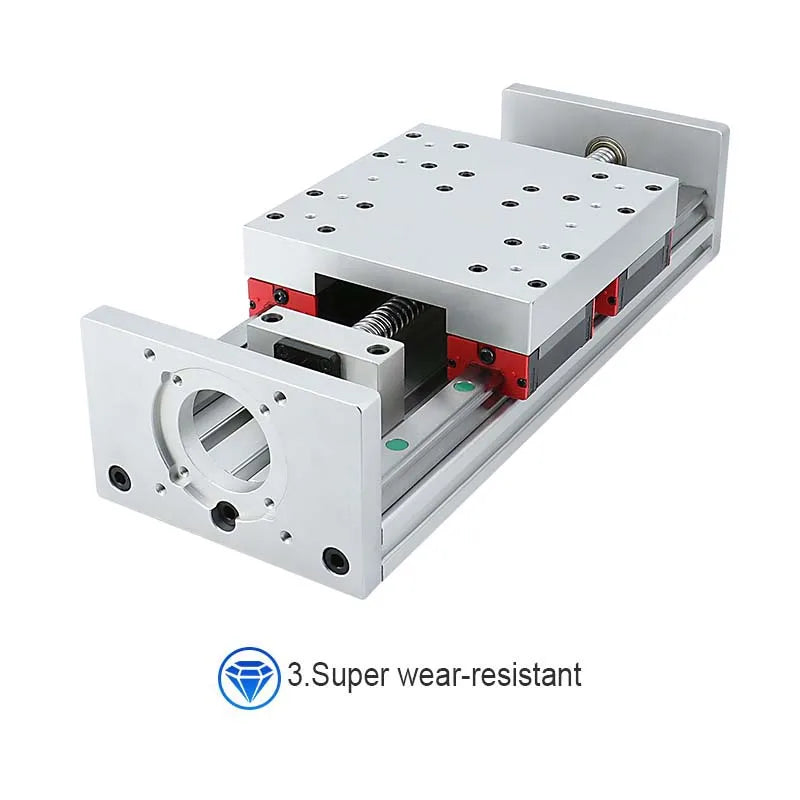

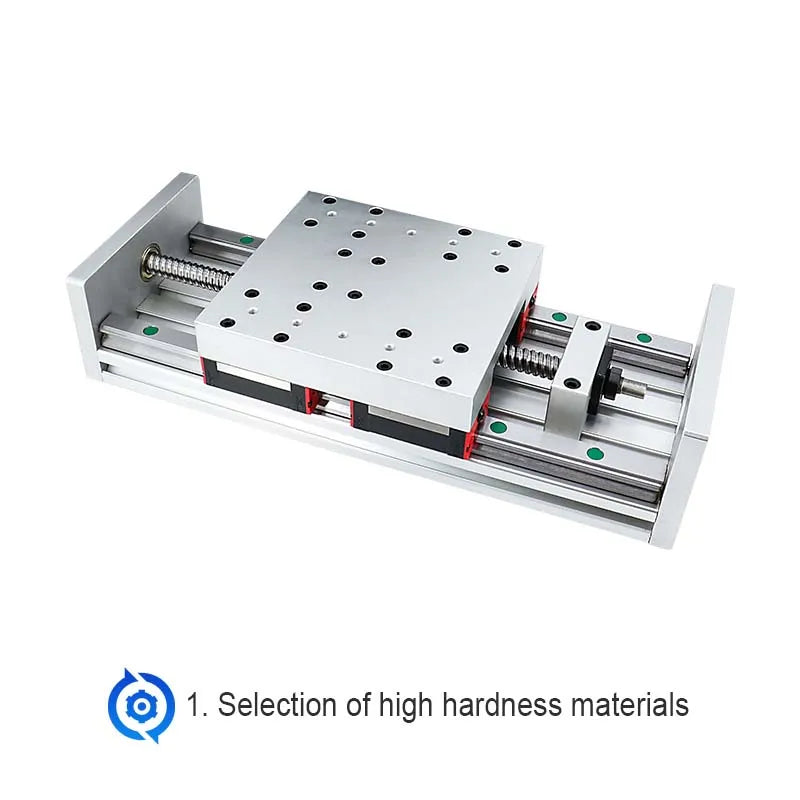

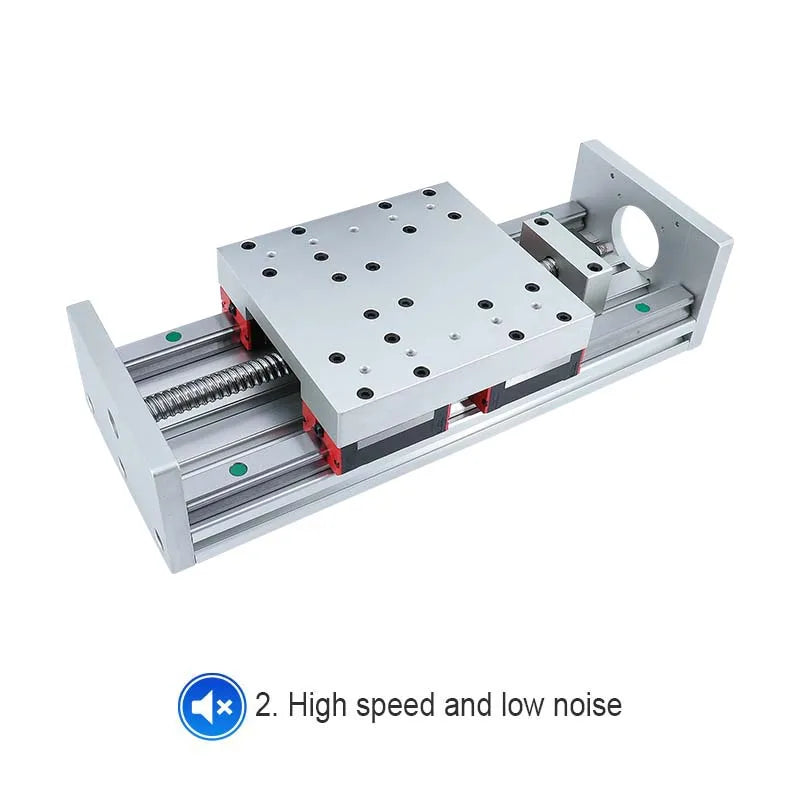

1. G10 grade GCR15 steel ball

2. 95% dustproof, lubrication, noise reduction

3.GCR53 high carbon chromium bearing steel

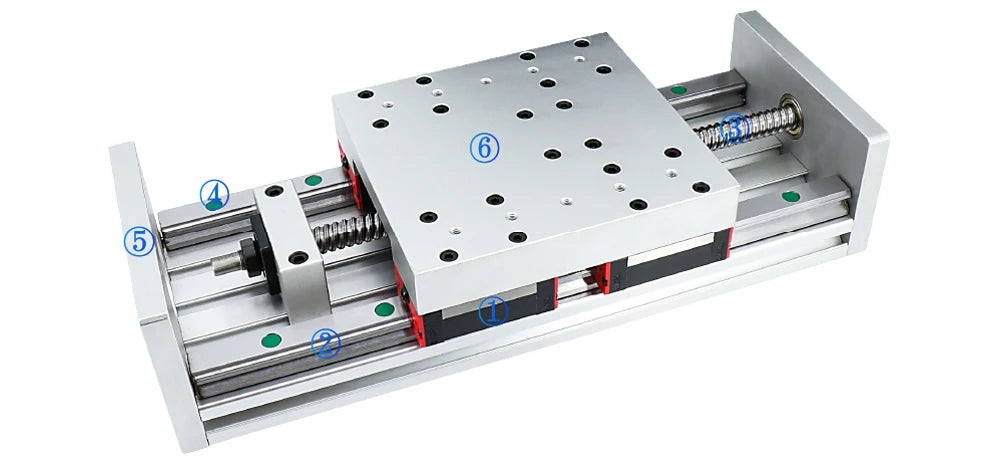

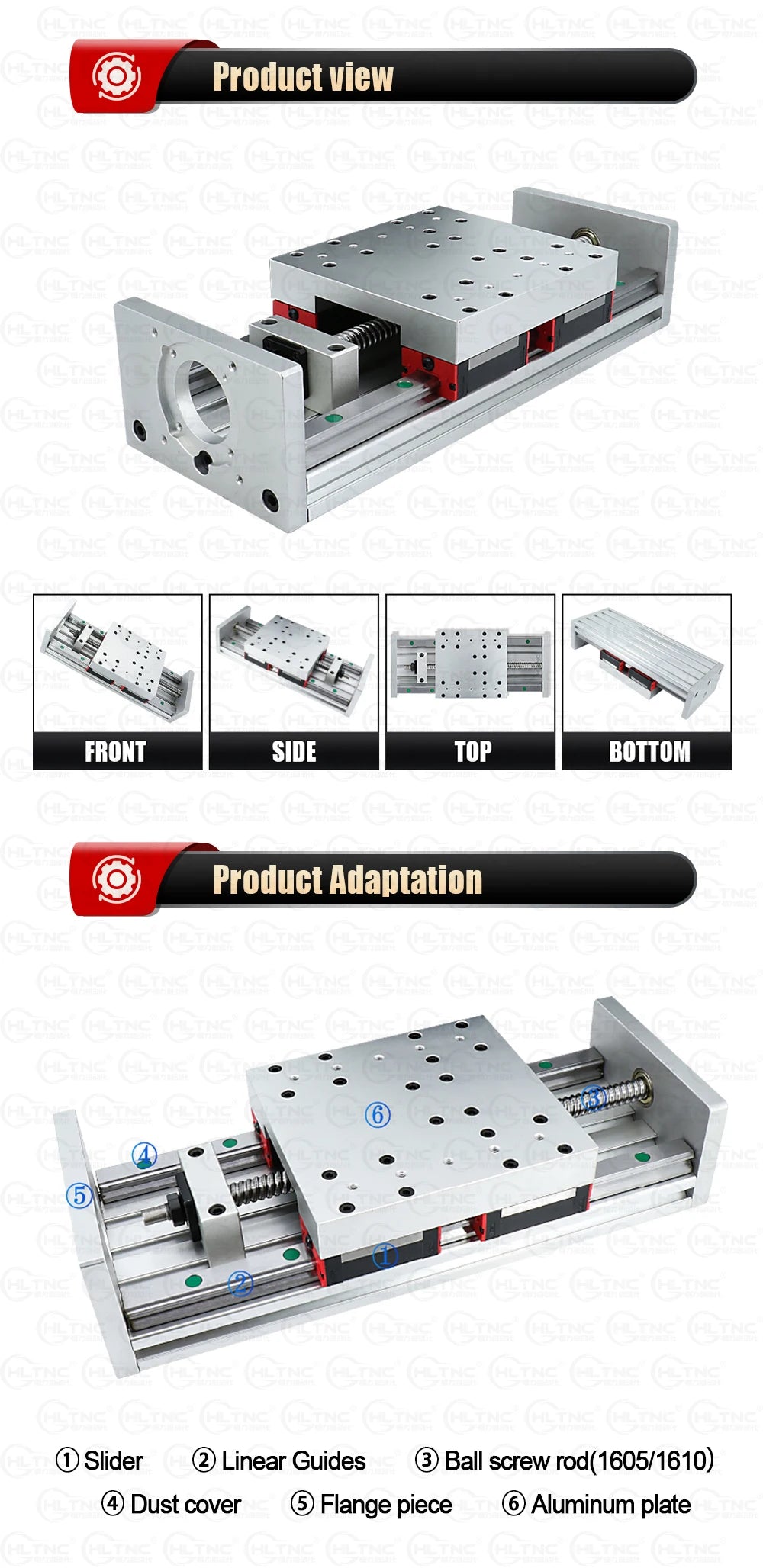

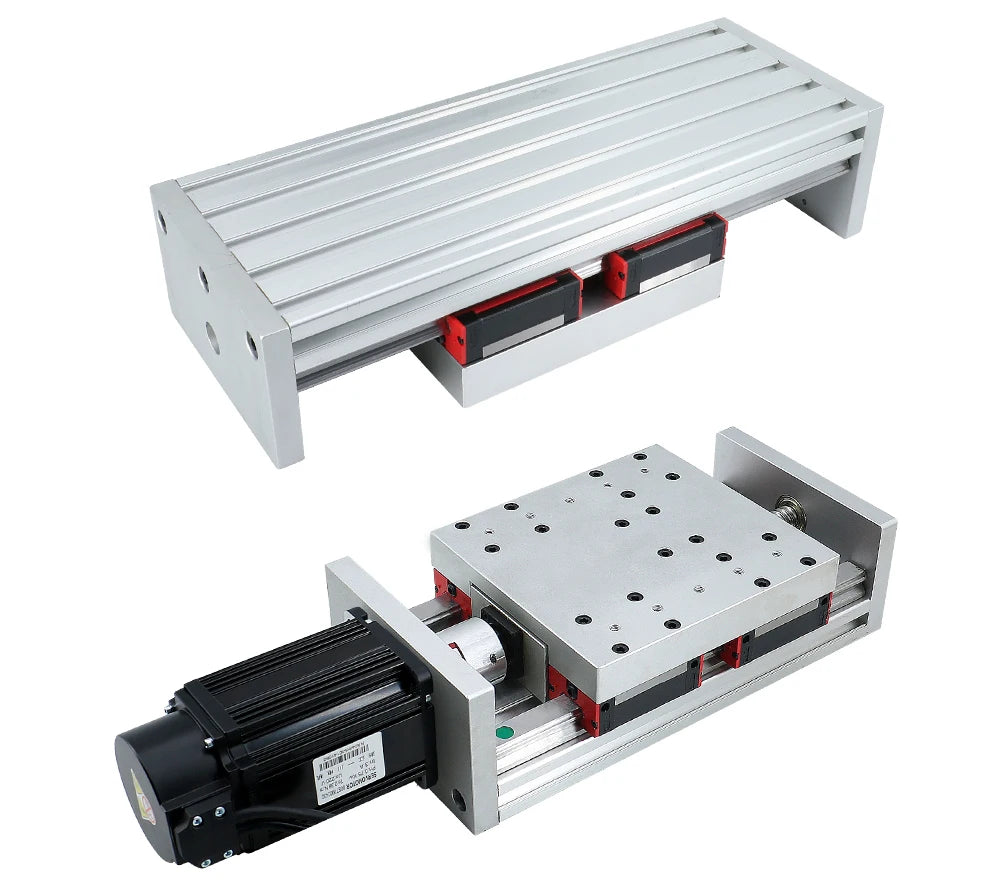

①Slider

② Linear Guides

③ Ball screw rod

④ Dust cover

⑤ Flange piece

⑥ Aluminum plate

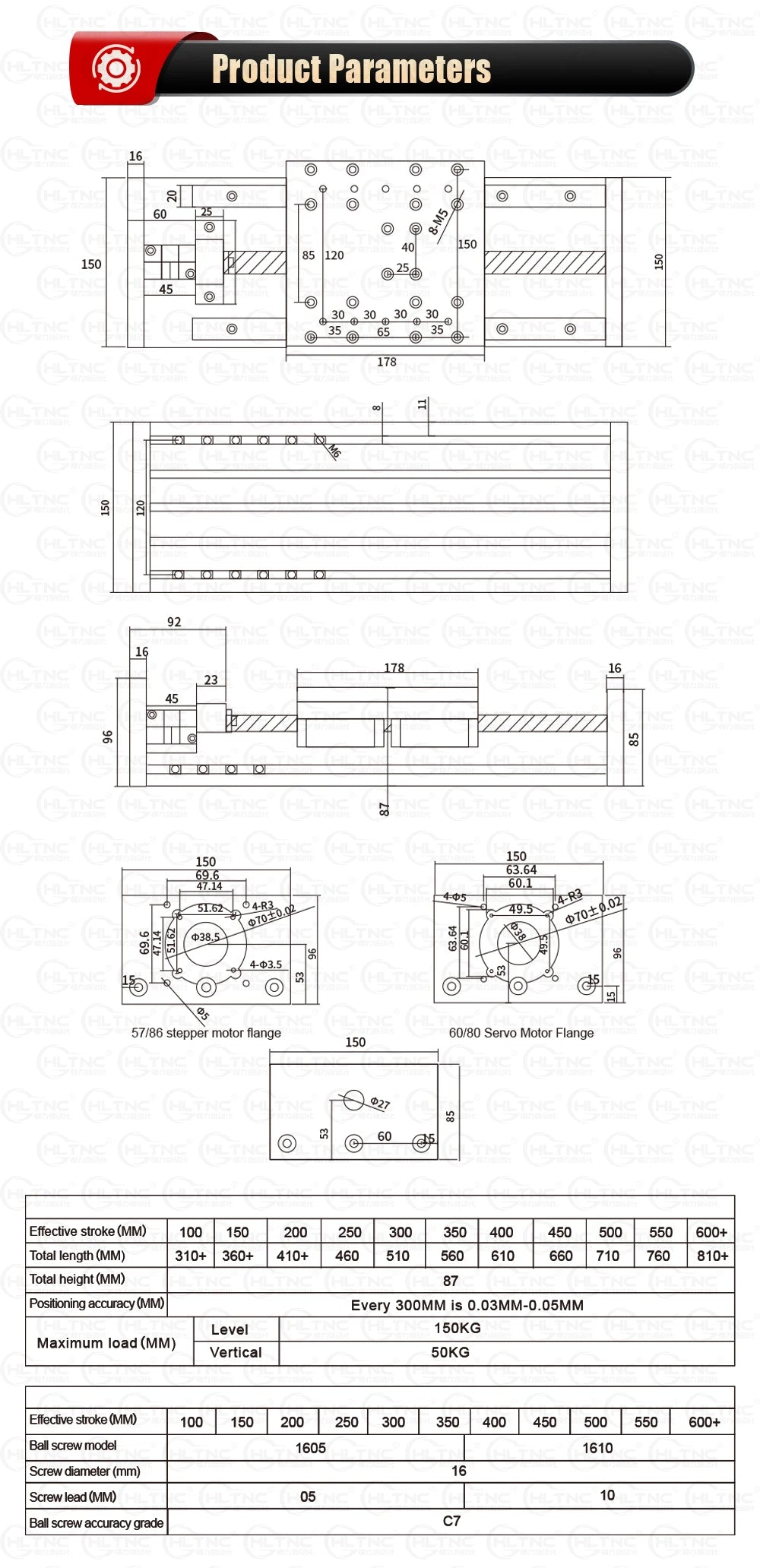

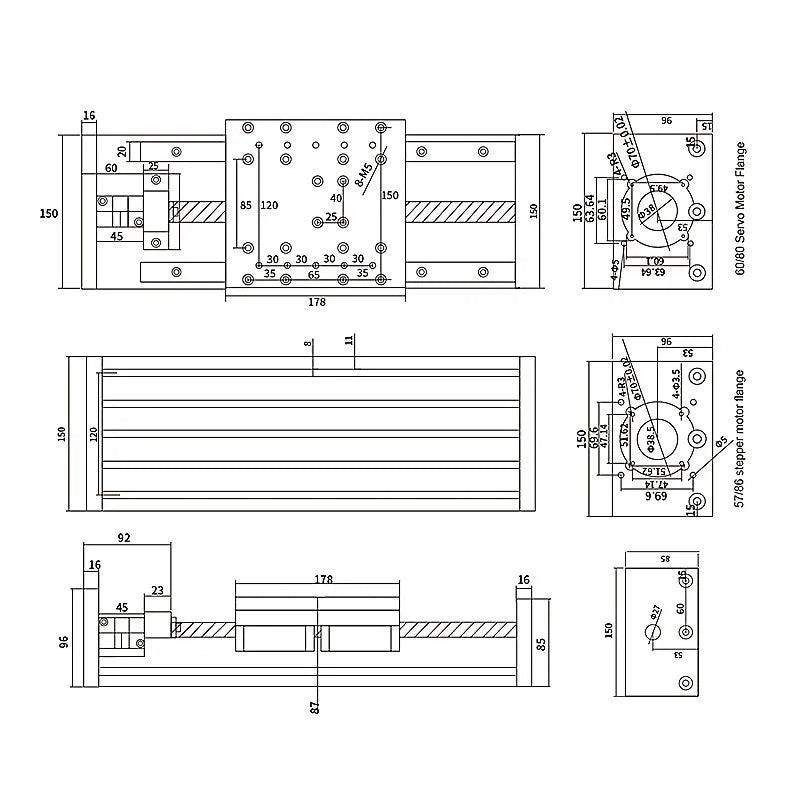

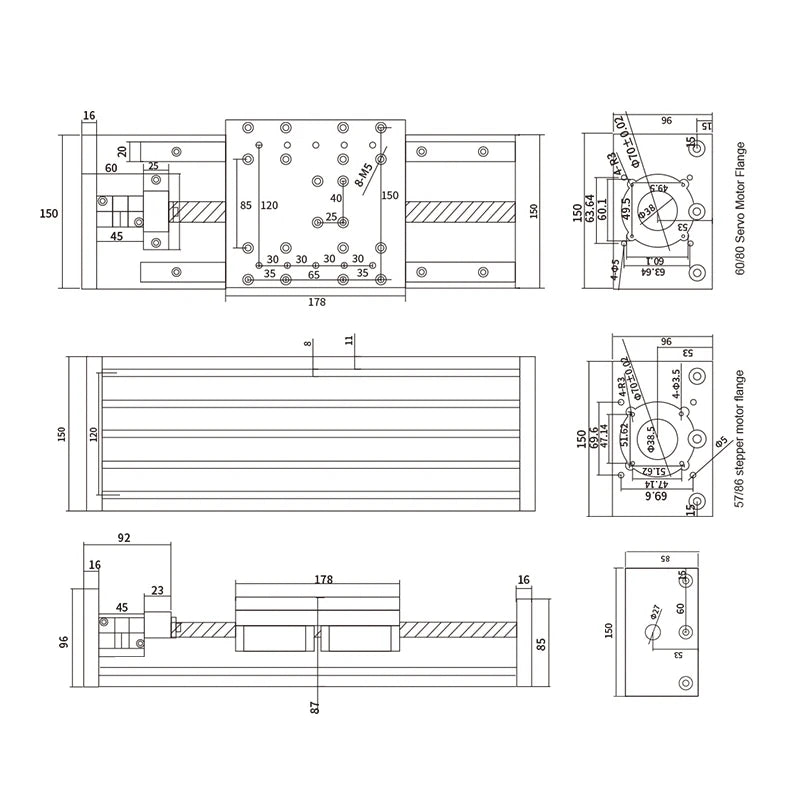

Effective Stroke(mm)

100

150

200

250

300

350

400

450

500

550

600+

Total Length(mm)

310+

360+

410+

460

510

560

610

660

710

760

810+

Total Height(mm)

87

Positioning Accuracy(mm)

Every 300mm is 0.03mm to 0.05m

Maximum Load(mm)

Level

150KG

Vertiacl

50KG




Effective Stroke(mm)

100

150

200

250

300

350

400

450

500

550

600+

Ballscrew Model

1605

1610

Screw Diameter(mm)

16

Screw Lead(mm)

05

10

Ballscrew Accuracy Grade

C7
