SPECIFICATIONS

Advantange: Big LCD display

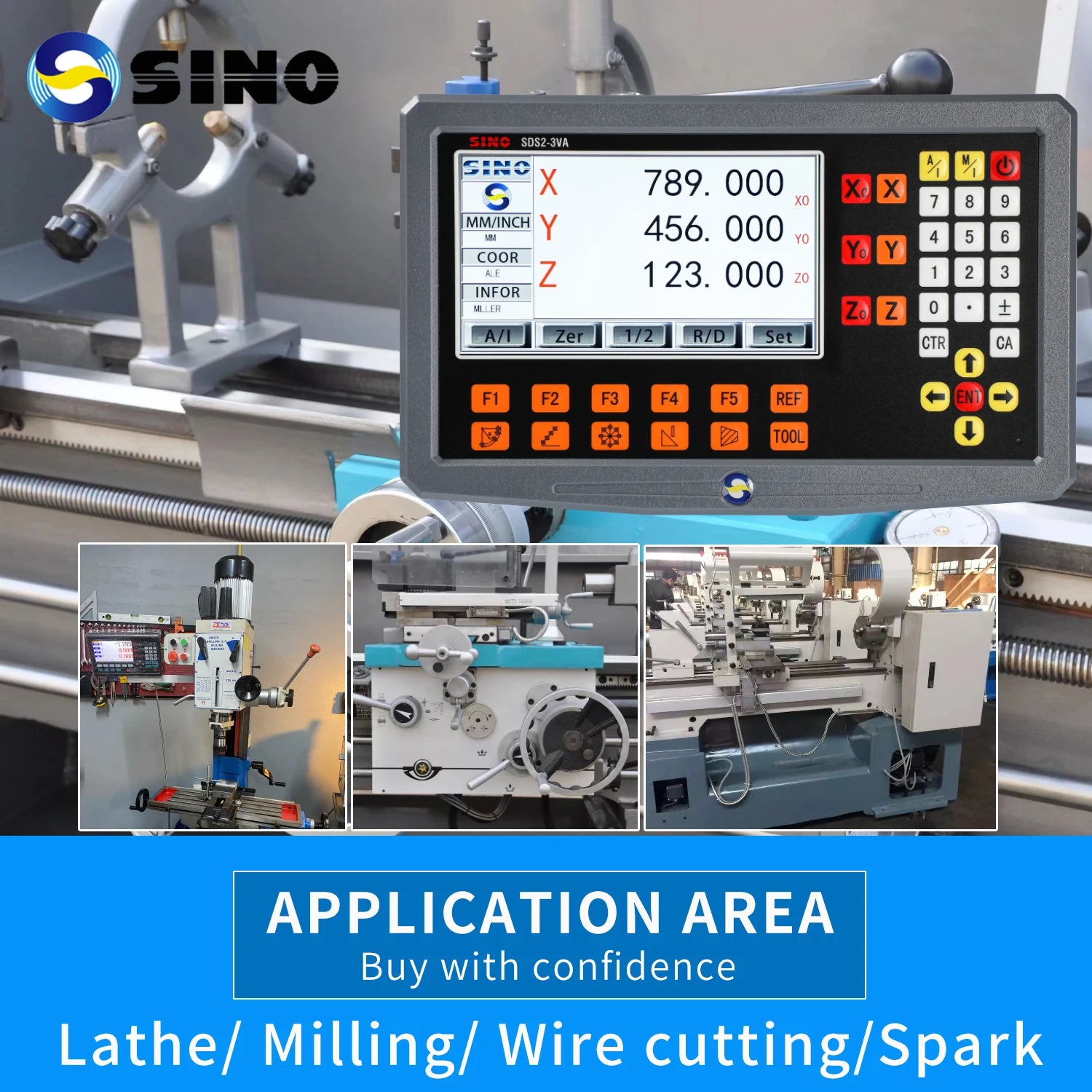

Application: Milling, Lathe, Turning, Boring Machine etc.

Battery Included: no

Brand Name: NONE,SINO

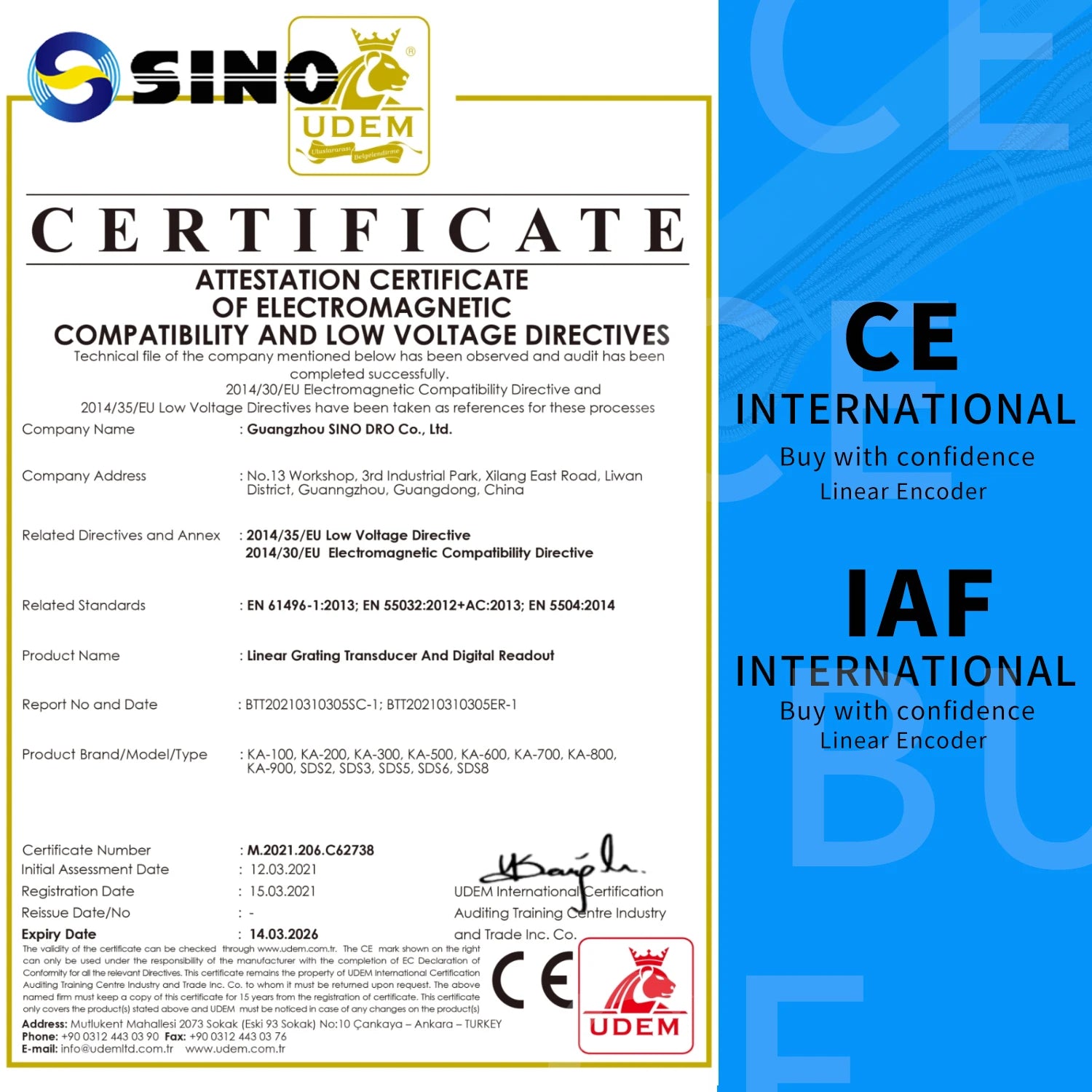

Certification: CE,RoHS

High-concerned chemical: None

Input voltageTyp: AC80V~240V 50/60Hz

Language: Chinese, English, French, German, Spanish

Model Number: SDS2-3VA SET

Number of Axis: 3 Axis

Origin: Mainland China

Protection grade: IP54

Resolution: 0.005mm

Scale cable length: 3 meters

Semi-finishedproduct: No

Purchase Notes

1. You can choose 2 pieces scale within 0-1000mm travel measuring length with 5um resolution.
2. After ordering please tell us the travel length of scale that you need.

If you do not specify the size, 【2 Axis DRO Kit】 We will send 250mm+700mm，【3 Axis DRO Kit】 We will send 250mm+300mm+700mm，

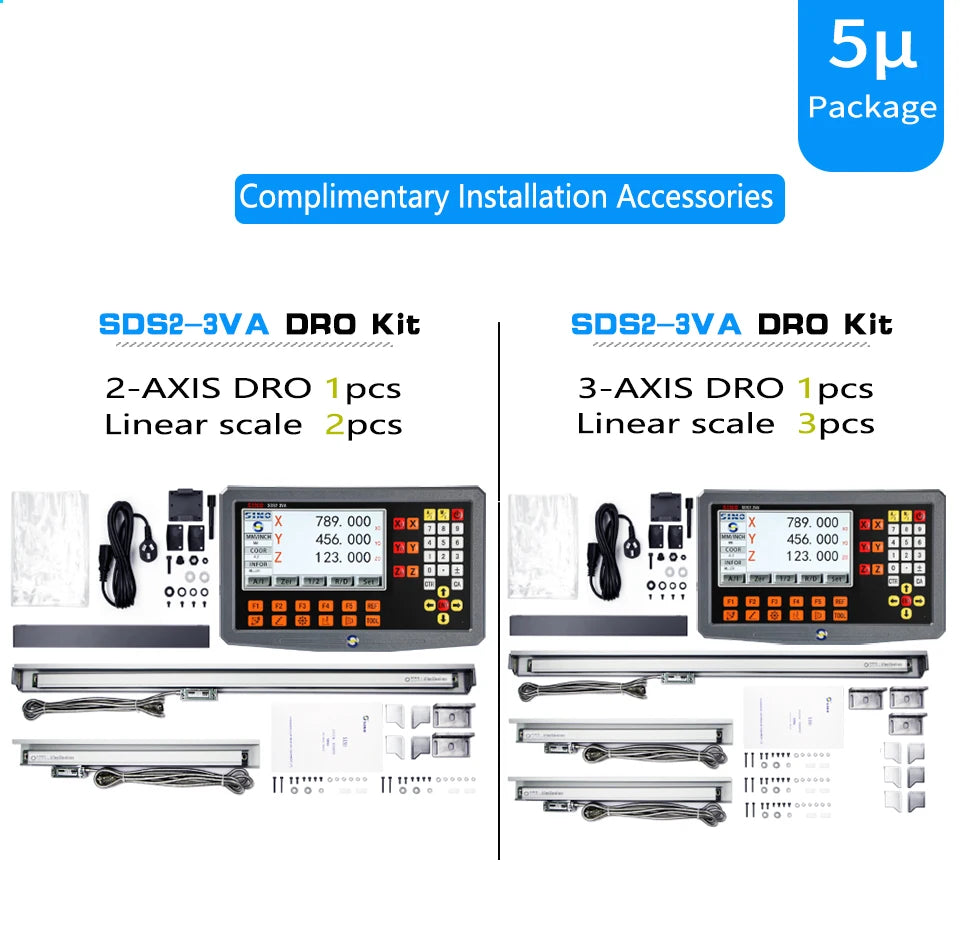

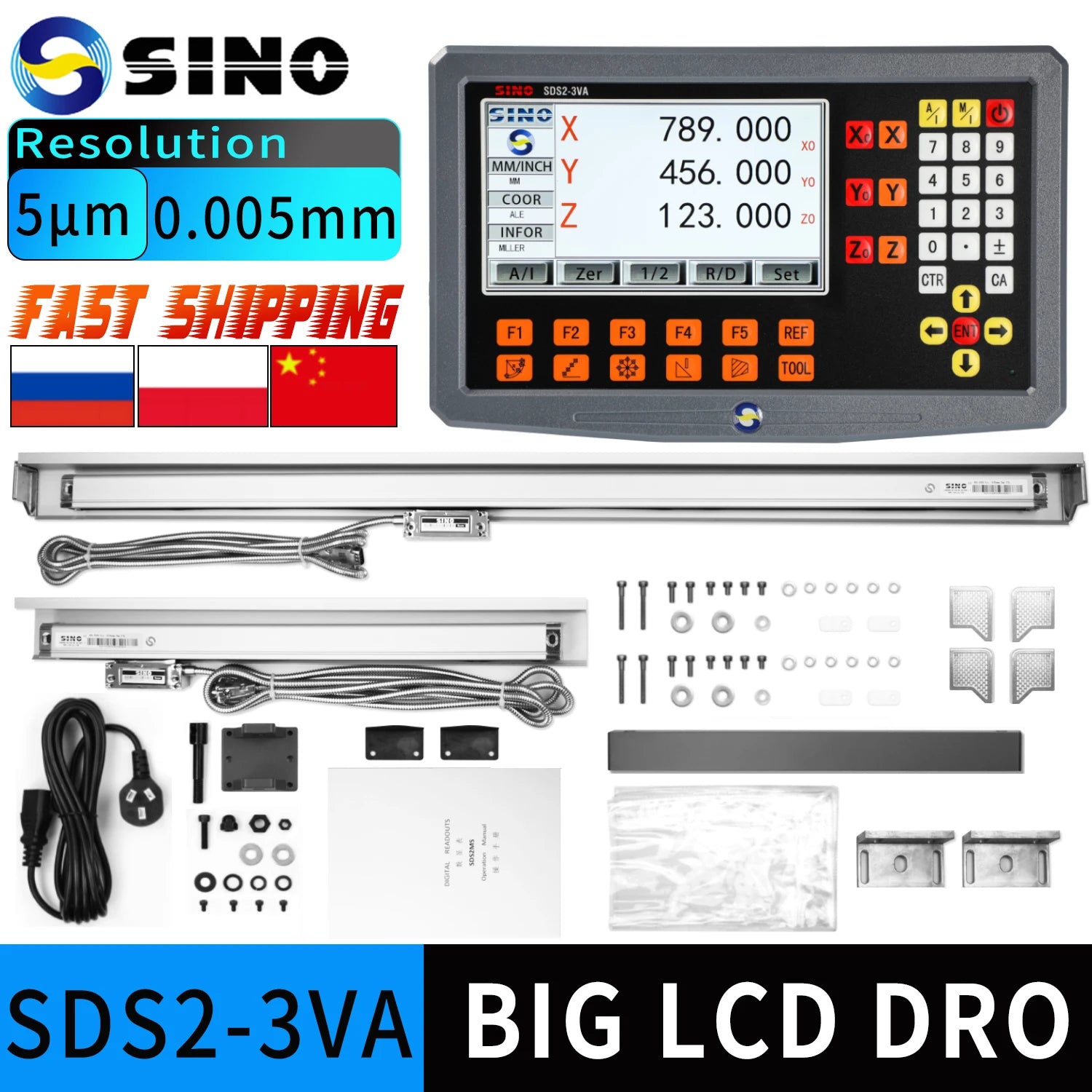

2 Axis DRO Kit contain :
1 piece SINO SDS2-3VA Big LCD display, user manual, mounting bracket, power cable, screw bag

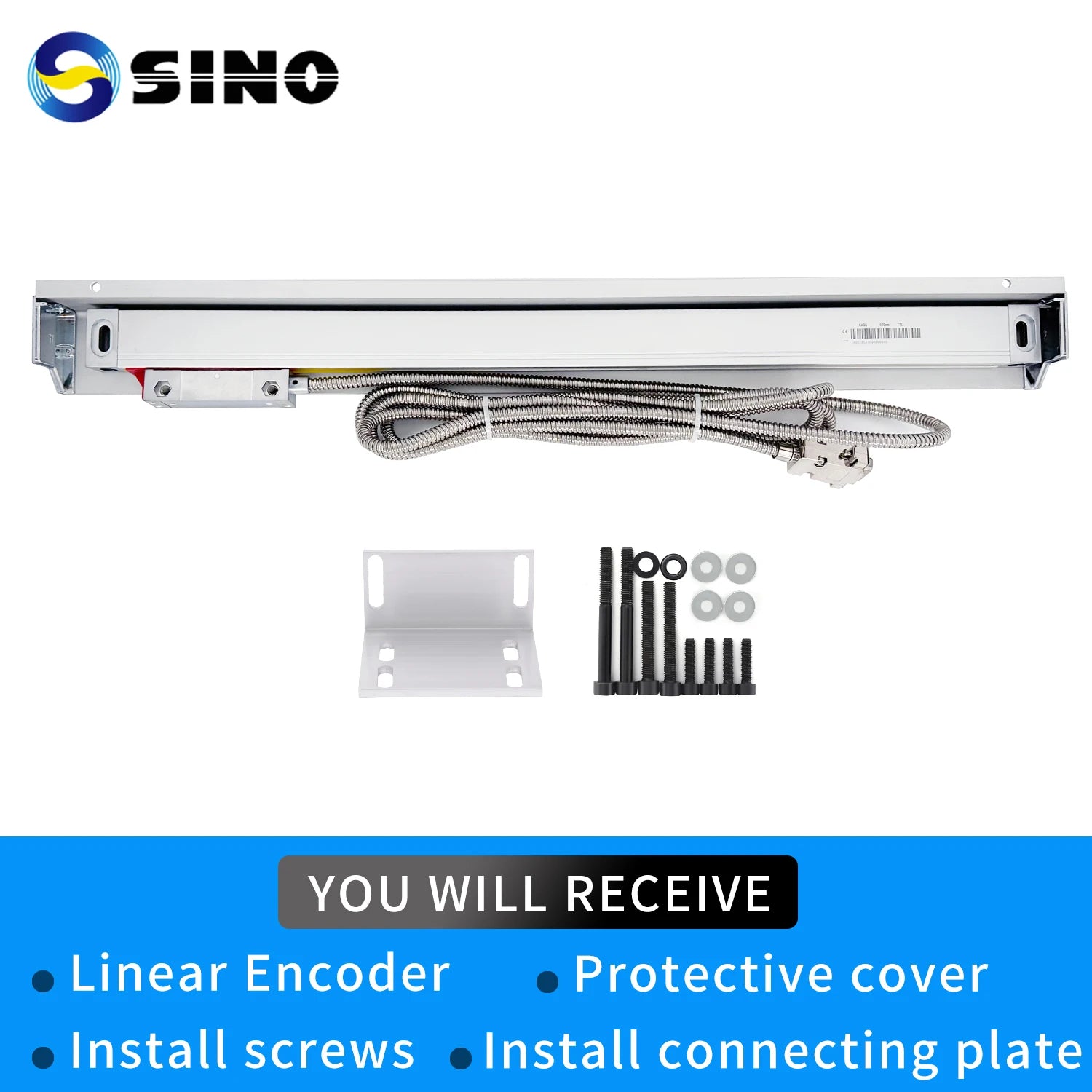

2 pieces 0.005mm Sino K35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 50mm~1000mm】

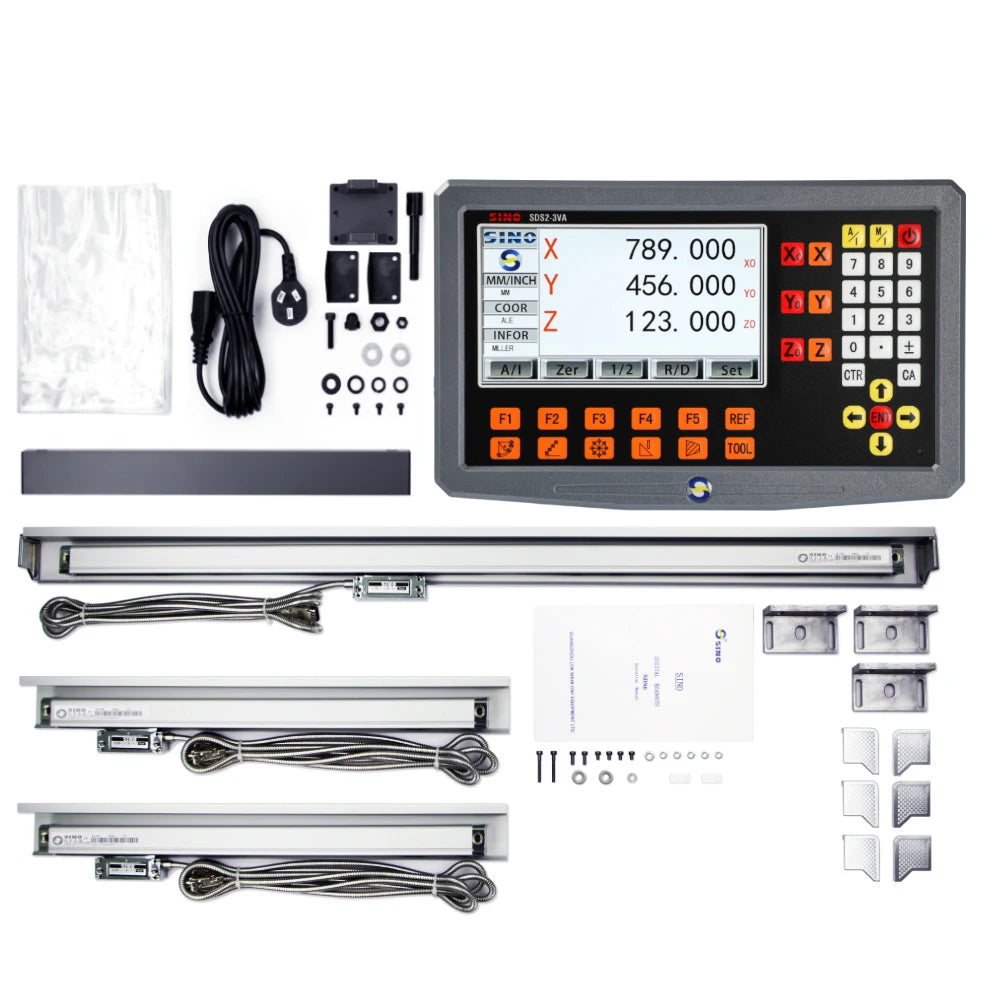

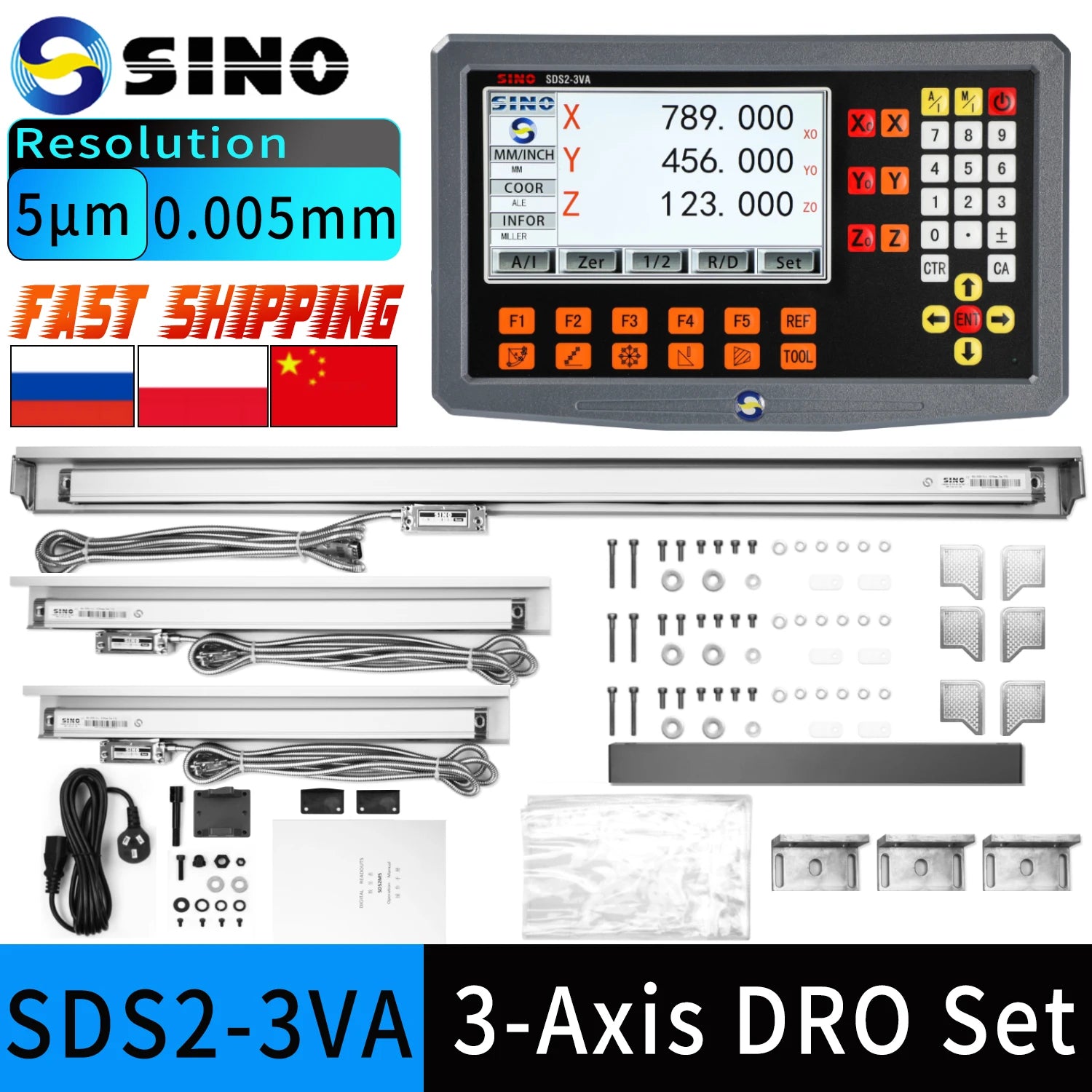

3 Axis DRO Kit contain :
1 piece Sino SDS2-3VA LCD display, user manual, mounting bracket, power cable, screw bag
3 pieces 0.005mm Sino K35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 50mm~1000mm】

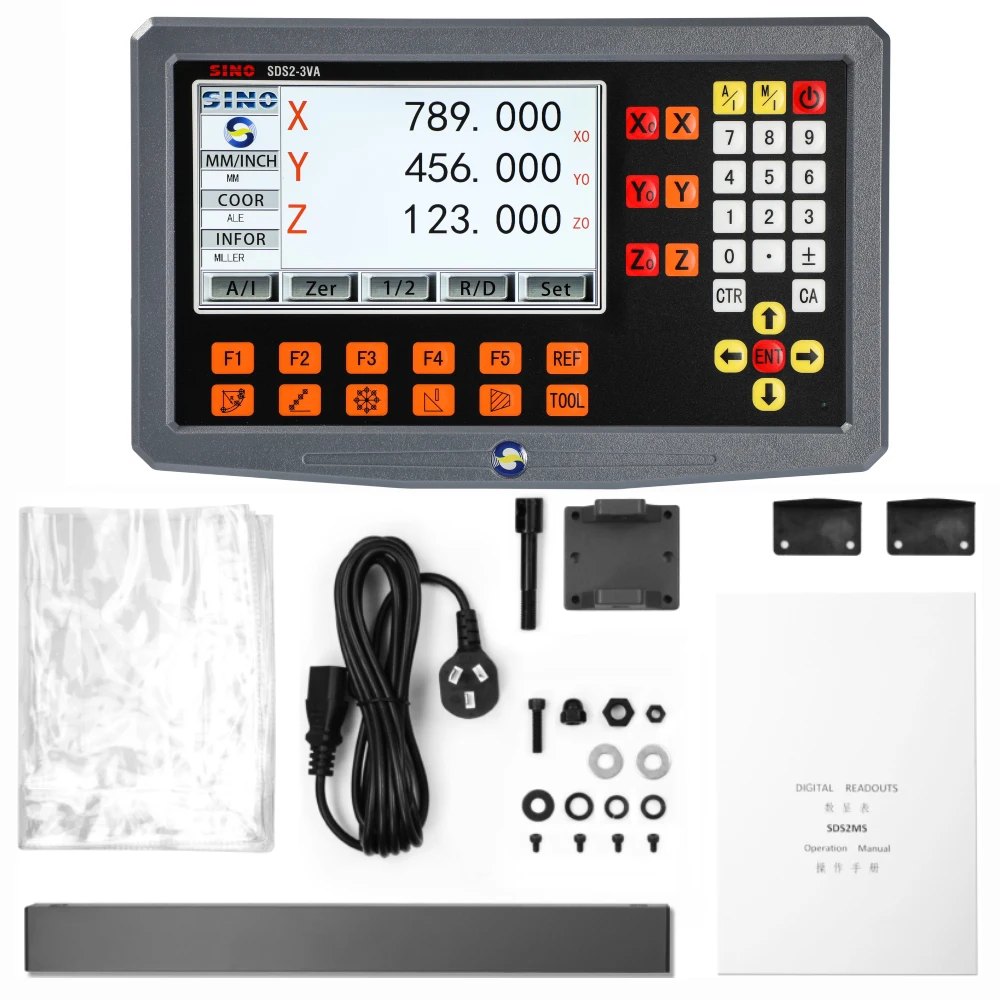

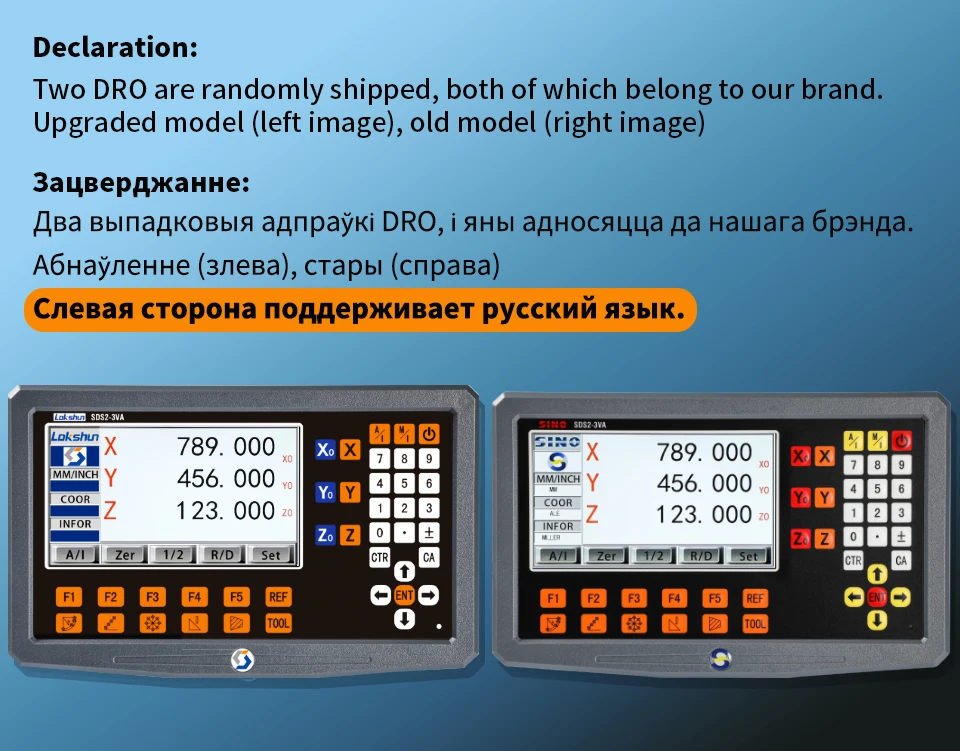

SDS2-3VA DRO contain：

1 piece Sino SDS2-3VA LCD display, user manual, mounting bracket, power cable, screw bag

1.How to select scales length?

For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.

If there is no message left, 2 Axis DRO Kit we will deliver the goods according to the travel lengths of 250mm and 700mm.3 Axis DRO Kit we will deliver the goods according to the travel lengths of 250mm and 350mm and 700mm.

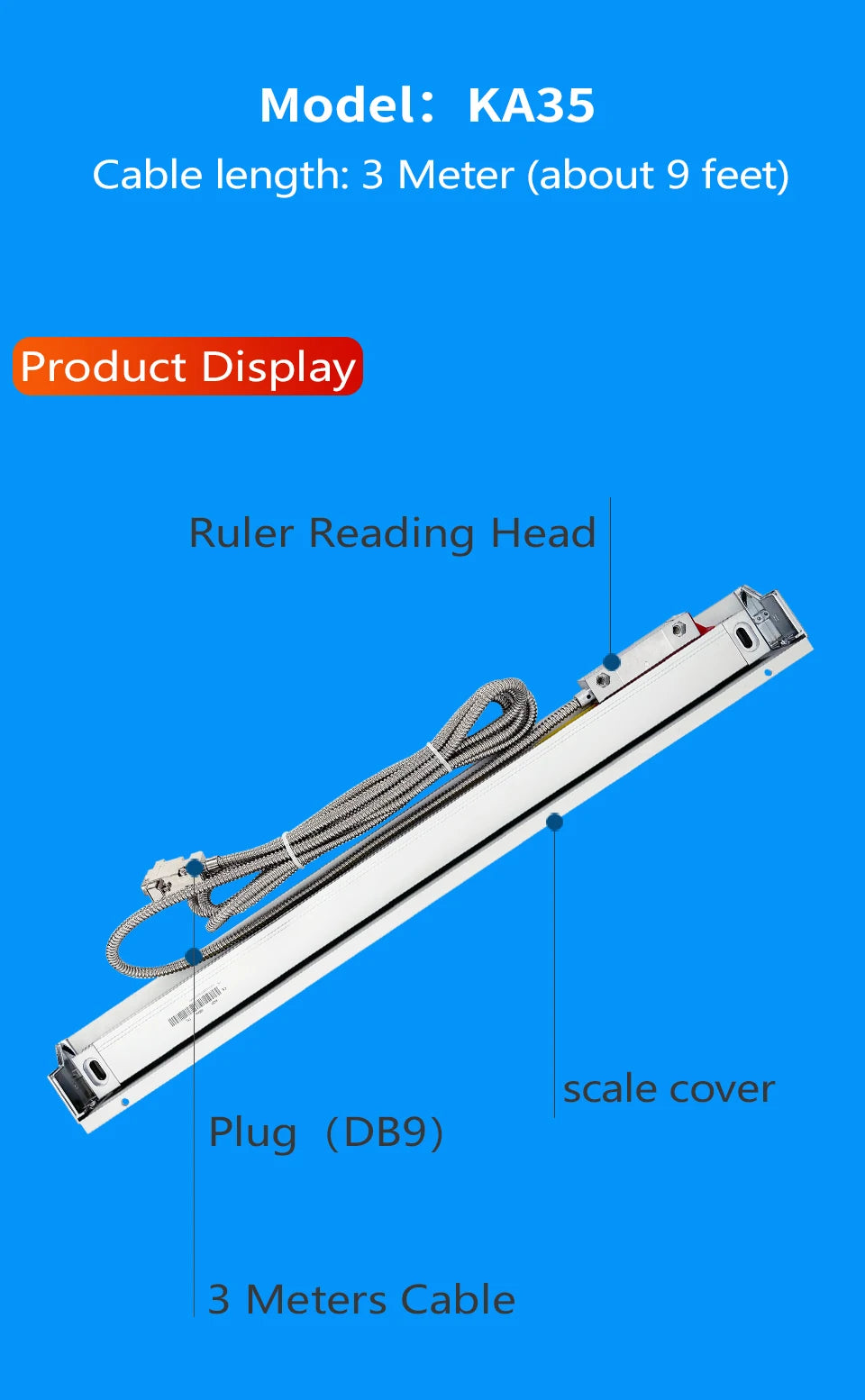

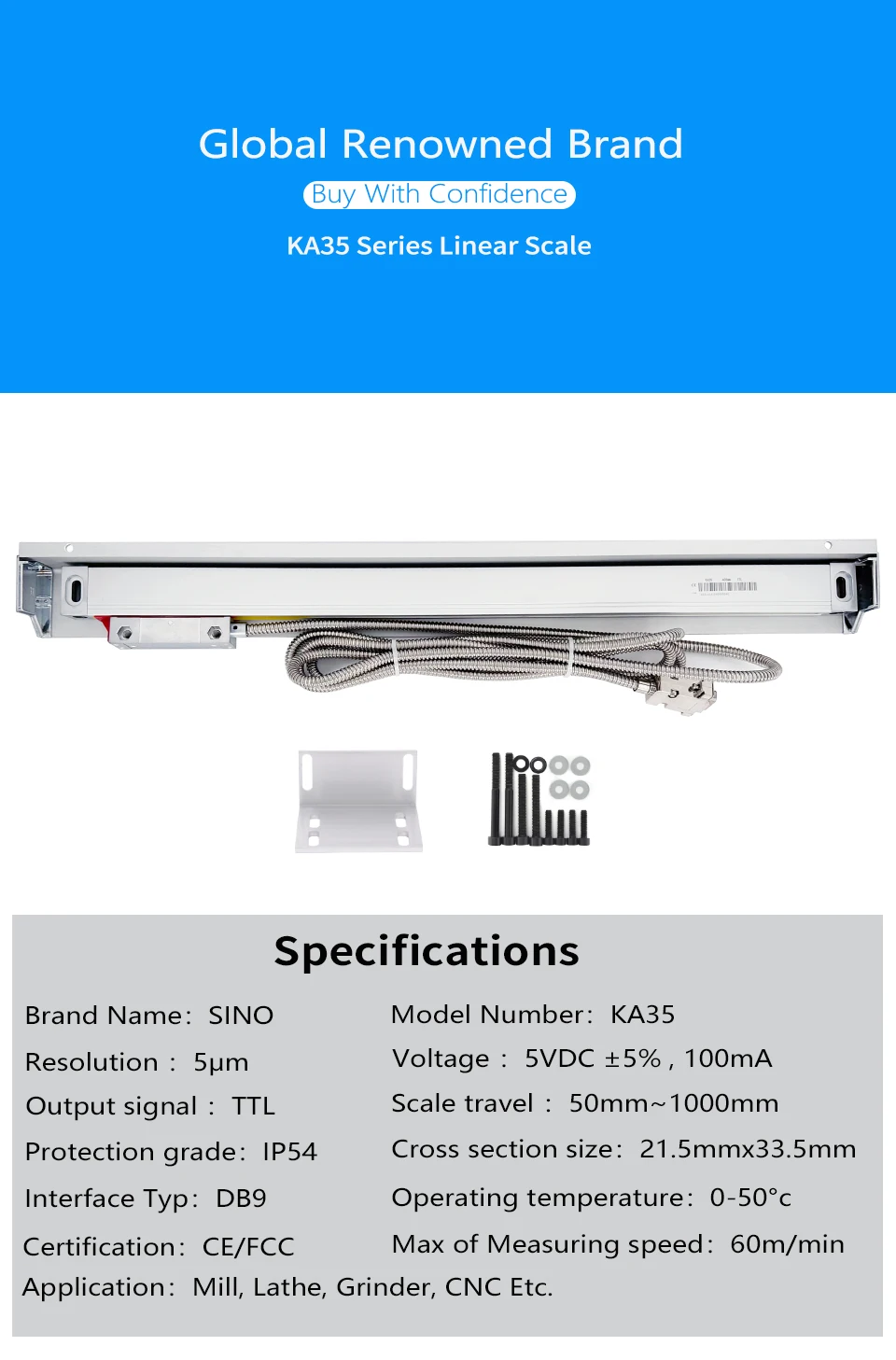

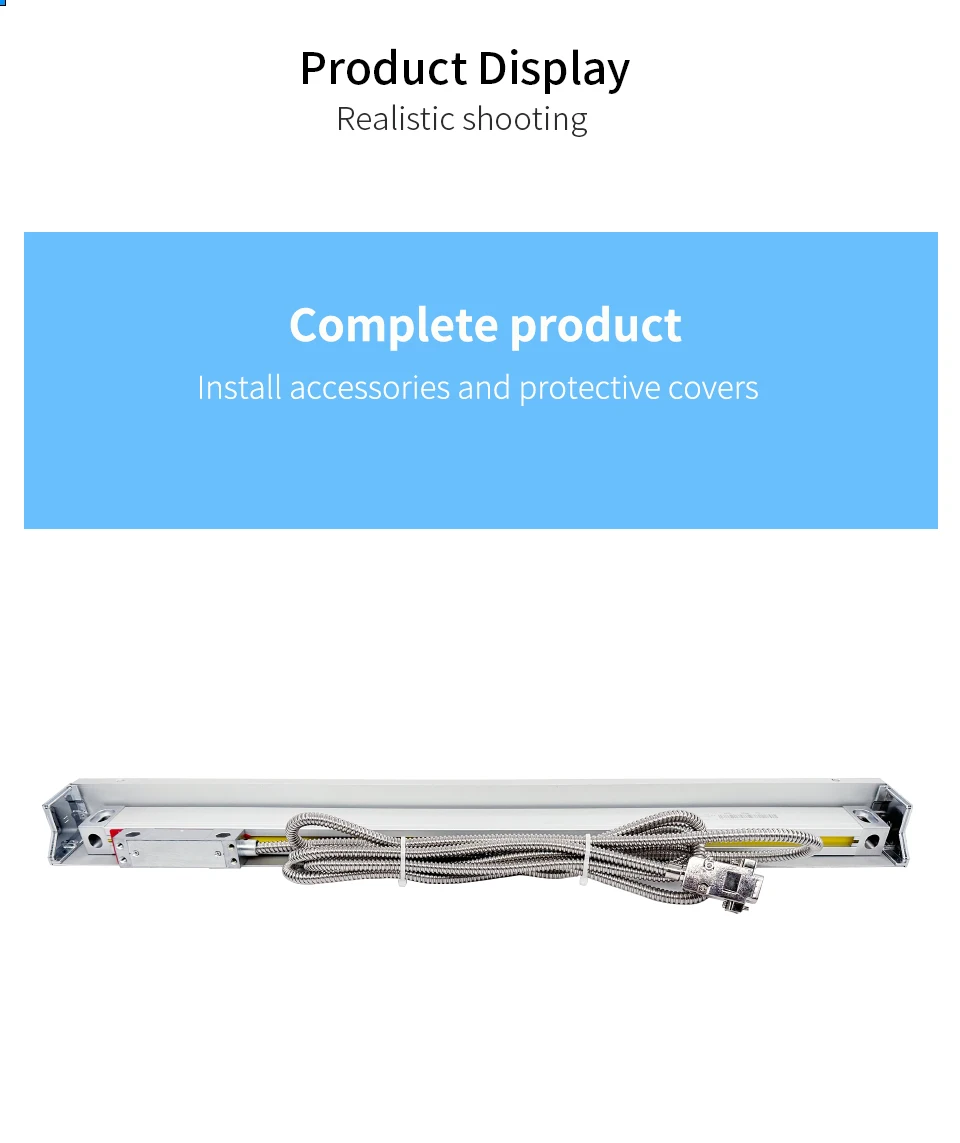

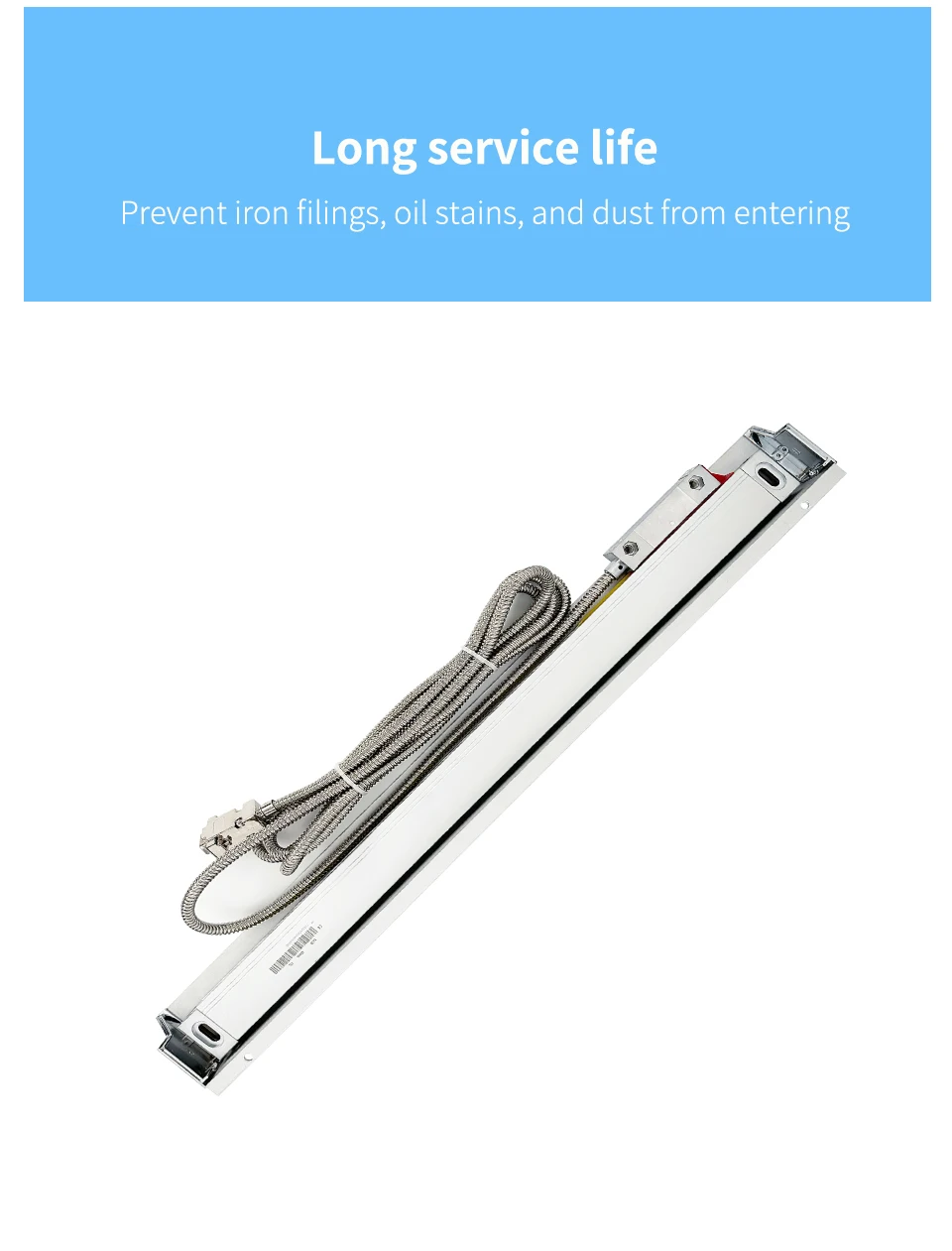

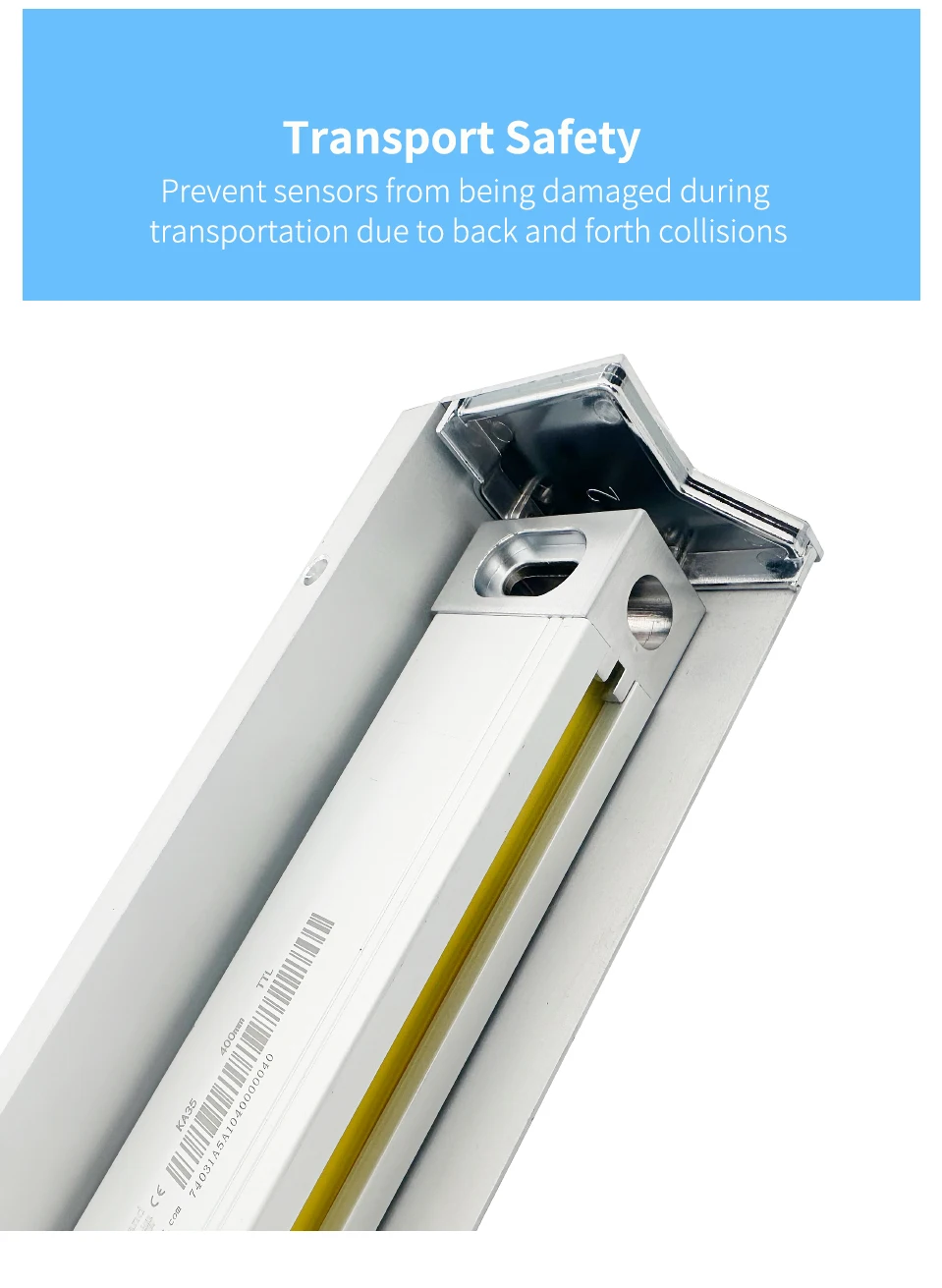

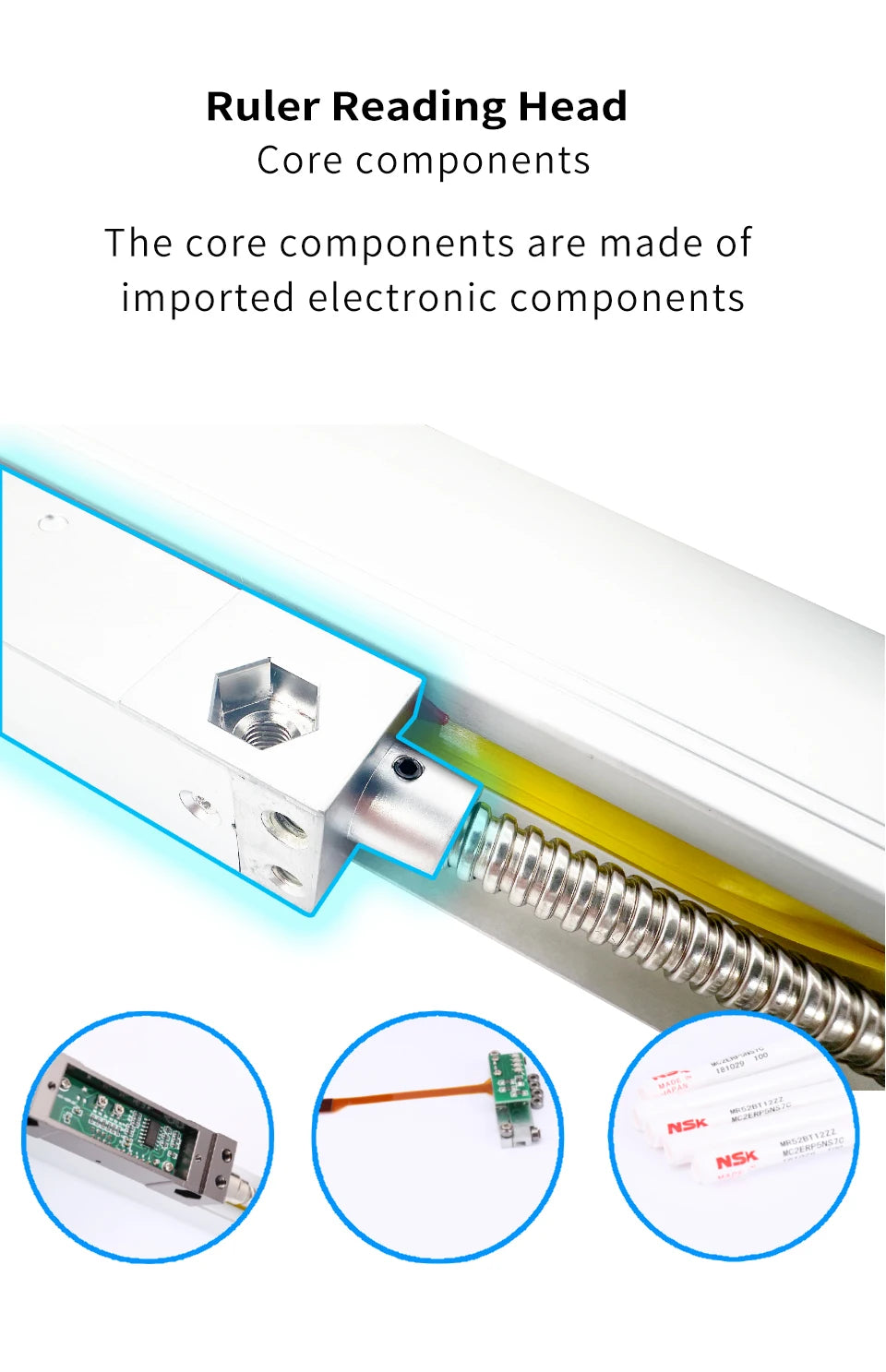

Linear scale parameter

Model: KA35

Available measurement: 100mm to 1000mm

Total length: measurement +140mm

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

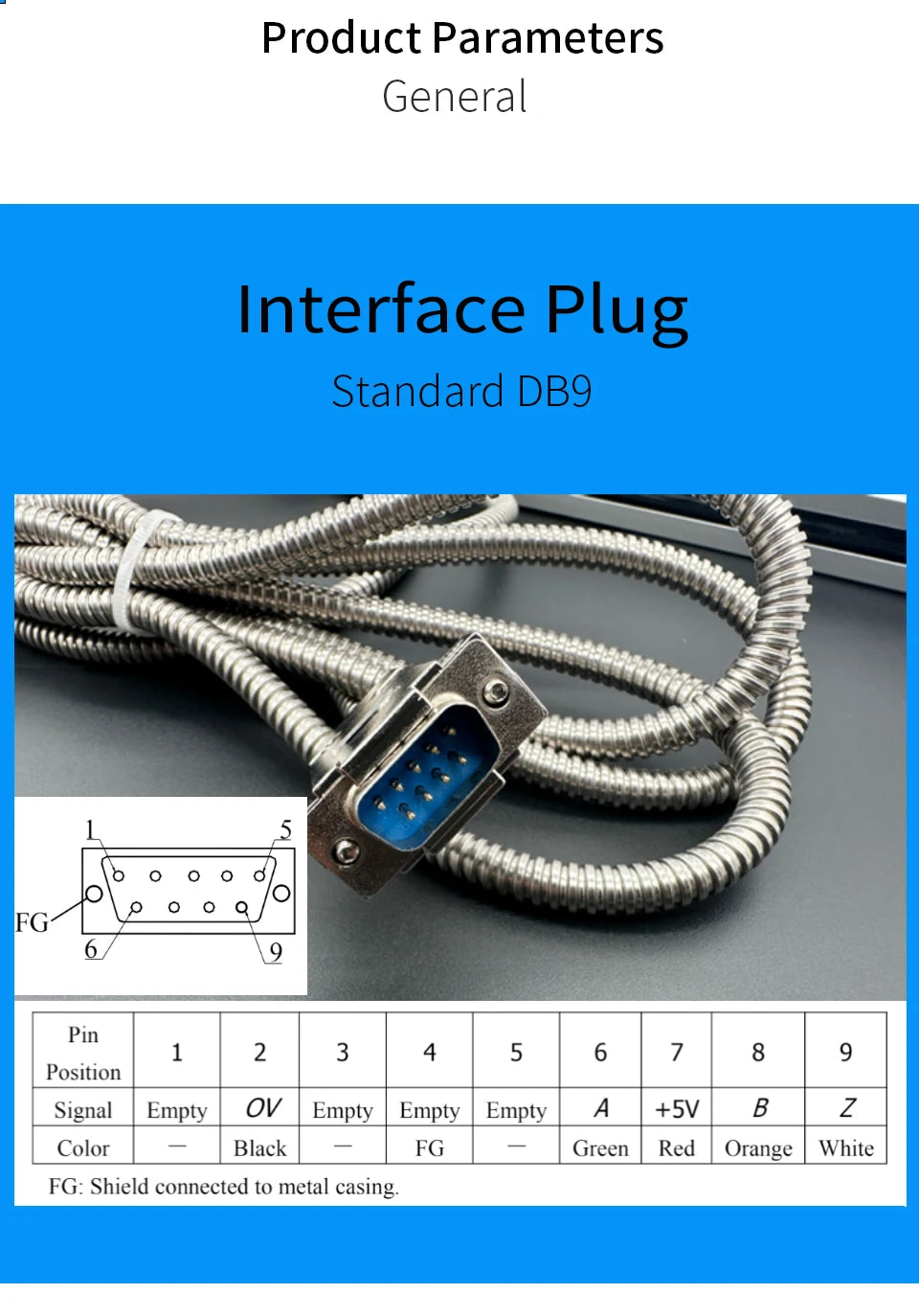

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

Advantages

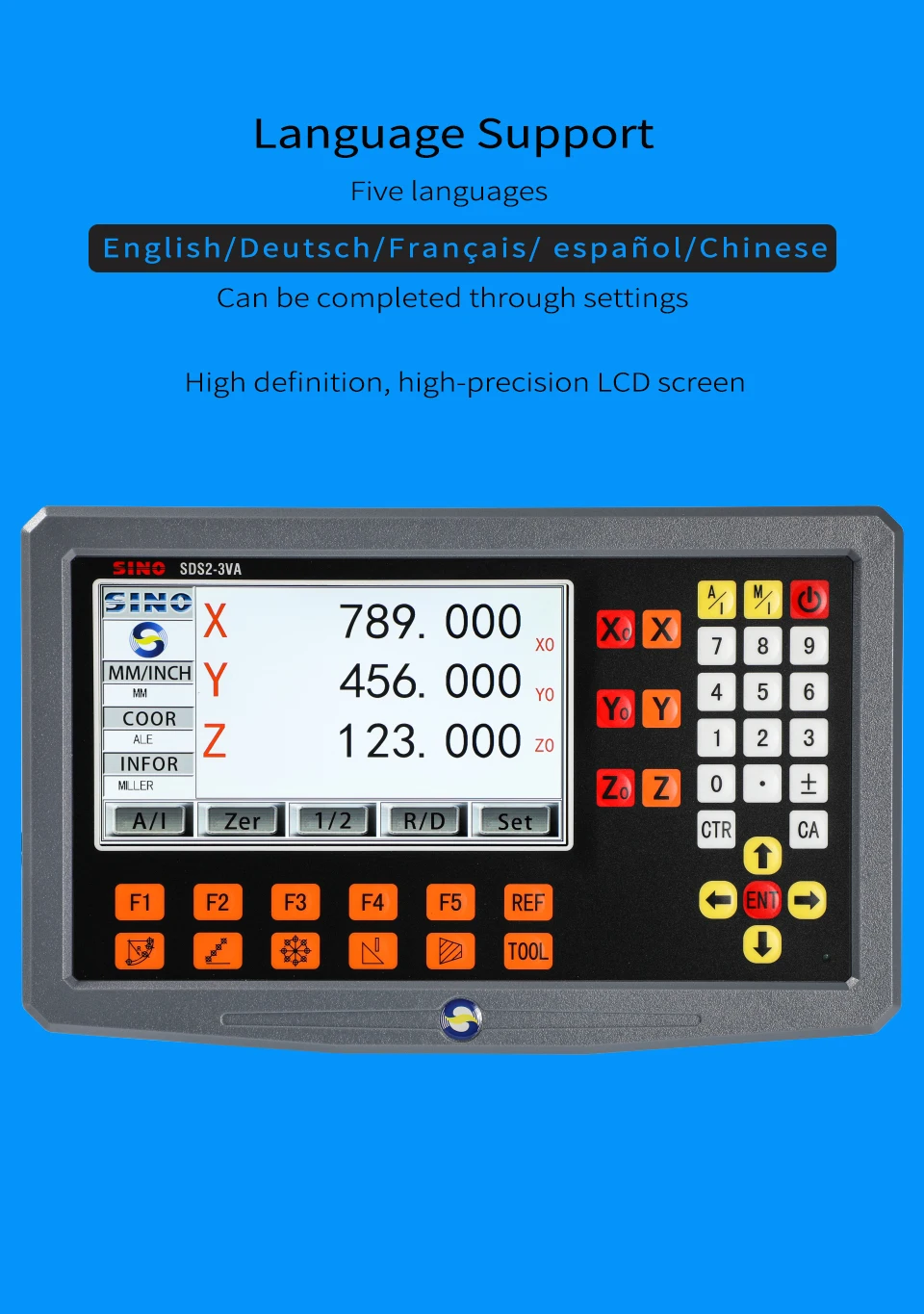

-Support 5 languages, including Русский язык, German, French, English, Spanish

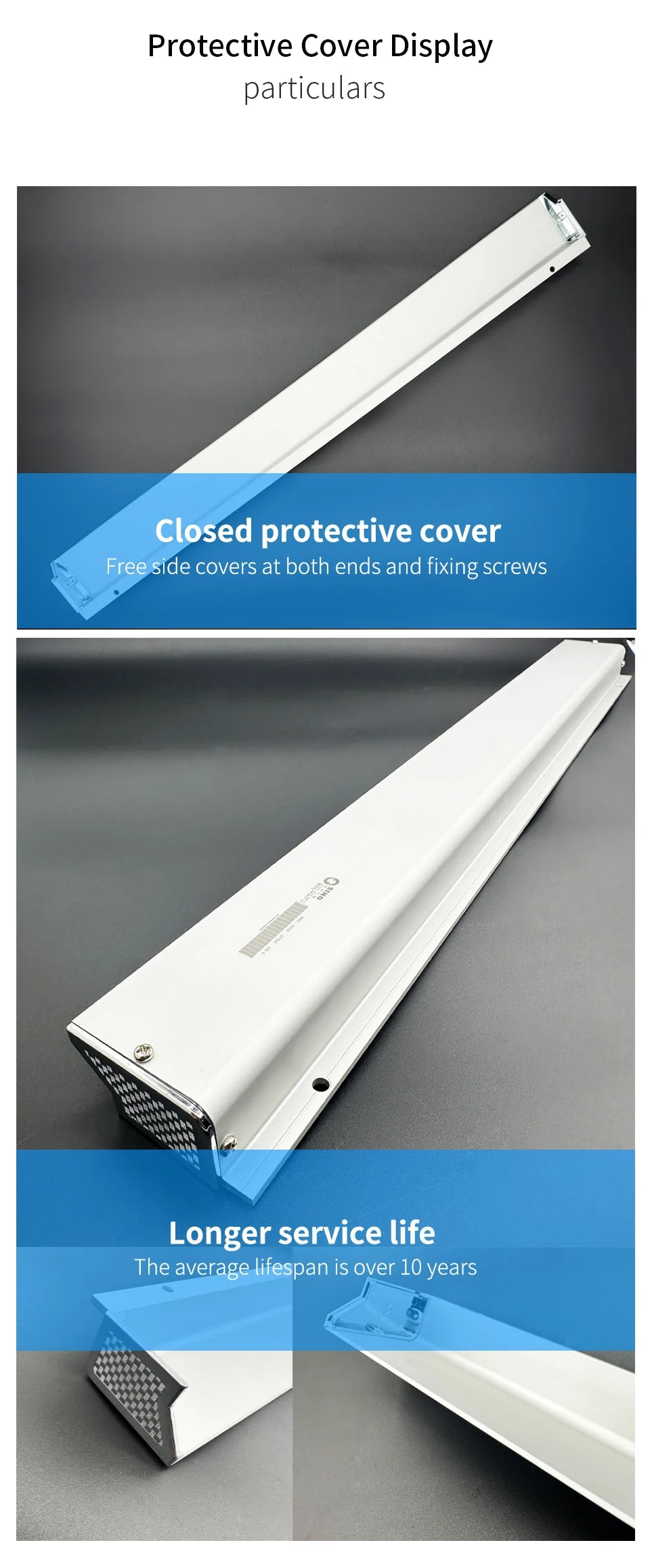

-Thin size ,PC cover, good signal

-Simple system, easy to operate

-Big LCD screen, clear display

DRO Features

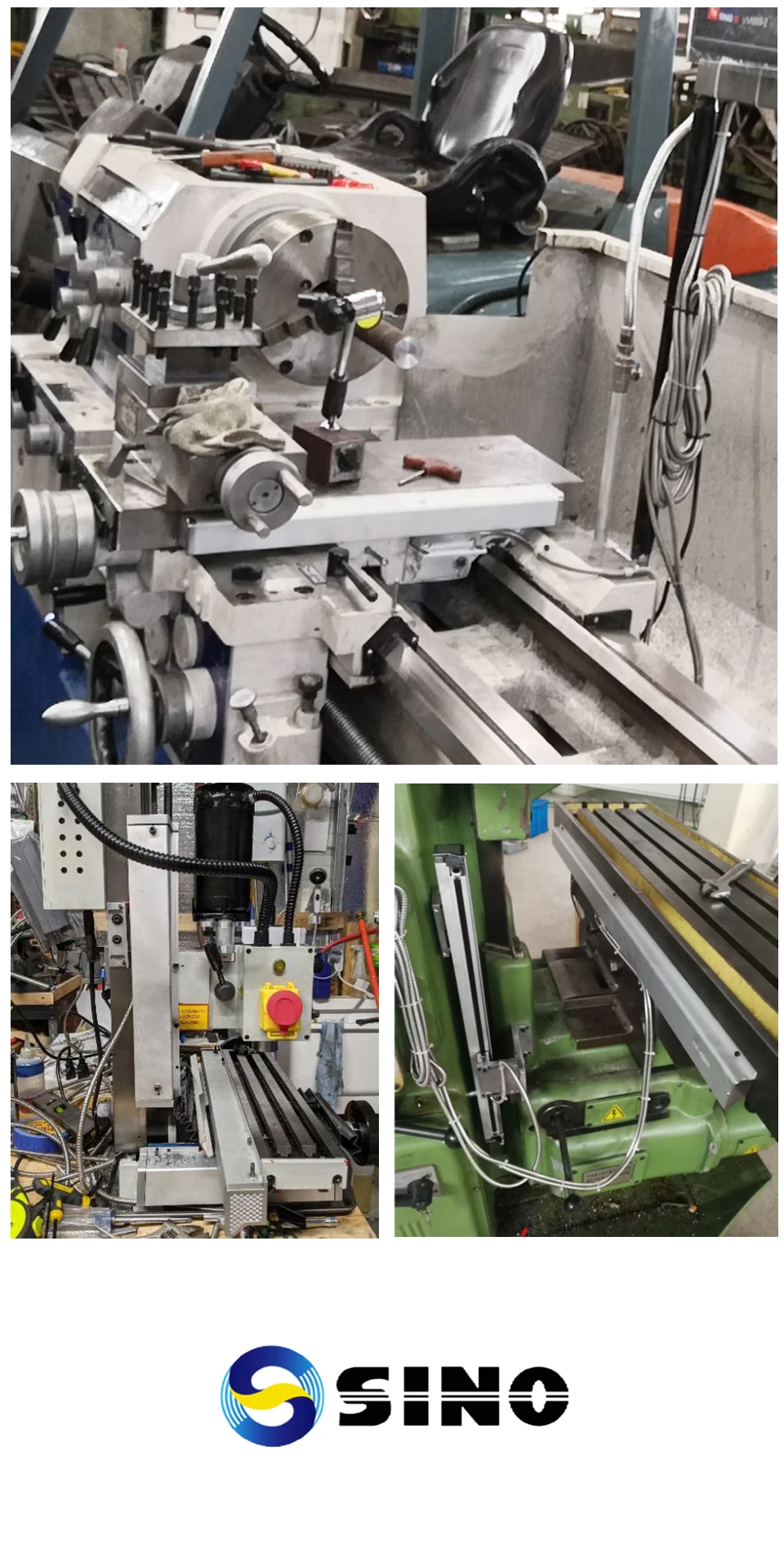

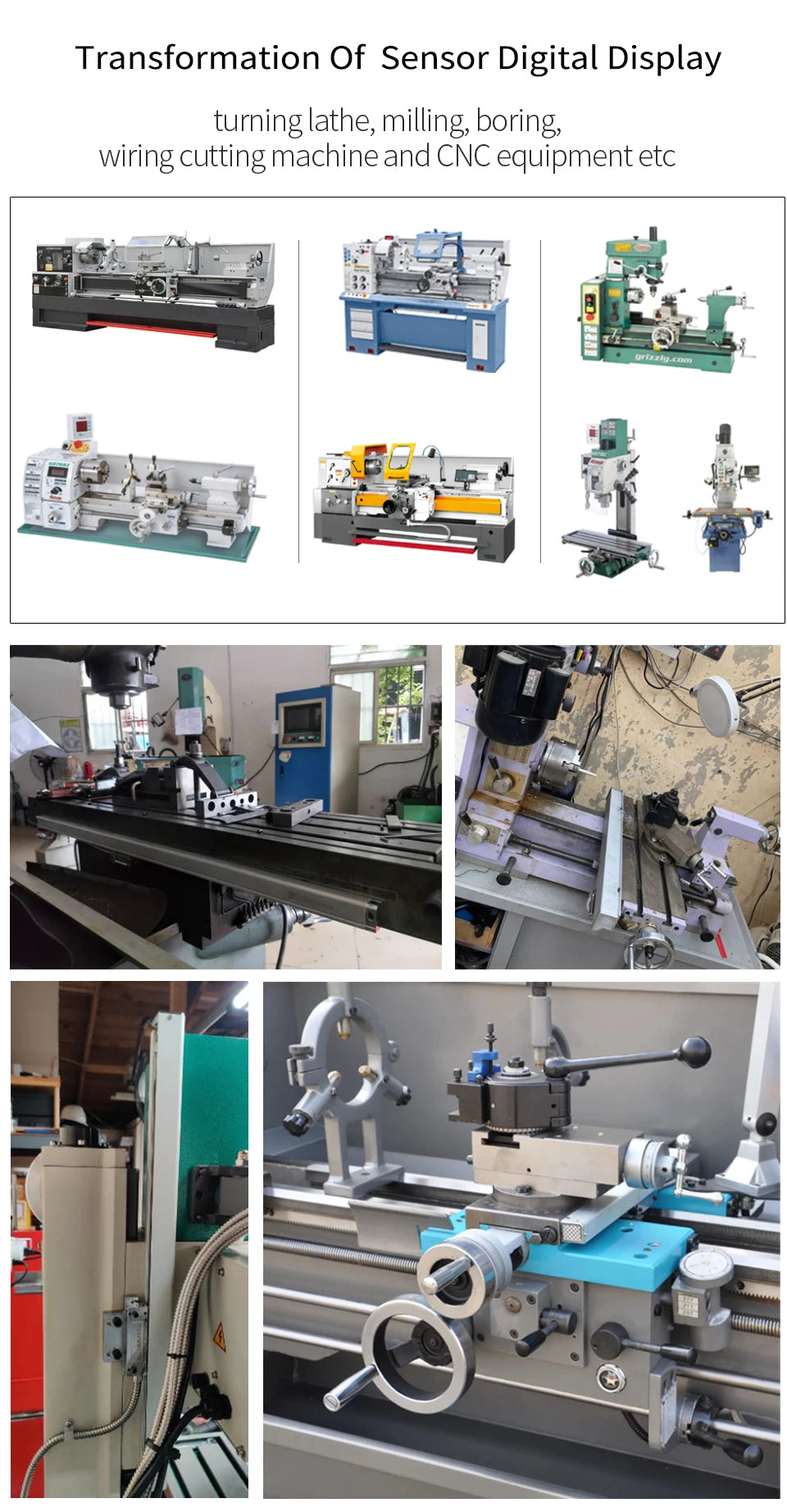

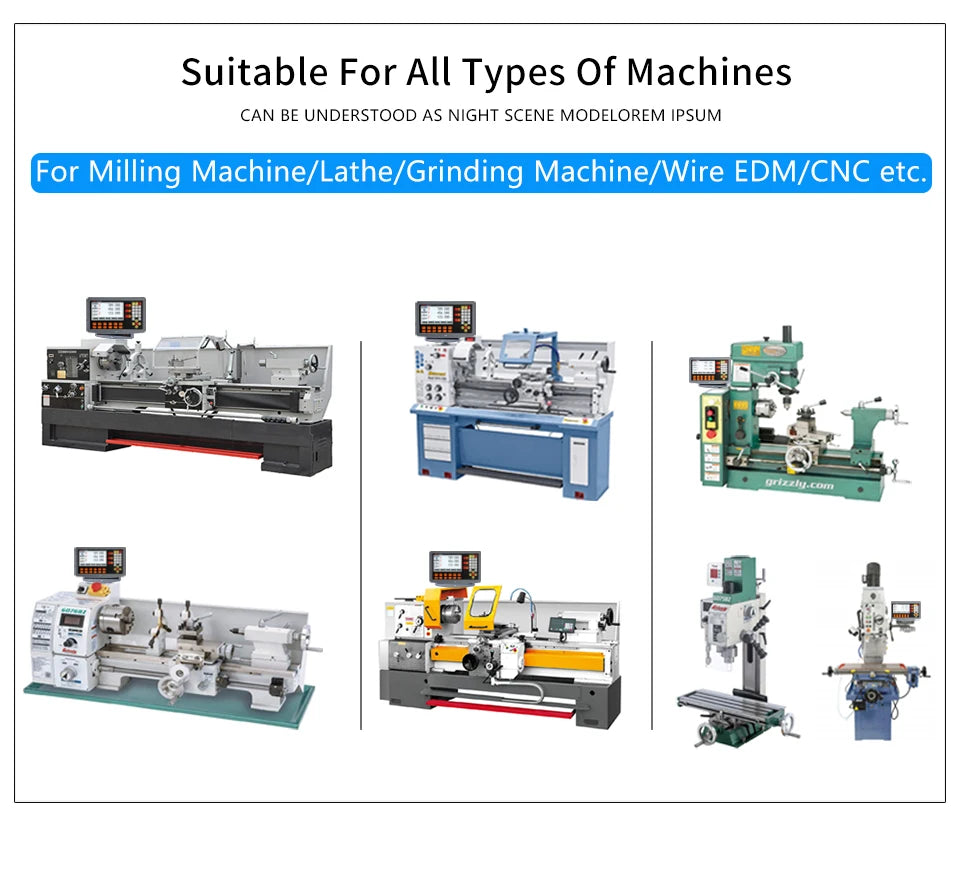

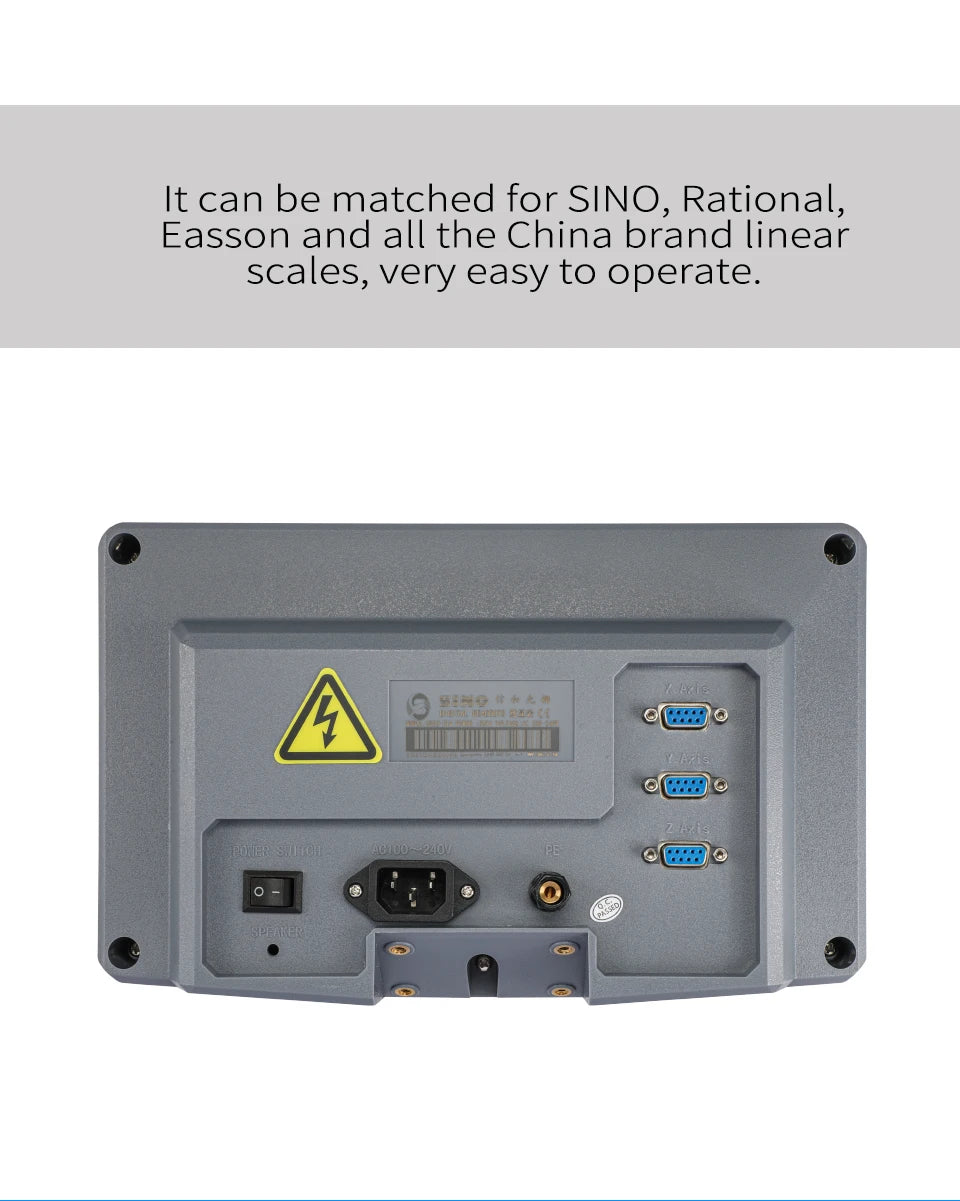

The LCD display accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.

It can set to 5 Language by system in one display, more functional for lathe & milling machine for the users from different countries.

Parameter

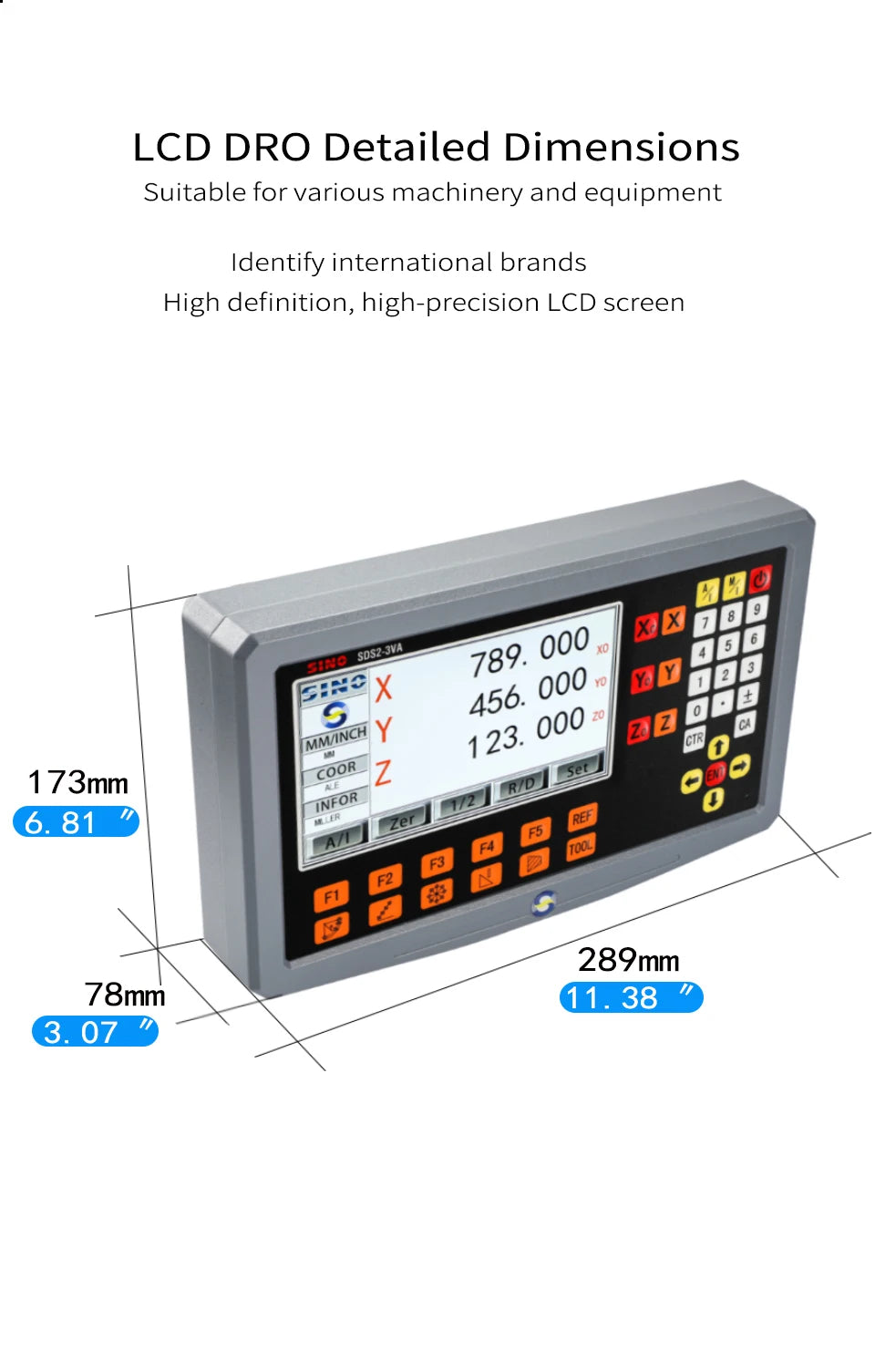

Model: SDS2-3VA

Input voltage: AC80V-240V, can be use at whole world

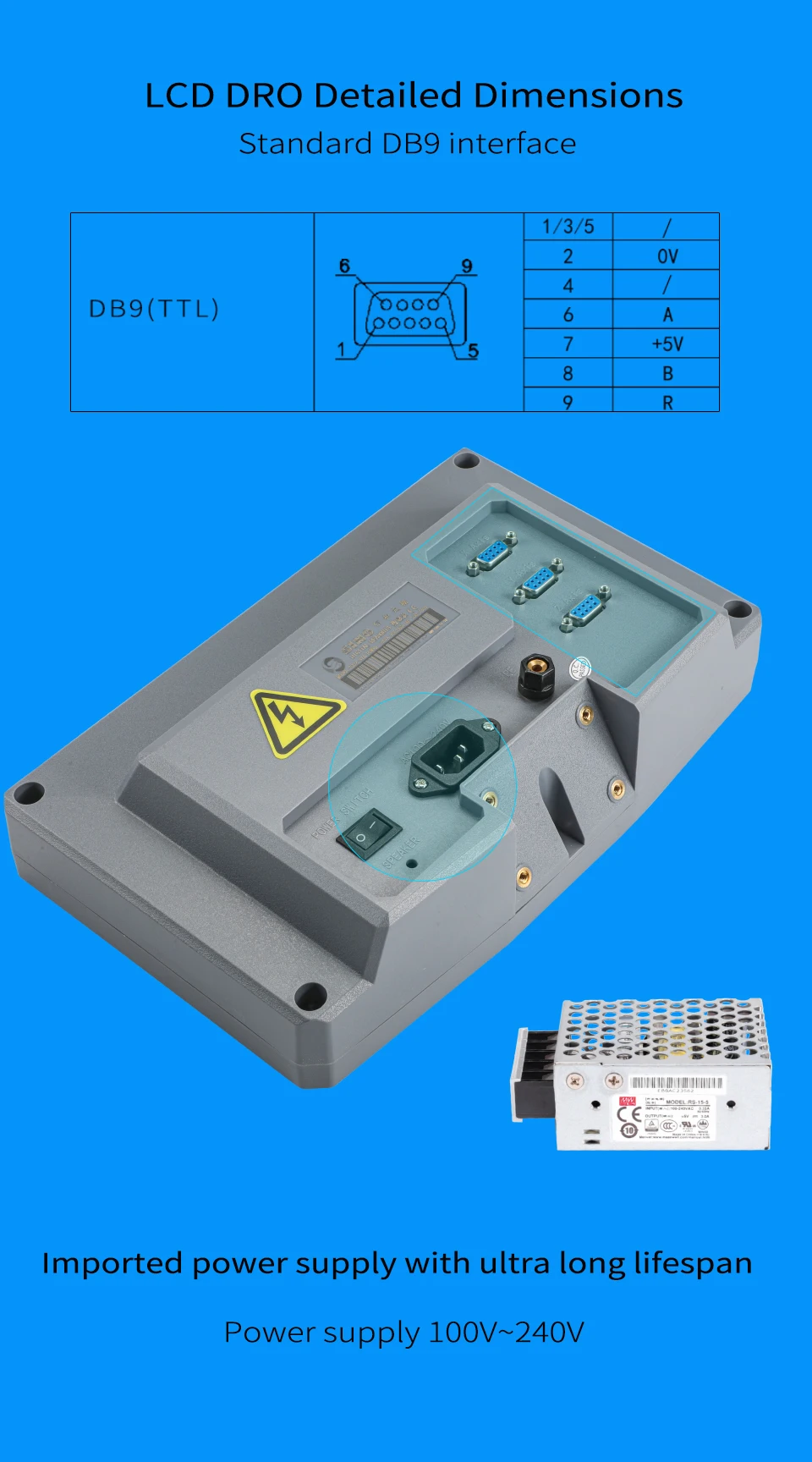

Input signal: TTL

Material: Metal cover

Plug: AU, EU, US, UK

Specifications

The SDS2-3VA offers a high performance universal display console with Milling, Lathe and Grinding functions.

This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

Durable front panel membrane with tactile switches and robust die cast housing.

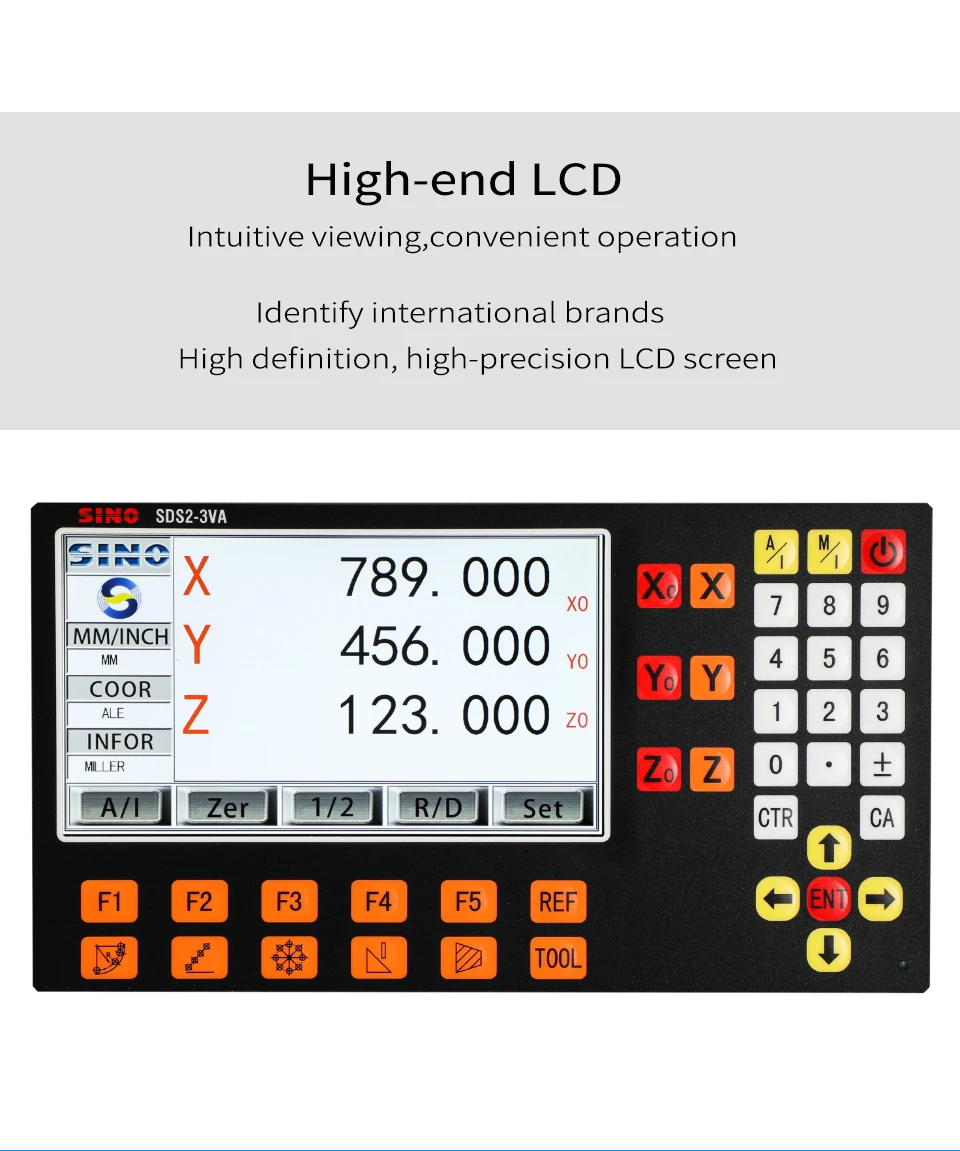

Large easy to read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

The DRO SDS2-3VA is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

Basic Functions

200 Points Auxiliary Zero Position Function

Mid-split Function

"mm/inch" Conversion Display

Radius/Diameter Switch Display

Segmented Error Compensation

Linear Error Compensation

Power Interruption Memory

Sleep Switch

Mathematics calculation

Machining Functions

PCD circumferential division (Applicable to milling machine and spark tester)

Involute chamber machining function (Applicable to milling machine)

Bevel machining/Angular Surface Processing (Applicable to milling machine)

N3 function (Applicable to milling machine)

Diagonal boring (Applicable to milling machine)

R-arc function (Applicable to milling machine)

Taper measuring function (Applicable to lathe)

200-tool library (Applicable to lathe)

Anti-dithering function (Applicable to grinding machine)
