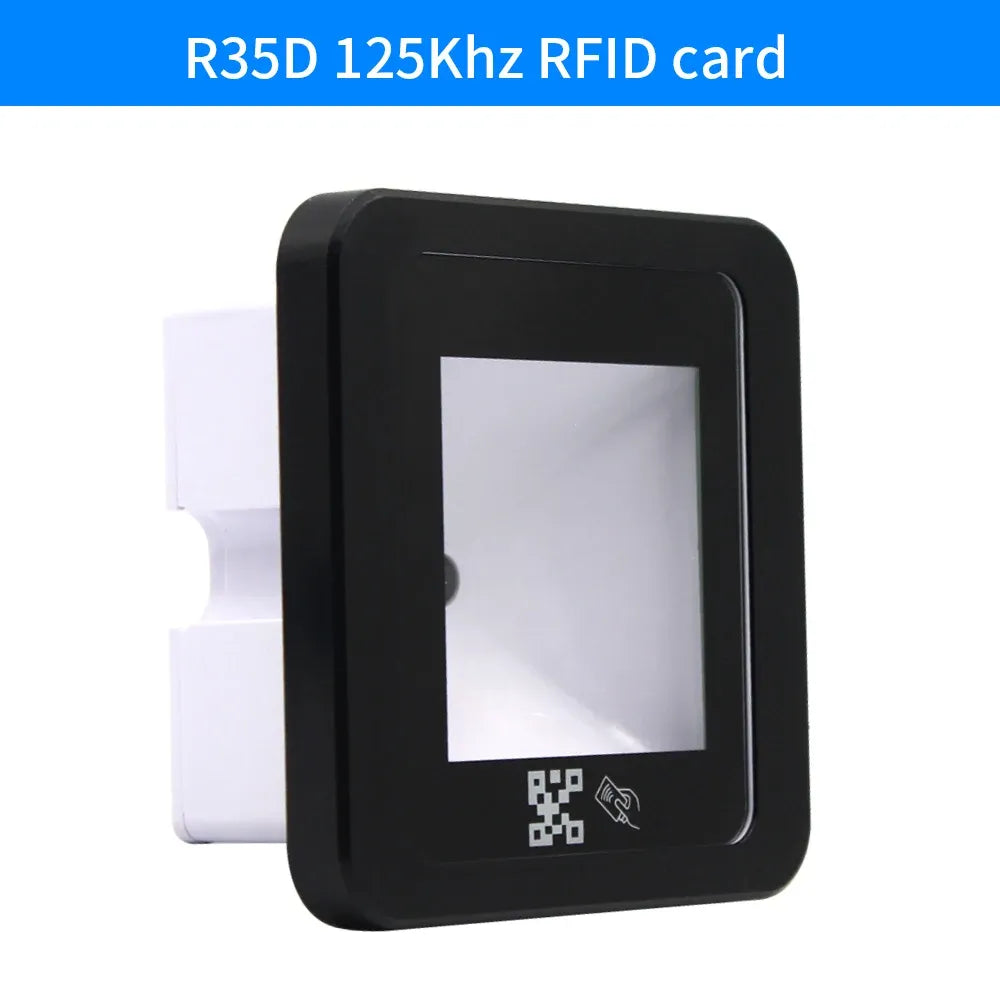

Black R35 125kHz RFID reader with front scan window and QR icon

R35 QR Code RFID Reader 125khz EM/13.56mhz MF Access Card Reader Scanner USB/Wiegand/RS232/485 2D QRCode BarCode Scanner

R35D 125Khz Black
€74,13 €111,20
Skip to product information
Black R35 125kHz RFID reader with front scan window and QR icon
  • Black R35 125kHz RFID reader with front scan window and QR icon

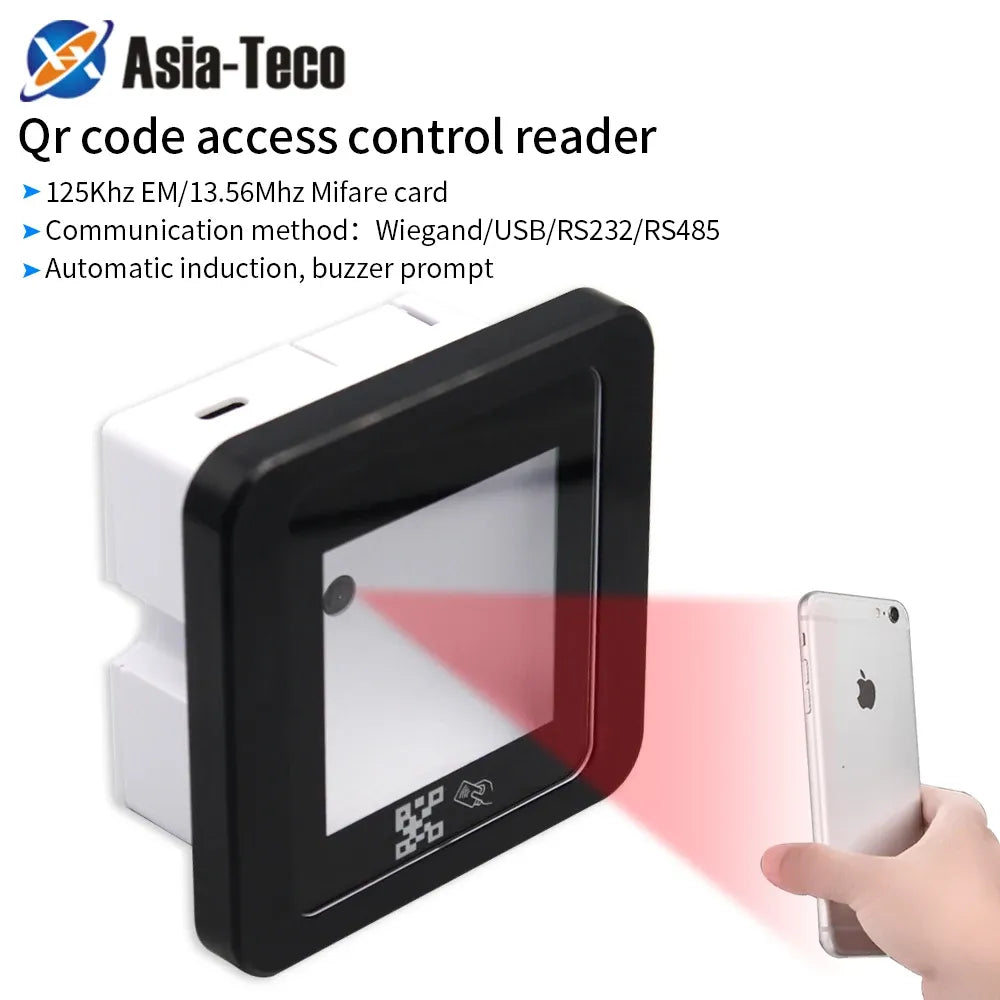

  • Black QR code access card reader with front scanning window and white mounting base.

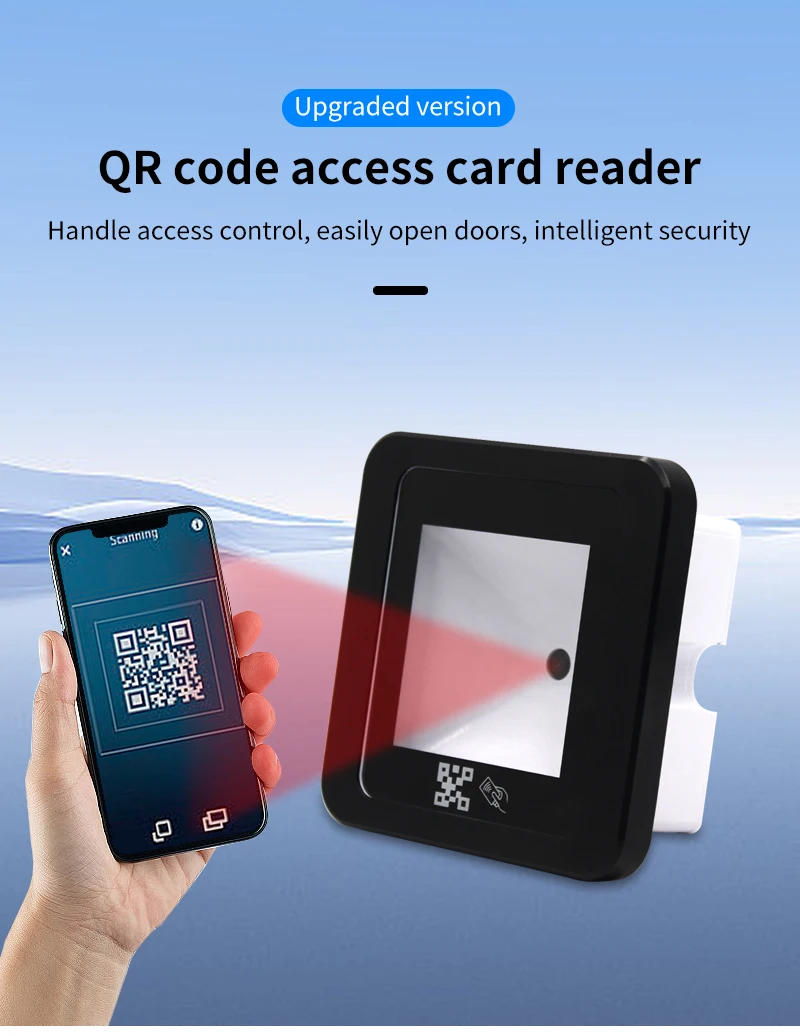

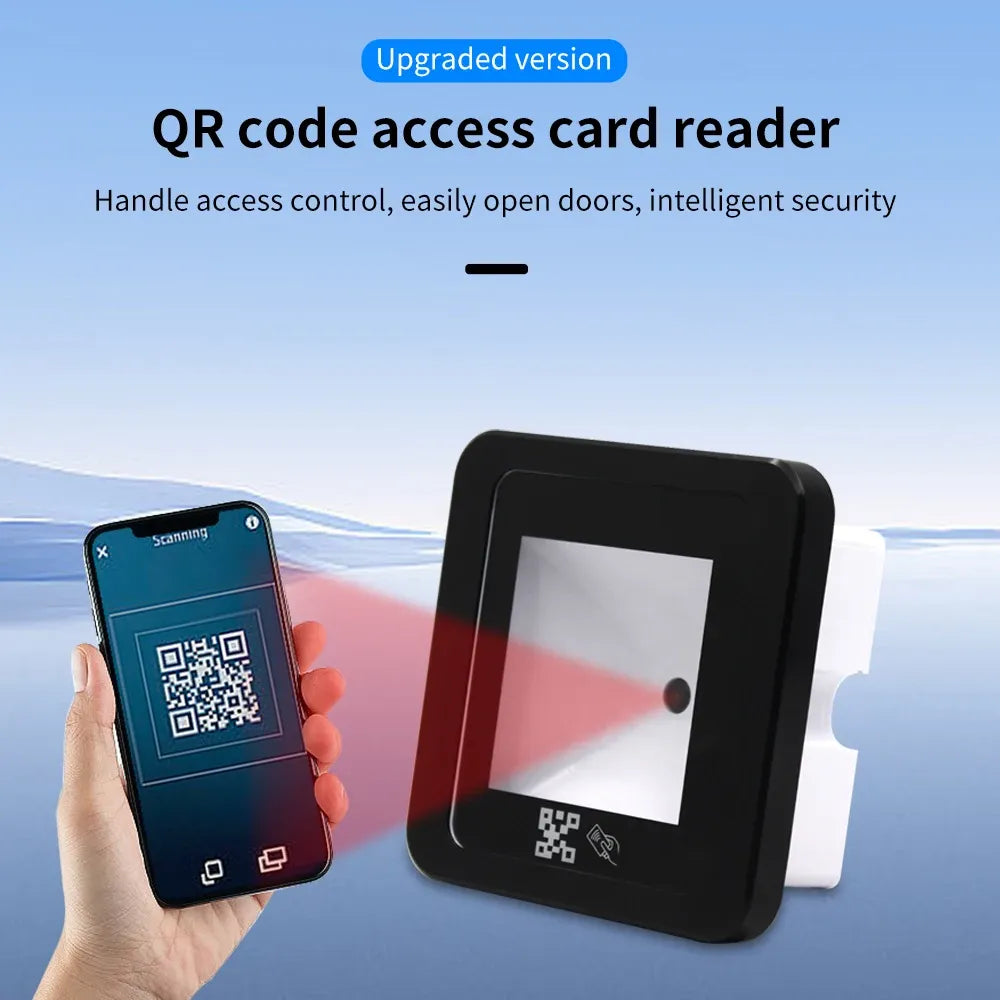

  • Black QR access card reader with scanning window, shown with a smartphone displaying a QR code.

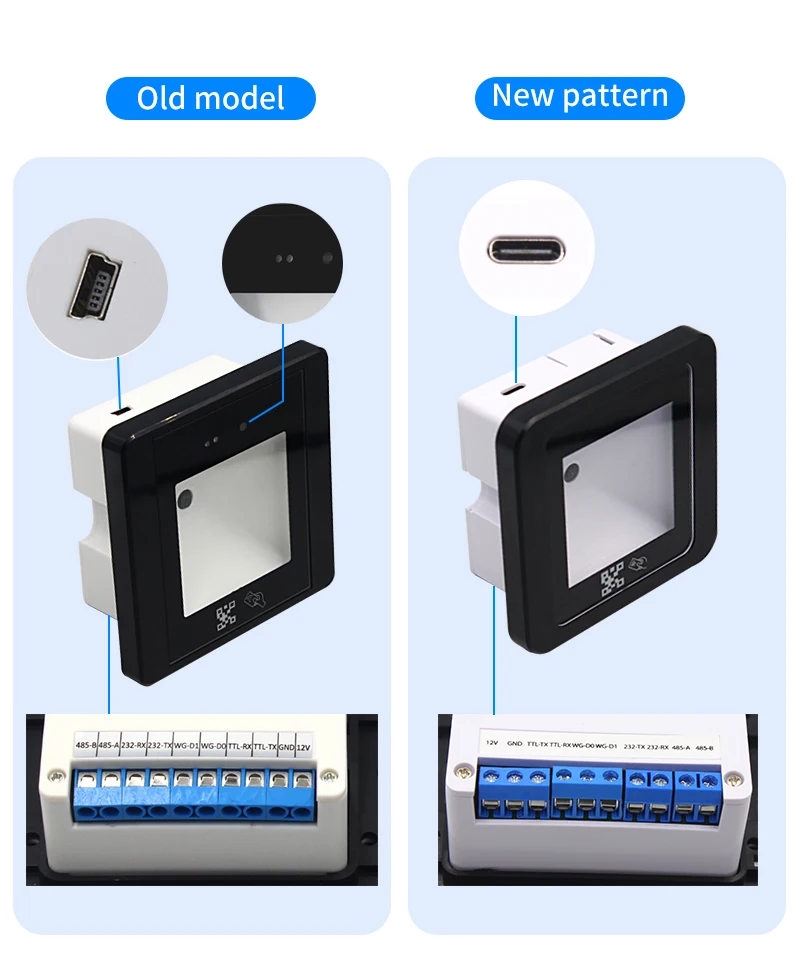

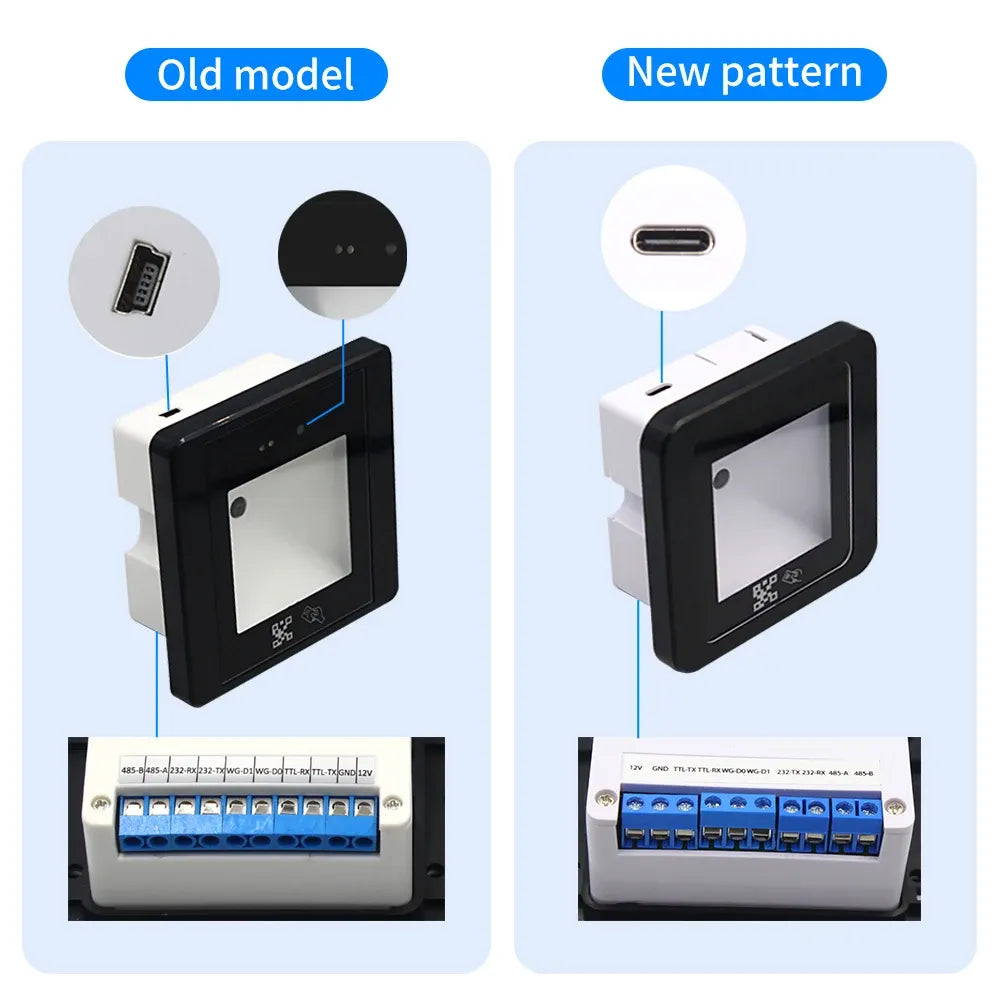

  • Two QR code access card reader models shown: old pattern and new pattern.

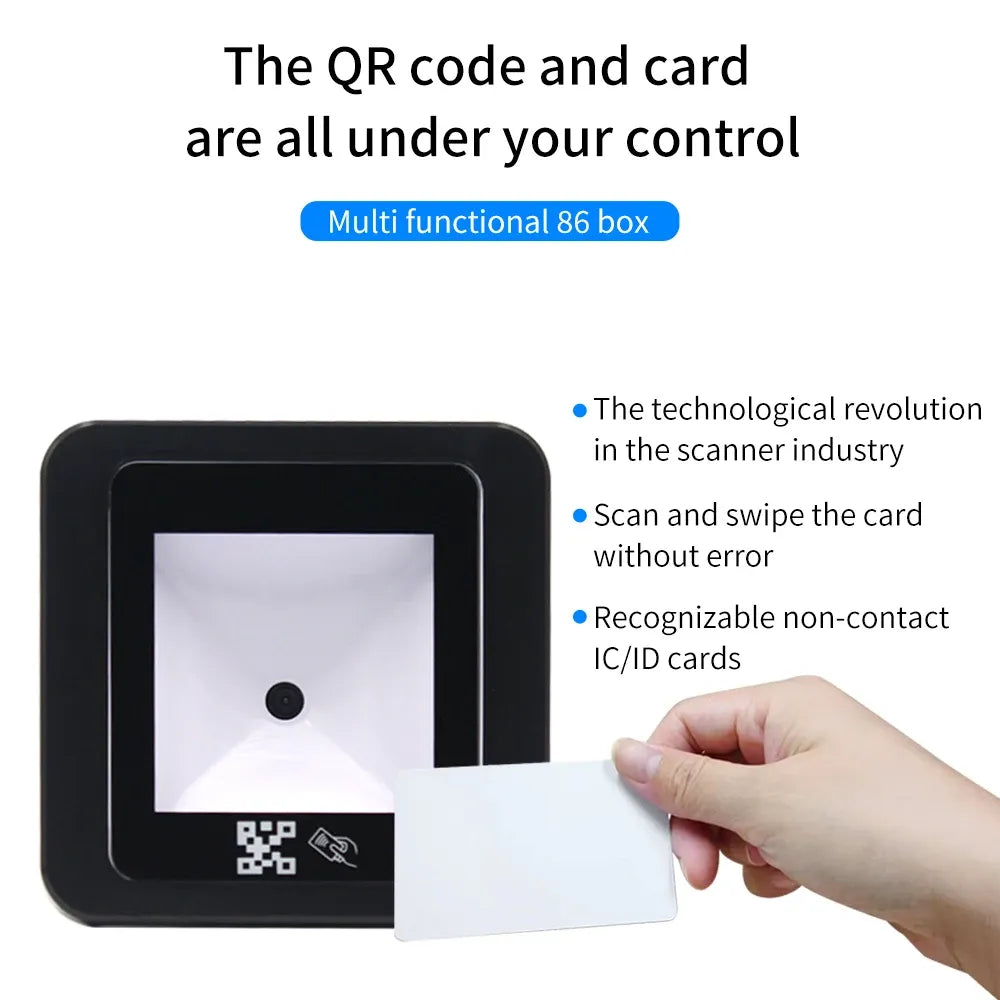

  • Black QR code access card reader face with QR scan area and an access card held near it.

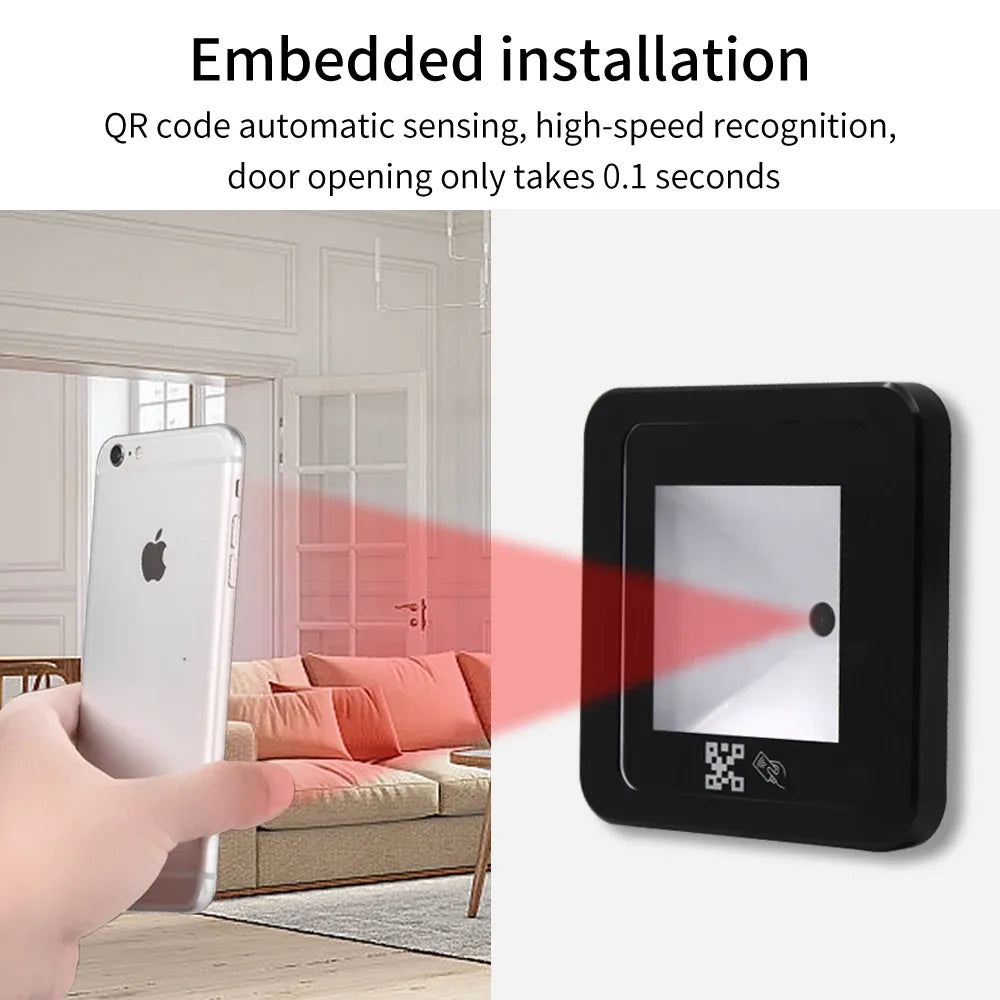

  • Black QR code access card reader with access card held beside the scanner.

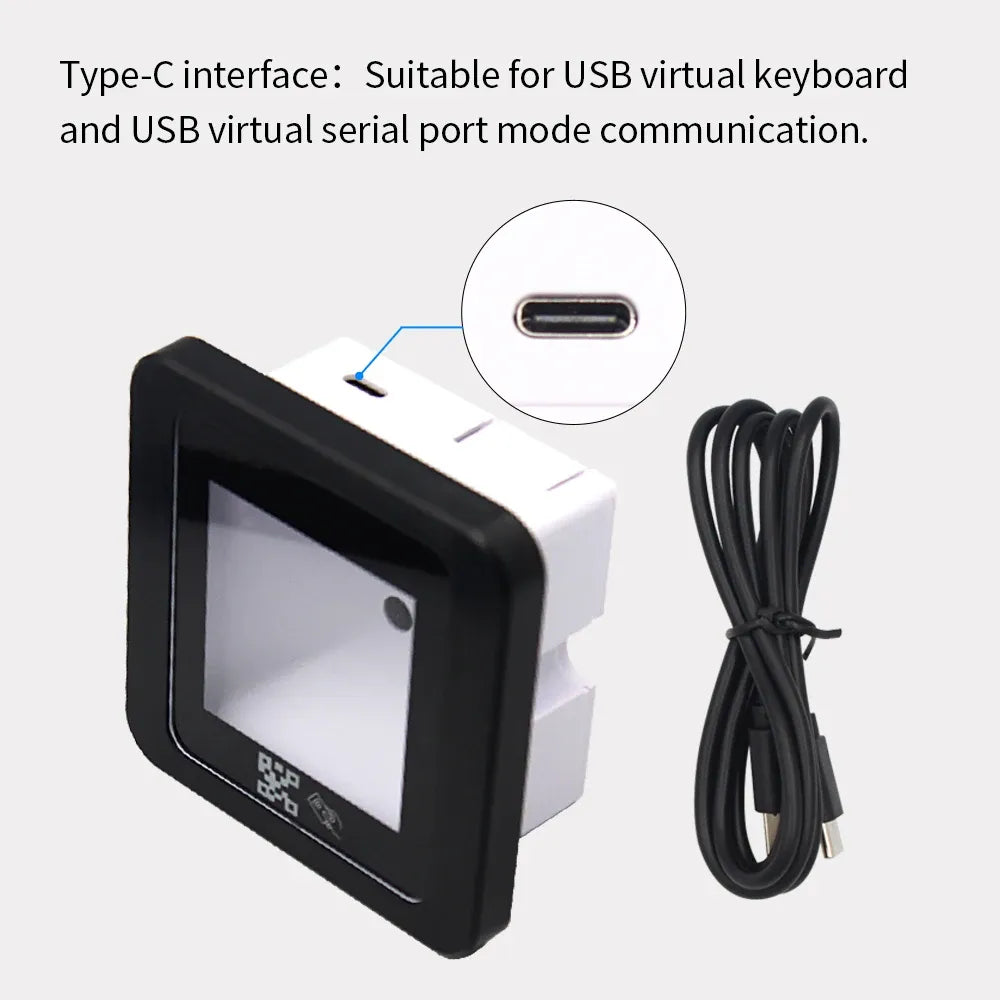

  • Black-and-white QR code access card reader with USB Type-C cable and port detail.
  • Black QR code access card reader with scanning window, shown with a hand holding a QR phone.
  • Old and new QR code access card reader patterns shown, including Type-C port view.

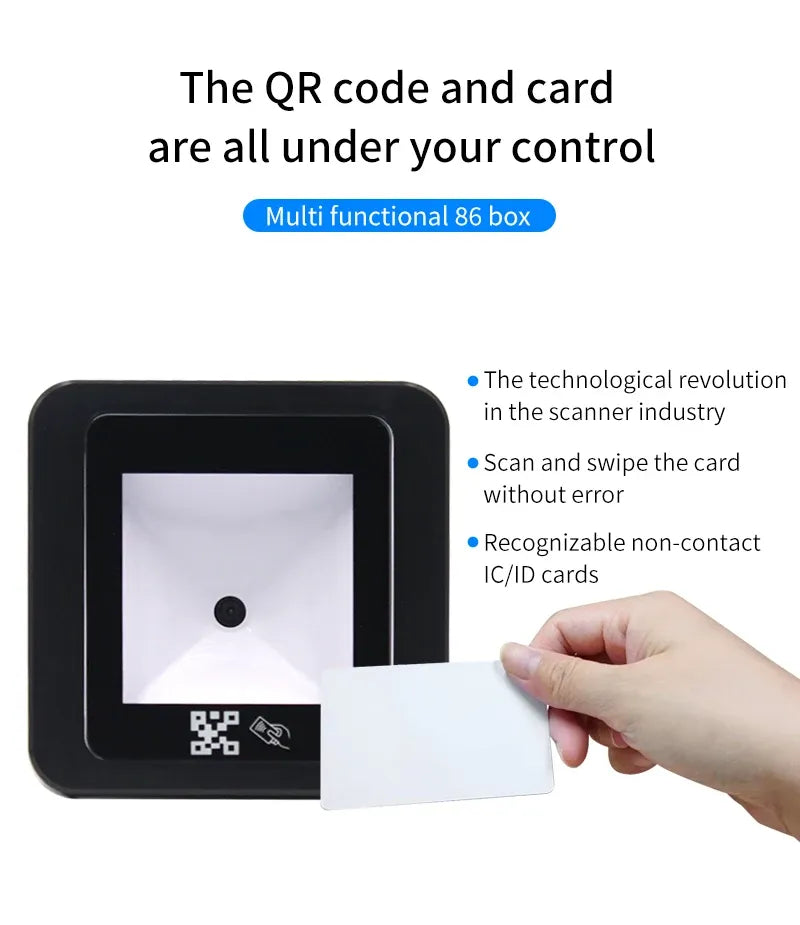

  • Black QR code access card reader with QR scan window and a card held in front.

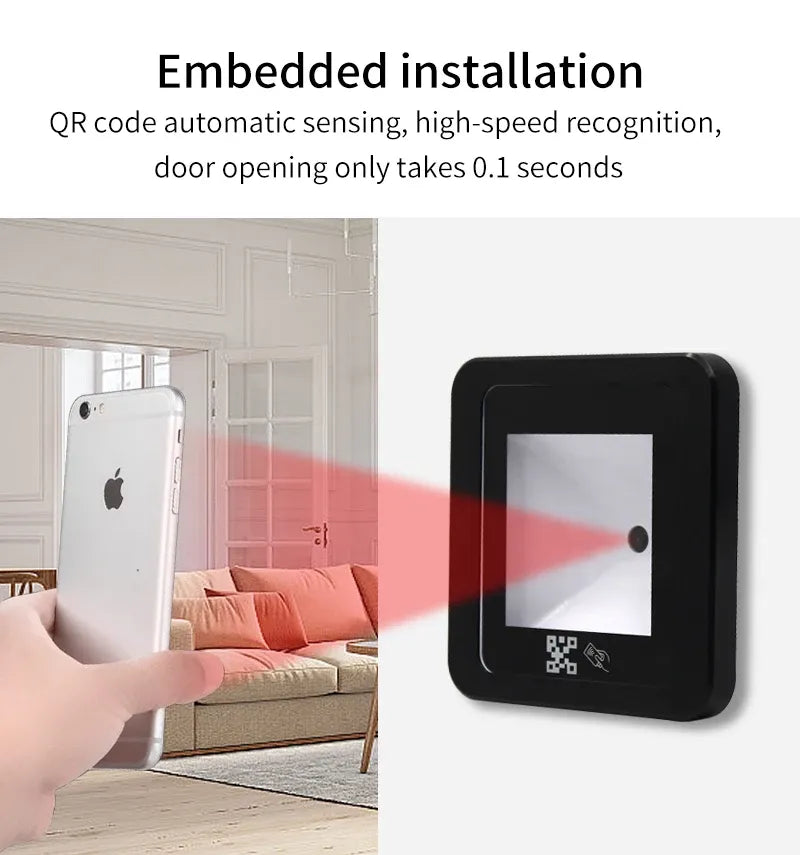

  • Black QR code access card reader mounted on wall with a card presented to scan.
  • QR code access reader scanning examples on a card-code display grid

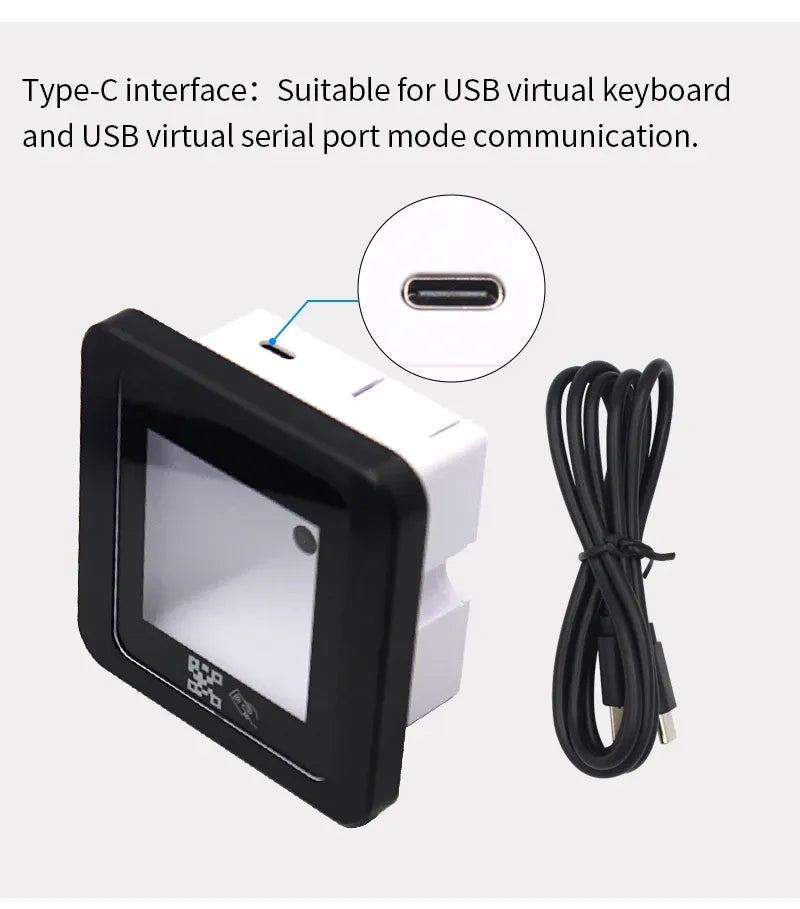

  • Black QR/RFID card reader with USB Type-C cable and front scan window

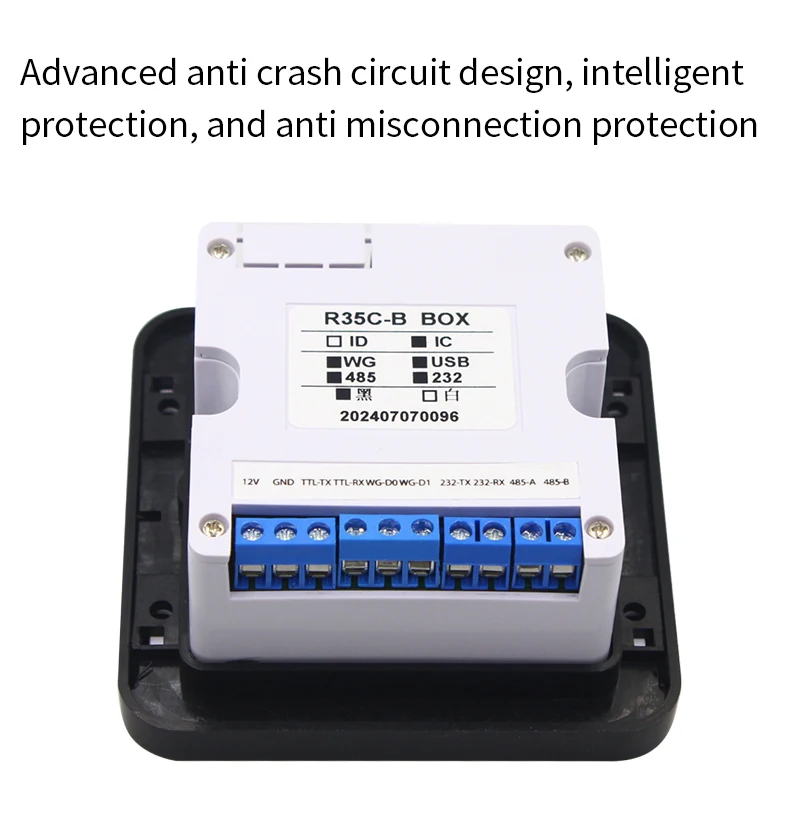

  • R35 QR RFID reader base with exposed blue terminal connector block

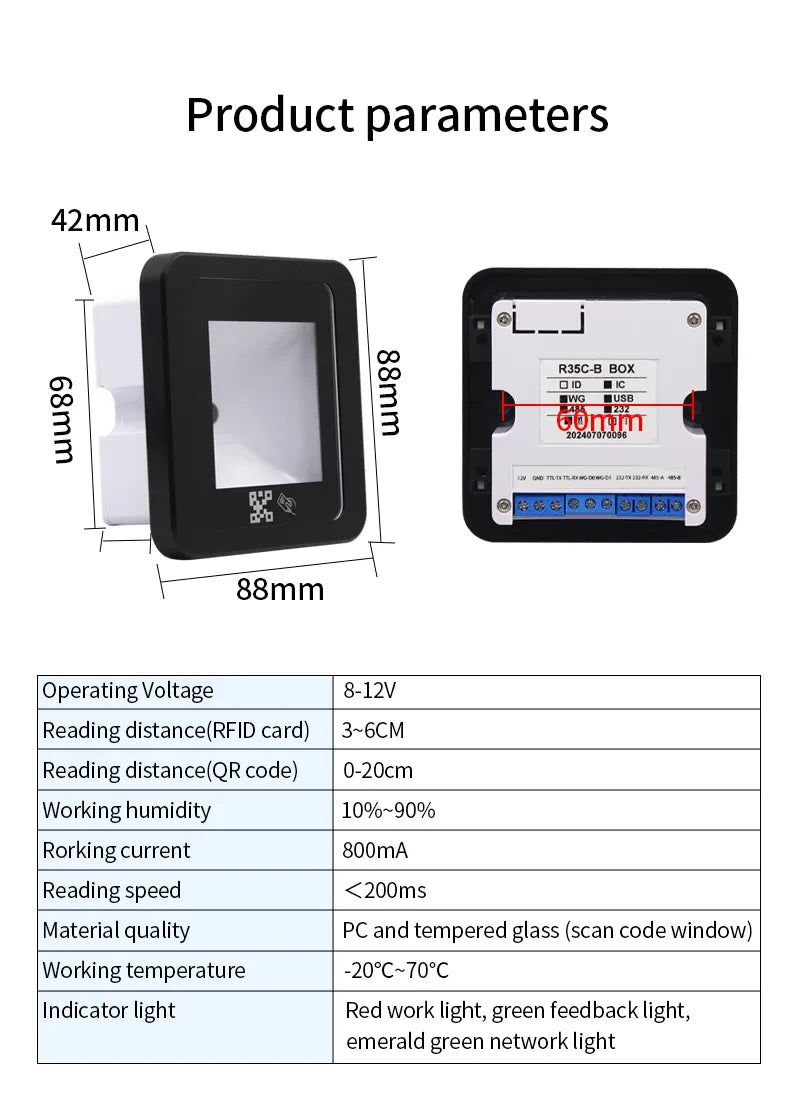

  • Black and white RFID reader module with front panel and size diagram

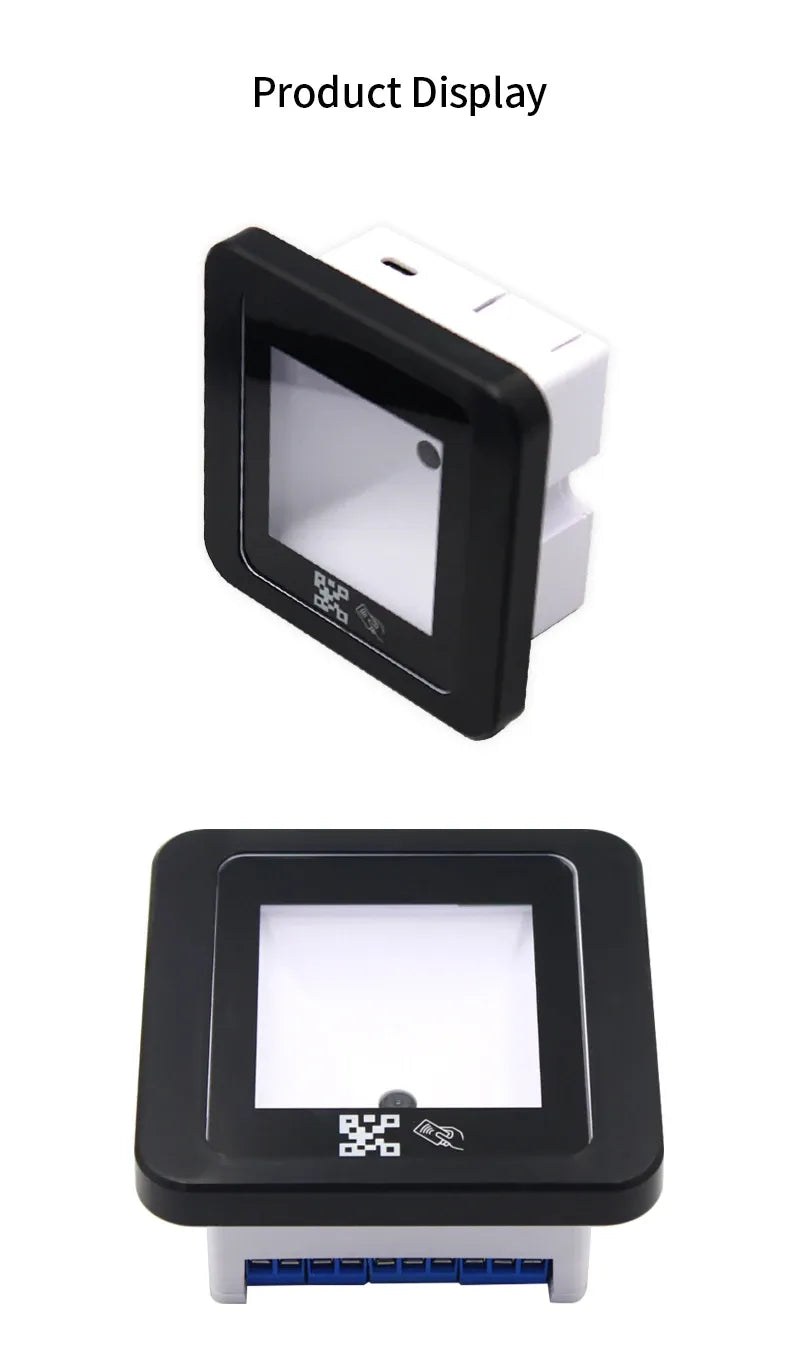

  • Black QR/RFID reader front and base with blue port strip

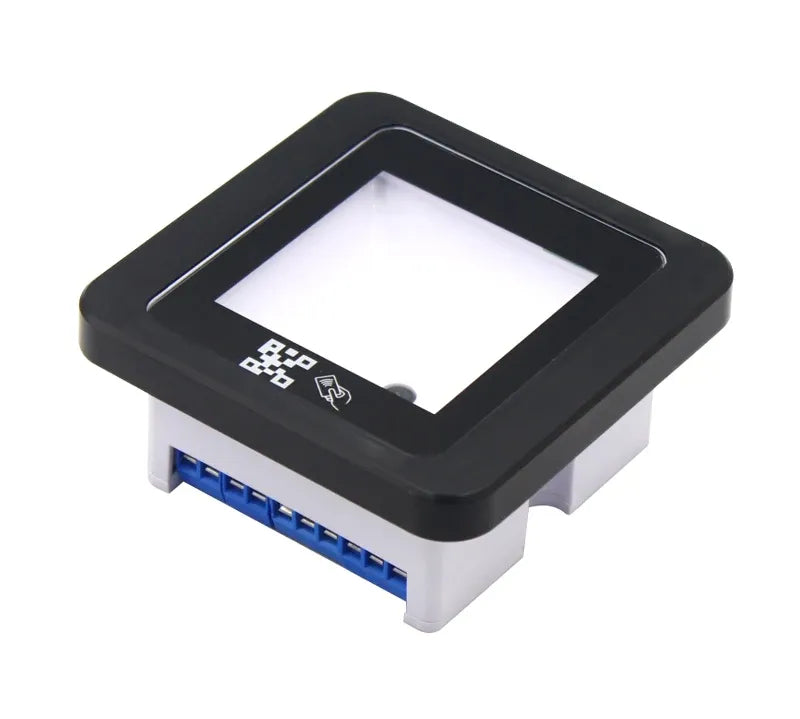

  • Top view of black QR/RFID card reader with front scan window and blue ports

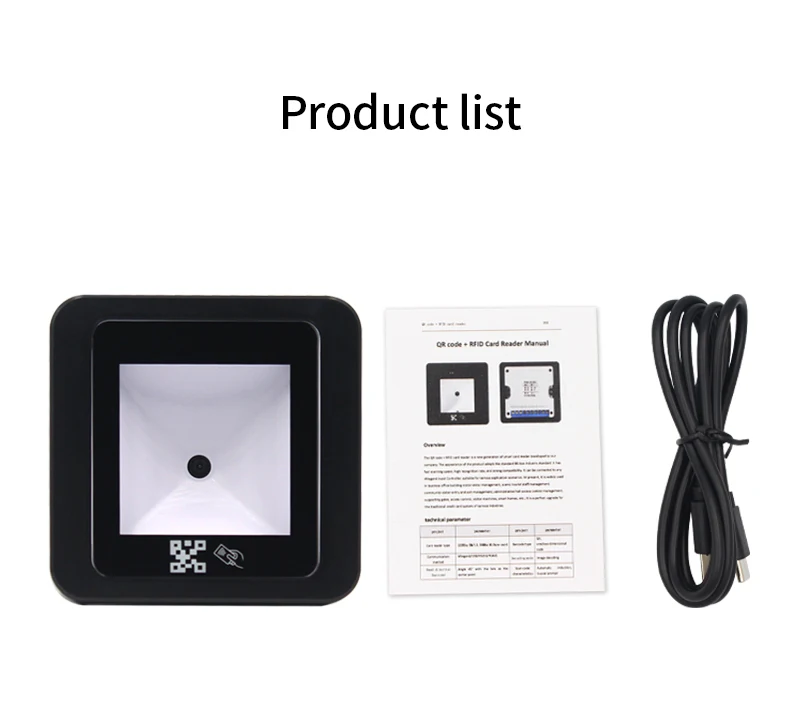

  • Black QR/RFID reader kit with manual and black connecting cable
  • Printed feedback and shipping information page for the QR/RFID reader
  • Warranty and service information infographic page for the access card reader
  • Black R35 125kHz RFID reader with front scan window and QR icon
  • Black QR code access card reader with front scanning window and white mounting base.
  • Black QR access card reader with scanning window, shown with a smartphone displaying a QR code.
  • Two QR code access card reader models shown: old pattern and new pattern.
  • Black QR code access card reader face with QR scan area and an access card held near it.
  • Black QR code access card reader with access card held beside the scanner.
  • Black-and-white QR code access card reader with USB Type-C cable and port detail.
  • Black QR code access card reader with scanning window, shown with a hand holding a QR phone.
  • Old and new QR code access card reader patterns shown, including Type-C port view.
  • Black QR code access card reader with QR scan window and a card held in front.
  • Black QR code access card reader mounted on wall with a card presented to scan.
  • QR code access reader scanning examples on a card-code display grid
  • Black QR/RFID card reader with USB Type-C cable and front scan window
  • R35 QR RFID reader base with exposed blue terminal connector block
  • Black and white RFID reader module with front panel and size diagram
  • Black QR/RFID reader front and base with blue port strip
  • Top view of black QR/RFID card reader with front scan window and blue ports
  • Black QR/RFID reader kit with manual and black connecting cable
  • Printed feedback and shipping information page for the QR/RFID reader
  • Warranty and service information infographic page for the access card reader
R35 QR Code RFID Reader 125khz EM/13.56mhz MF Access Card Reader Scanner USB/Wiegand/RS232/485 2D QRCode BarCode Scanner

R35 QR Code RFID Reader 125khz EM/13.56mhz MF Access Card Reader Scanner USB/Wiegand/RS232/485 2D QRCode BarCode Scanner

€74,13 €111,20
Color

SPECIFICATIONS

Brand Name: Asia-Teco

Certification: NONE

Choice: yes

High-concerned chemical: none

Interface: USB

Model Number: R35D/R35C

Origin: Mainland China

Type: ID


QR Code RFID Reader 125khz EM 13.56mhz MF Access Card Reader Scanner USB/Wiegand/RS232/485 2D QRCode BarCode Scanner


General

QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.

Specification

Card type

EM or Mifare

Code Type

QR Code, 1D

Interface

Wiegand26/34, RS232,USB,RS485,TTL

Decode mode

Immage decoding

Reading directions

Camera centric slant 45°

Reading feature

Auto-induction & beeper

Voltages

4-12V Wide voltage input

Current

800mA

Reading range of range

3-6CM

Reading speed

<200ms

Reading range of QR

0-20CM

Materialcase

PC & temperrd glass

Humidity

10%~90%

Temperature

-20℃~70℃

Operate system

Windows(XP,7,8,10), Linux

Size

86mm×86mm×42mm

Status light

Red-work,Green-feedback,Light Green-internet

Wight

150G

Remark

Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted.


Model

R35-ID

 QR 2D Barcode + EM (125KHZ)

R35-IC

 QR 2D Barcode + Mifare (13.56MHZ)


Application

  1. Self-service equipment,

  2. Brake machine products,

  3. Retail, cashier POS, medical,

  4. Mobile phone coupon,

  5. Ticket check

  6. Lottery betting station,

  7. Bank, etc.
