QR Code RFID Reader 125khz EM 13.56mhz MF Access Control Card Reader Scanner USB/Wiegand/ RS232/485 2D QRCode BarCode Scanner
R35D 125Khz Black
Sale price
€74,54
Regular price
€111,81
Skip to product information
QR Code RFID Reader 125khz EM 13.56mhz MF Access Control Card Reader Scanner USB/Wiegand/ RS232/485 2D QRCode BarCode Scanner
Sale price
€74,54
Regular price
€111,81
SPECIFICATIONS
Brand Name: Asia-Teco
Card type: EM or Mifare
Certification: NONE
High-concerned chemical: none

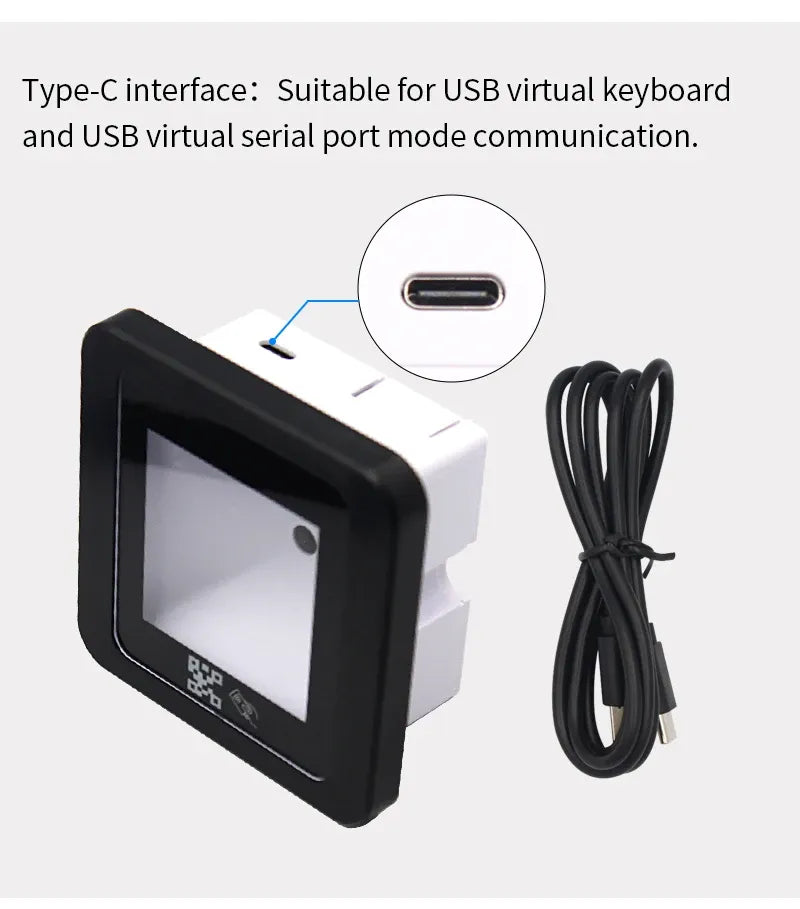

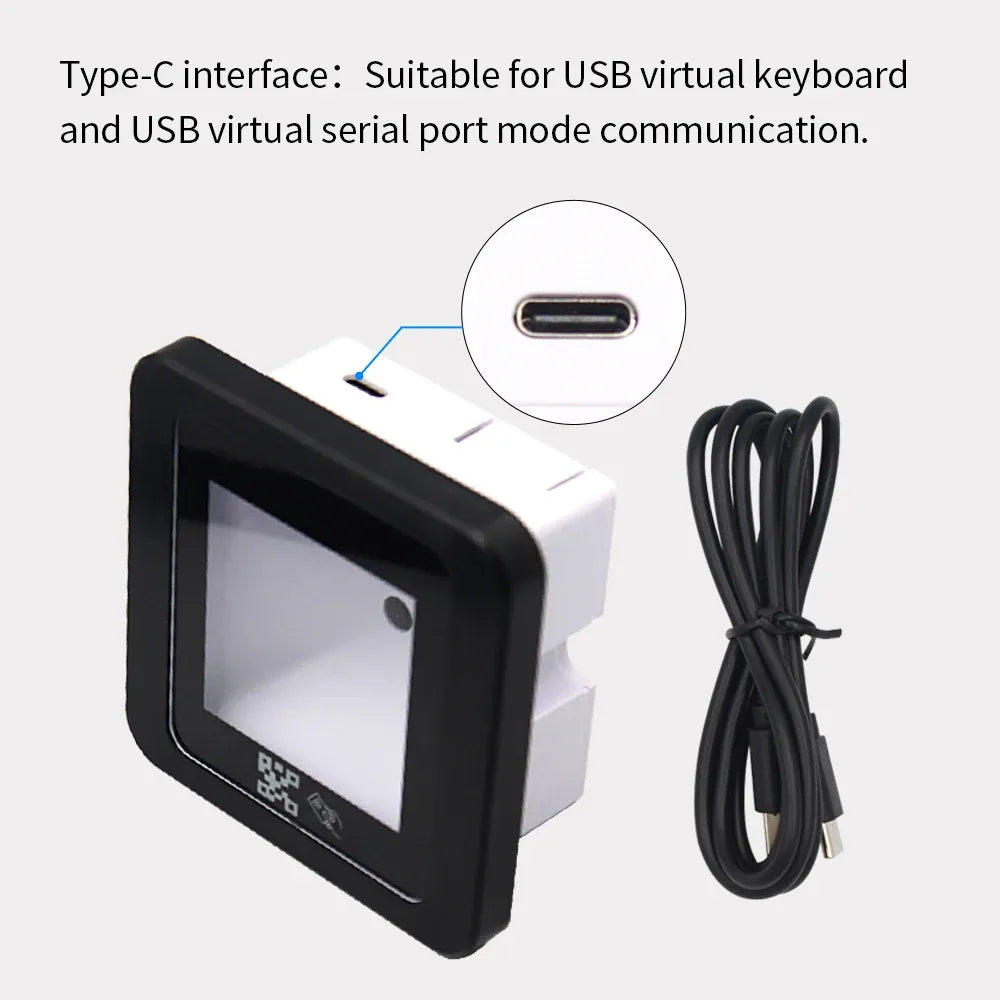

Interface: USB,Wiegand26/34, RS232,USB,RS485
Interface Type: USB
Model Number: R35D/R35C
Origin: Mainland China
SIZE: 86mm*86mm*42mm
Scan Speed: 200 scans/second
Type: ID
General

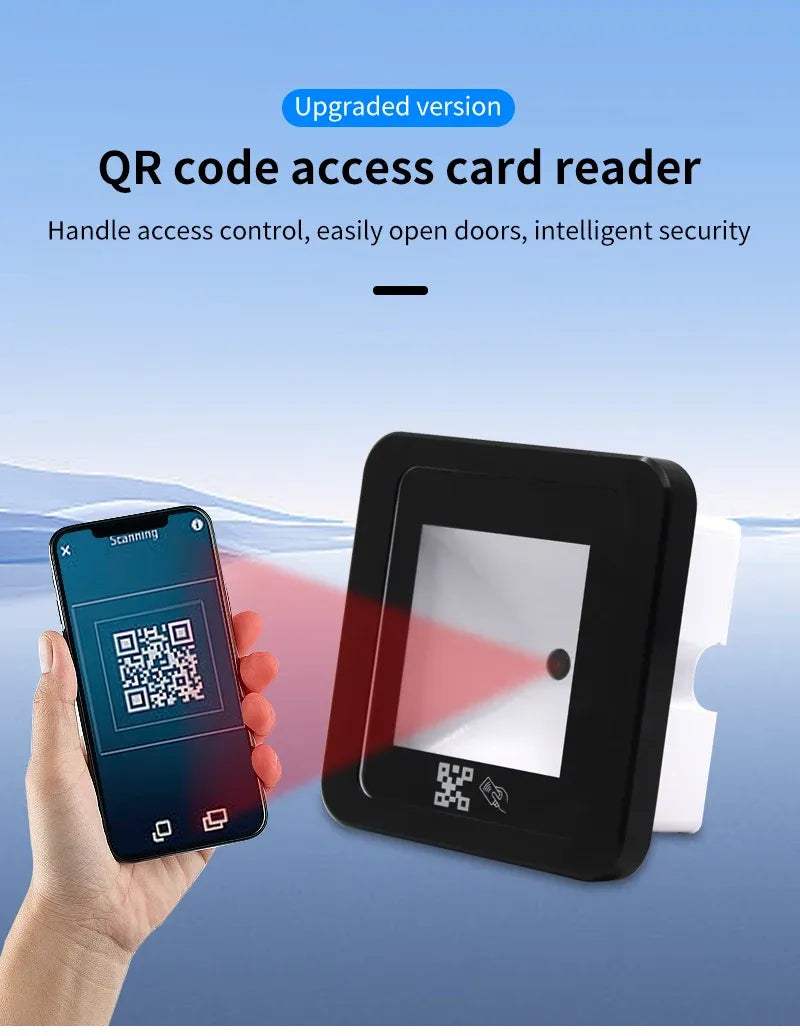

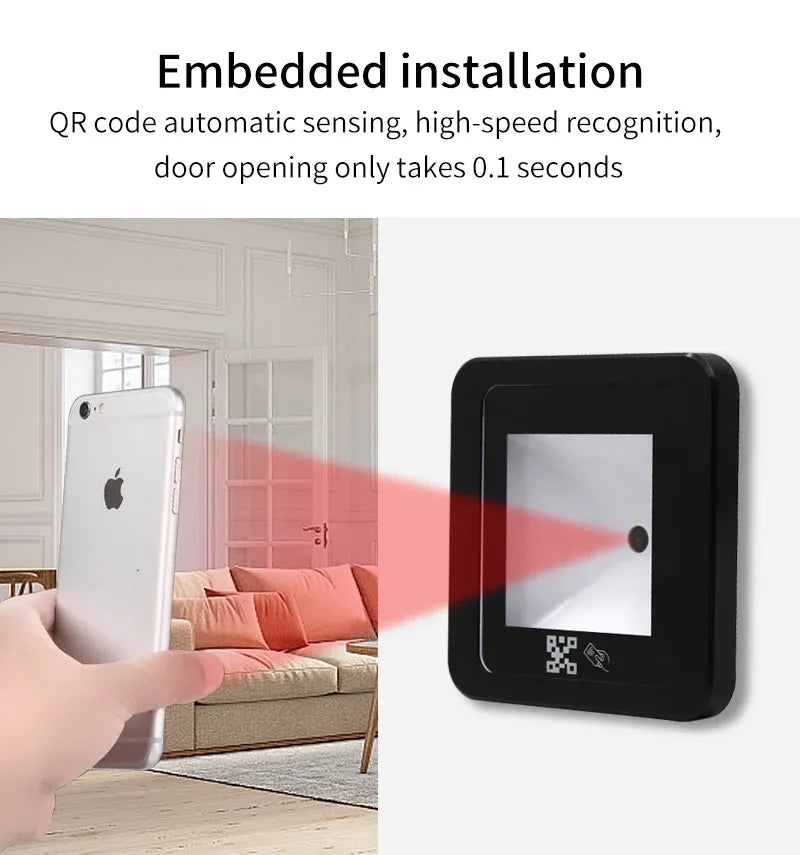

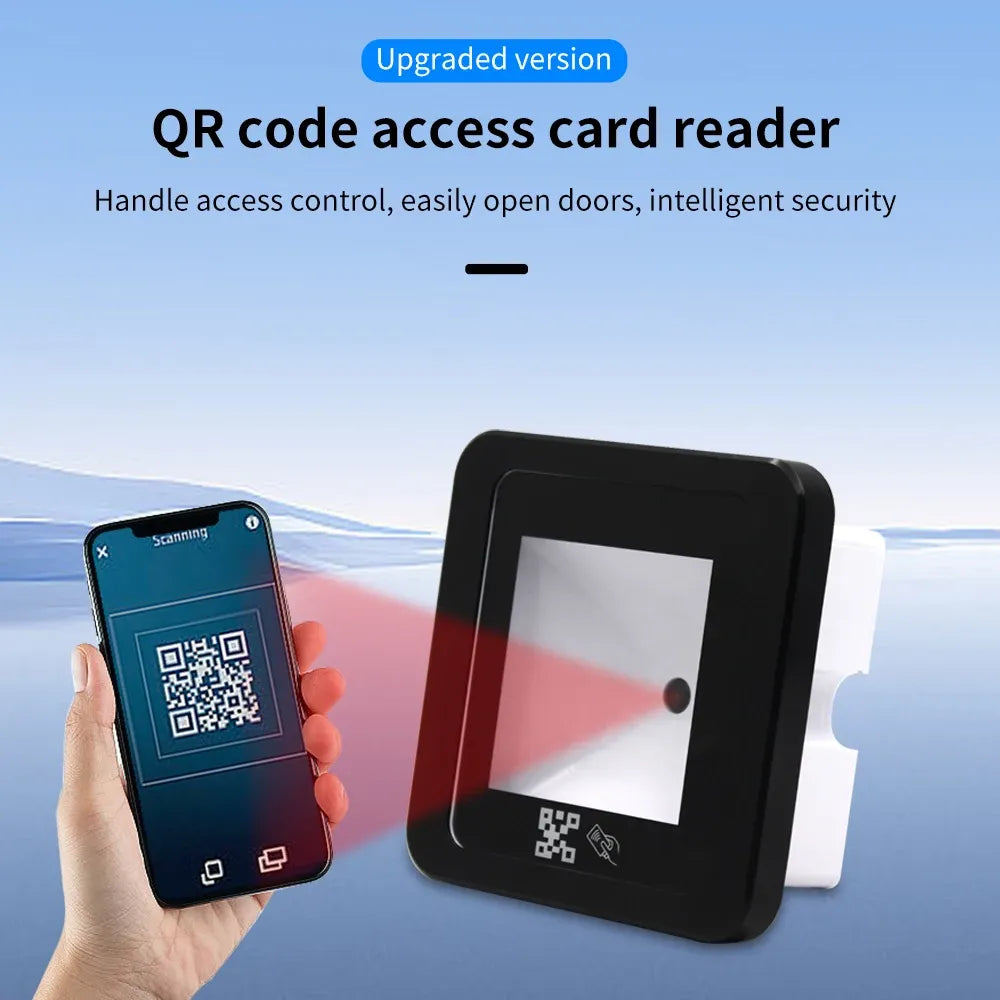

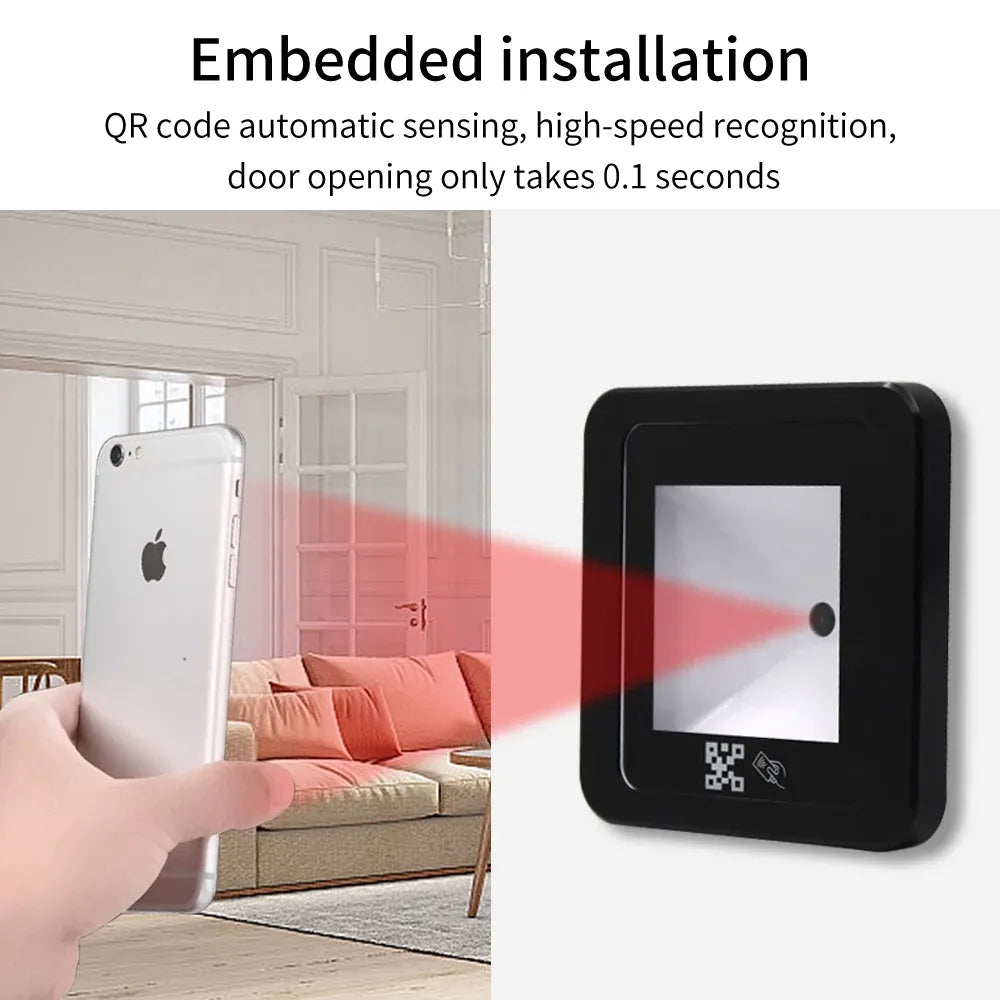

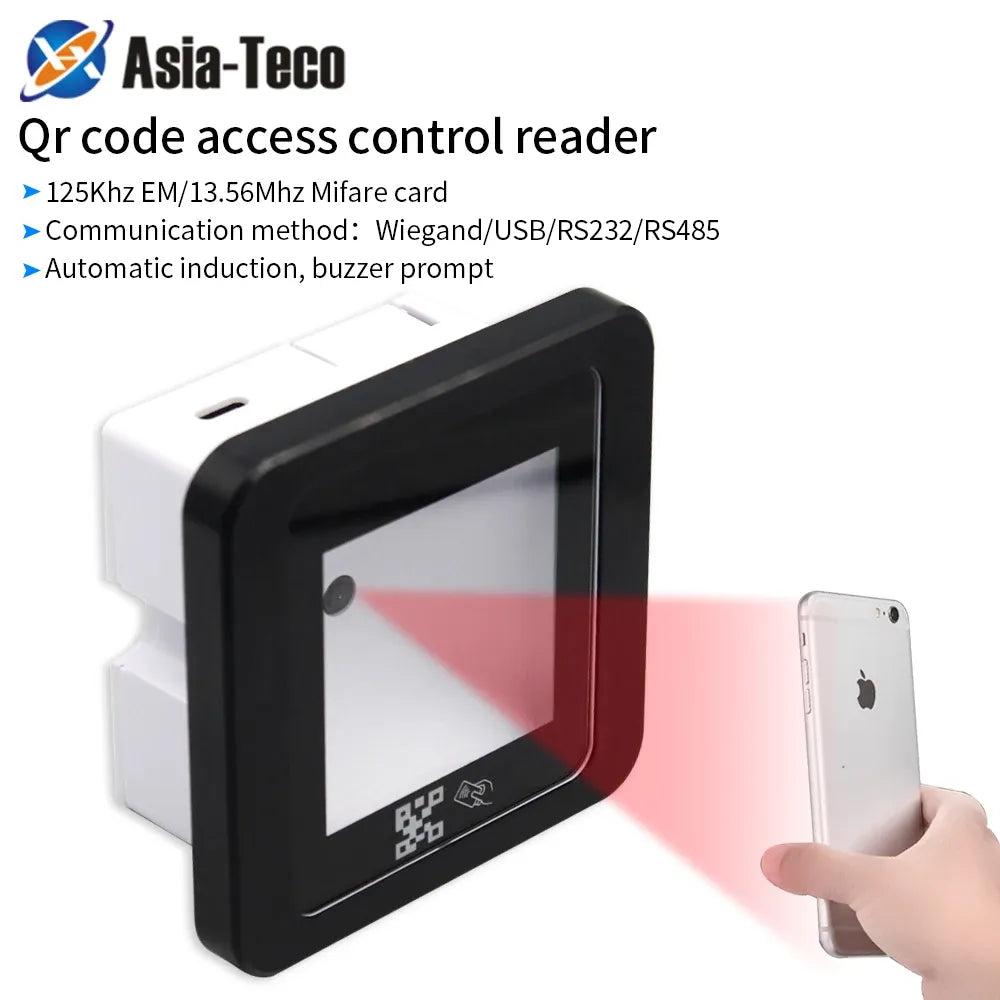

QR Code Access card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
Specification
Card type |
EM or Mifare |
Code Type |
QR Code, 1D |

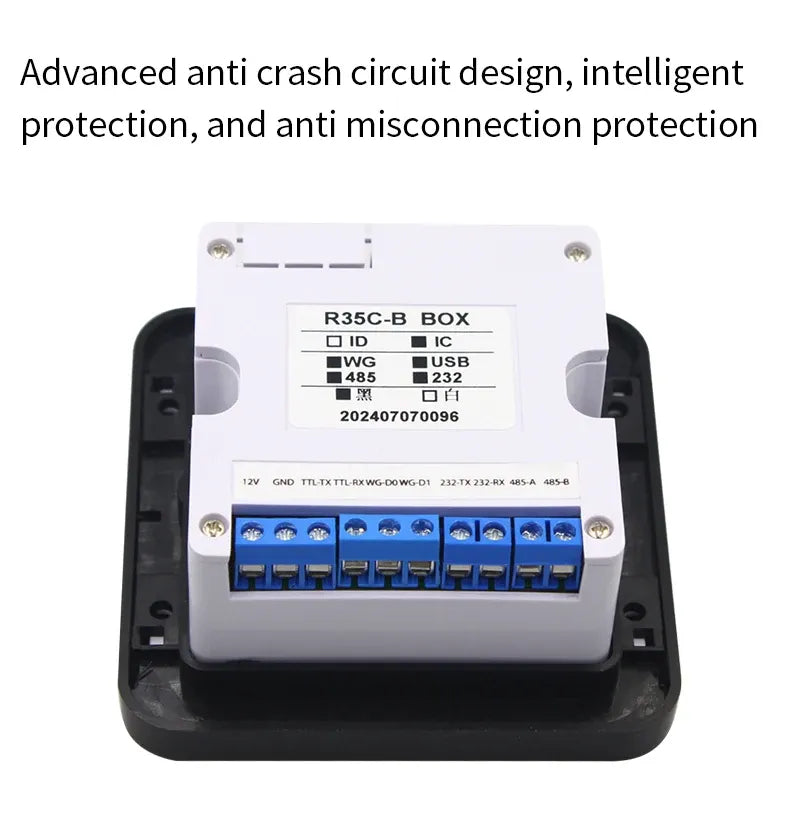

Interface |

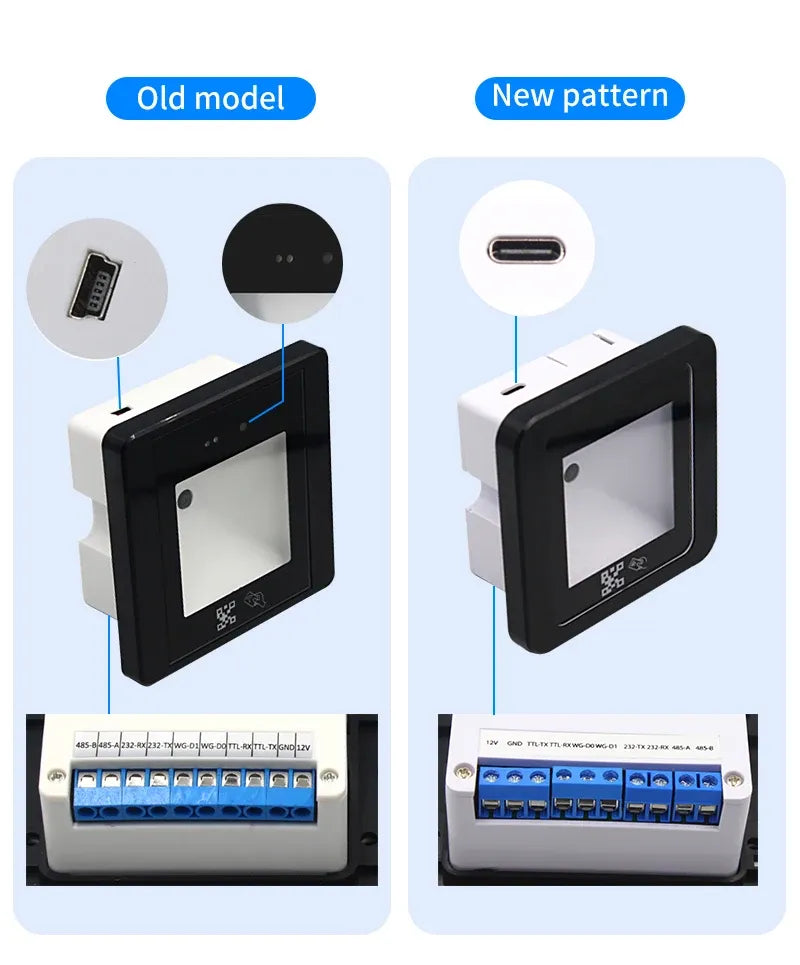

Wiegand26/34, RS232,USB,RS485,TTL |
Decode mode |
Immage decoding |
Reading directions |
Camera centric slant 45° |
Reading feature |
Auto-induction & beeper |
Voltages |
4-12V Wide voltage input |
Current |
800mA |
Reading range of range |
3-6CM |
Reading speed |
<200ms |
Reading range of QR |
0-20CM |
Materialcase |
PC & temperrd glass |
Humidity |
10%~90% |
Temperature |
-20℃~70℃ |
Operate system |
Windows(XP,7,8,10), Linux |

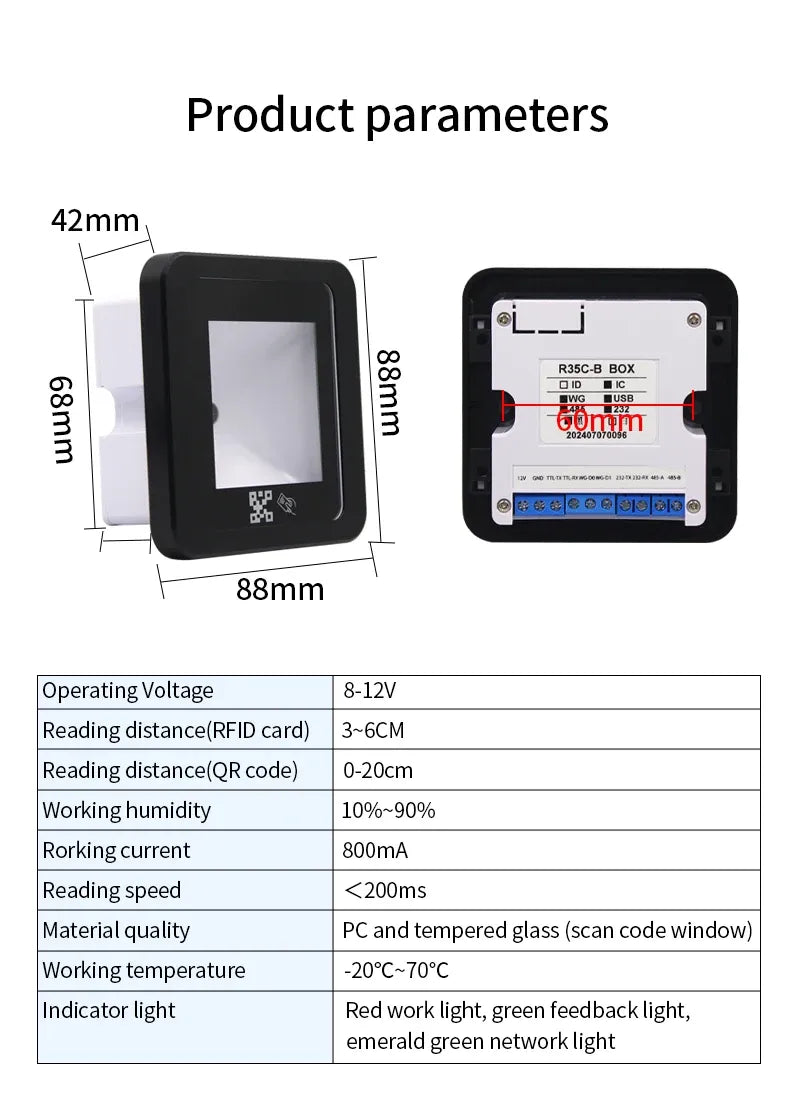

Size |
86mm×86mm×42mm |
Status light |
Red-work,Green-feedback,Light Green-internet |
Wight |
150G |
Remark |
Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted. |
Model

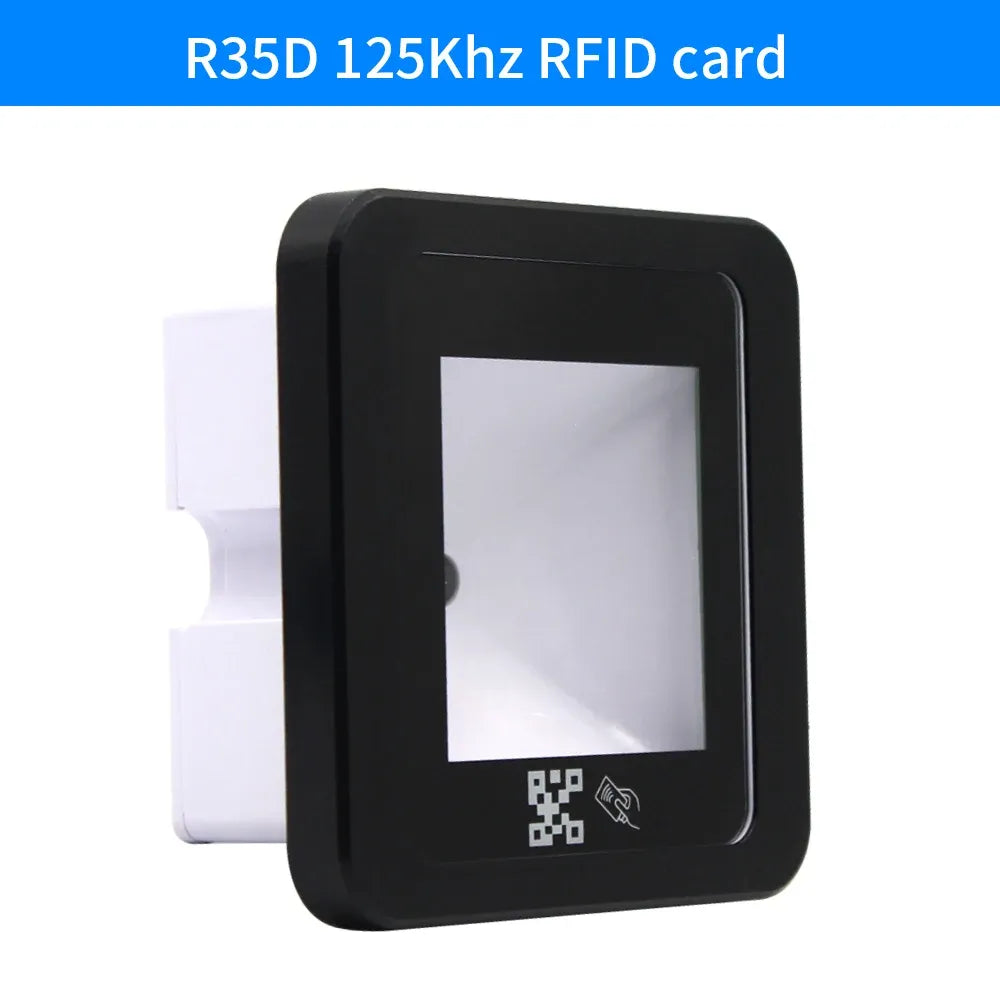

R35-ID |
QR 2D Barcode + EM (125KHZ) |
R35-IC |
QR 2D Barcode + Mifare (13.56MHZ) |
Application
Self-service equipment,
Brake machine products,
Retail, cashier POS, medical,
Mobile phone coupon,
Ticket check
Lottery betting station,
Bank, etc.
