SPECIFICATIONS

Adhesive: Acrylic,Solvent based acrylic adhesive

Adhesive Side: Double Sided

Adhesive Type: Pressure Sensitive

Application: craft / paper

Brand Name: Puyu tape

Certificates: ISO9001:2008

Color: translucent

Custom size: Welcome

Design Printing: Offer Printing

Die cut: Supply

Feature: Waterproof

GLUE: Solvent Adhesive

Heat resistance: 90C

Item: thin double-sided self adhesive tissue tape roll

Material: Tissue

Model Number: PY-2014

Place of Origin: Shanghai, China

Printing Handling: Offset Printing,Flexographic Printing,Silk Screen Printing,Digital Printing,Heat Transfer Printing,I ml,Gold Stamp

Standard Size: 12mm X 50M

Tape Backing Material: Coated Paper

Thickness: 0.09mm,0.09mm

Type: Pressure Sensitive Adhesive

Use: Bag Sealing

paper core: 76mm

Product Description

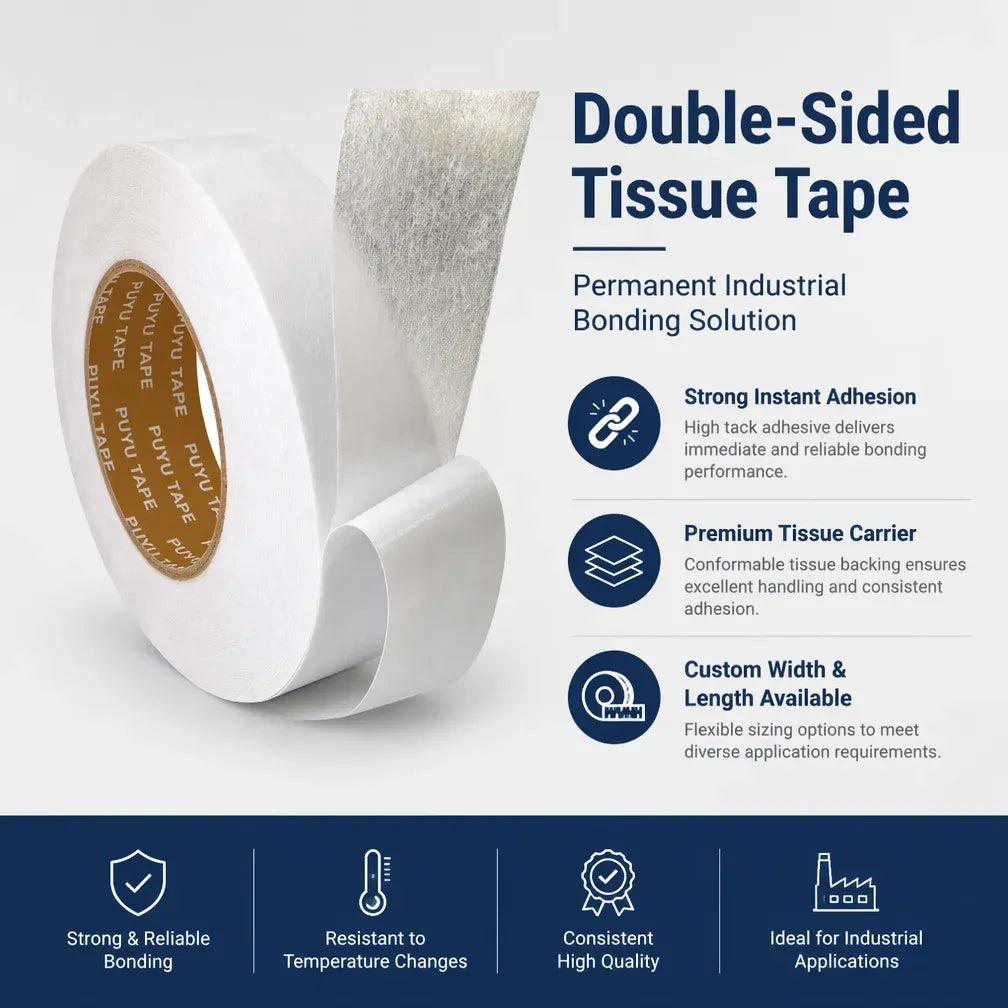

Double sided tissue tape

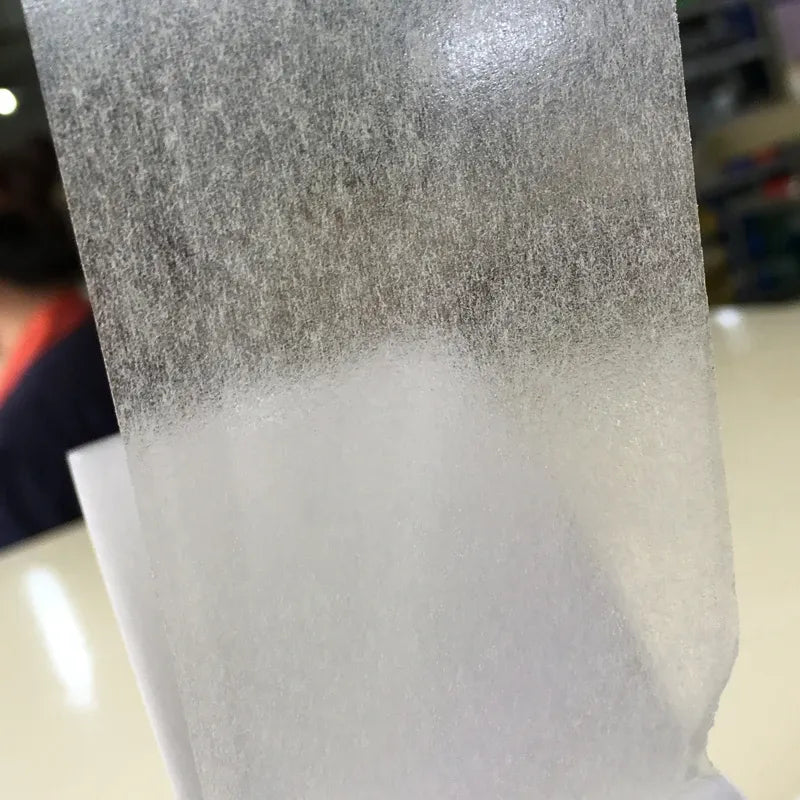

Double sided tissue tape PY-2014 is tissue paper double coated acrylic adhesive.It’s a combination of high initial adhesion and good shear holding power to a wide variety of materials, including many plastics and foams.

Features

1, Great initial adhesion

2, Good shear holding power
3, Very soft for irregular surface
4, Easy using by hand.

Test Item			Date			Test method
Adhesion to Steel			≧12N/25mm			GB/T 2792 -2014
Holding power			≧24H			GB/T 4851-2014
Total Thickness(W/O liner)			0.1mm			GB/T 7125-2014
Initial adhesion			≦23#			GB/T 4852-2002

Tape avaliable size

Width: 3mm - 1240mm. Popular width is 25mm.

Length: 5m - 300m. Popular length is 50m.

Thickness: 0.07mm - 0.14mm. Popular thickness is 0.1mm.

Ours

Smooth cutting surface

No gap between layers

300m length for machine using to increase efficiency

Others

Looks dirty

Big gap between layers

Not easy to control when use on machine

Double sided tape application

1, For PP, PE, PU, foam and other materials lamination

2, For furniture,membrance switch,nameplate,signs adhesion

3, For bonding photo,envelopes,hook,etc.

4, For shoe and leather industry

5, For splicing paper,plastic films and corrugated boxes.

6, For hand-made in daily life

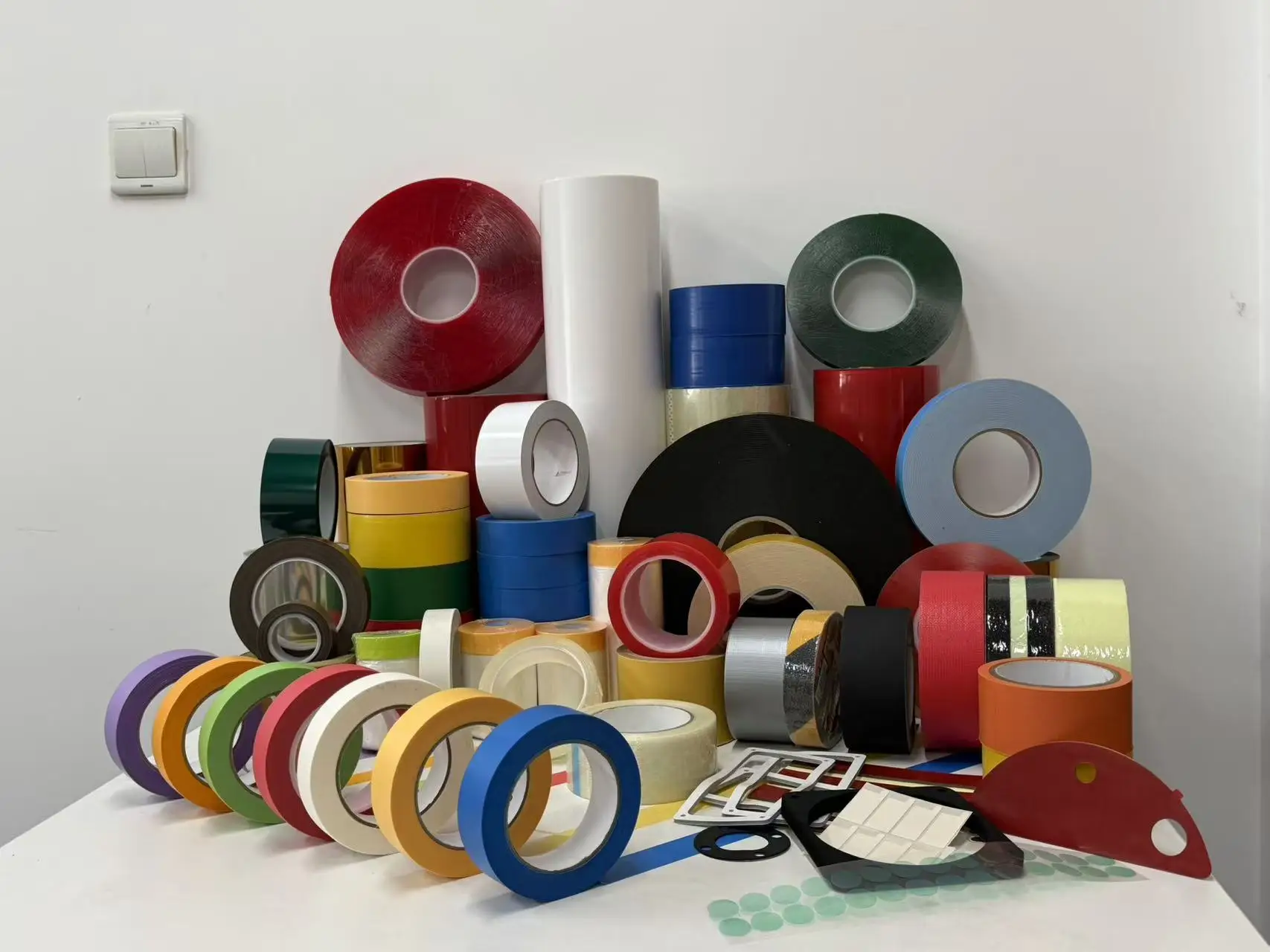

Click pictures below, you will know more about other double sided tapes we can supply

Double sided acrylic foam tape

Material: Acrylic foam

Adhesive: Acrylic adhesive

Double sided PE foam tape

Material: PE foam

Adhesive: Acrylic adhesive

Double sided PET tape

Material: PET film

Adhesive: Acrylic dhesive

Product packaging

Normal standard packing

Each roll was seperated with white release paper,then packed in plastic bag

Custom packing

Printing your company name and other information,let more people know you

Other custom packing

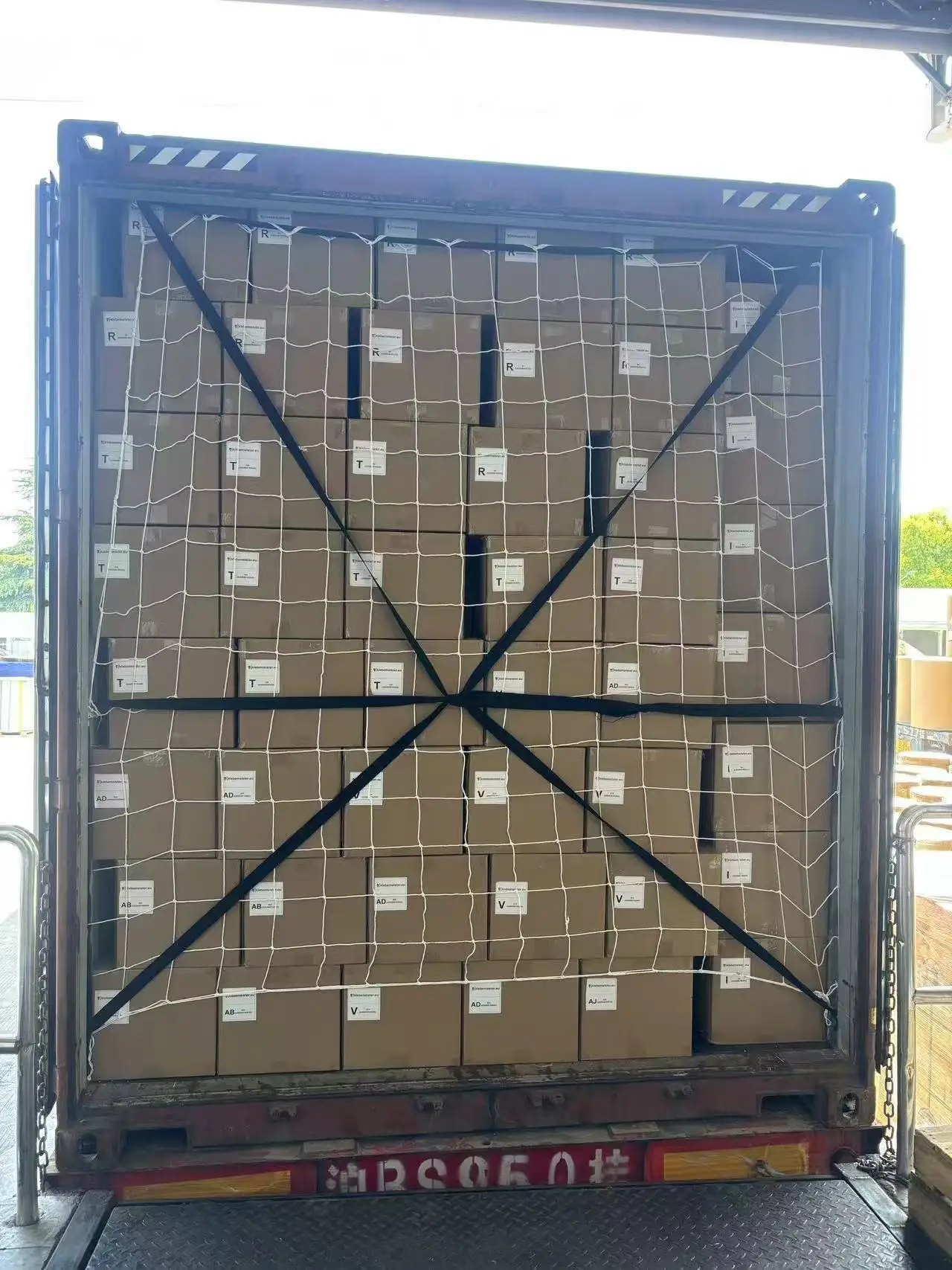

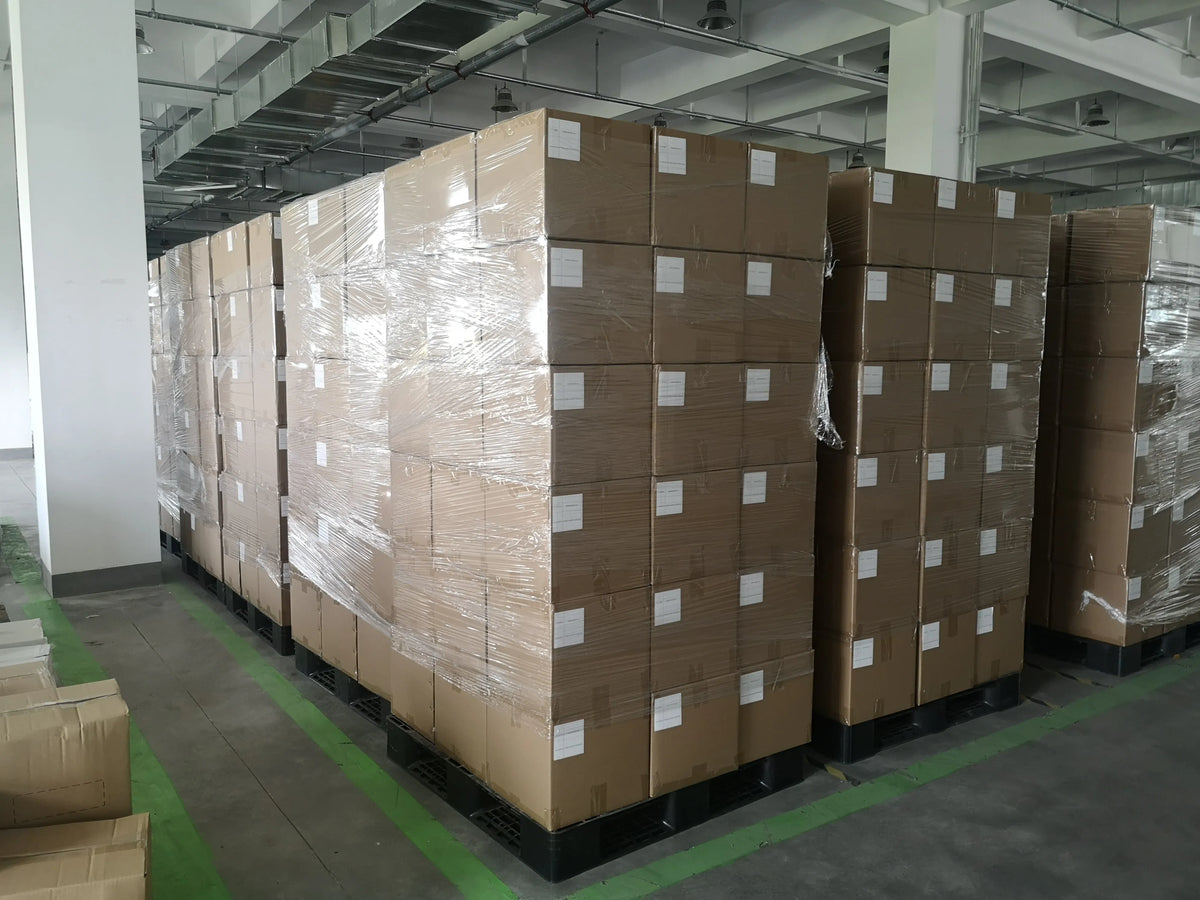

Pallet packing ready for shipping

Excellent quality and warm service are not enough to win in competitive double sided tissue tape market. We also offer strong packing to make sure product will be kept well when delivery. Talk to us directly,and we can do packing as your request.

                     Coating Line

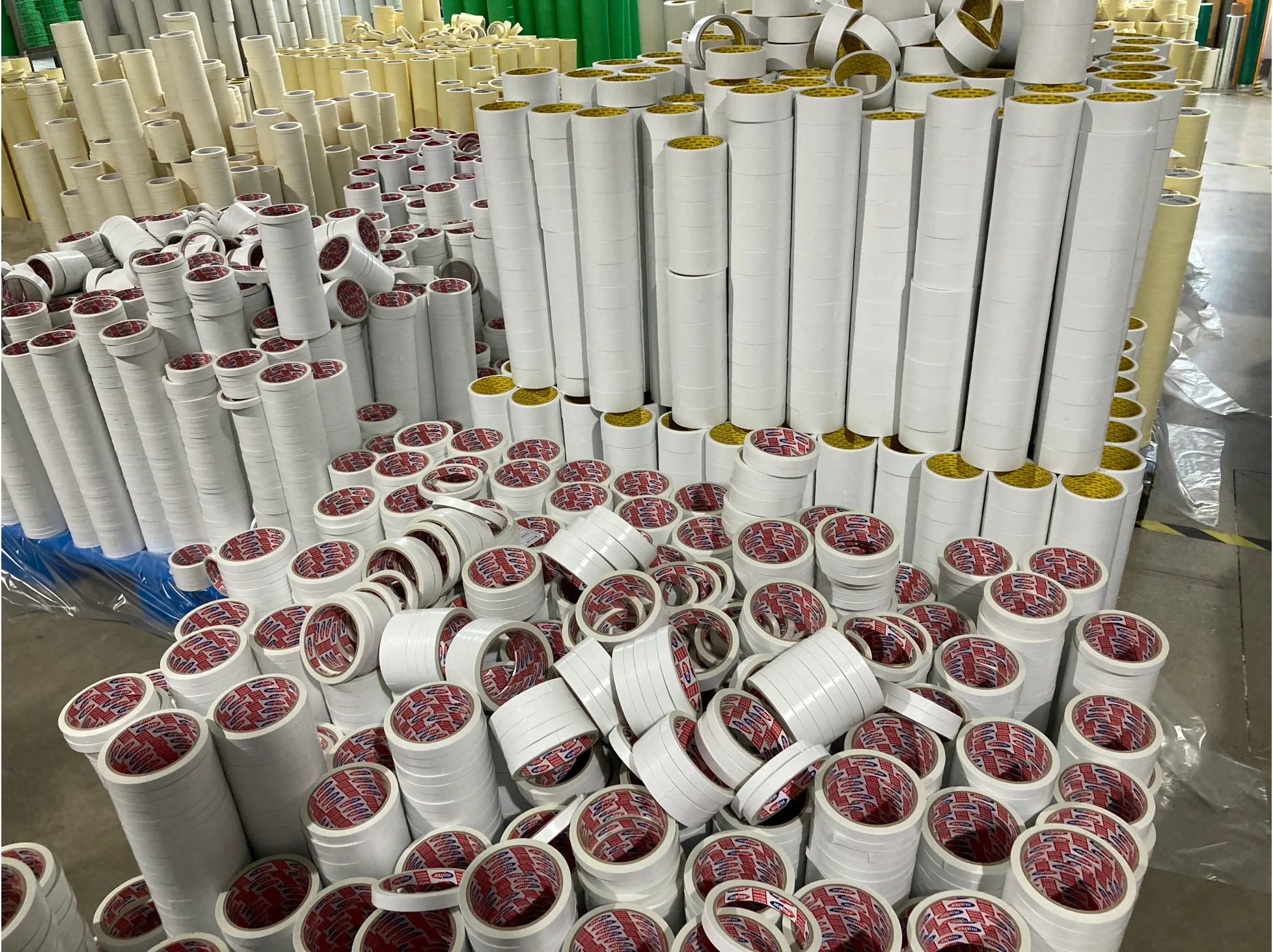

               Cutting in small rolls

                          Loading

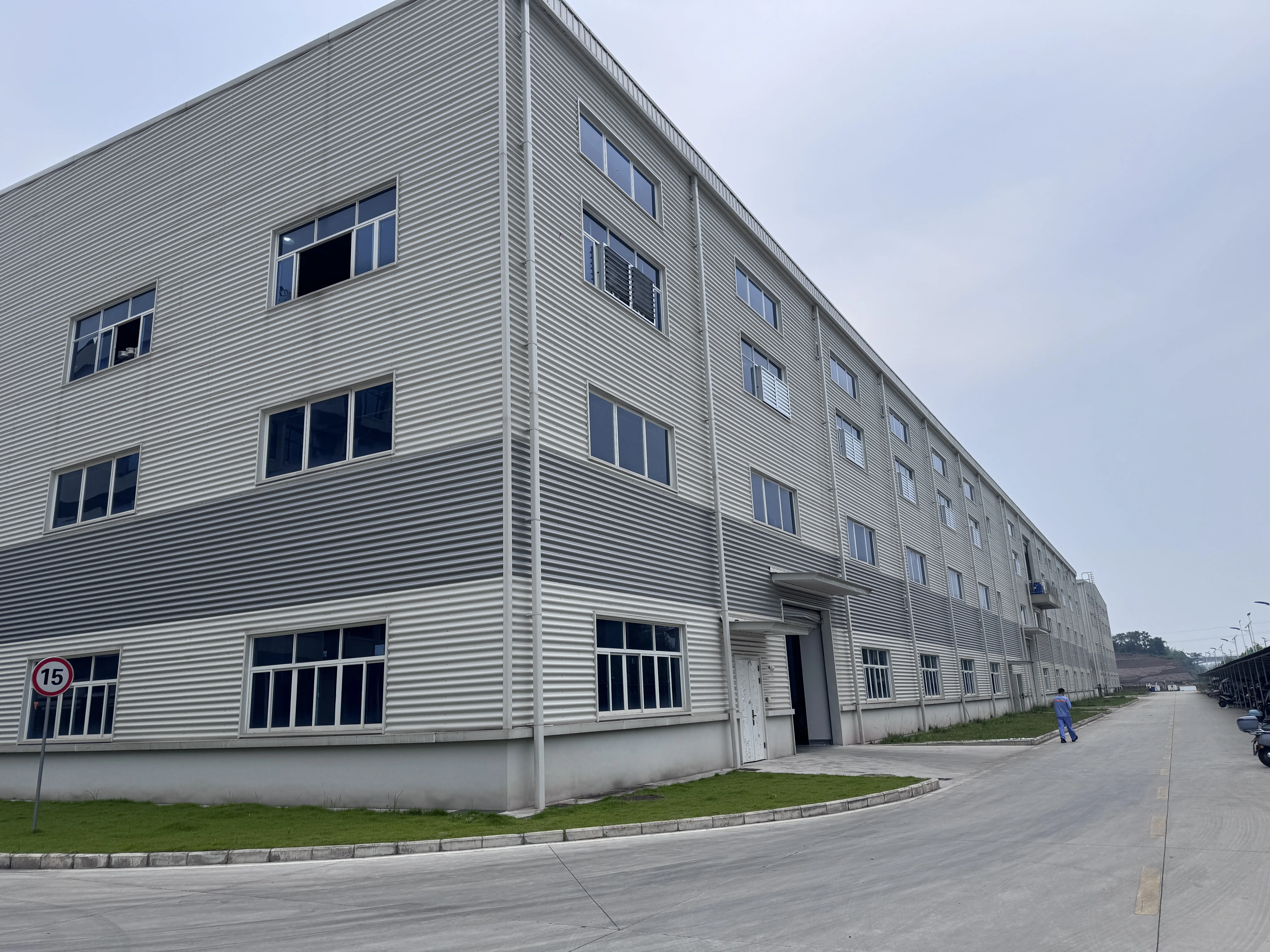

Company

Tape research

Glue research

Experienced engineer researching glue.Different formula will have different feature,it's also the key to tape quality.

Raw material

After research and mixed,raw material glue put in it's place ready for use.

Tape peeling strength testing

Peel strength testing machine

Tape peel strength will be test in this machine. The testing will be doing in constant temperature and humidity,and engineer will follow operation guide strictly.Testing result will be showed on computer directly.

Testing situation

All tape will be tested at least 3 times to make sure result as accurate as possible.

Tape initial tack testing

Initial tack test

With testing machine and different testing ball,we could know tape's initial tack,all testing will be doing according to operation guide to offer the initial adhesion same as you want.

Initial tack testing situation

Testing again and again to make sure quality

Temperature and holding power testing

Holding power testing machine

This is machine to test holding power,this is important feature of tapes,it determine how long time the tape could hold your sticked surface.

Temperature testing machine

After setting machine,we will test how long and what temperature the tape could bear.

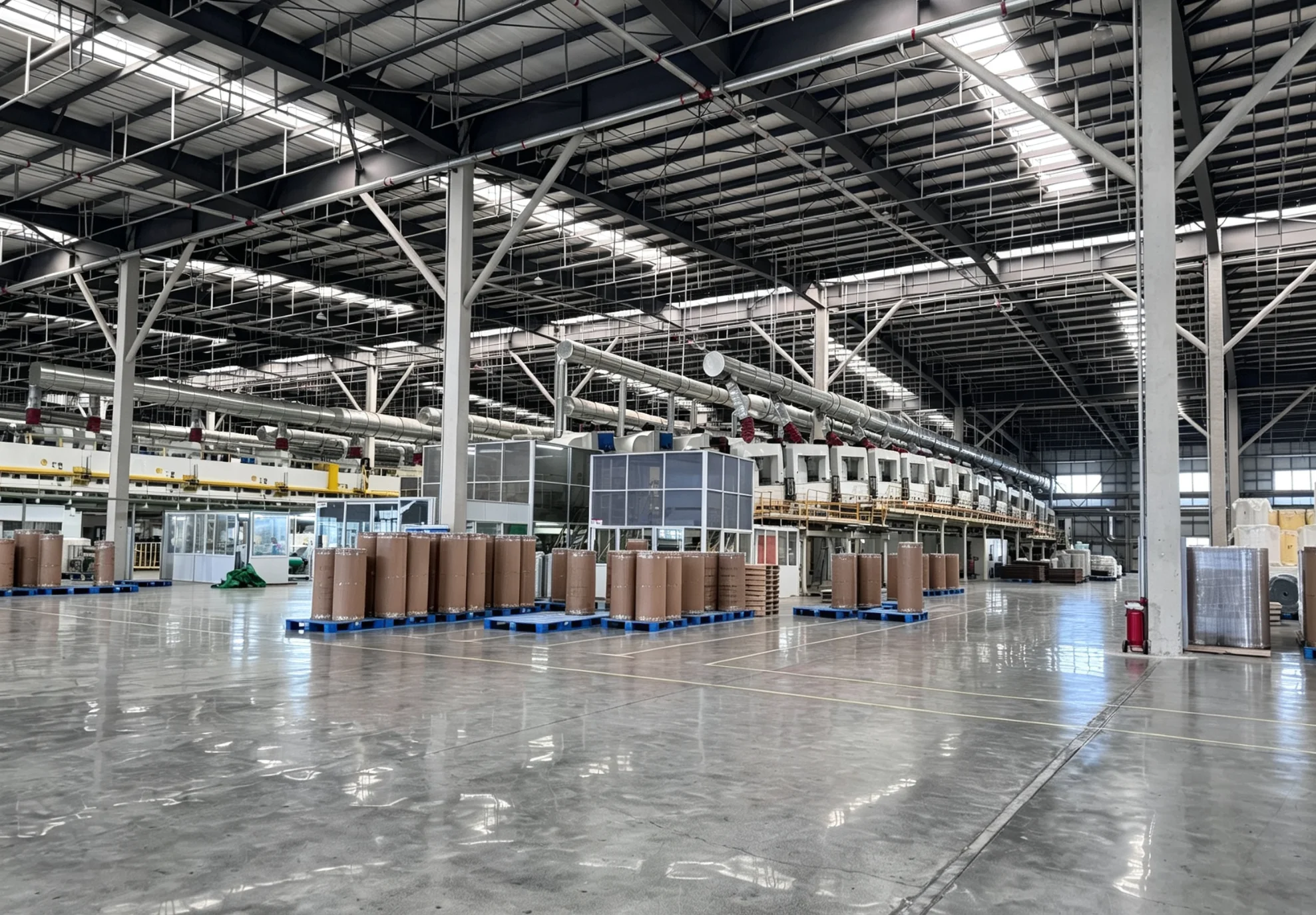

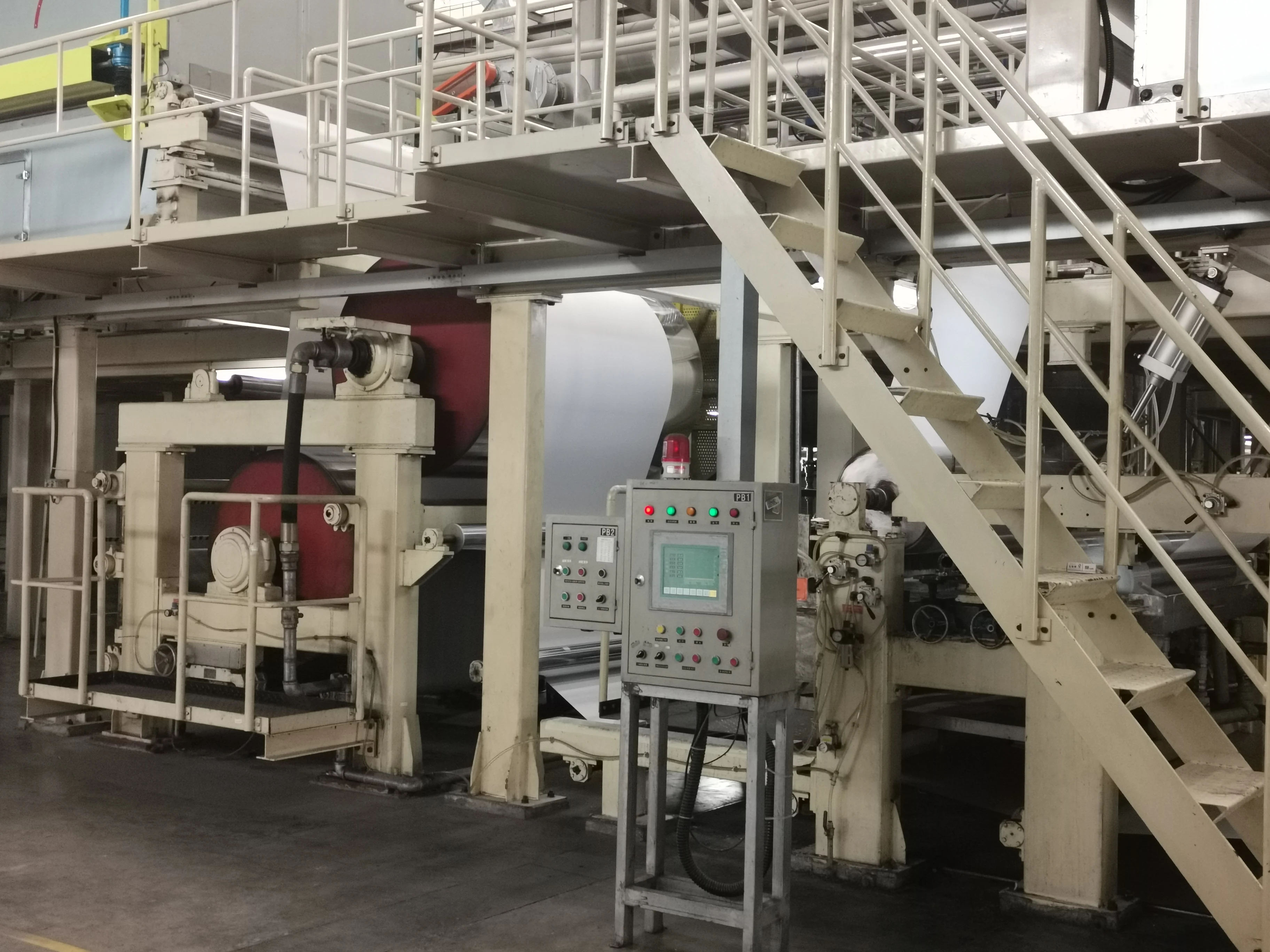

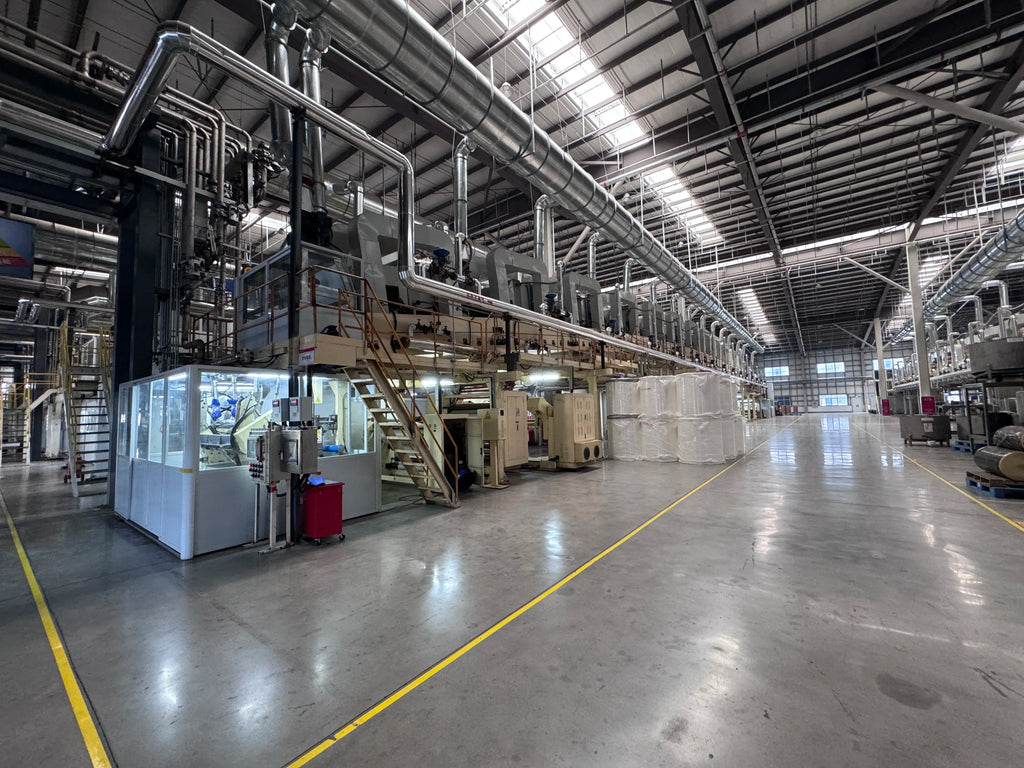

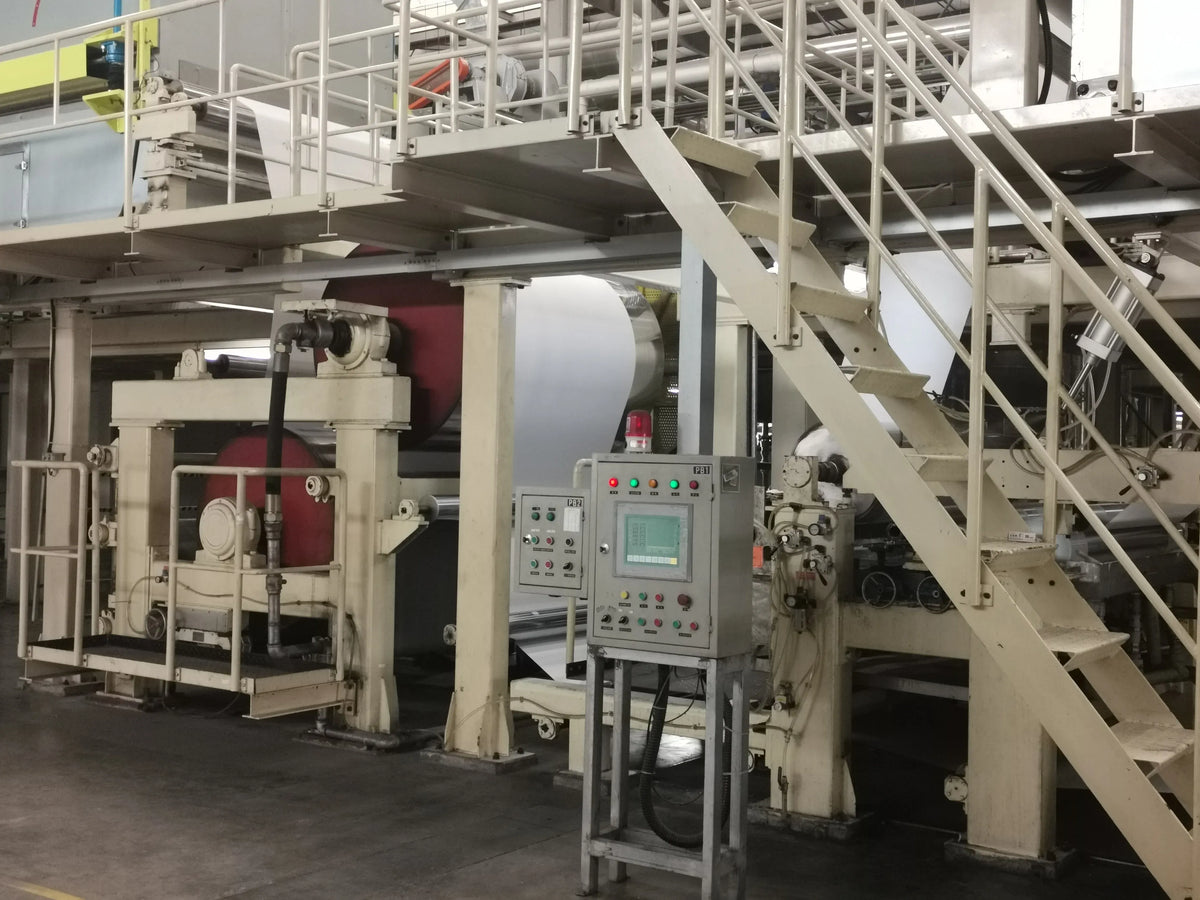

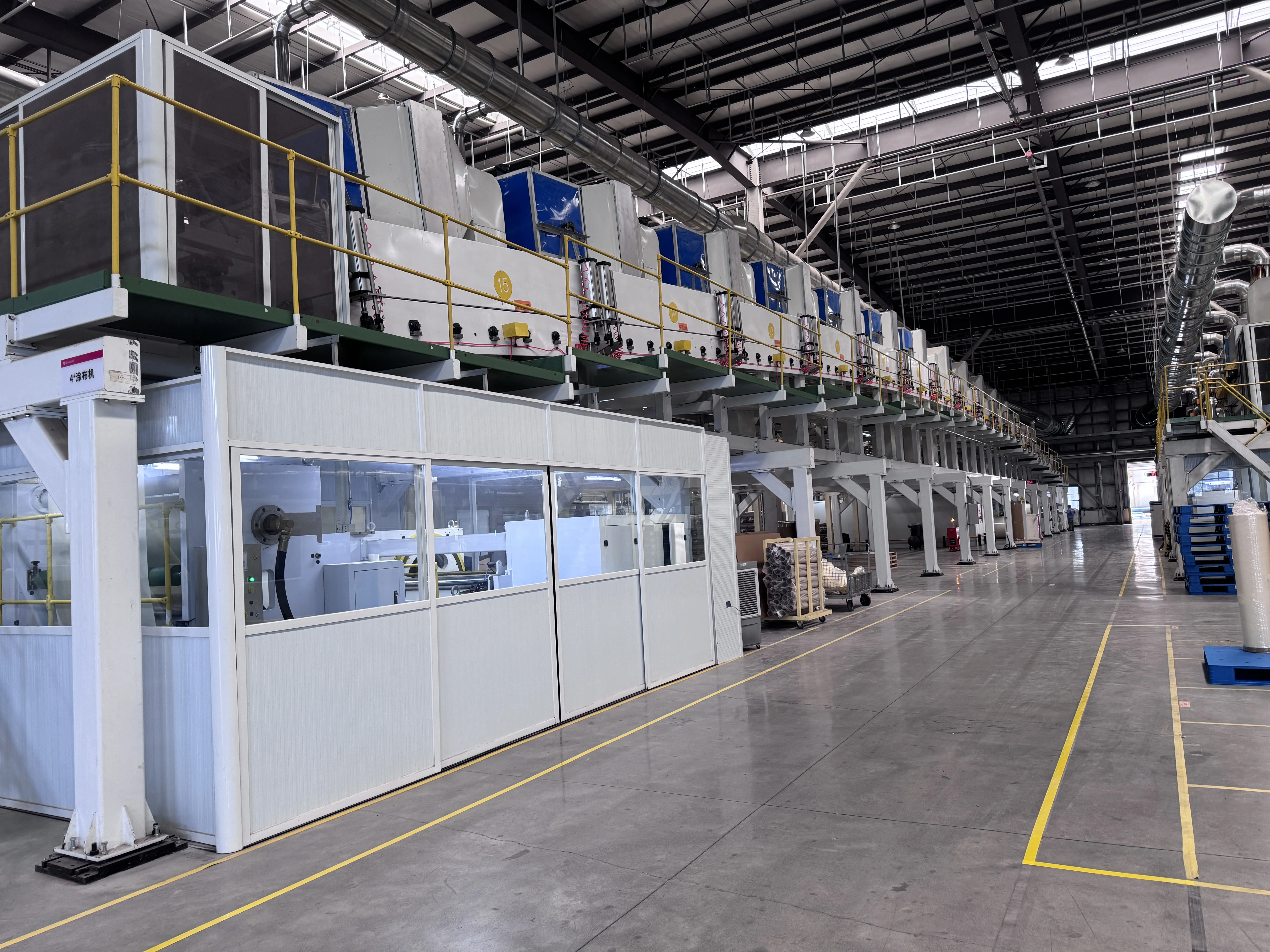

Coating line

Coating line

Coating glue on different material. This process makes raw glue and based material become tapes you want

Automatic operating screen

This is screen to operate coating line. Machine equiped with laser on line scan camera, to check quality setrictly as we want.

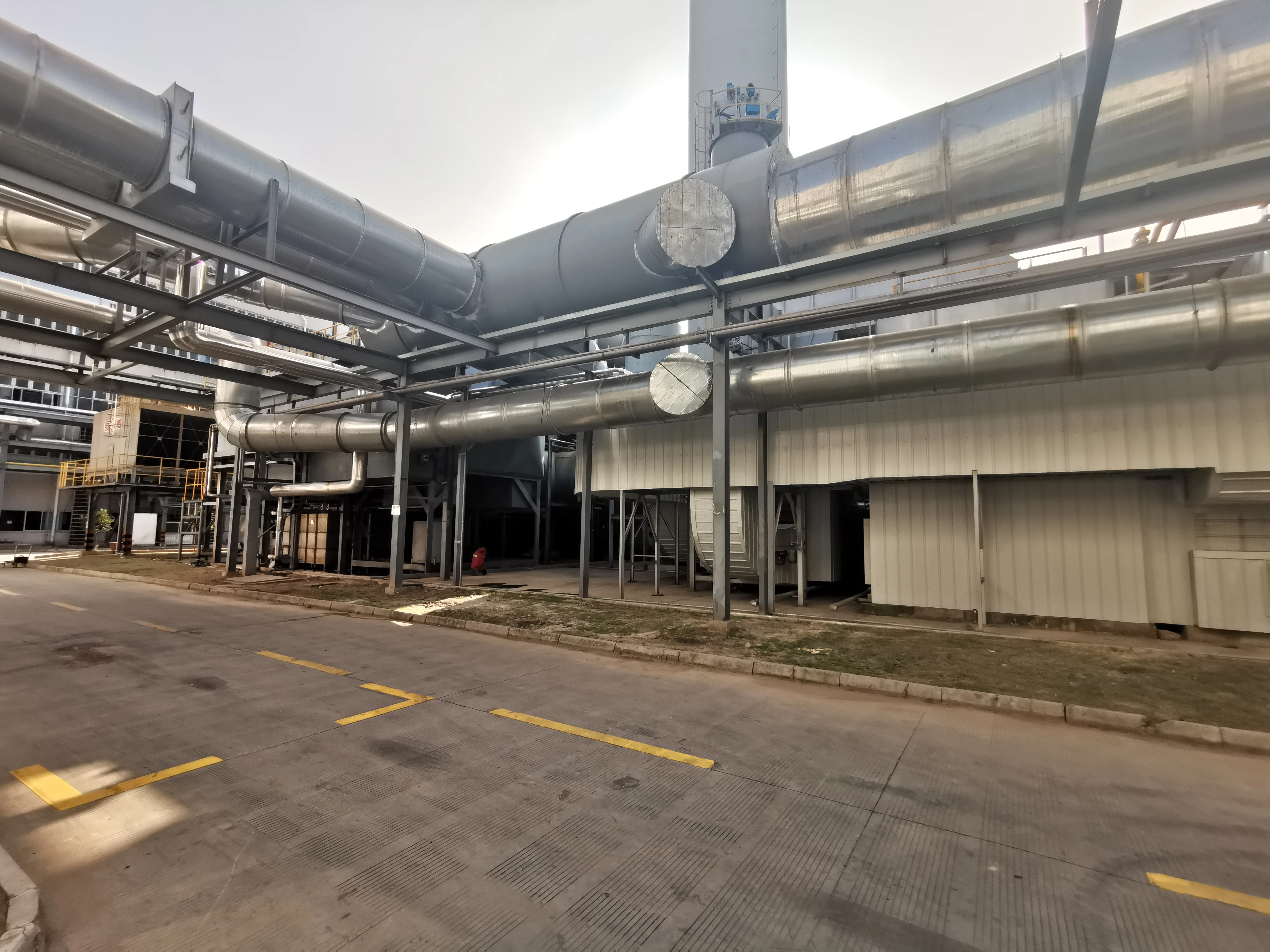

RTO equipment

When making tapes,there will have waste gas,with RTO machine,we could make waste gas released environment friendly.

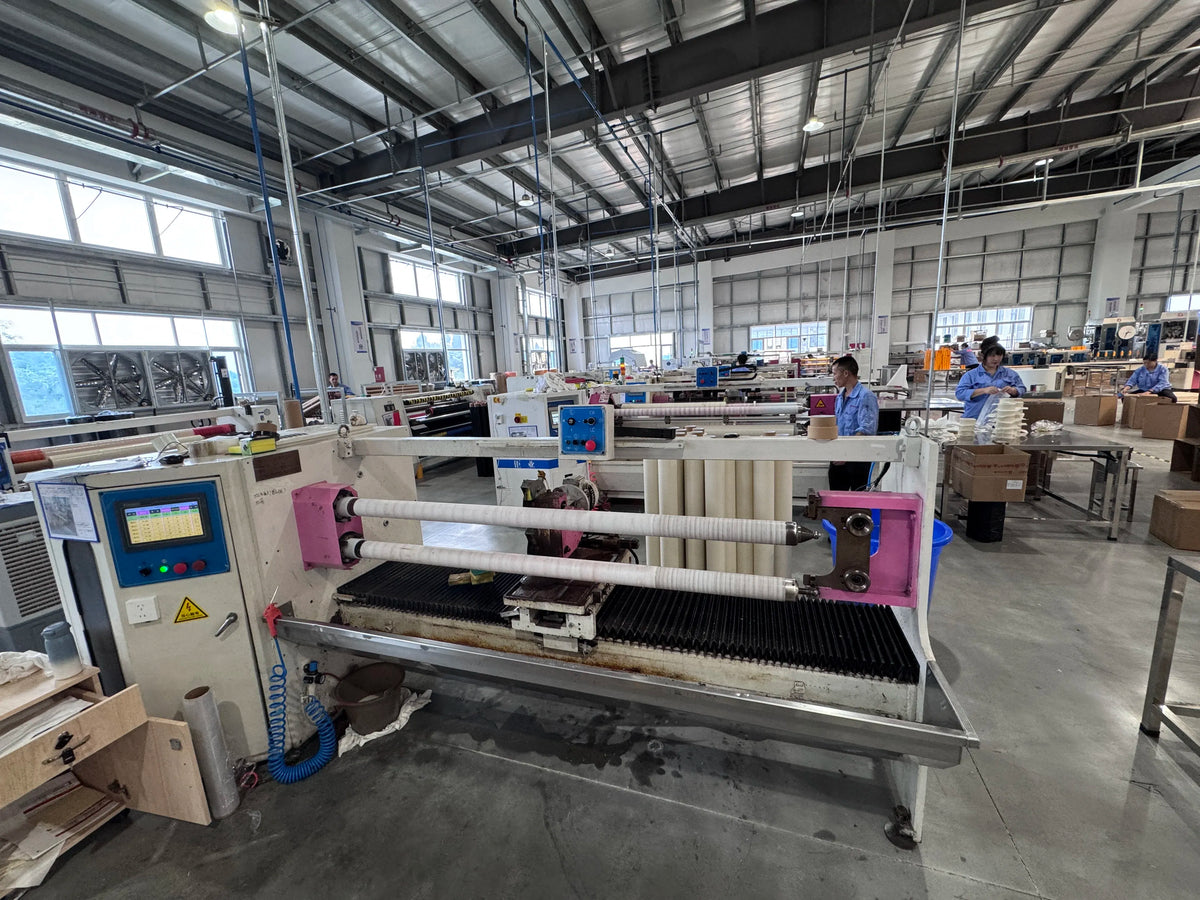

Sliting and rewinding machine

Sliting machine

3 sets sliting machine,we could makes tapes width as you want.

Rewinding machine

Laminating tape on material as request

Sample making machine

Small sample making machine

Using this machine to make sample

Laser sample making machine

Using laser cut the tape in shape we want

Fully automatic operation screen

Automatic screen make all operation accurated.

Die cutting process

Die cutting room

We have full set machine to offer die cutting service

Die cutting worker

Die cutting tape into shape you want

More factory picture

Clients from all over the world



Sending inquiry as blow,get a sample now.
