SPECIFICATIONS

Brand Name: NONE

Display Mode: 500:1

High-concerned chemical: None

Origin: Mainland China

Resolution: 800*600

Type: TFT

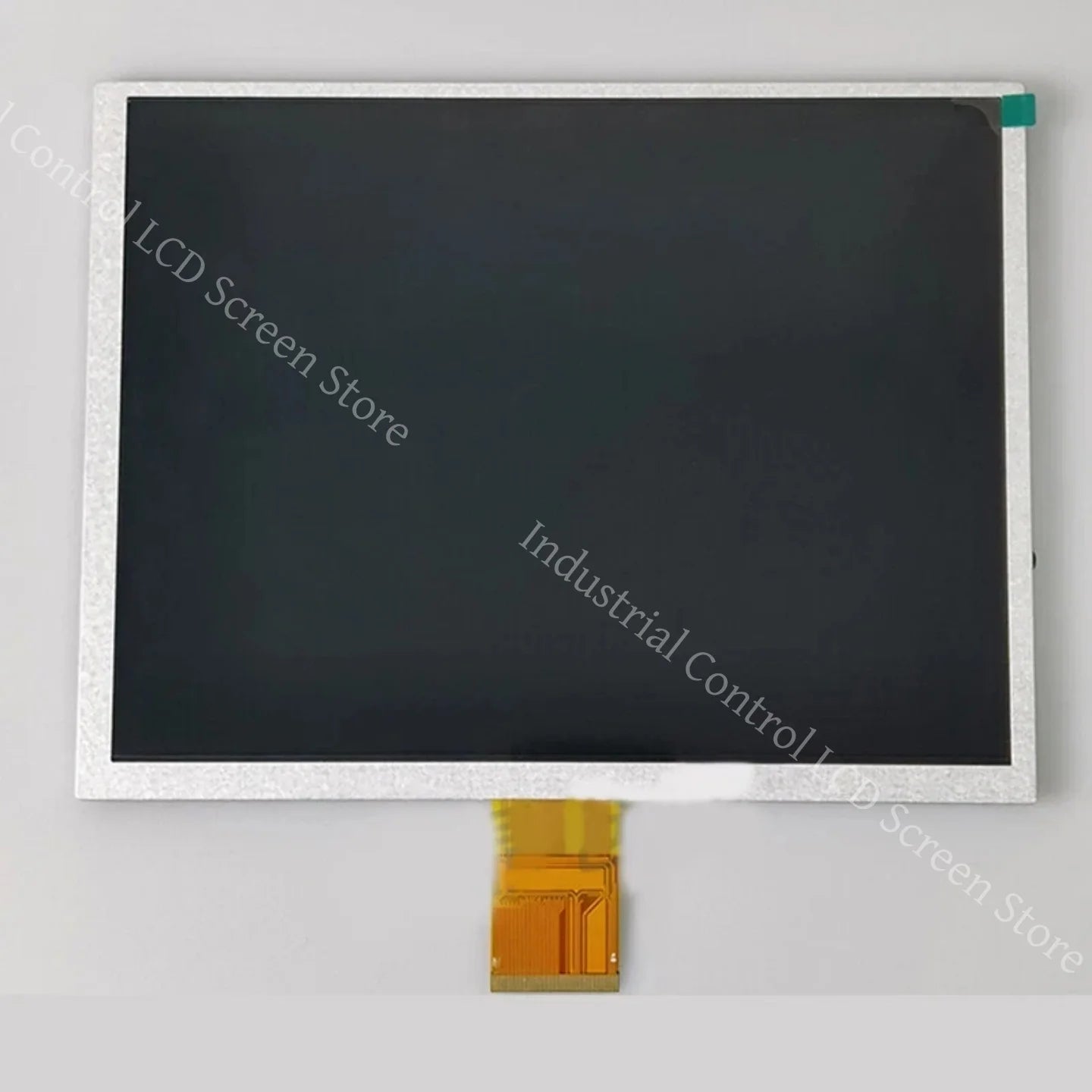

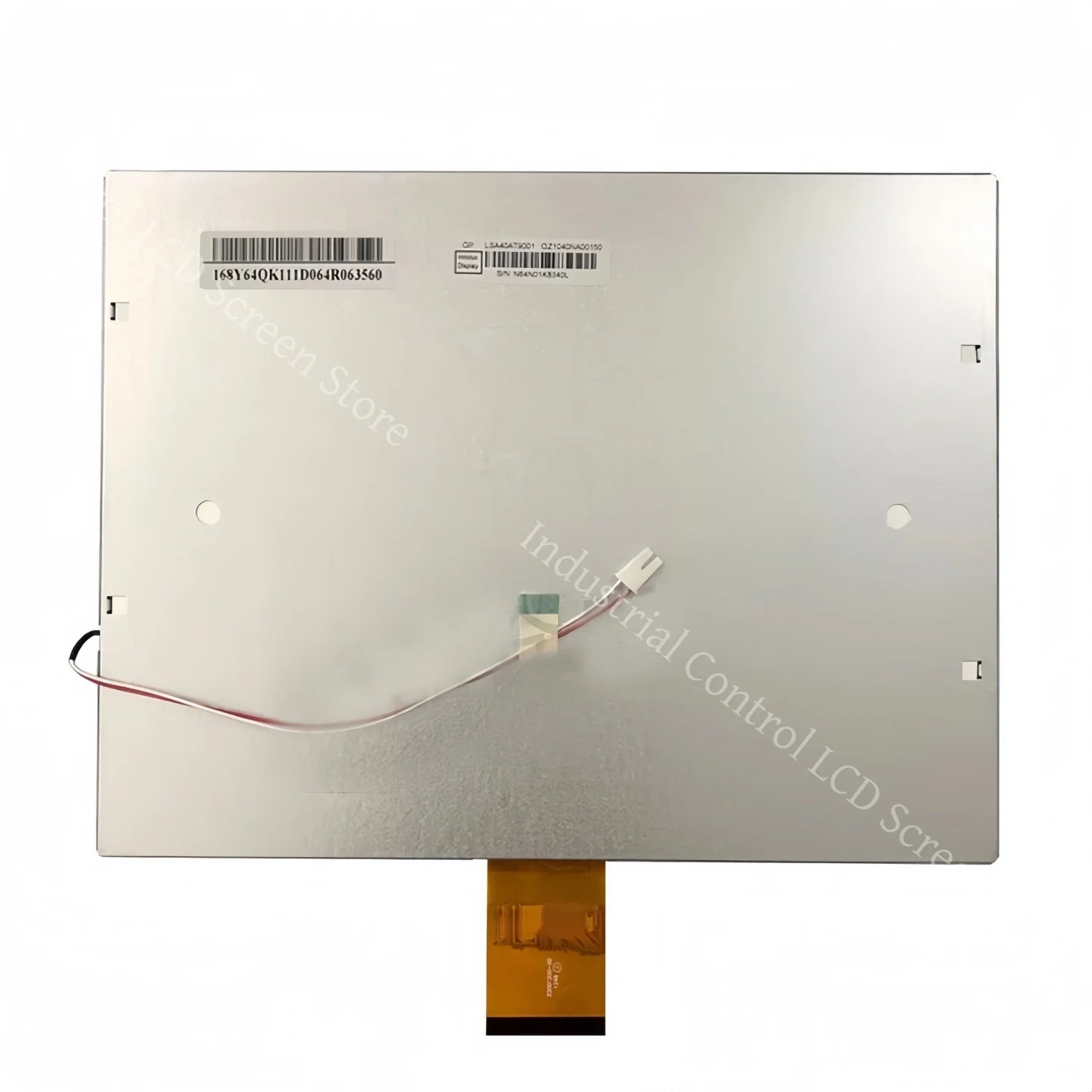

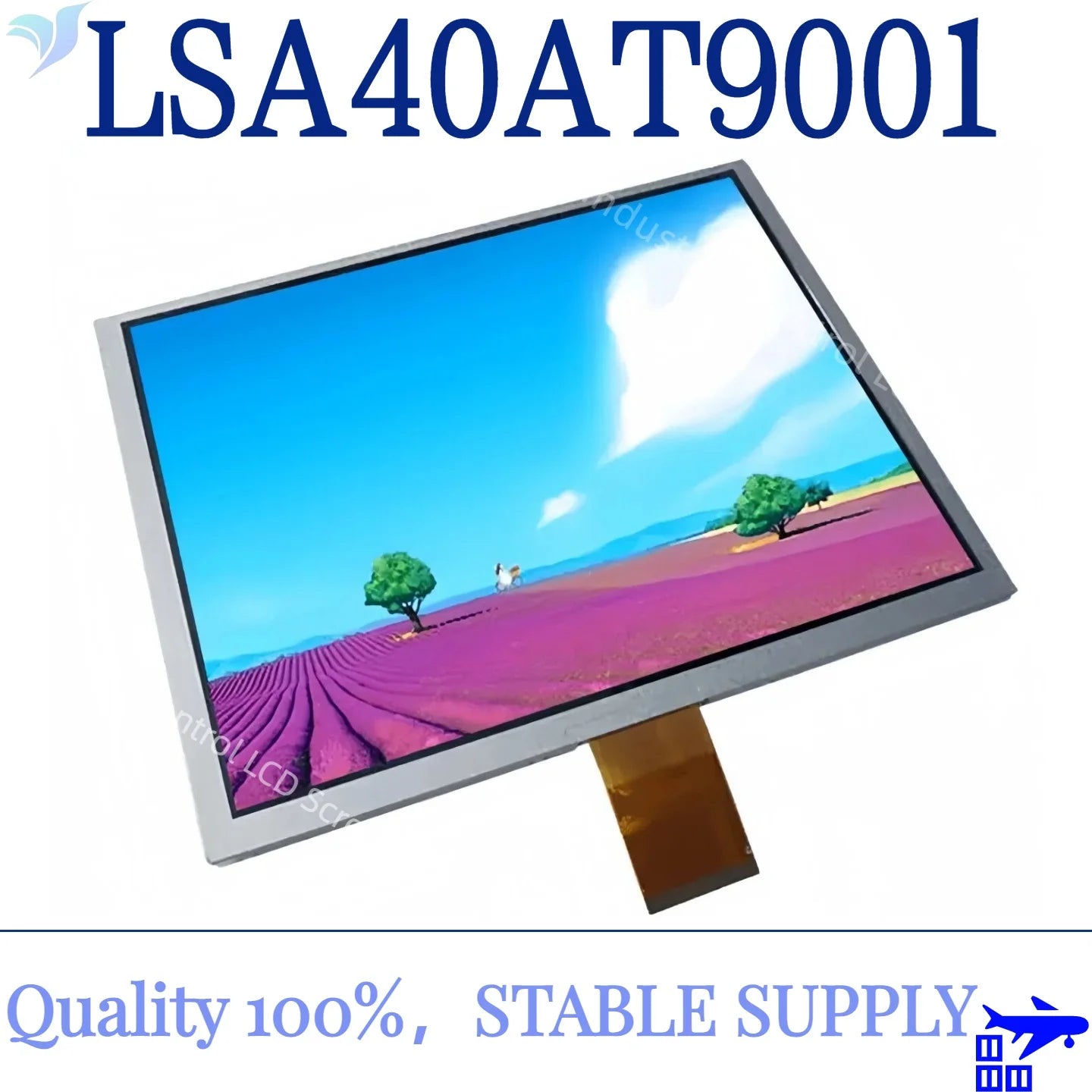

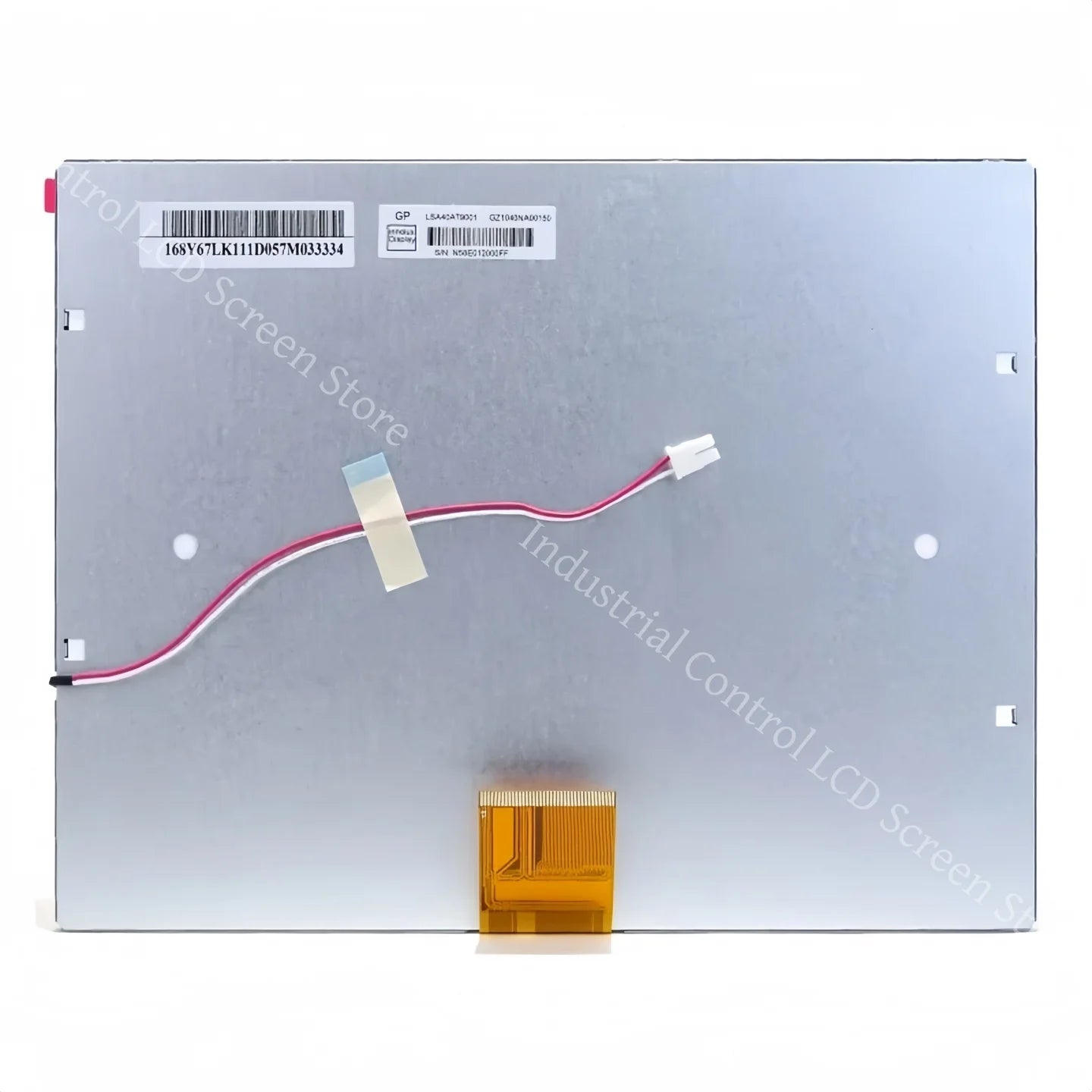

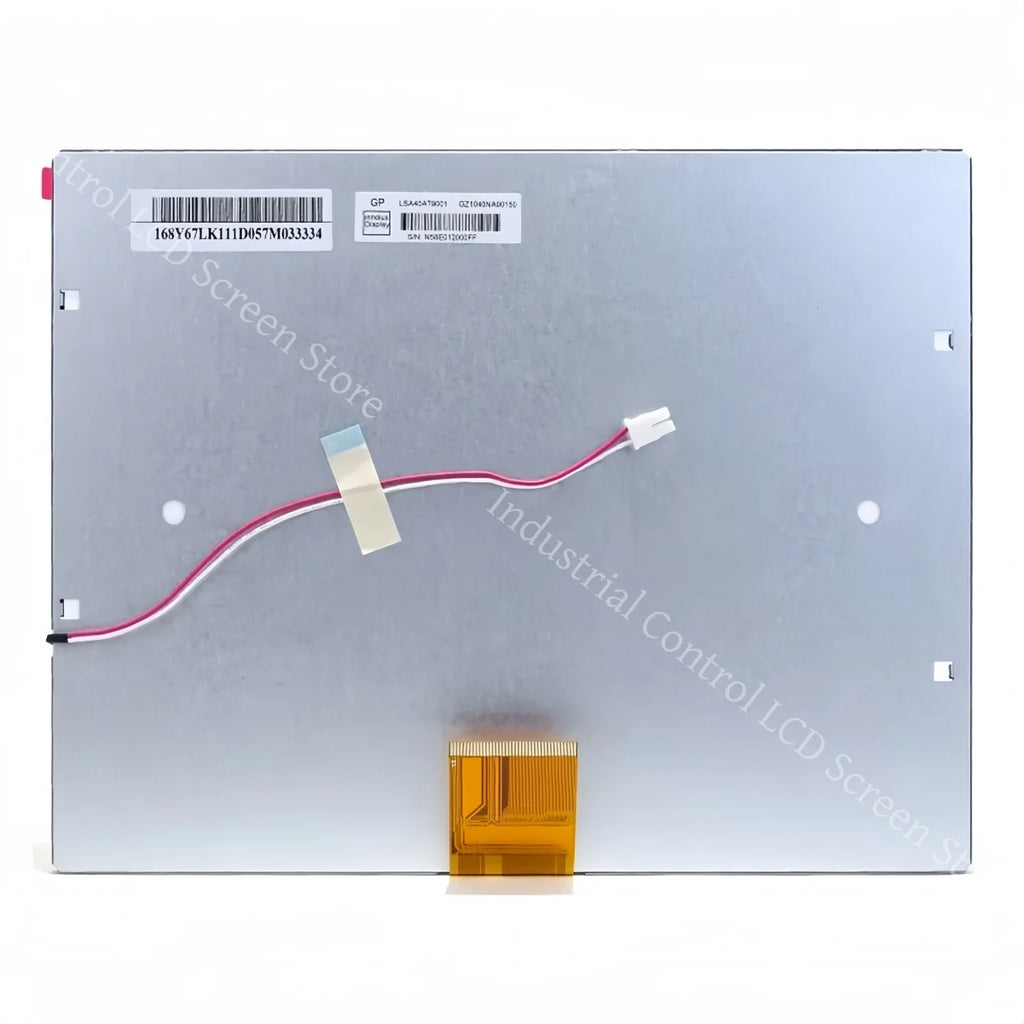

LSA40AT9001 is a 10.4-inch a-Si TFT-LCD LCD module product launched by Innolux. It is equipped with WLED backlight, no backlight driver, and no touch.

The working temperature of this product is -10~50 ° C, and the storage temperature is -20~60 ° C. Its typical feature screen library is summarized as: white LED backlight, 6/8-bit grayscale optional.

Based on its feature screen library, this model is recommended for use in digital photo frames, portable DVDs, and other products

The display resolution of LSA40AT9001 is 800 (RGB) × 600 (SVGA), with an aspect ratio of 4:3 (width: height), and the pixels are arranged in vertical RGB stripes.

Its display area size is 211.2 (width) × 158.4 (height) mm, the appearance size is 228.4 (width) × 175.4 (height) × 6.2 (thickness) mm, the visible size is 214.2 (width) × 162.5 (height) mm, the surface treatment is Hard coating (3H), and the net weight of the product is 379g.

In terms of backlight, this product uses a 3S12P WLED side entry light source with a lifespan of 20K hours, without backlight driver.

The LSA40AT9001 adopts Parallel RGB (1 ch, 6/8-bit) signal interface, with a total of 60 pins, connected by FPC, and a screen driving voltage of 3.3/10.5V (Typ.) (VCC/AVDD).

Its typical vertical refresh rate Fv is 60Hz.
