SPECIFICATIONS

Allowable weight: 30kg

Gross weight: 70kg

Machine name: Automatic rewinding machine

Max unwinding plate diameter: 450mm

Model: LTD-450A

Packaging Material: Wood

Packaging Type: Cartons

Packing size: L860*W500*L700

Power Supply: 220v/0.12kw

Speed: 0-(40-200)

Tension: 6 N

Unwinding shaft diameter: 1-6''

Voltage: 220v

application: Beverage,Chemical,Machinery & Hardware,Apparel,Textiles

automatic grade: Automatic

brand name: Lingtie

core components: Bearing,Motor

dimension(l*w*h): 660*400*580mm

driven type: Electric

key selling points: Long Service Life

machinery test report: Provided

place of origin: China

type: Other

video outgoing-inspection: Provided

warranty: 1 Year

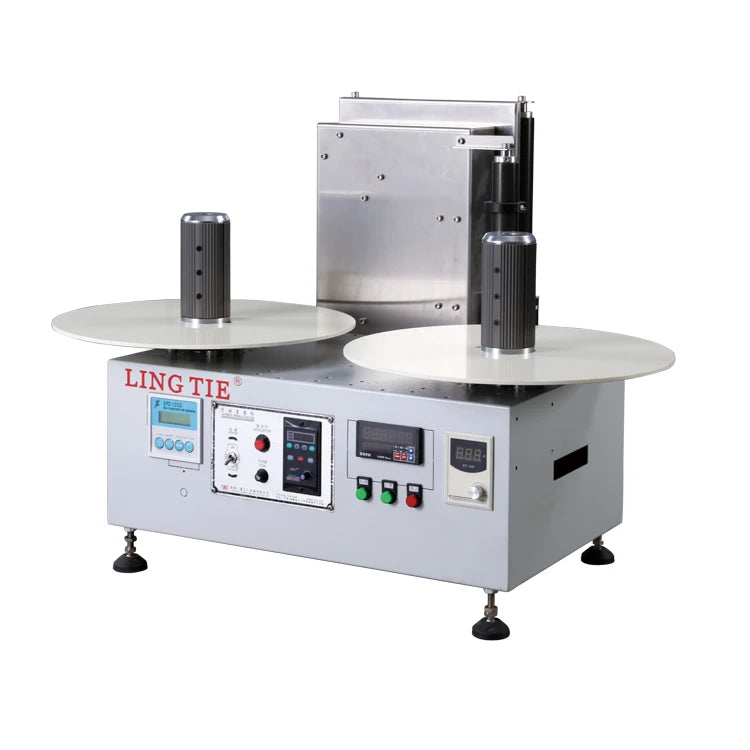

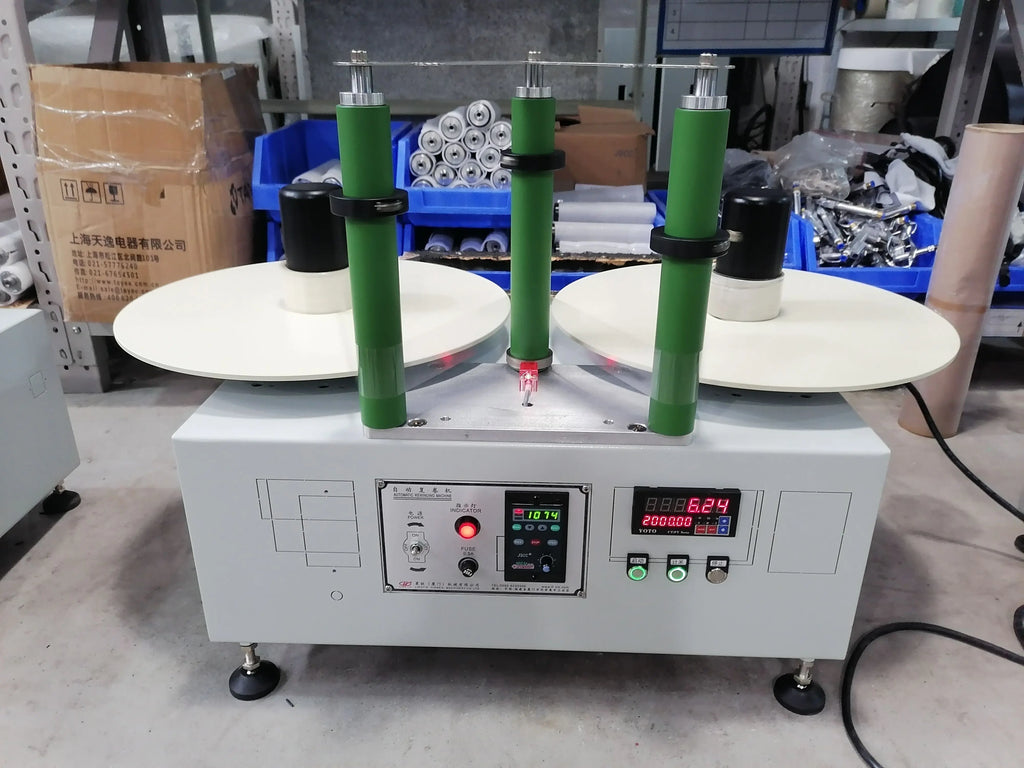

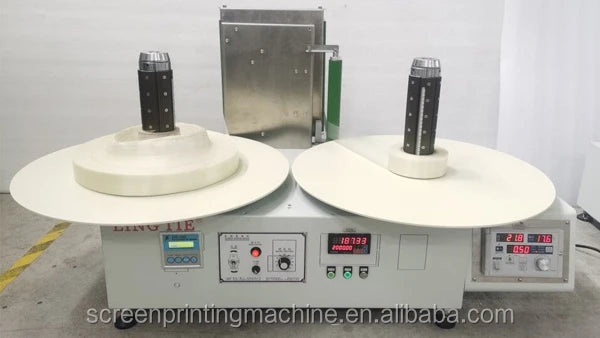

Automatic rewinding counting machine

Application:

Suitable forPET .PC.Thin film .thermal paper rewinding counting

Model:LTD-450

Max.diameter: 450mm

Tension :6 N

Weight: 40kg

Size:660*400*580(L*W*H)

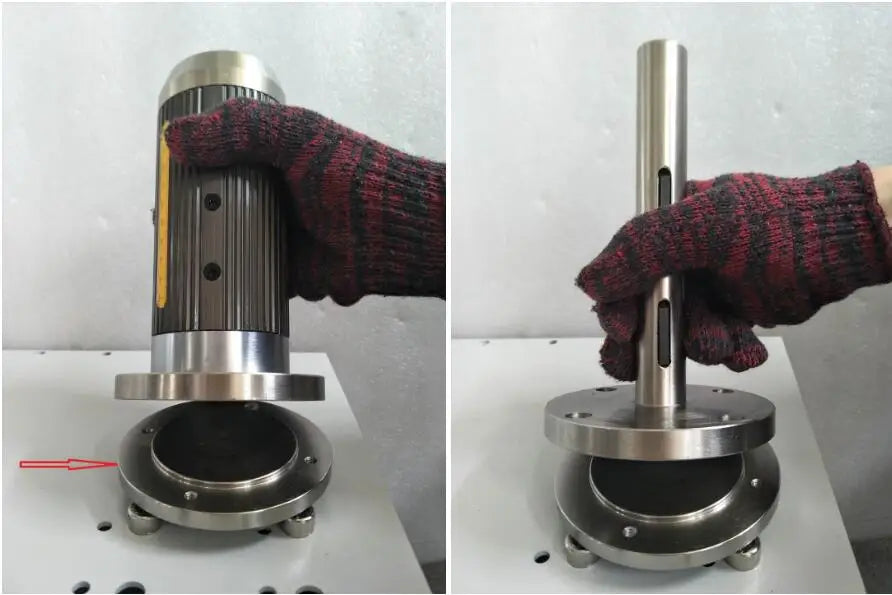

Unwind and rewind shaft

There are mechanical shaft , inflatable air shaft for your option .

Automatic rewinding Machines are suitable for different core size roll material rewinding ,counting .

Replace the shaft you need then you can rewind material with variety core size .

Multi-Function control panel ,such as tension control , counting meter ,counting piece . clockwise and counter clockwise rewinding

Counting meter sensor

counting pieces sensor

Other optional Function :

Webguide function

Mechanical shaft rewinding

static elimination brush

Main Model & Parameters

Model	LTD-450A	LTD-650A
Unwinder rolls diameter	450mm	650mm
Rewinder rolls diameter	450mm	650mm
Rewinding speed	40 meter / min	40 meter / min
Max. Allowable weight	40 kg	40 kg
Power	0.12kw	0.12kw
Power voltage	220 V	220 V
Machine size	70 X 65 X 70 cm	94 X 45 X 58 cm
