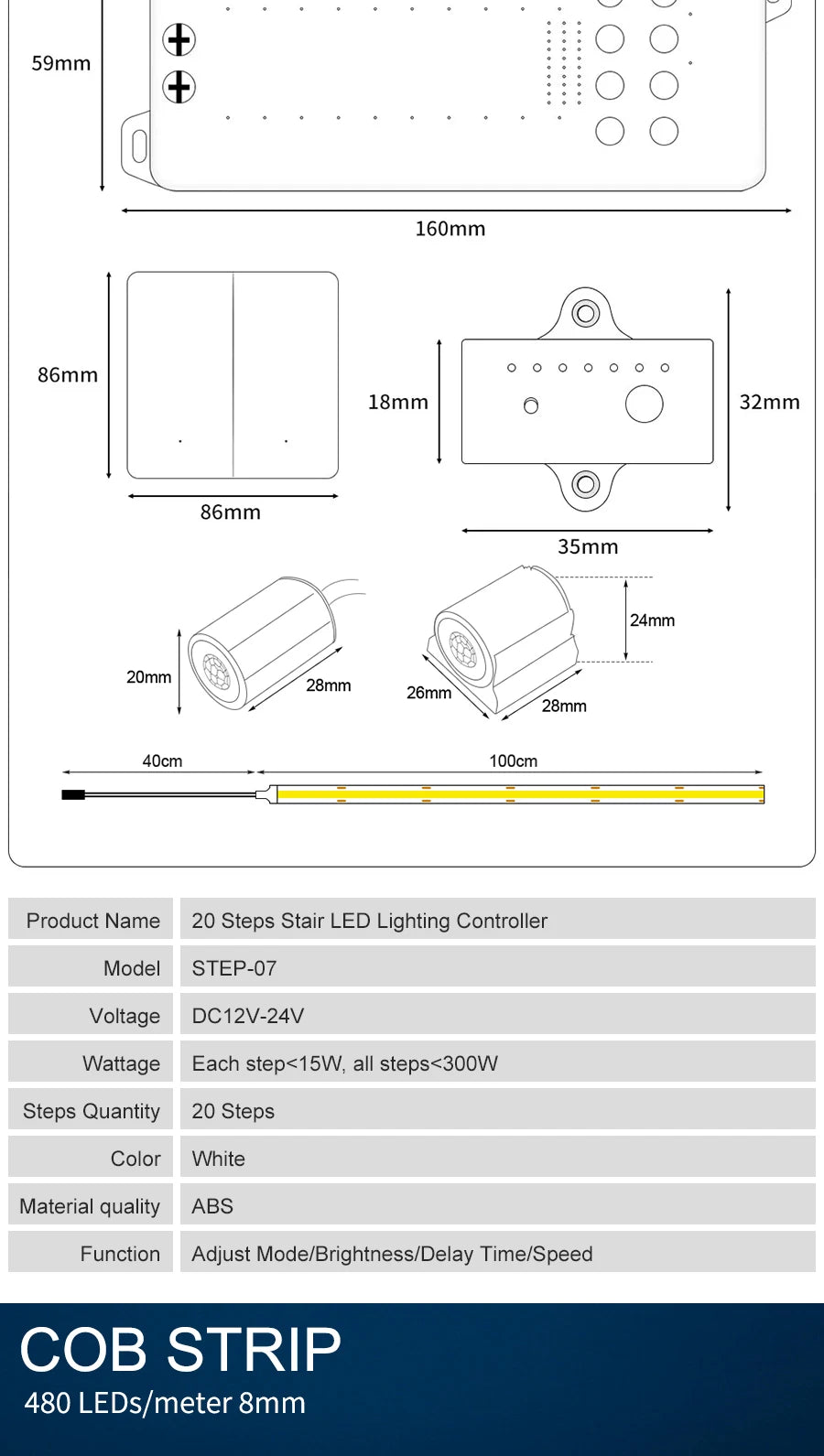

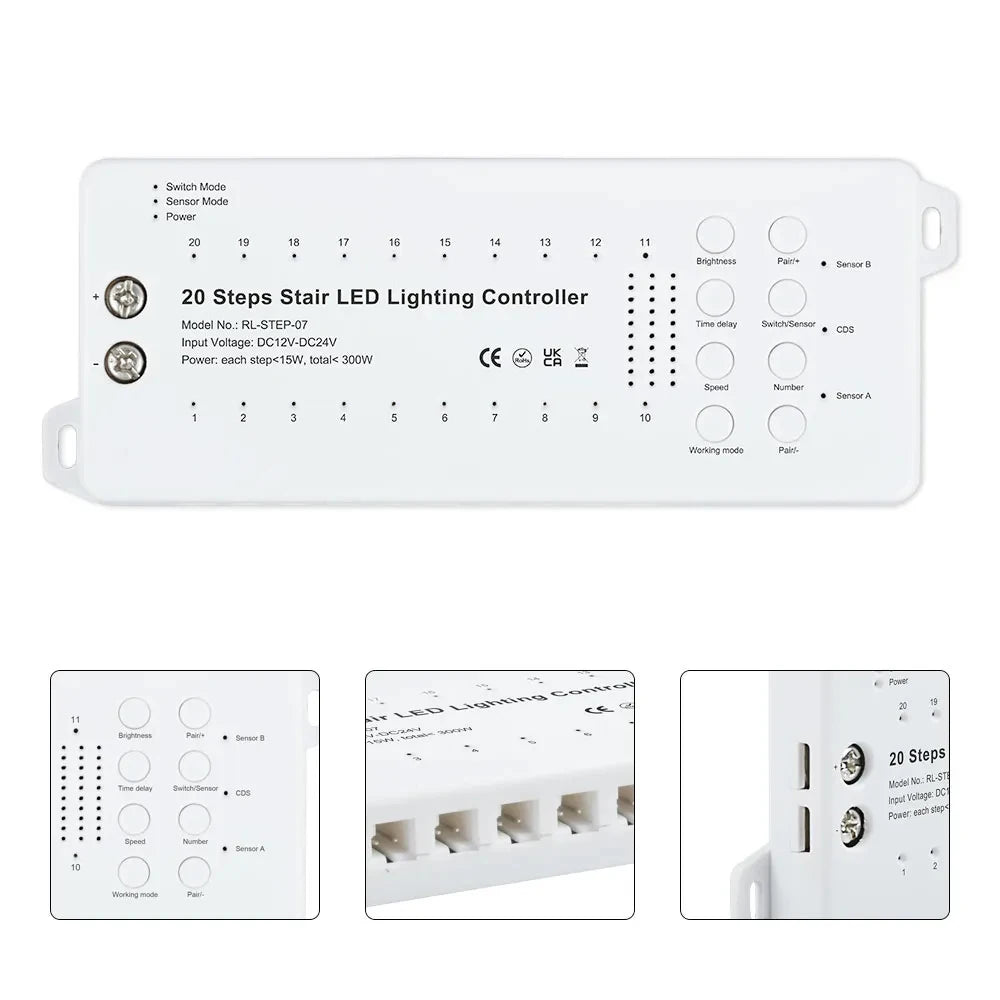

Product Specification

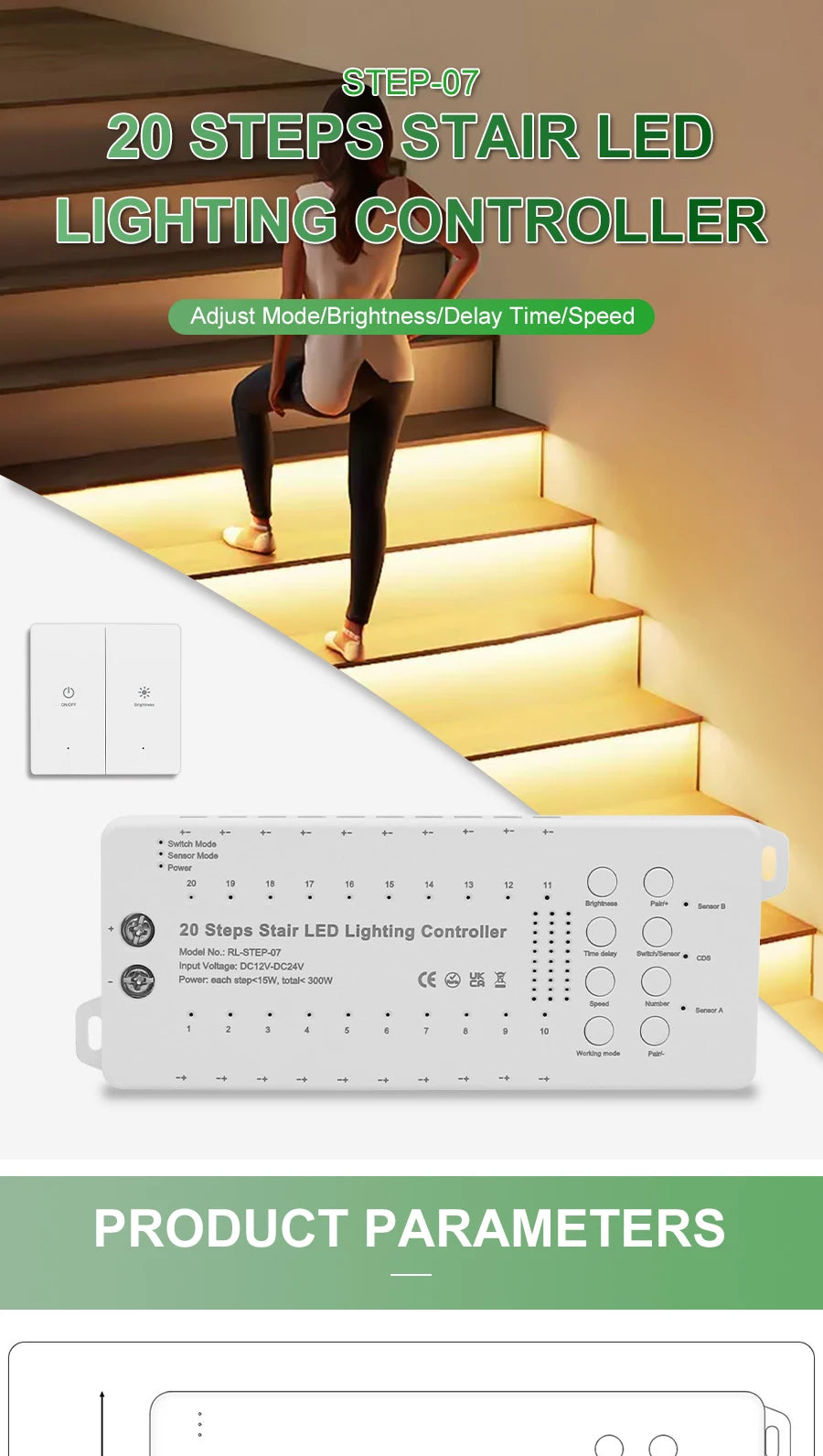

Product Name：STEP-07

Voltage:24V

Number of steps：Maximum 20 steps

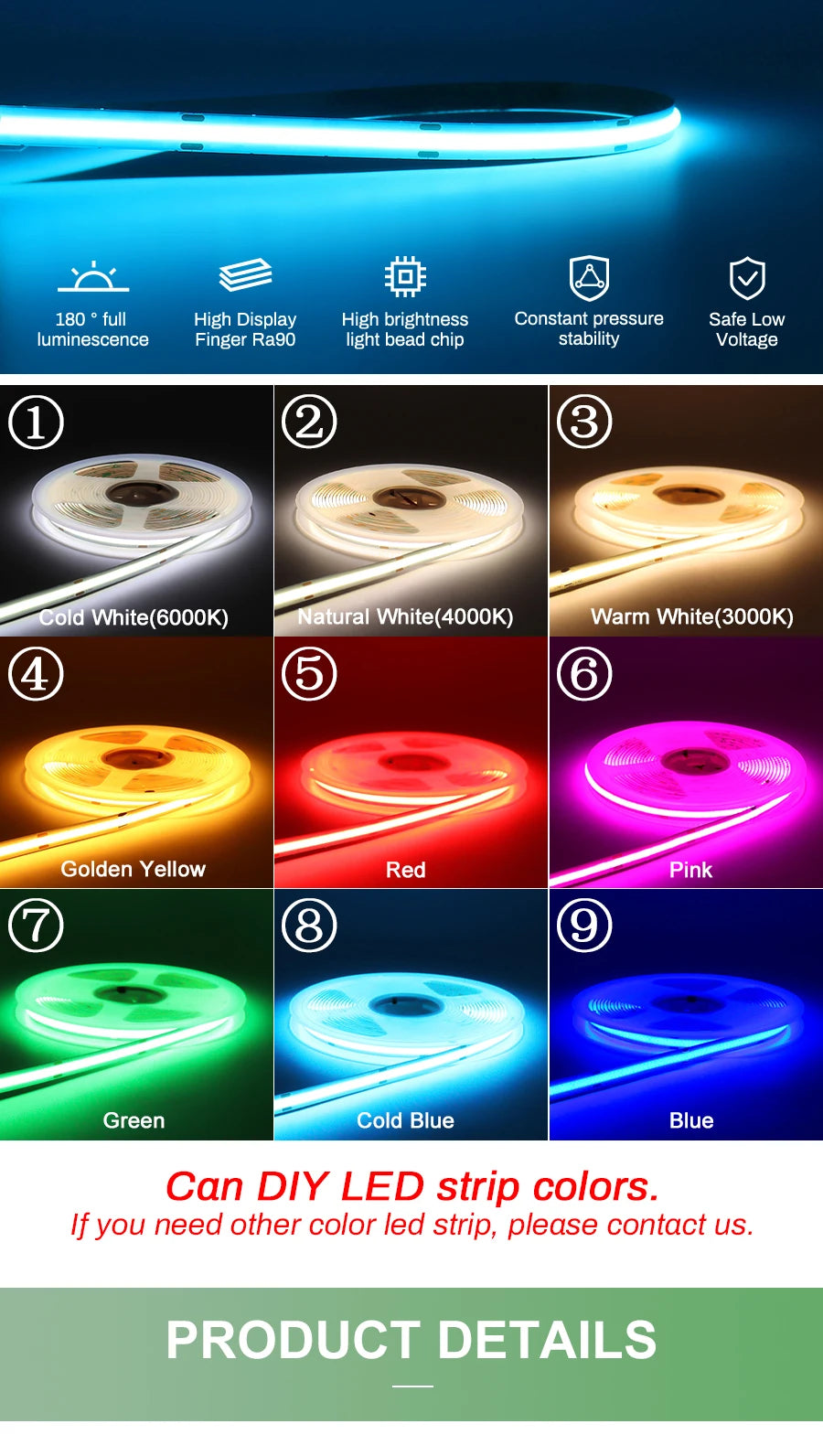

Light color: warm white/cold white/natural white

Material: ABS

Function: adjustable operation mode/brightness/delay time/speed

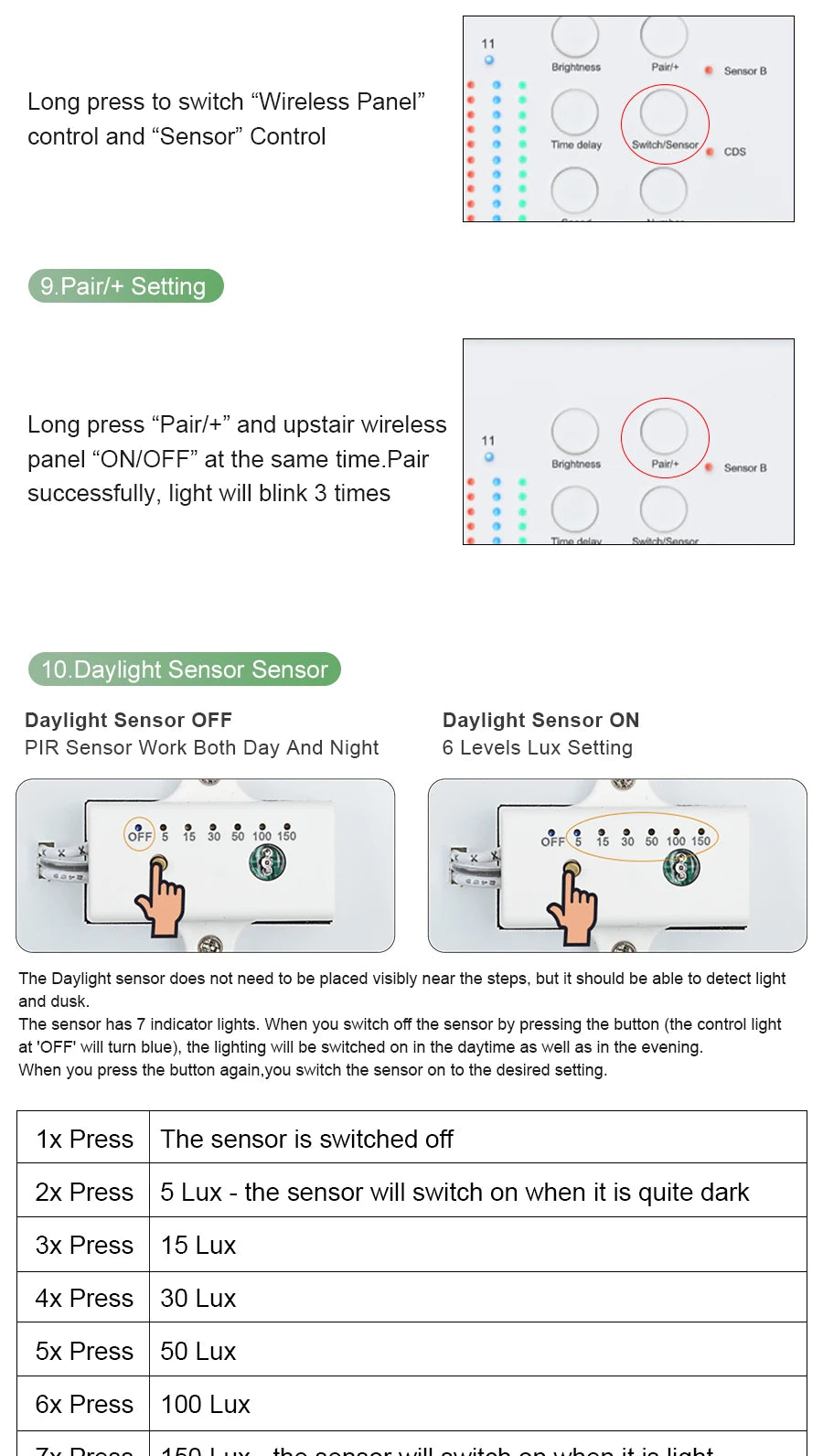

Daylight sensor off

When the daylight sensor is off, the staircase light can work normally during the daytime.

Daylight sensor on

When the daylight sensor is on, the staircase light will not be activated during the day and will work normally at night.

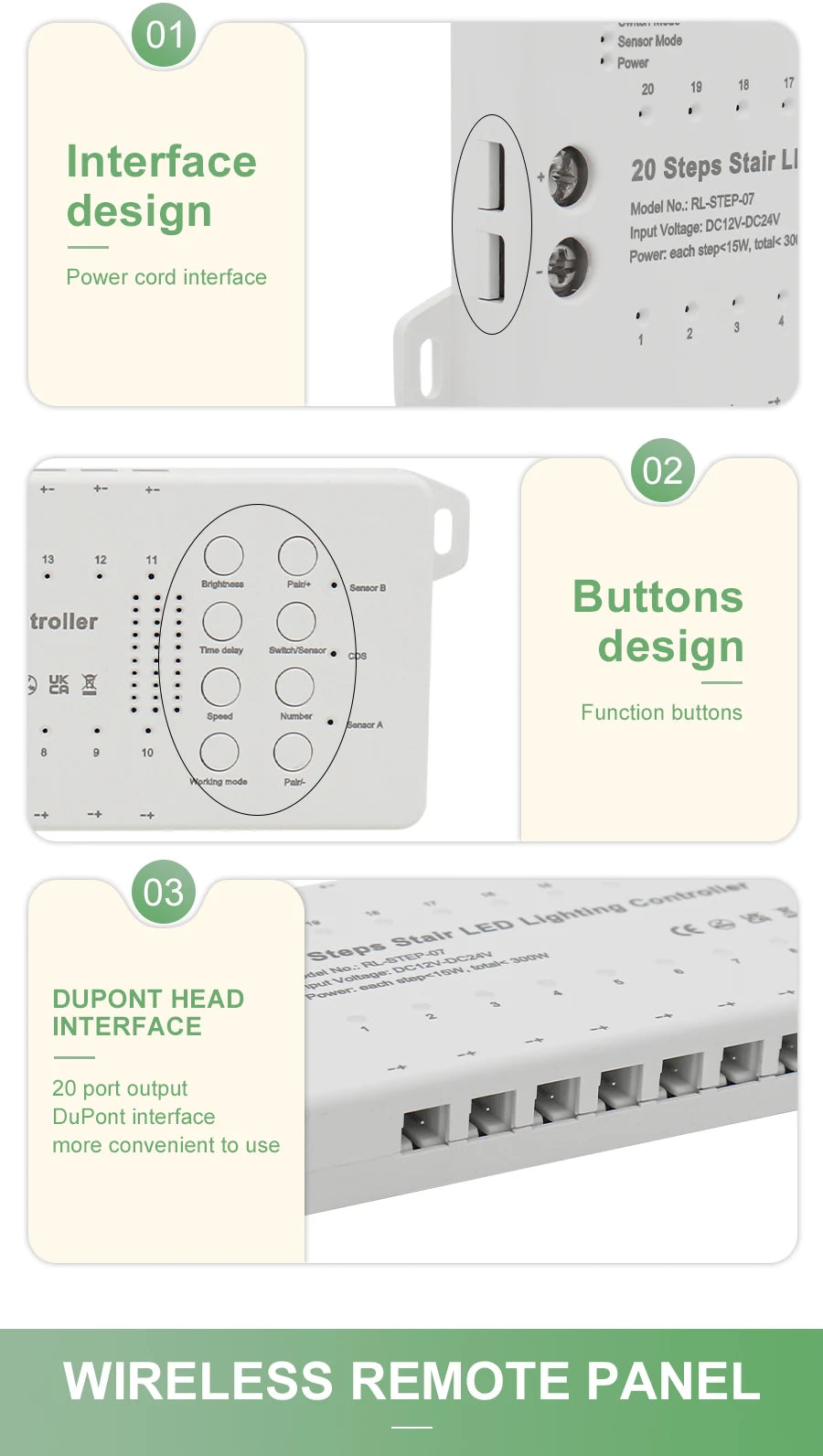

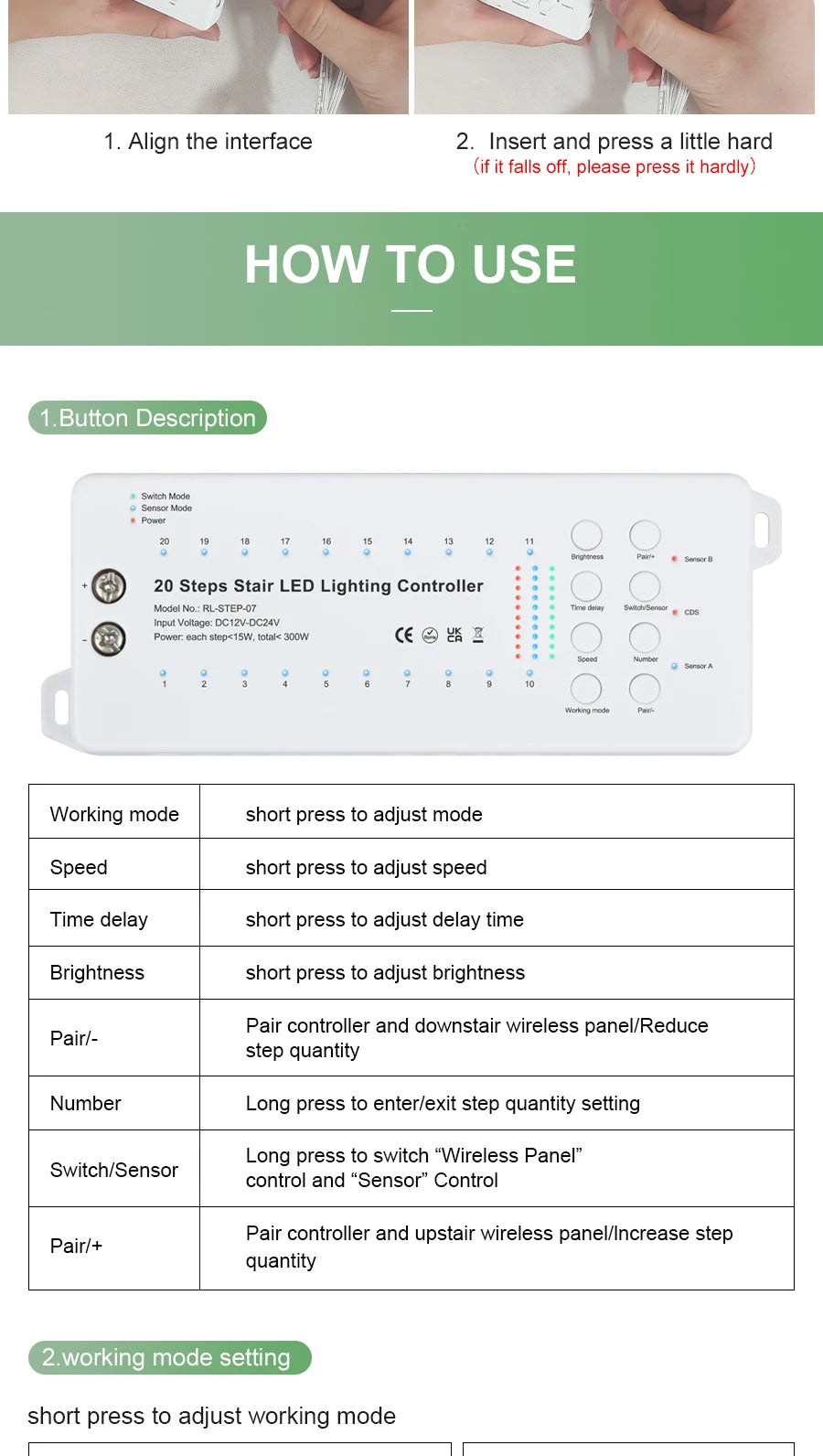

Button Description

Working Mode

Speed: short press to adjust the speed

Delay time: short press to adjust the delay time

Brightness: short press to adjust the brightness

Pairing: Pair the controller with the wireless panel downstairs/decrease the number of steps.

Pairing + controller and upstairs wireless panel pairing/increase the number of steps

Numbers: long press to enter/exit step setting

Switch/Sensor: long press to switch between “wireless panel” control and *sensor control.

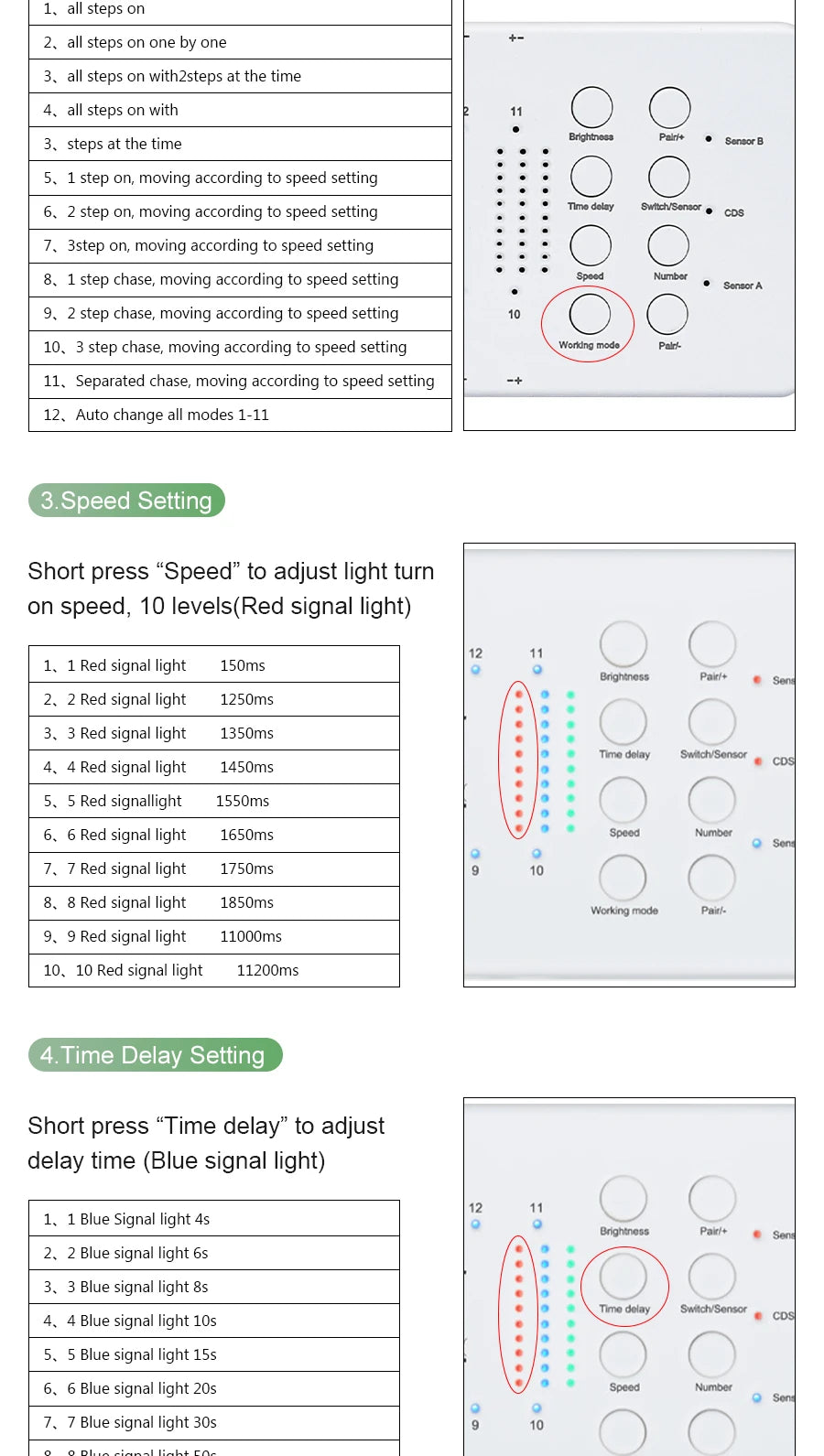

Working mode setting

Short press to adjust the working mode

1.All steps open

2.All steps open one by one

3. All steps open two steps at the same time

4.All steps open 3 steps at the same time

5.One step on, move according to the set speed

6.2 steps on, move according to the set speed

7.3 steps on, move according to the speed setting

8.1 step chase, move according to the speed setting

9.2-step chase, move according to the speed setting

10.3-step chase, move according to the speed setting

11.Separate chase, move according to the speed setting

12.Automatically switch all modes 1-11

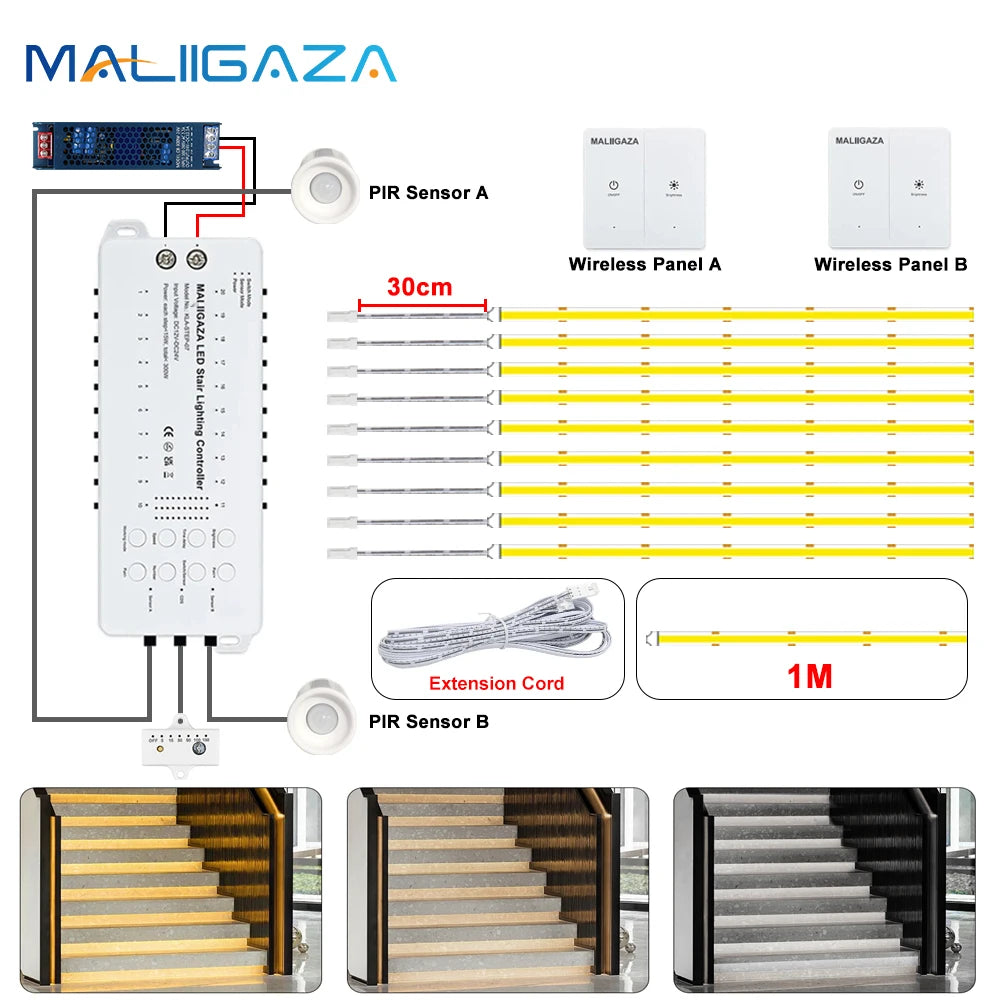

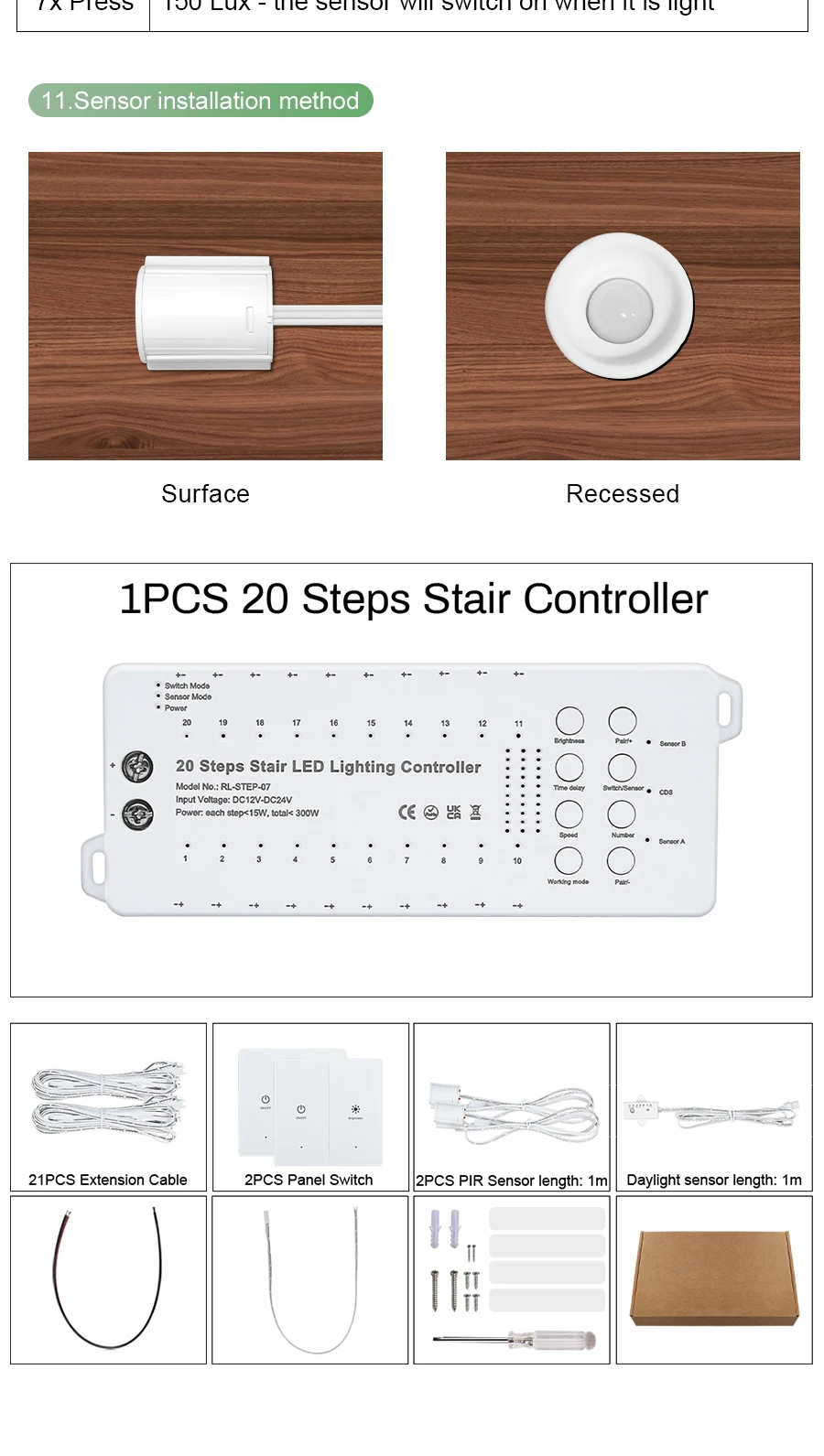

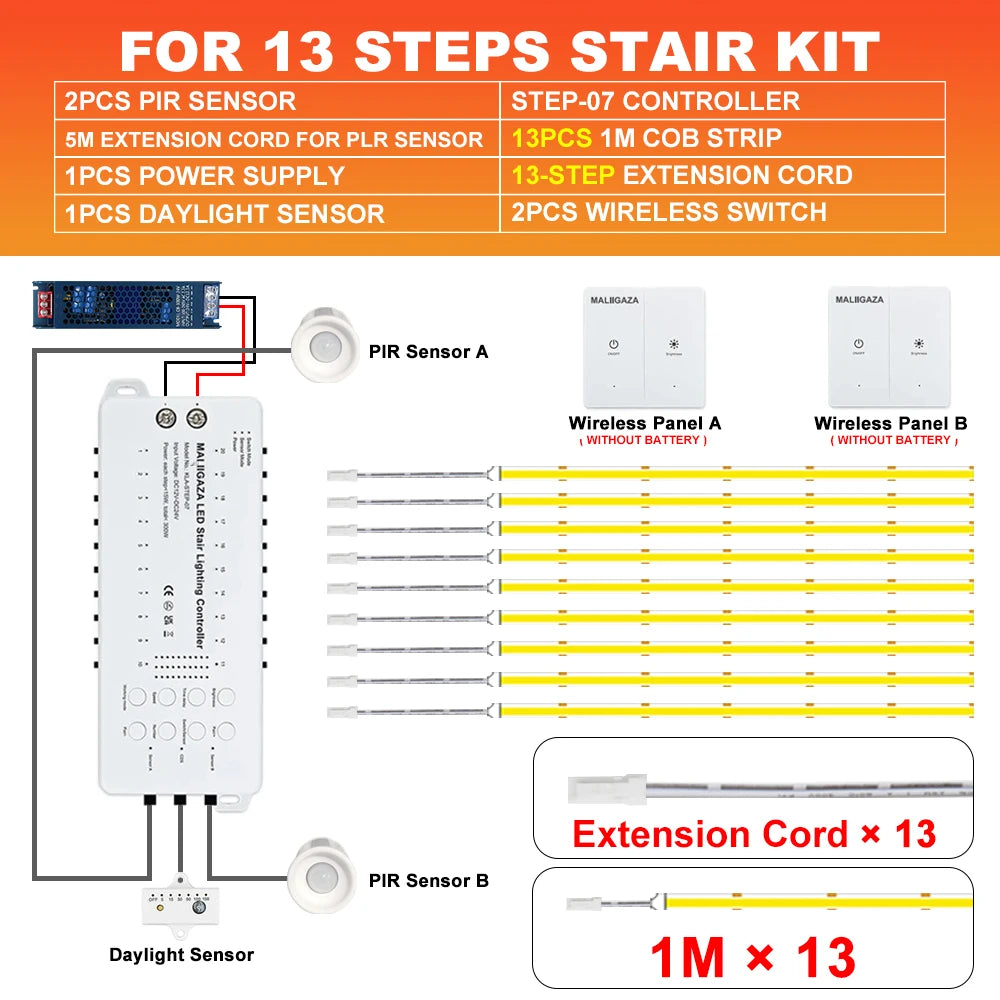

Package List

-Step-07 Controller

-Power Supply(No Plug)

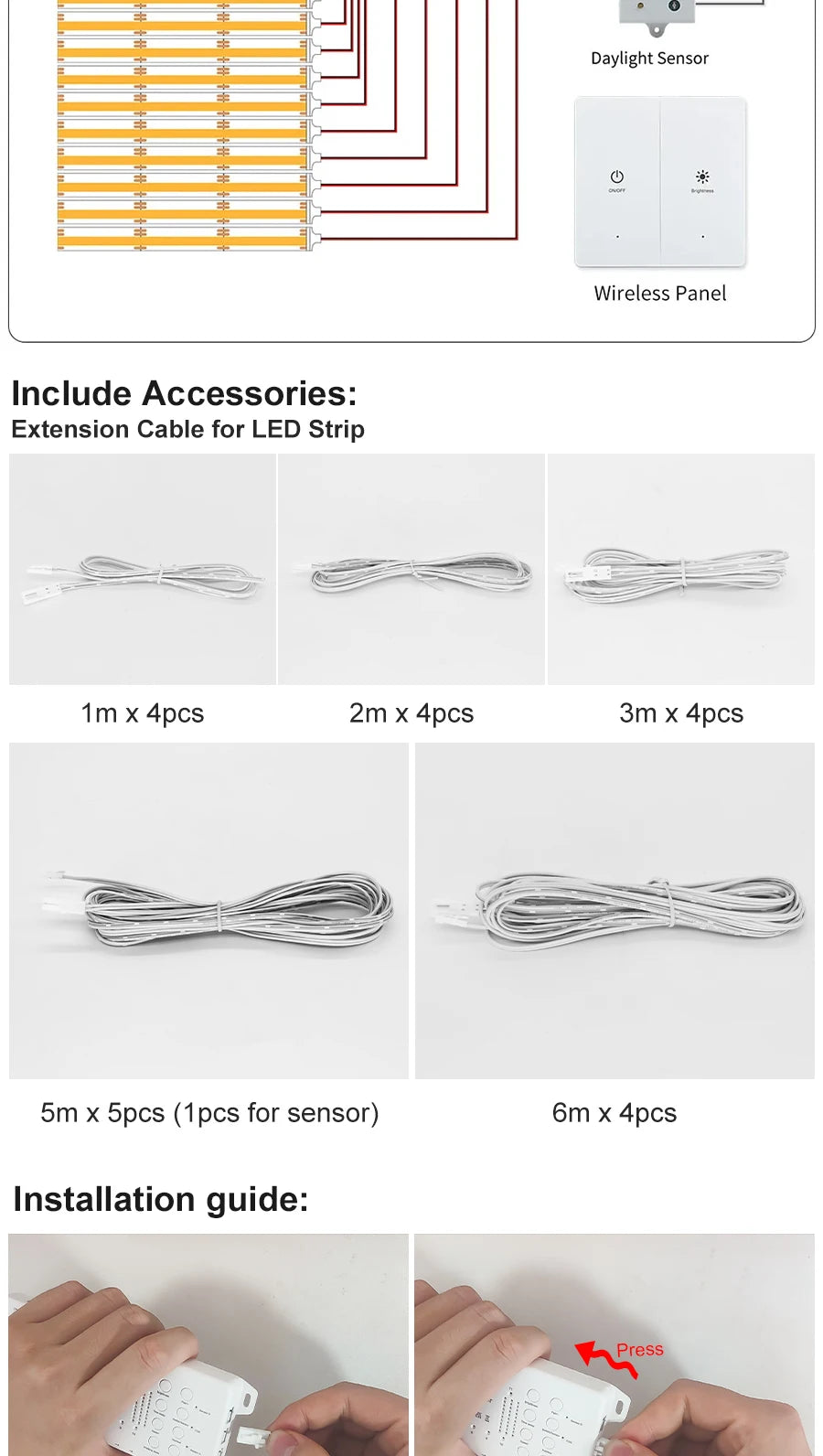

-1PC Extension Cord / Step

-1PC 1M COB LED Strip / Step

-2PCS Switch
