SPECIFICATIONS

Air Volume: 59.54 CFM

Brand Name: Jonsbo

Choice: yes

Fan Interface: 4PIN

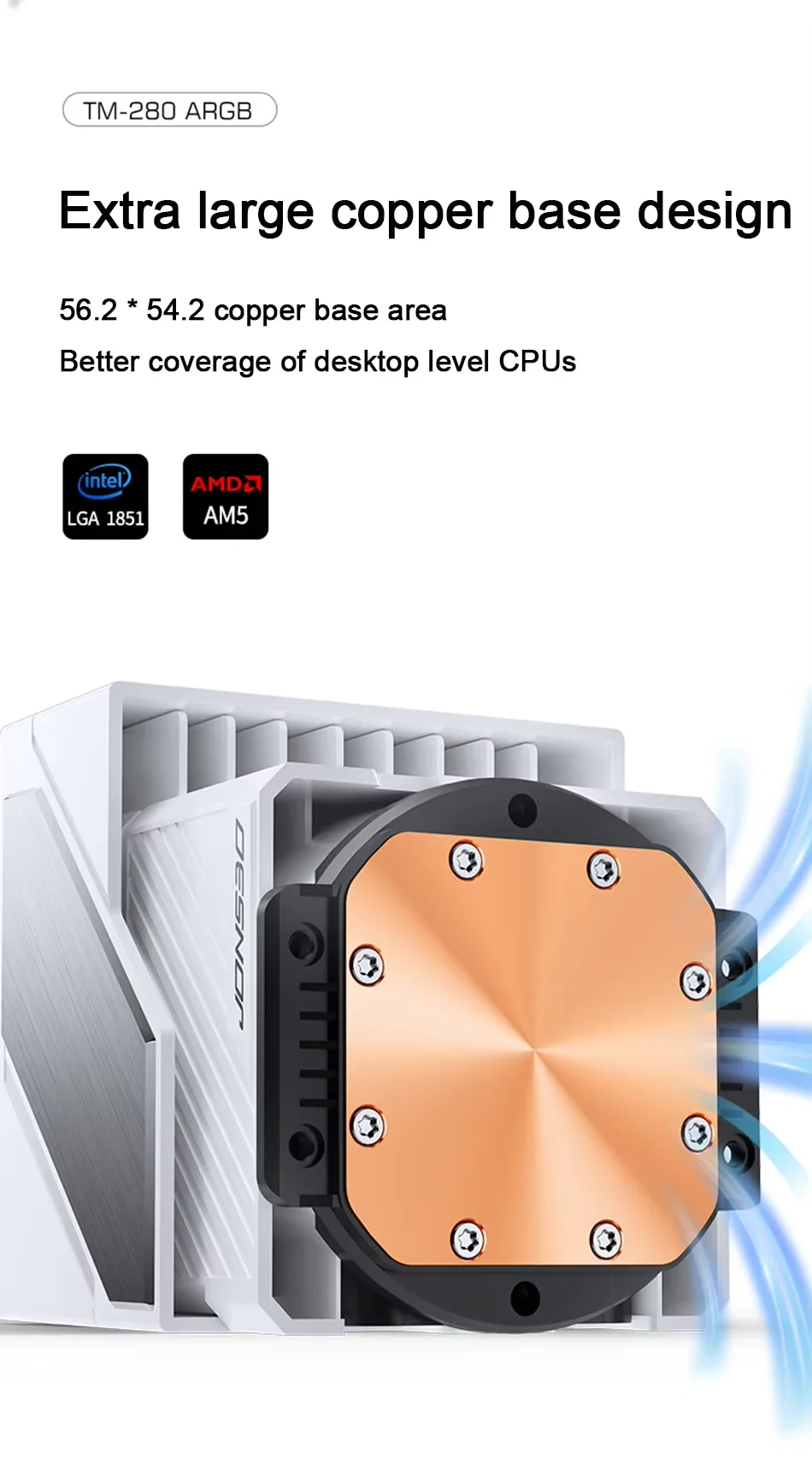

Heatsink Material: Copper

High-concerned chemical: none

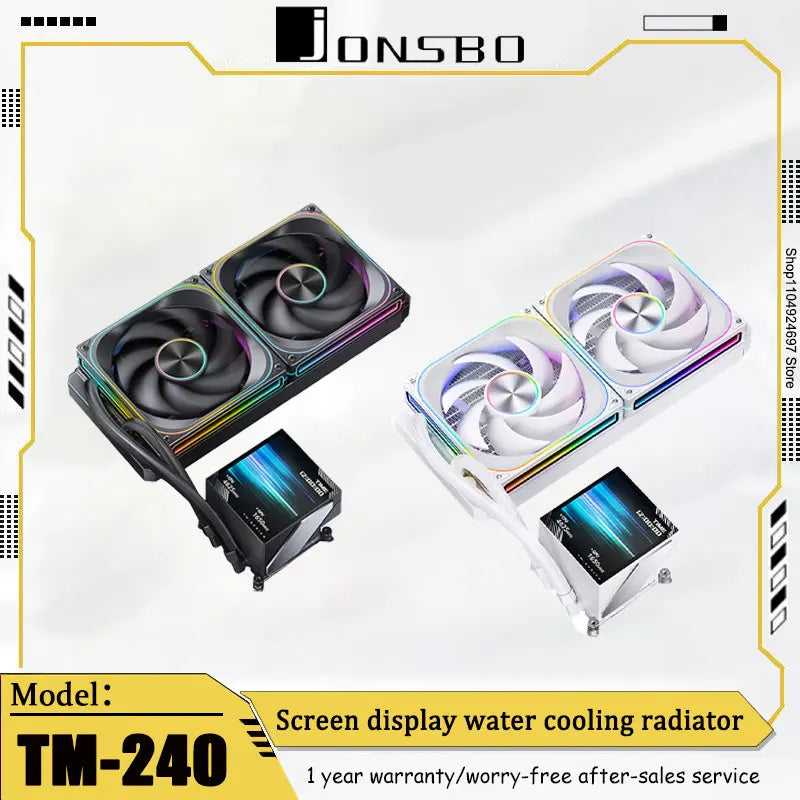

Model Number: TM-240

Origin: Mainland China

Package: Yes

Pump Interface: 12v-4PIN ARGB

RGB Support: A-RGB

Radiator Type: 240 MM

Series: TM-280

Supported CPU: LGA 1700,LGA 1150,LGA 1156,LGA1150,LGA 1155,LGA 1151,LGA1200,AM4,Socket AM5

Type: CPU All In One

With Liquid: Yes

With Screen: Yes

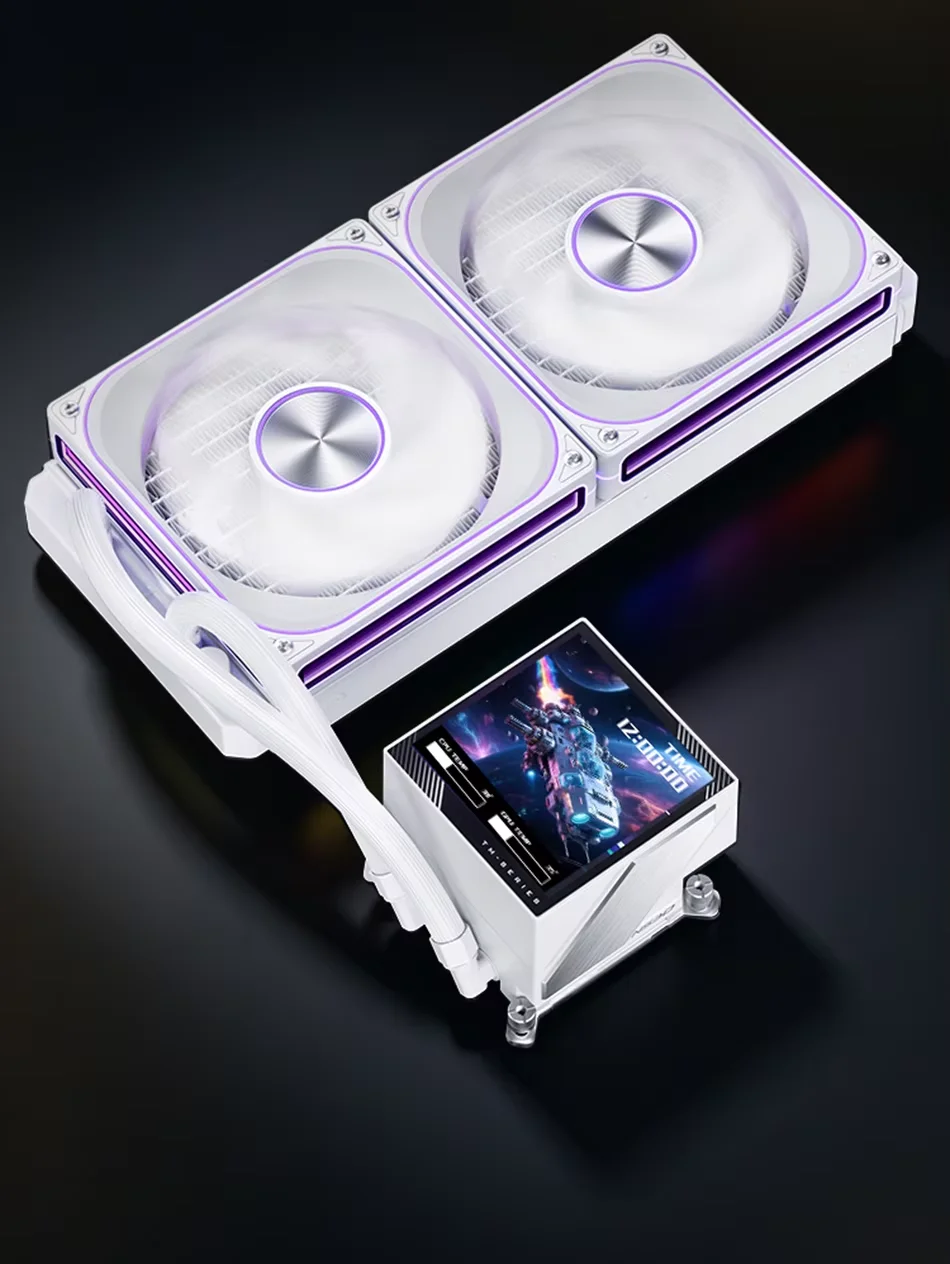

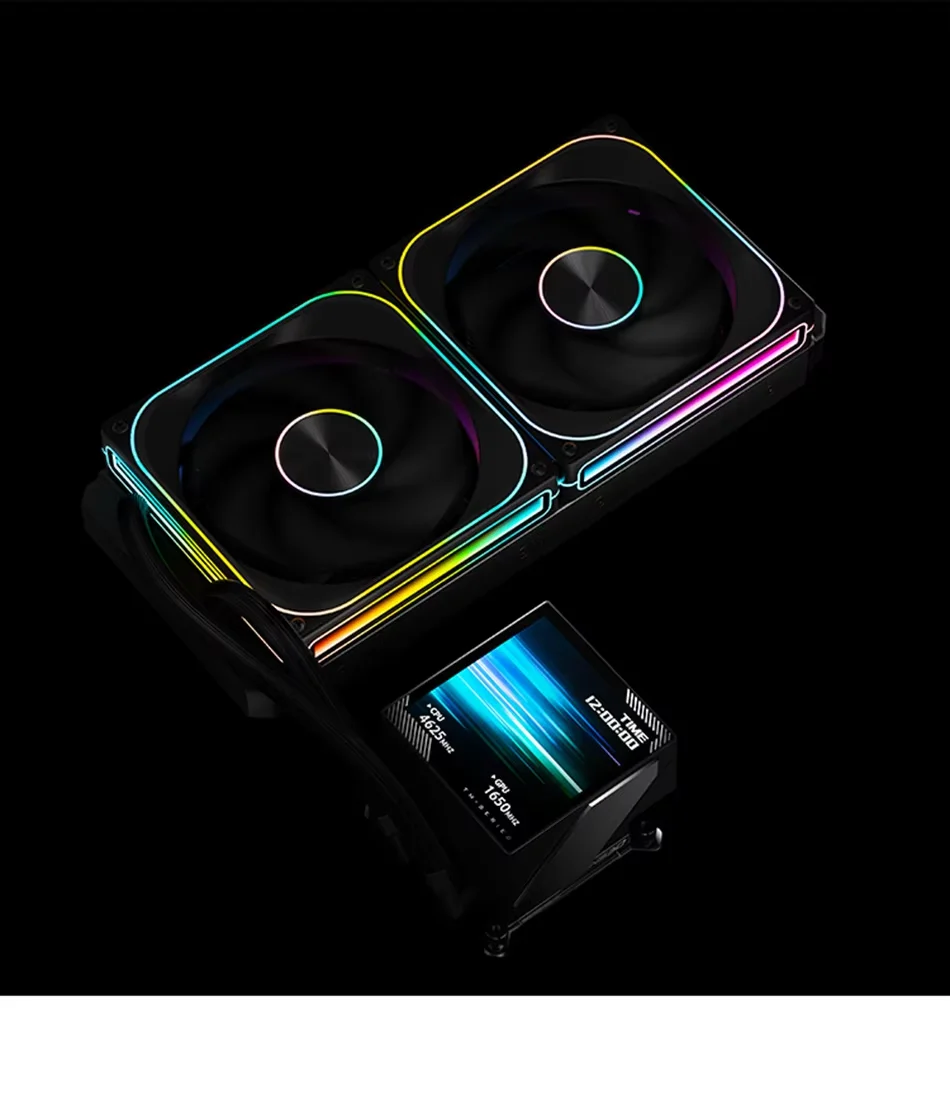

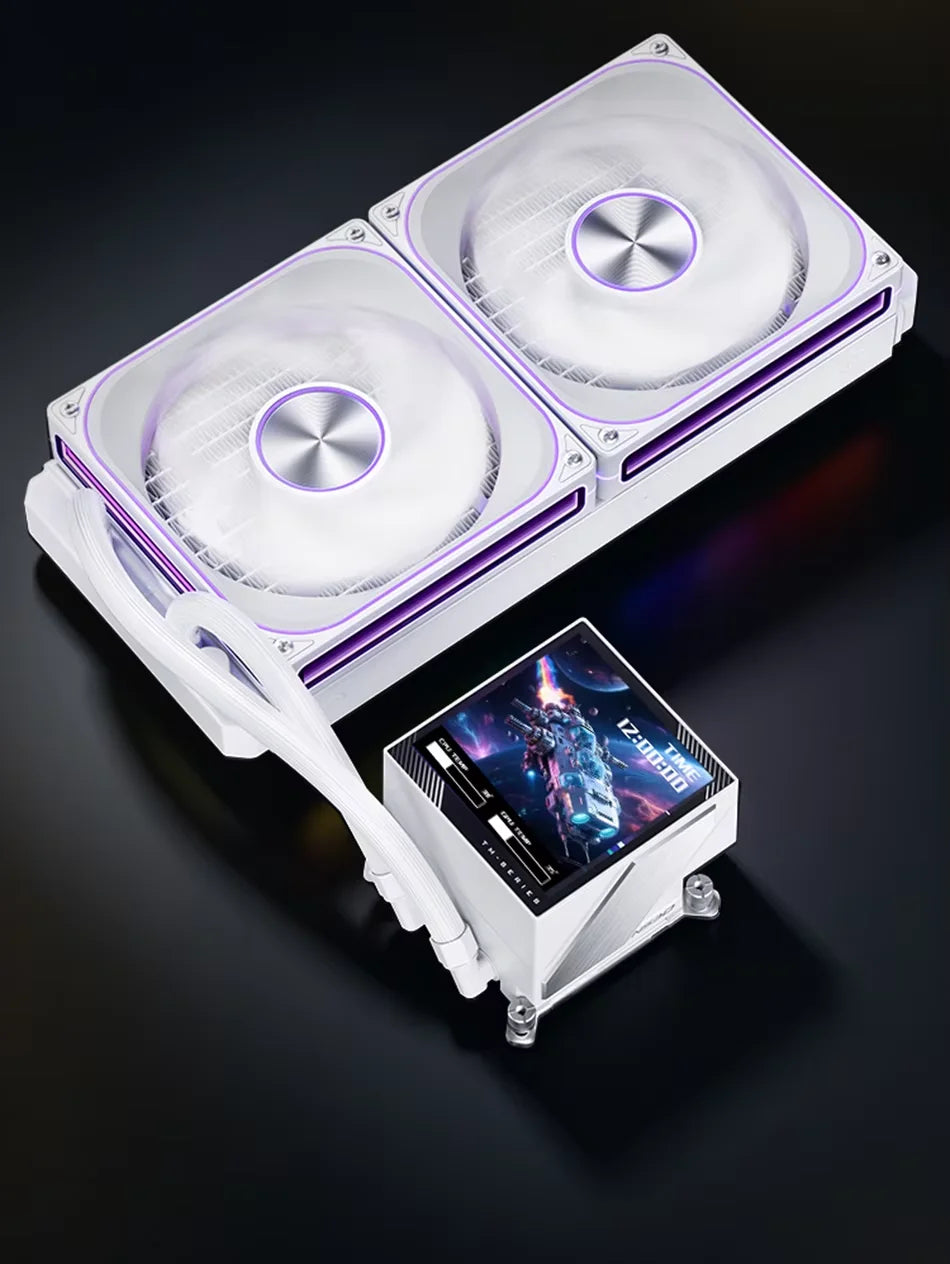

Model: TM-280 Black/White

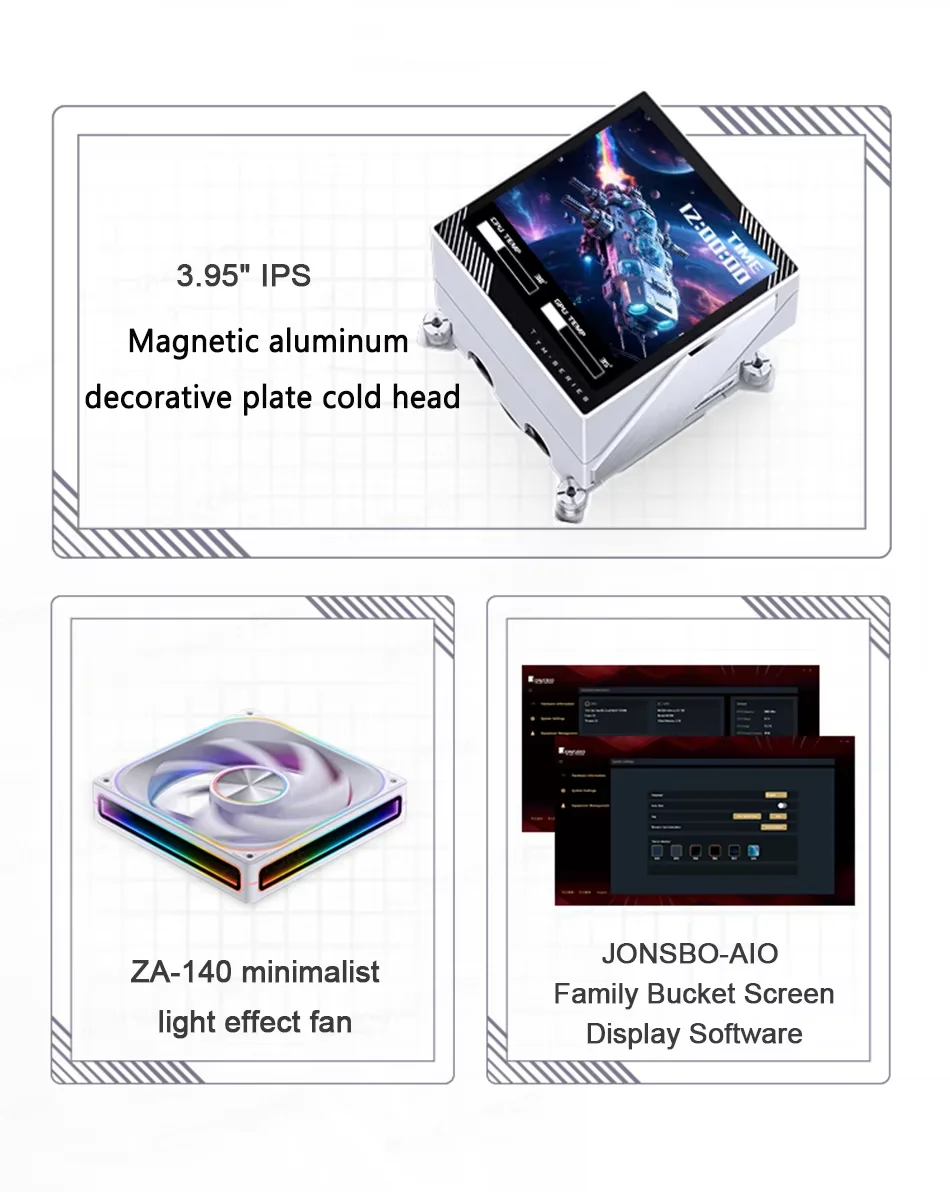

Product type: Screen display water-cooled radiator

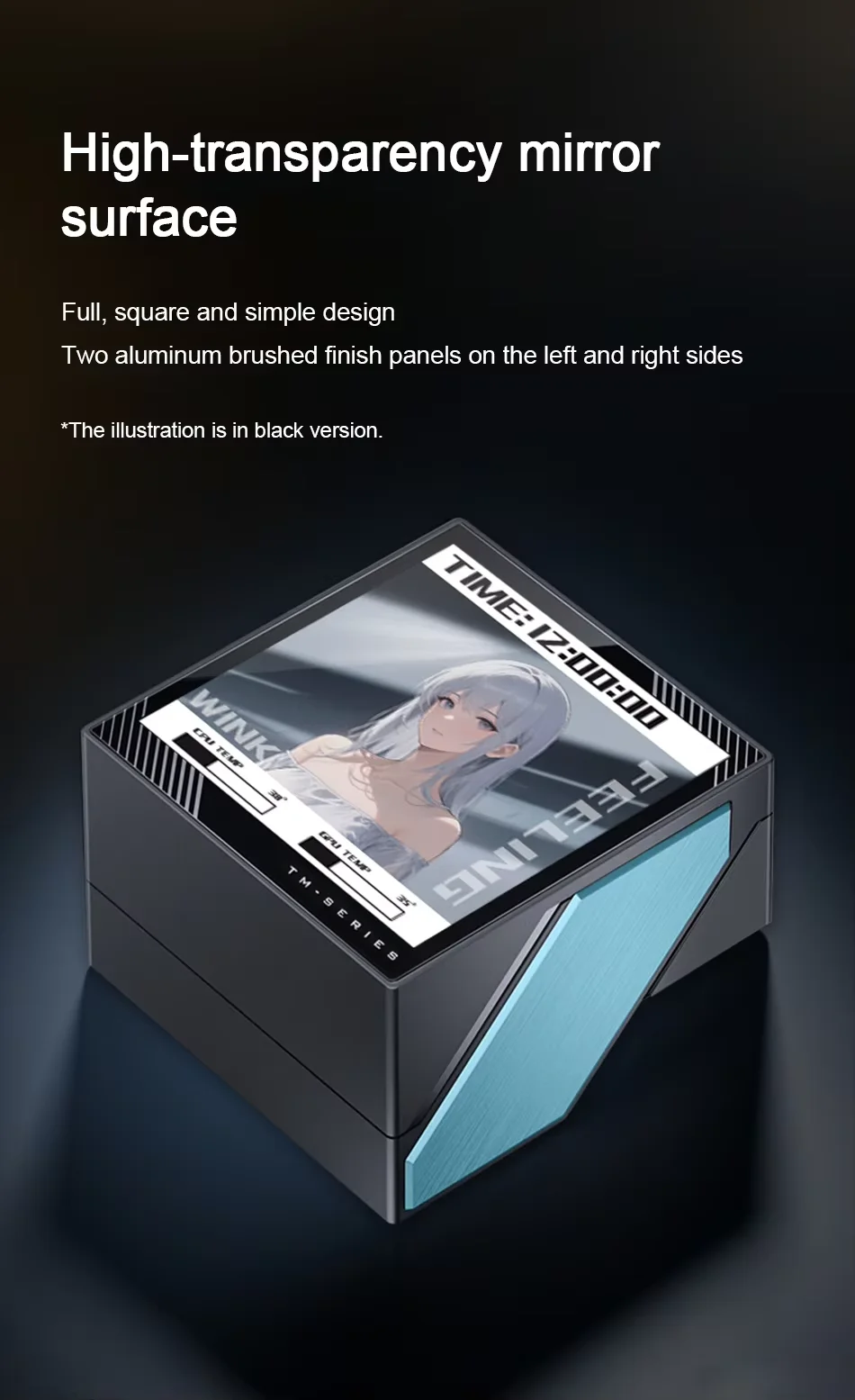

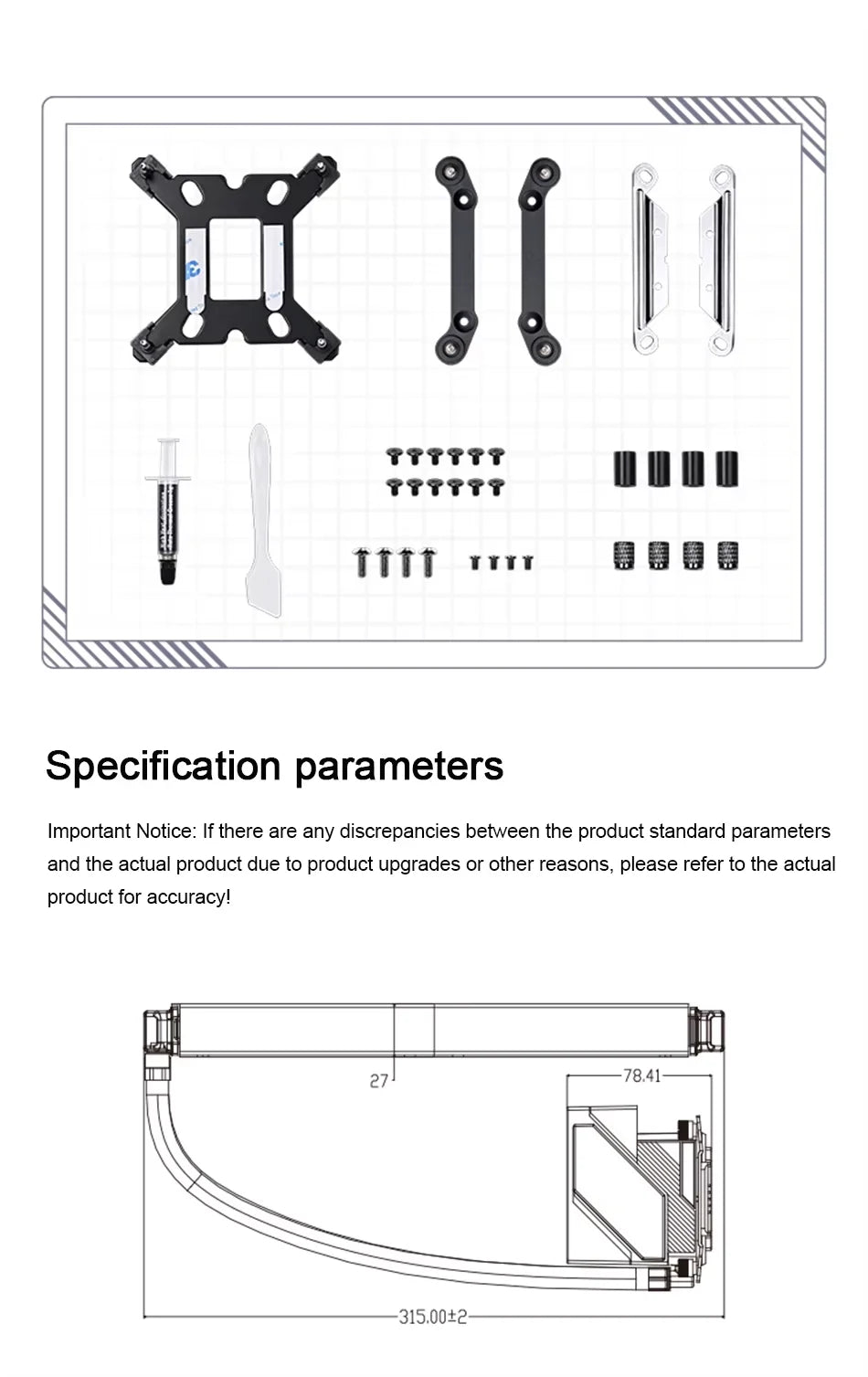

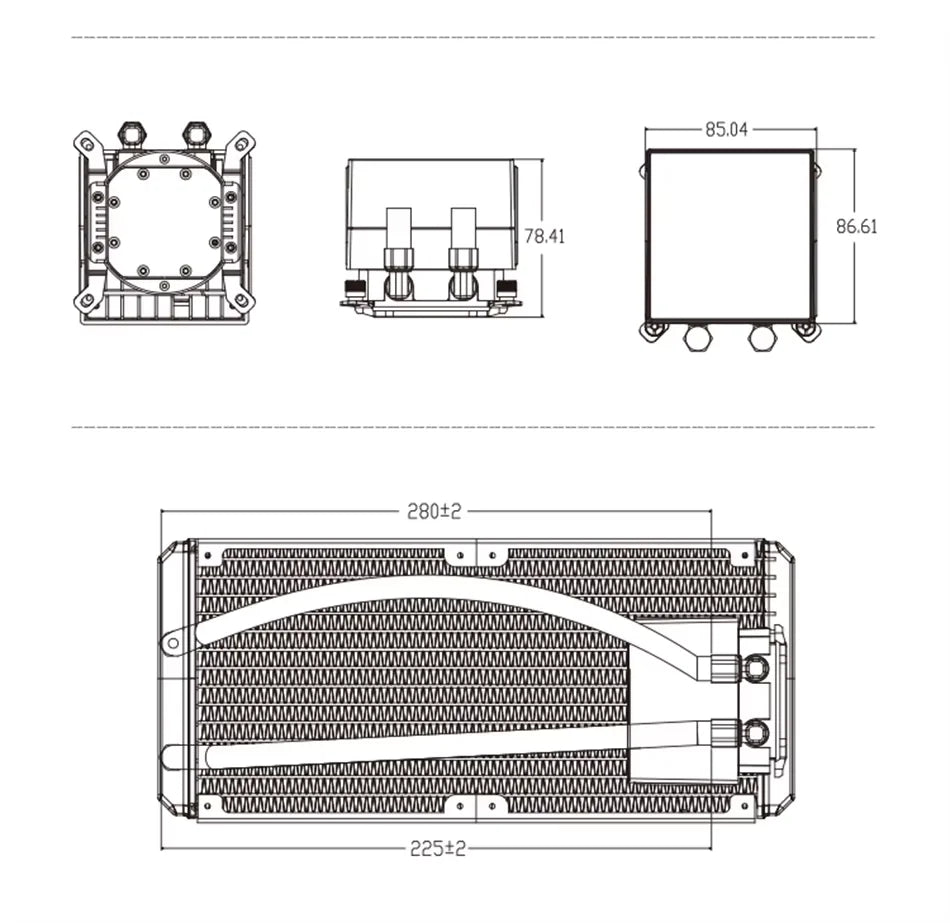

Product size: Water pump: 85mm * 86.5mm * 70.2mm;

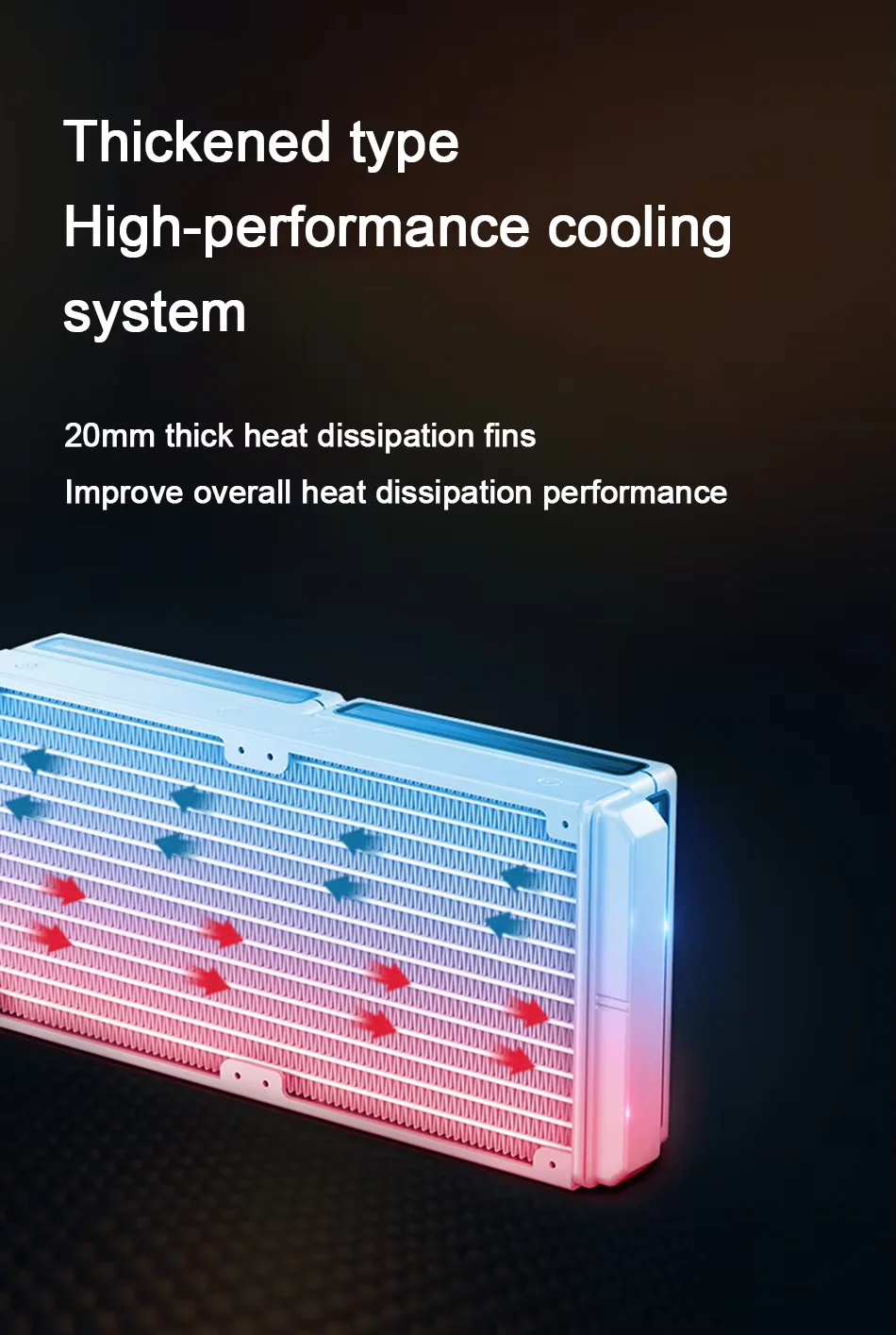

Heat sink: 315mm * 137mm * 28mm

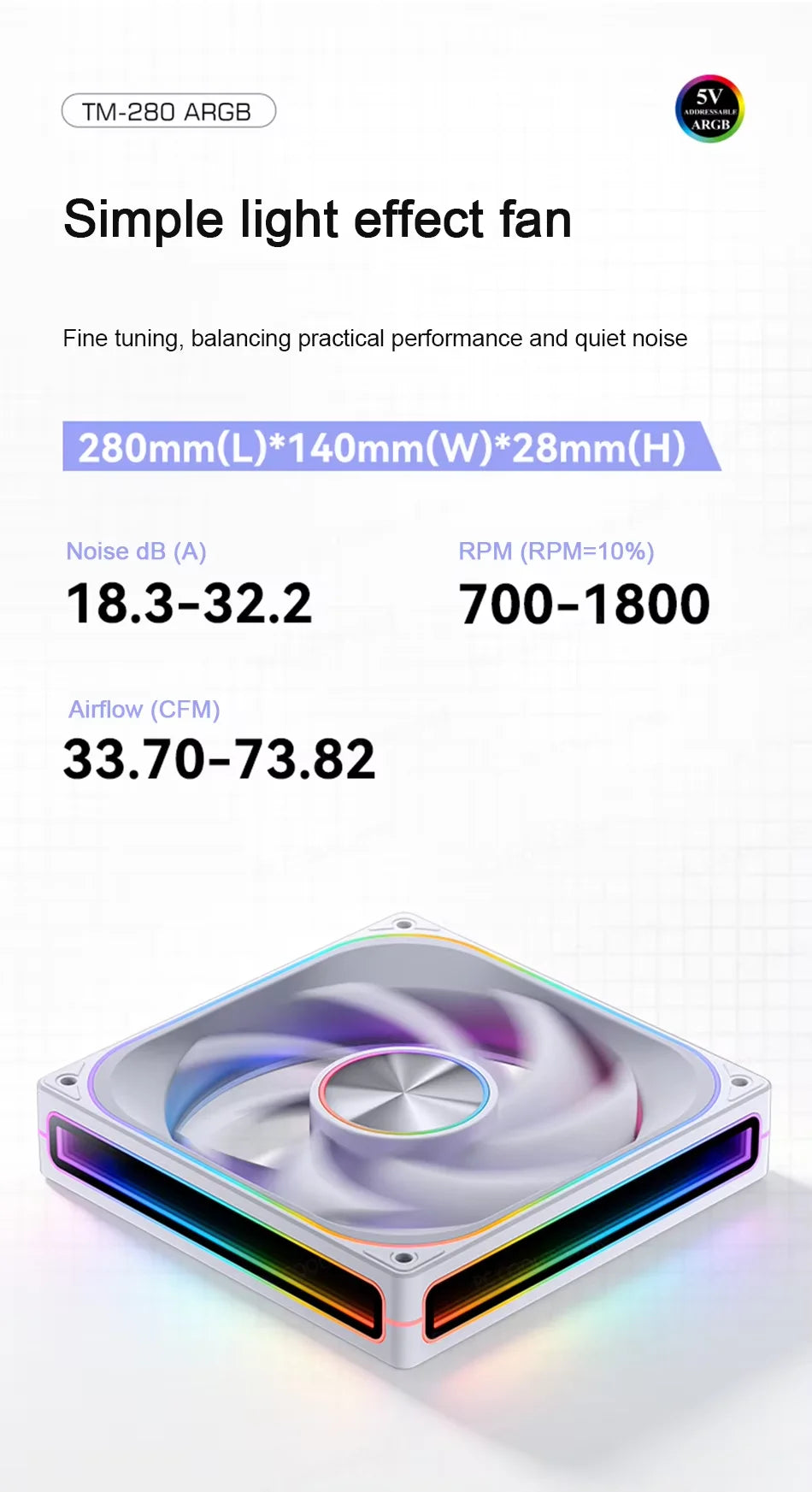

Fan: 280mm * 140mm * 28mm
Fan speed: 700rpm~1800rpm (± 10%)
Fan air volume: 33.70-73.82CFM (each)
Fan pressure: 0.47-1.94 mmH2O
Fan noise: 18.3-32.2 dB (A) (max)
Fan lifespan: ≥ 20000h Room Temp: 25 ℃
Fan interface: FAN 4PIN PWM/LED 3PIN ARGB
Pump speed: 5000rpm (± 10%)
Water pump voltage: 12V DC
Water pump power consumption: 3.84W (± 10%)

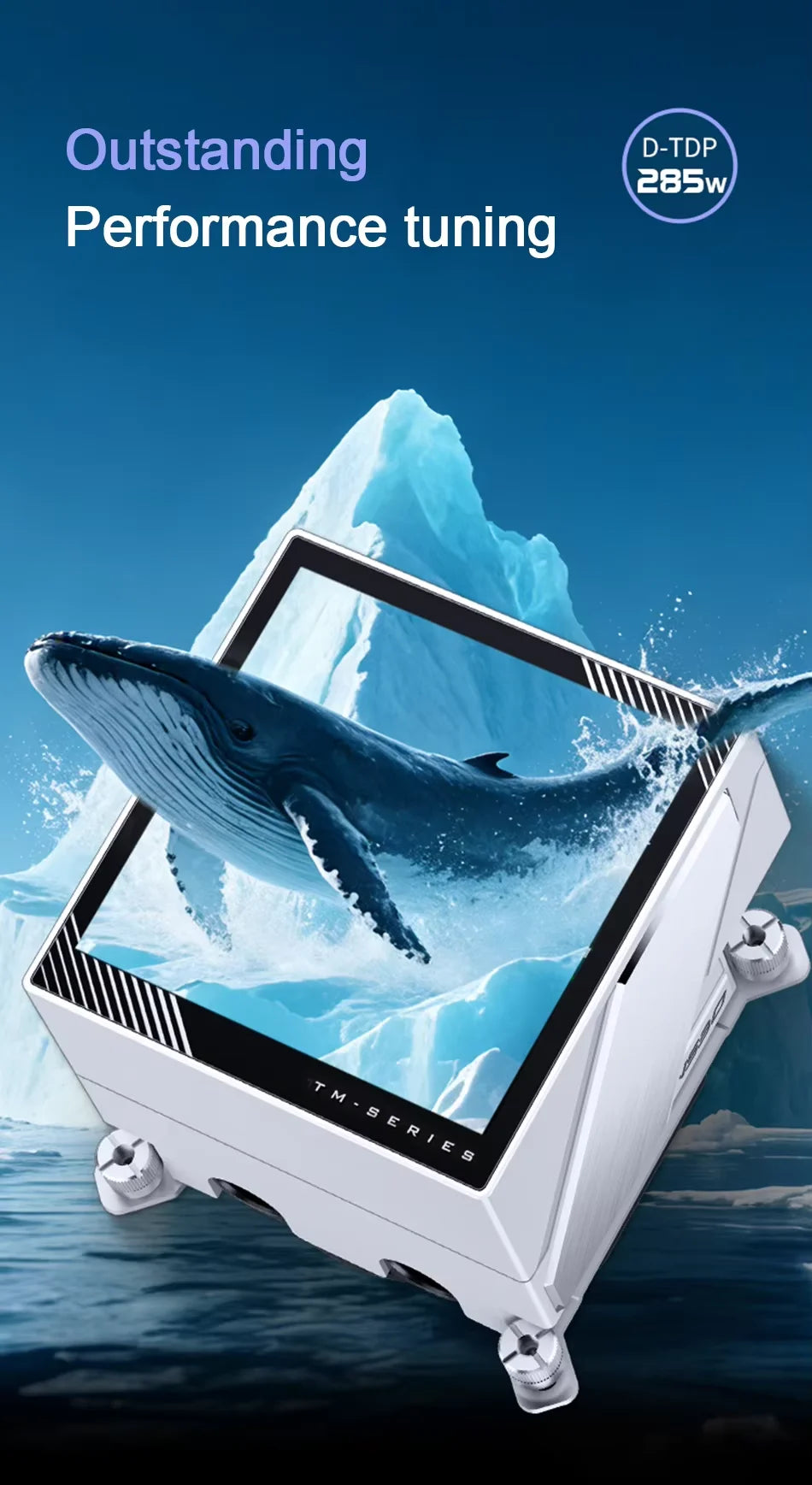

D-TDP：285W

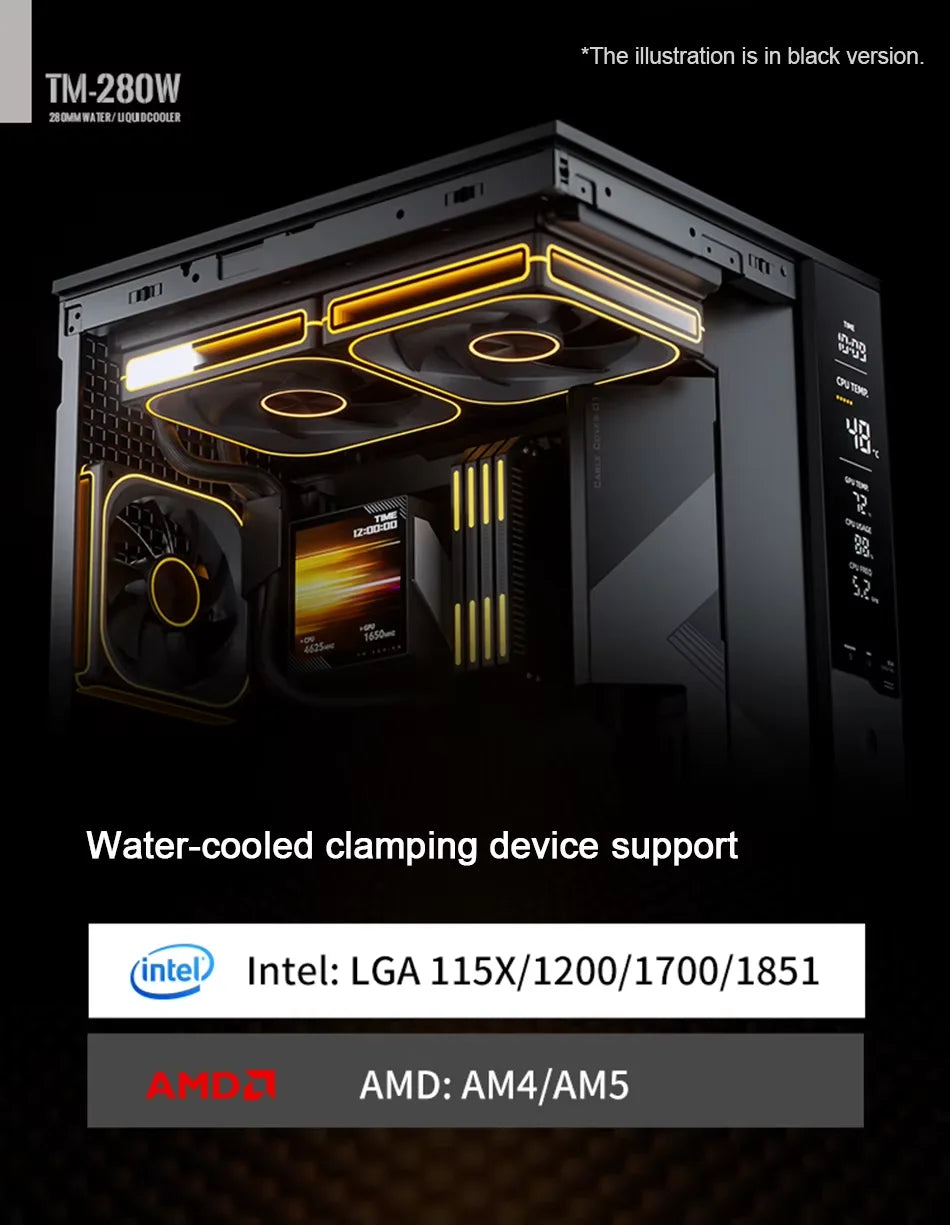

Water cooling buckle supports Intel: LGA 115X/1200/1700/1851

                                                  AM: AM4 AM5

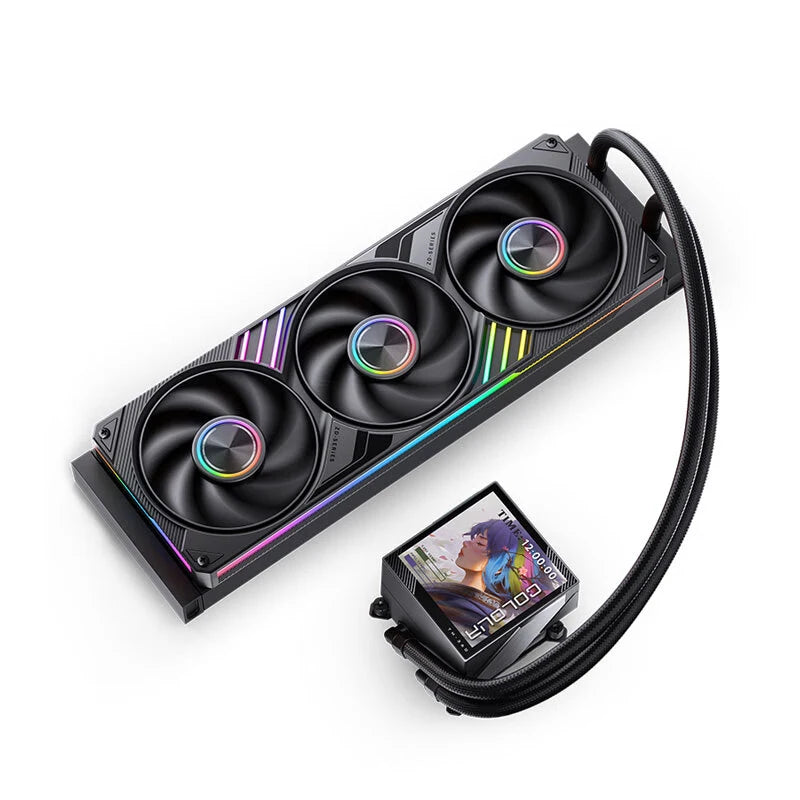

Model: TM-360 black

Radiator size:L393*W120*H27mm

Fan size:L362*W123mm*H28mm

Fan air volume:21.46-62.40CFM(each)

Fan noise:21.3-37.3dB(A)(max)

Fan speed: 700-2400rpm (±10%)

Fan life:>40,000hours @25°C

Fan Bearing:Hydraulic

Fan control method: 4 PIN PWM

Water pump size:72*85.3*57.5mm

Water pump noise:<30dB(A)

Water pump speed: 2400rpm (+10%)

Water pump working voltage: 12VDC

Water pump power consumption: 5.4W

Water cooling buckle supports Intel: LGA 115X/1200/1700/1851

                                                  AM: AM4 AM5
