SPECIFICATIONS
Advantage: High Productivity Capacity Good Quality Auto Friction Paging Machine
Function: Multi-Sheet Stack of Paper Pouch Friction Paging and Precision Feeding
Ideal for: Barcode Printer, Packaging Line, Label Applicator, Automation Machine
Keyword: High-Speed Paging System Friction Feeder
Object size: 40-320mm
Packaging Material: Paper,Plastic
Packaging Type: Bags,Belt,Cans,Cartons,Bottles,Barrel,Stand-up Pouch,Film,Foil,Pouch,Case
Paged way: Friction or Reversal Wheel
Product name: Automatic Pouch Paper Friction Feeder Conveyor Plastic Bag Dispenser
Suitable for: Labeling Machine, CIJ TIJ TTO Date Printer, Laser Marking Machine
Type: Auxiliary Packaging Machine and Conveyor Device
Usage: Cardboard Carton Corrugated Box Sheet Paper Card Bag Paging Feeding
Voltage: 220V/50HZ
Weight (kg): 50
application: Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,card
automatic grade: Automatic
brand name: NanYun
core components: Motor
dimension(l*w*h): 1531*539*785MM
driven type: Electric
key selling points: Easy To Operate,High-Accuracy,Competitive Price,Flexible Manufacturing,High Productivity,Multifunctional
machinery test report: Provided
place of origin: Fujian, China
type: Packing Machine,Other
video outgoing-inspection: Provided
warranty: 1 Year

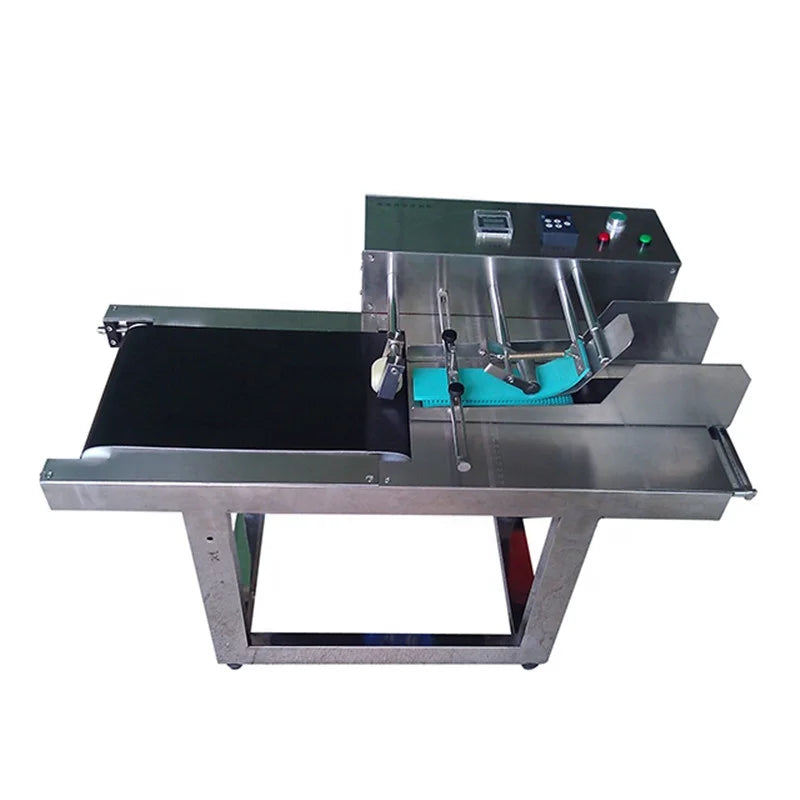

NY-826 Friction Pouch Feeder
▶ Description
Our NY-826 friction feeder machine can dispense stacks of pouches or cards into single piece and deliver to the conveyor belt for labeling, counting, thermal transfer ribbon printing, inkjet coding & laser marking or further processing. It is capable of running 200 pieces per minute of various materials and characteristics such as cartons, plastic bags, label paper cards, envelope, poly ziplock pouches, child resistant pouches, kraft pouches, valved coffee pouches etc. Often matching with various assembly line to finish paging, coding, labeling, improve work efficiency, increase output.
▶ Application
▪ 3mil & Greater Thickness. The soft, hard, thin, thick products can be paginated.
▪ Different sizes can be customized, counting, receiving hopper, adsorption optional.
▪ The Paging Width and Thickness of Feeder Adjustable Based on Specific Packaging Dimensions.
▪ Compatible Thermal Inkjet Printer, Continuous Ink jet Printer, Thermal Transfer Overprinter, Labeling Machine
♦ Example/Samples: Mylar Pouches/Envelopes/Flat Cardboard Cartons
Technical Data |
|
|
NY-826 |
|
Material |
|
|
201 Stainless Steel |
|
Operation Speed |
|
|
50 meter/min 30-200 pcs/min (related to product material and size). |
|
Product Size (L x W x H) |
|
|
(50-320)x(60-300)x(0.8-5)mm (can customize) |
|
Belt Width |
|
|
300mm Industrial PVC belt (can customize) |
|
Conveyor Width |
|
|
400mm (can customize) |
|
Conveyor Length |
|
|
1.5 meters (can customize) |
|
Motor |
|
|
Variable frequency motor |
|
Working Height |
|
|
650 mm (+/-30 mm) |
|
Power Supply |
|
|
220V, 50/60 Hz, Single Phase, 180W 110V (Optional) |
|
Machine Size (L x W x H) |
|
|
1531x 539x 785mm |
|
Weight |
|
|
Approx 45kgs |
|
Application |
|
|
Carton, Paper Box, Pouch, Plastic Bag, Label Paper Card, Envelope, etc. |
|
Paging Mode |
|
|
Friction |
|
Note: If machine are customized, the above data may vary. |
|
|
|
|
NY-826 High-speed Friction Stack Pouch Card Paper Sheet Paging Machine
What is used for?
This paging system can automatically separate stacks of bags and convey single piece onto the conveyor belt so as to facilitate label applicator to stick each sticker onto bags and thus reduce the trifles of manual paging to improve labeling efficiency.
This is a feeder and dispenser system which feeds labels, pouch, cards, plastic bags, sheet paper or other flat objects at high speed on the conveyor. It automatically separate/split/divide stacks of pouches into single piece and deliver to the conveyor belt so as to facilitate ink-jet printer, laser coding machine to spray batch number, logo, anti-fake mark, pattern, QR, and bar code on packages. It also is good auxiliary equipment for label applicator to finish accuracy and high efficiency labeling working.
How does it work?
Using the most advanced paging technology, bunch or stack of products are placed in the feeding tray in this machine and get fed by a rotating friction wheel, the bottom bag will get fed first. The fed bag then moved forward by chains & rubber belt from one side to the other end side.
Professional Automatic Friction Feeder & Paging Machine for Carton, Bags, and Sheets – High-Speed, Precision Feeding Solution
Boost your packaging efficiency with our high-speed automatic friction feeder and paging conveyor belt system, designed for cartons, corrugated boxes, plastic bags, cardboard sheets, and pouches. Our industrial-grade friction feeding machine ensures high productivity, precision separation, and smooth paging for labeling, coding, printing (TTO, CIJ, barcode, batch numbering), and packaging automation. Made from stainless steel & food-grade materials, it supports FDA-certified, anti-static, and CE-compliant operations, ideal for food, pharmaceutical, and logistics industries.
Key Features:
✔ Adjustable width & height – Compatible with multi-size sheets, bags, and cartons
✔ Vacuum absorption & friction feeding – Ensures stable, jam-free sheet separation
✔ High-speed counting & numbering – Integrates with date coding, batch printing, and labeling machines
✔ OEM/ODM support – Customized feeding solutions for stacker, pouch, sachet, and document handling
✔ Durable conveyor belt – Built for 24/7 continuous operation in workshops and factories
Applications:
📌 Plastic bag paging & feeding for inkjet printers
📌 Carton & cardboard sheet separation for packaging lines
📌 Automatic document & card handling in logistics automation
📌 Batch numbering & barcode printing in beverage & food industries
As a leading friction feeder manufacturer and global machinery supplier, we provide high-capacity, reliable feeding equipment at competitive factory prices. Whether you need a standalone paging system or a fully automated conveyor belt with counter, our machines deliver exceptional performance and durability.
Upgrade your production line with our precision friction feeding technology – contact us today for a quote! 🚀
Reduce the trifles of manual feeding
Make full use of the advantages of accuracy and high-speed spray printing and sticker labeling.
Speed adjustable.
Can adjust the suitable speed for different products and material.
Reasonable structural design
Can be easier to replace damageable parts.
Counting function optional
Can be equipped with the function of intelligent counting and automatic stop to facilitate production management.
Easy to integrate into print units and labeler, multipurpose machine.
Can be combined with laser coder, cij printer, tto printer, labeling machine, vision system etc.
Come in a range of shapes and designs.
Professional R&D team with 20+ years industry experience, you can find any feeding solution from us.
