SPECIFICATIONS

Applicable Industries: Building Material Shops

Brand Name: BMAD

Cartridge Volume: 750ml

Color & Page: Single Color

Connectivity: USB, Wi-Fi

Control Type: Push Button

High-concerned chemical: none

Max lines of print: 5 lines

Max number of dots: 32dots

Nozzle Size: 60um

Operating Voltage: Ac 220-240V

Origin: Mainland China

Plate Type: CIJ Printer

Power Mode: Power Supply

Print Media: Paper (Plain), Banner Paper

Print Resolution: 600 dpi

Print Speed: 15 ppm

Print head: XP600

Print speed: 500m/min

Printer Function Type: Print

Printer scanner type: Photo

Printing Material: Flex

Resolution: 600 dpi

Special Feature: Touchscreen, Refillable Ink Tank

Touchscreen size: 10.4"

Type: Glue Binding Machine,Inkjet Printer

Voltage: 220 V

automatic grade: Automatic

brand name: Aricode

condition: New

dimensions(l*w*h): 1300*1600*600mm(51.18*62.99*23.62in)

ink type: Solvent Ink

place of origin: Cambridgeshire, United Kingdom

usage: Paper Printer, Label Printer, Card Printer, Tube Printer

warranty: 1 Year

weight: 250

Why Choose Us

  OUR DISTRIBUTOR

Aricode is a supplier of coding and marking equipment, specialising in the research, development manufacture and supply of continuous inkjet printers and consumables. Our products can be used in a wide range of industrial applications including food, beverage, pharmaceuticals, automotive, electronics, cableand wire, building materials and chemicals; be it product identification, sale by dates, lot codes, traceability or anti-counterfeiting.
Aricode's mission is to produce robust and reliable coding and marking equipment and outstanding value for money.

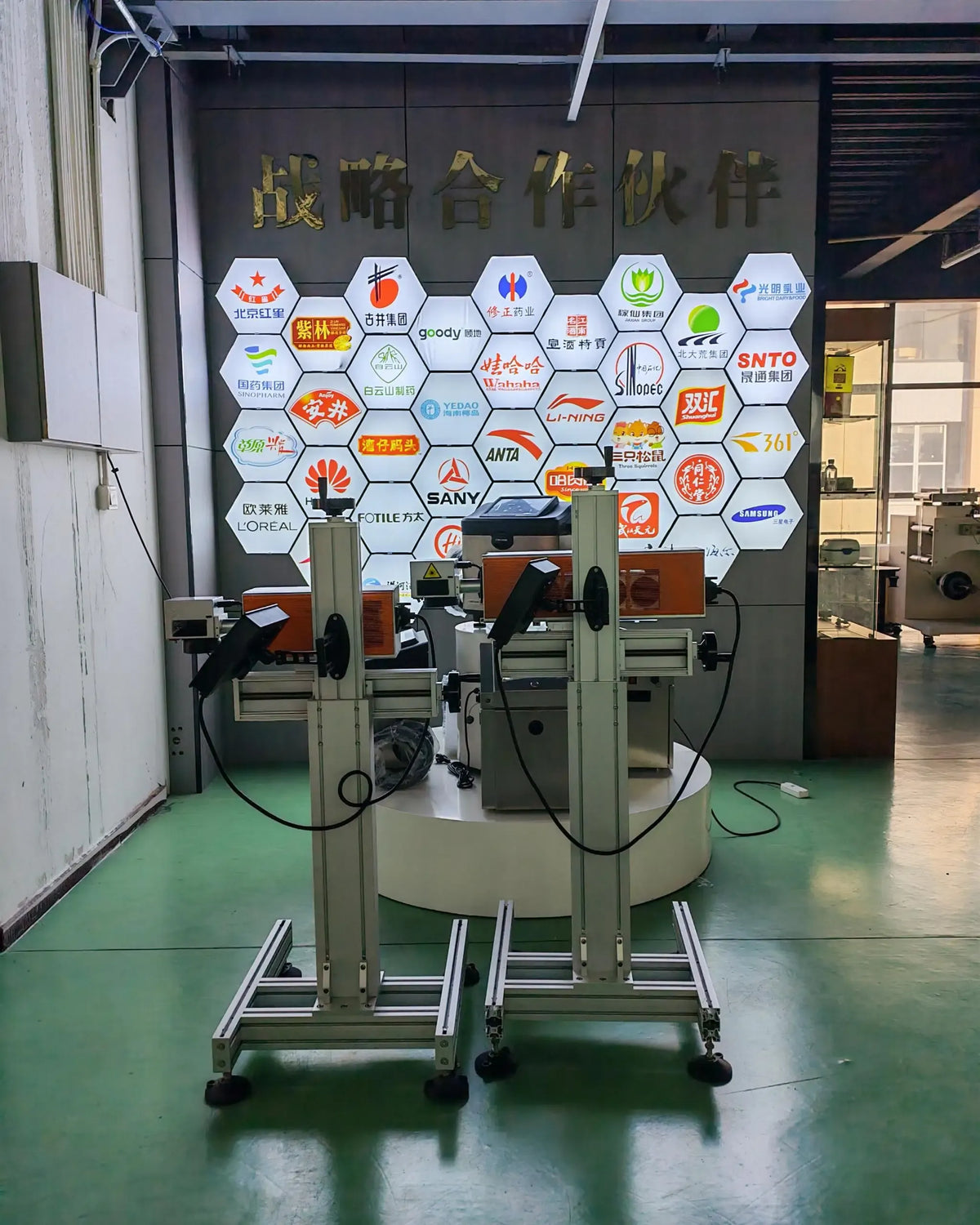

OUR EXHIBITION

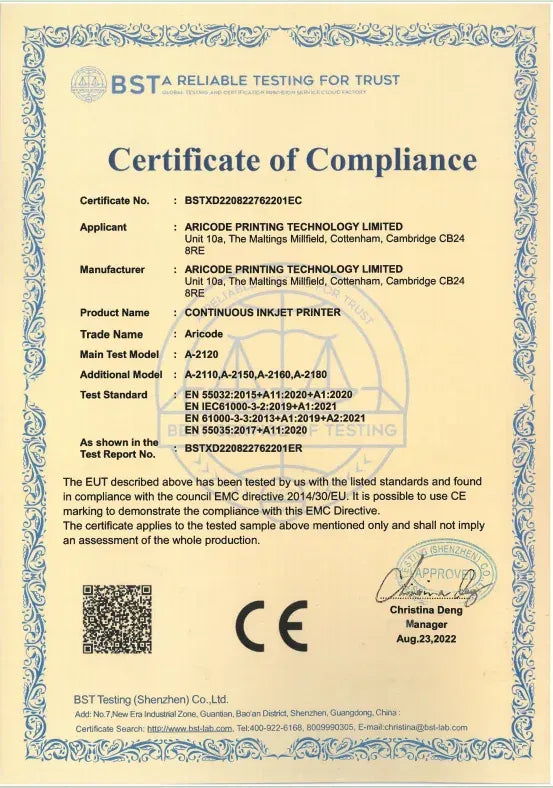

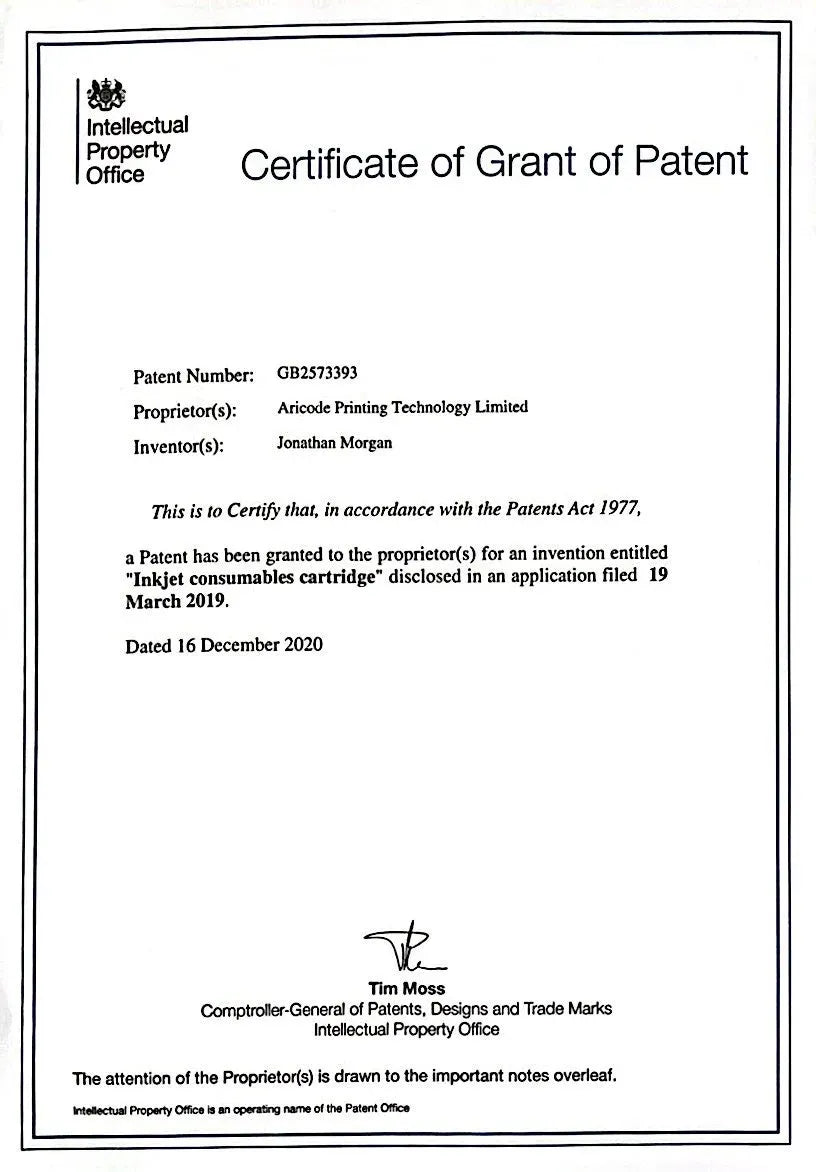

OUR CERTIFICATIONS

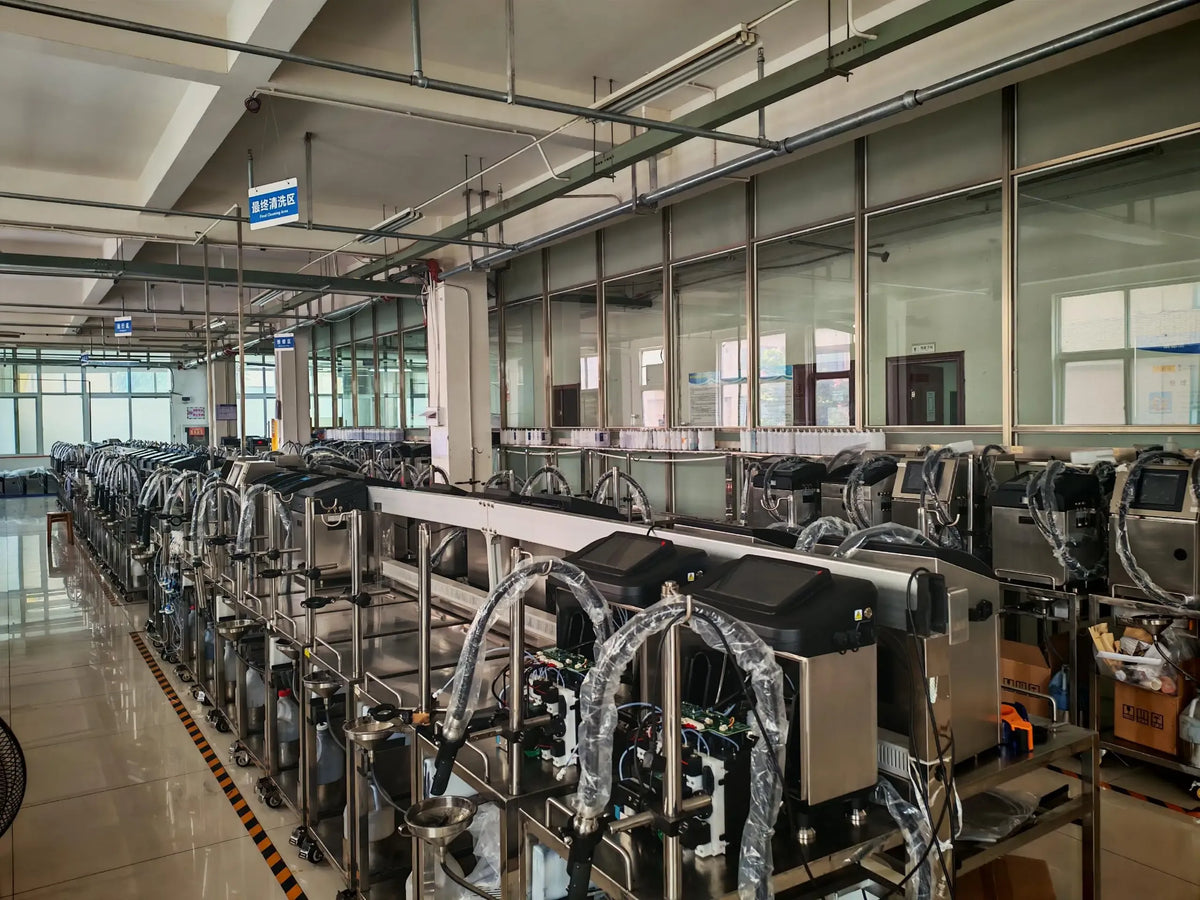

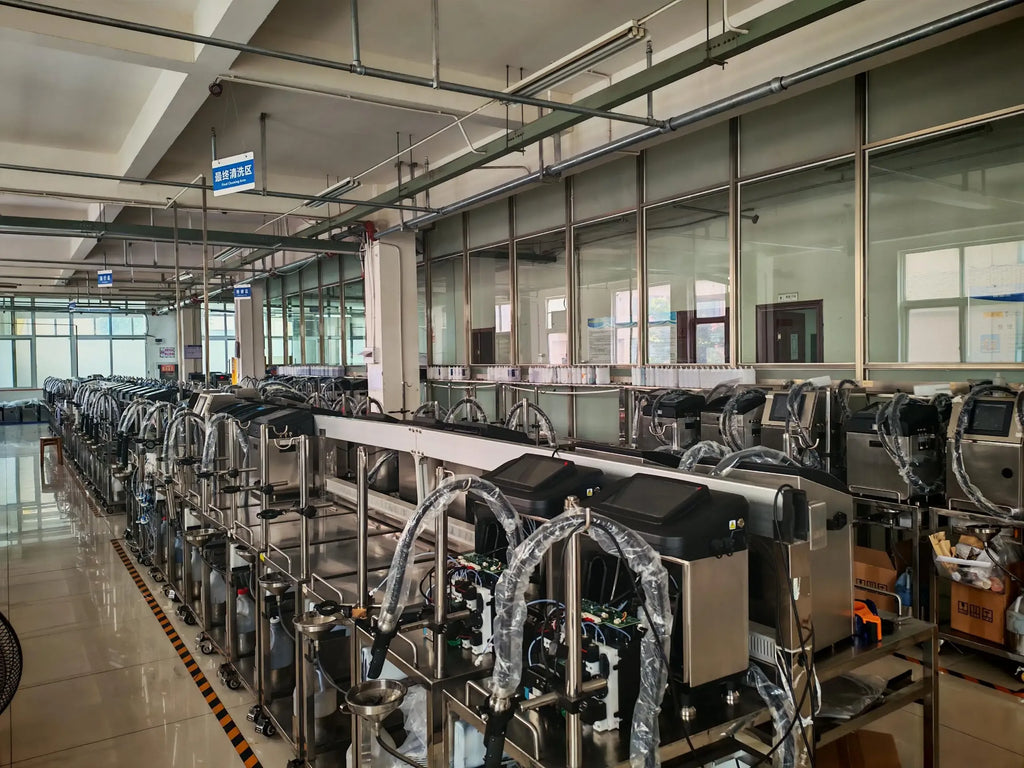

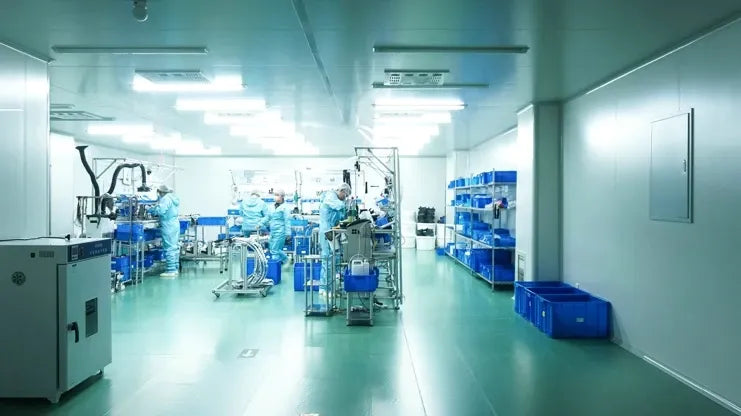

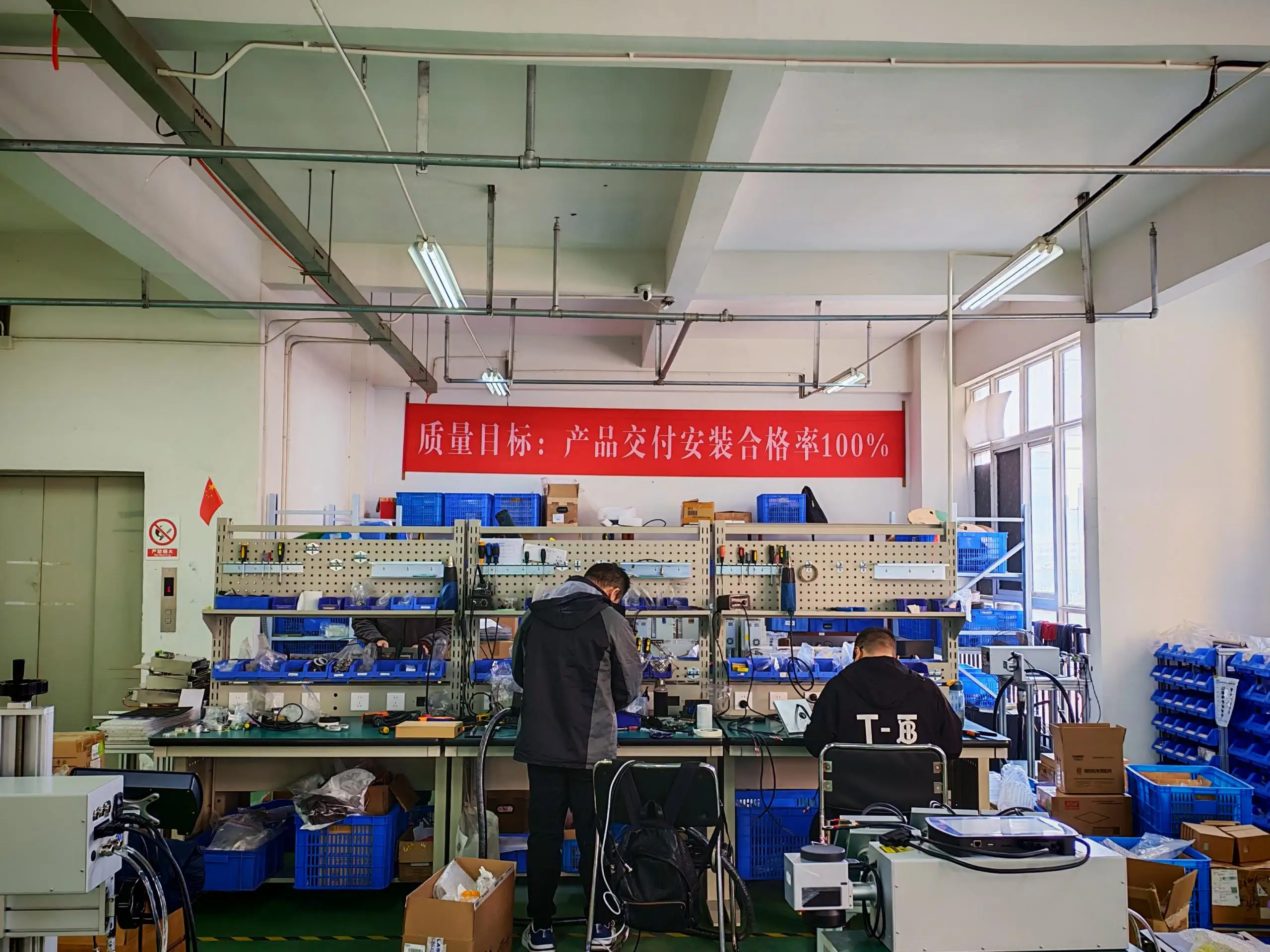

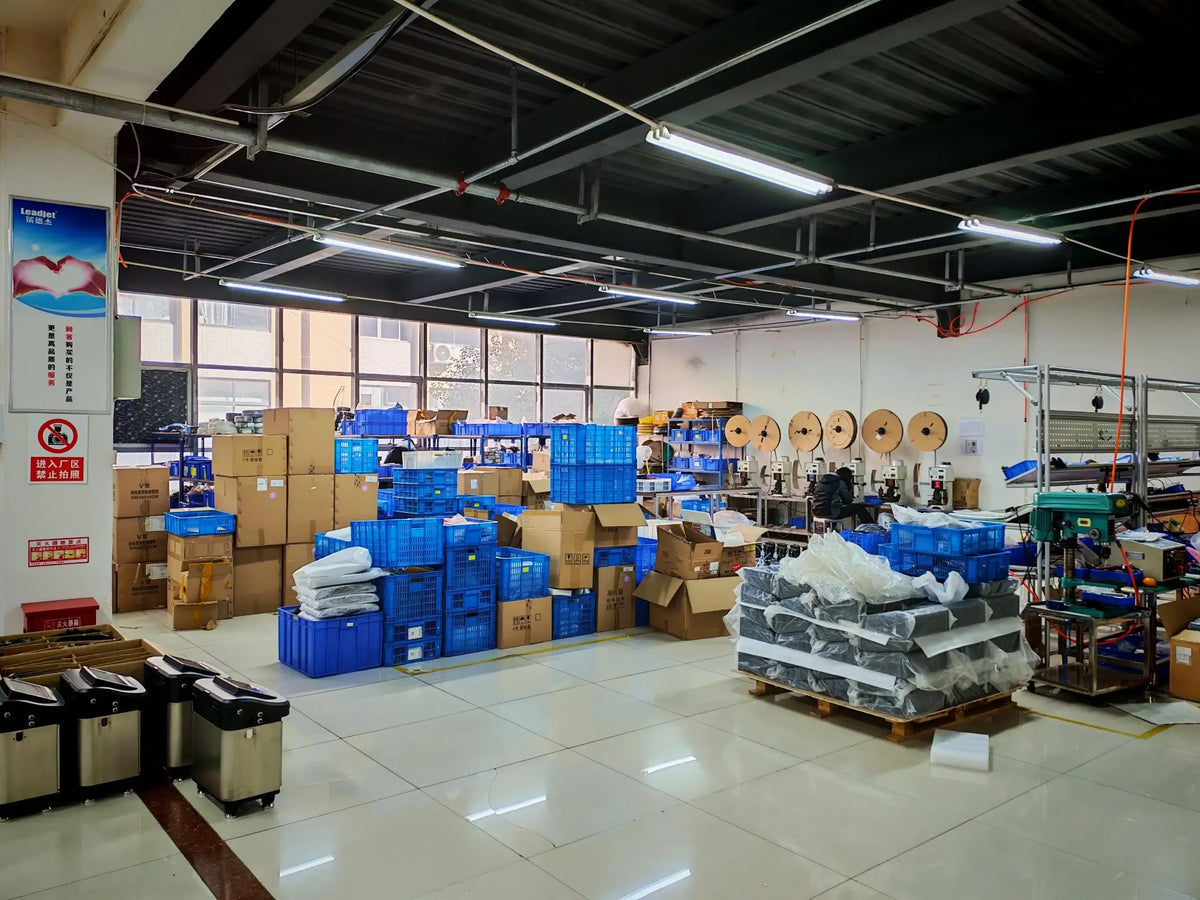

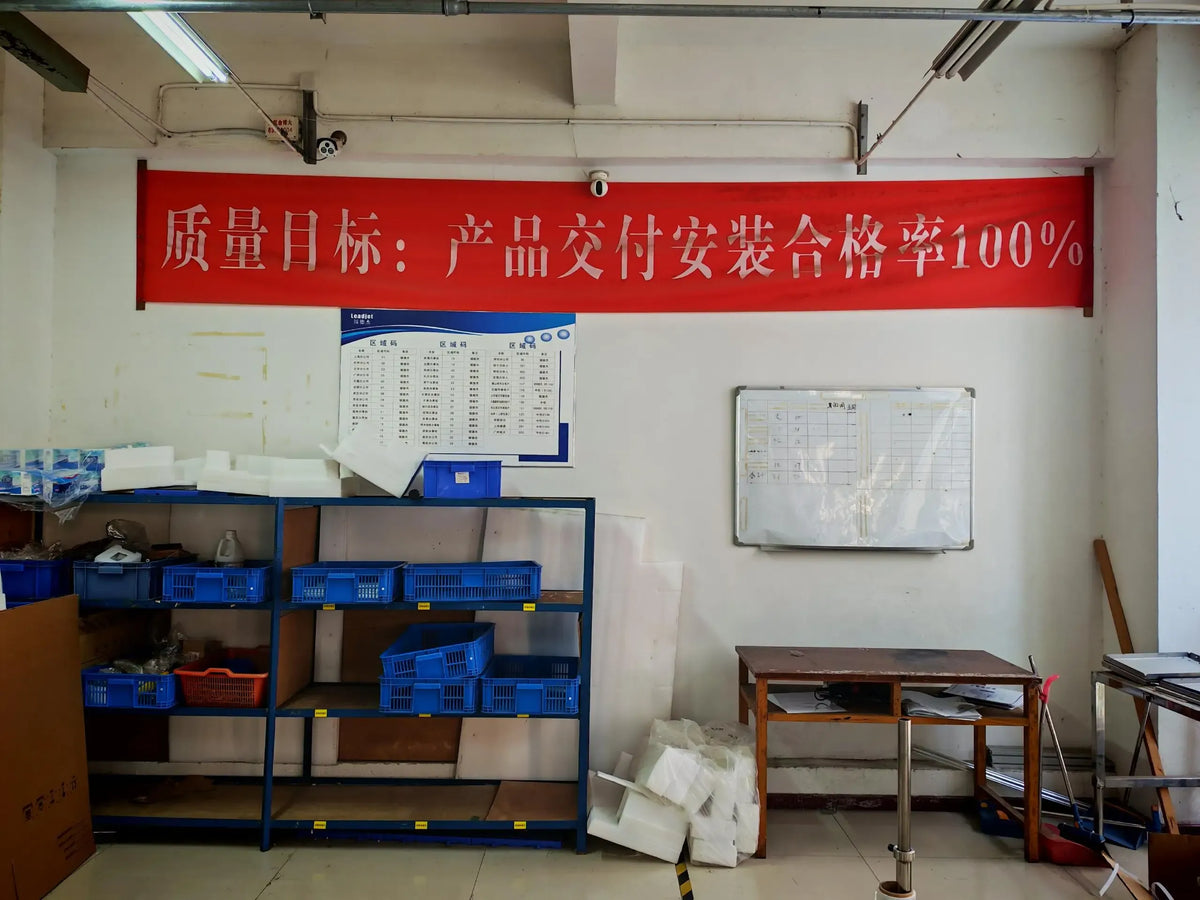

OUR FACTORY

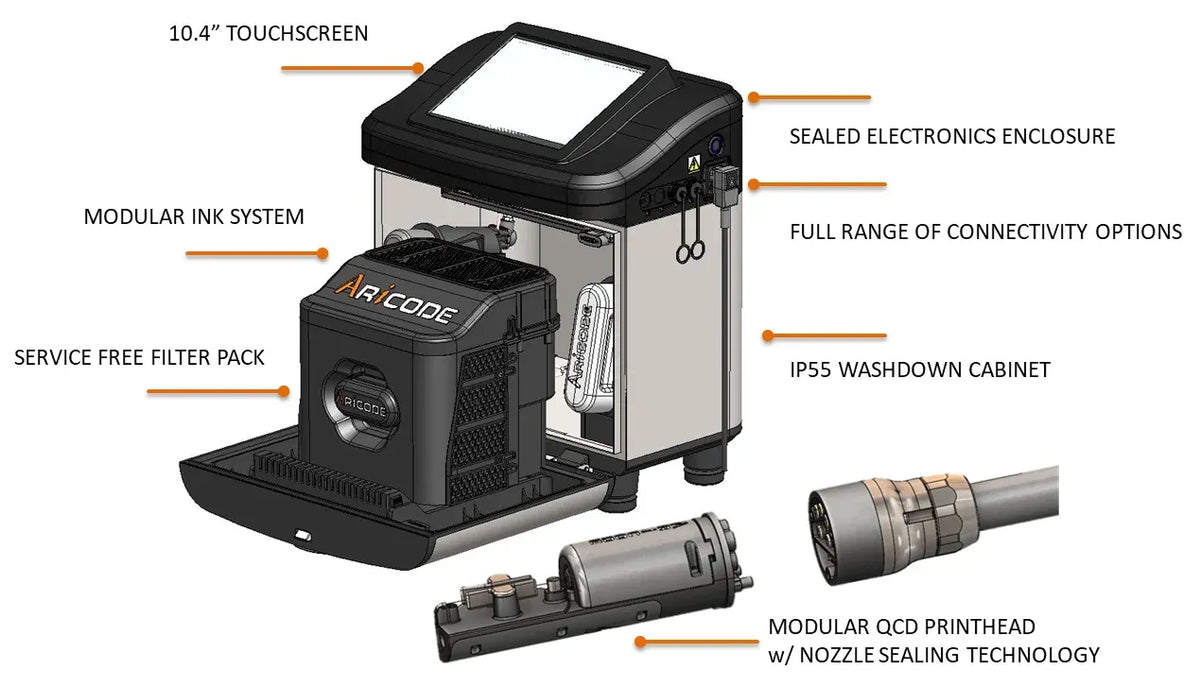

Details Images

• Unique patented plug and play printhead

• One button start and stop performance with sealed nozzle technology

• Service free modular ink system repairable to component level

• Patented pump control technology for economic operation

• Patented ink and make-up cartridges

• Unix based intuitive graphical interface via large touchscreen

• Full range of communications functions as standard (4G, wif, LAN, USB)

• All metal cabinet with sealed electronics rated to IP55

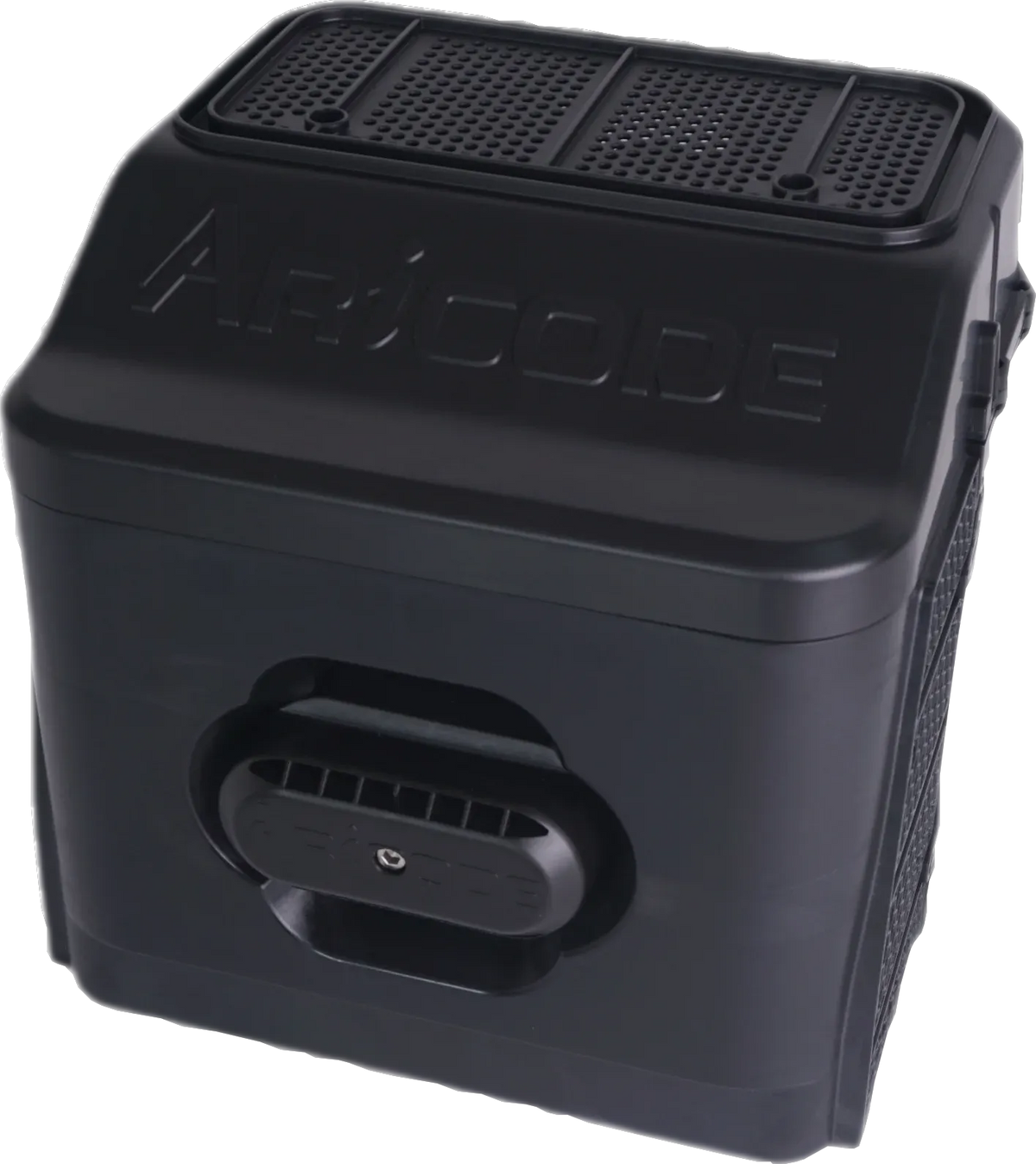

Filter

A filter pack that is so easy to change it makes routine maintenance genuinely routine.

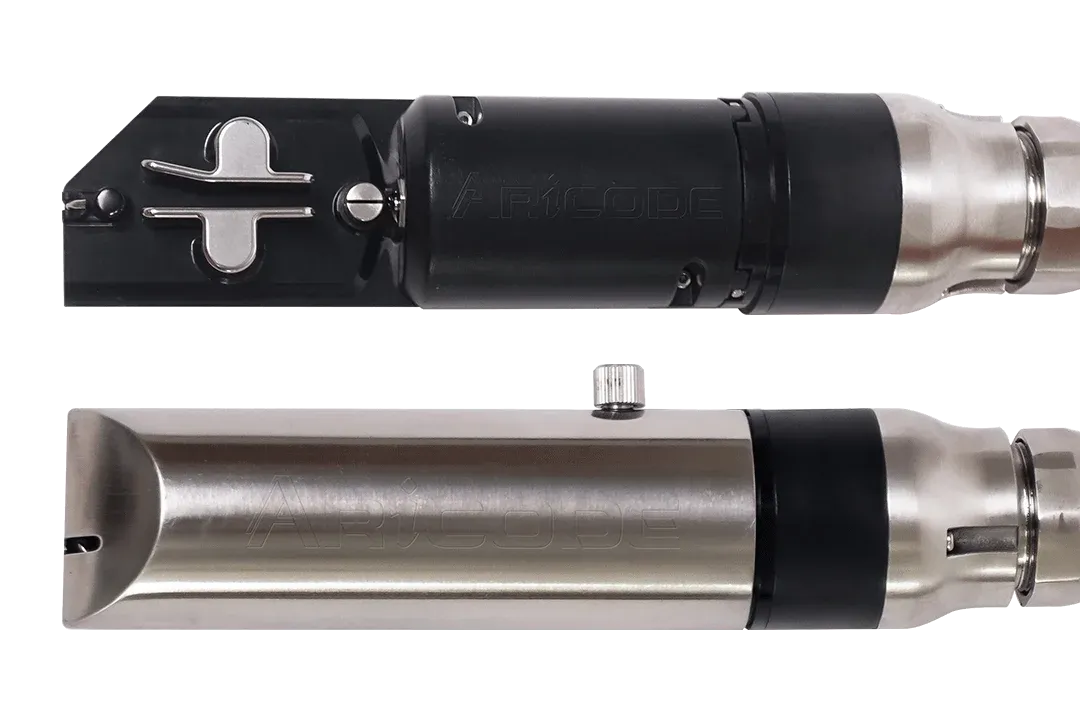

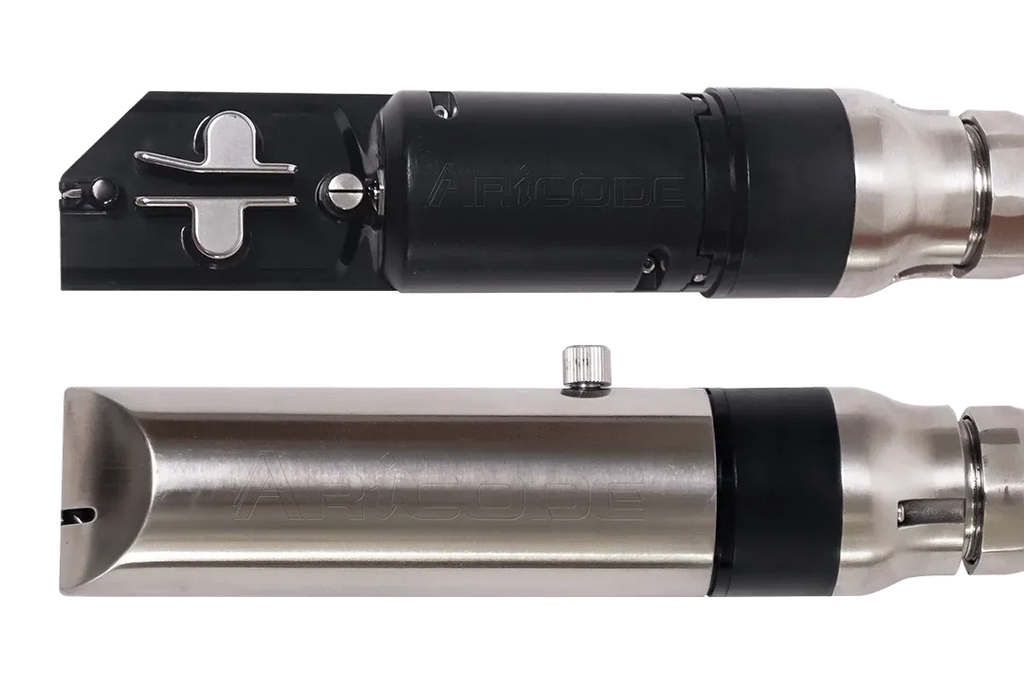

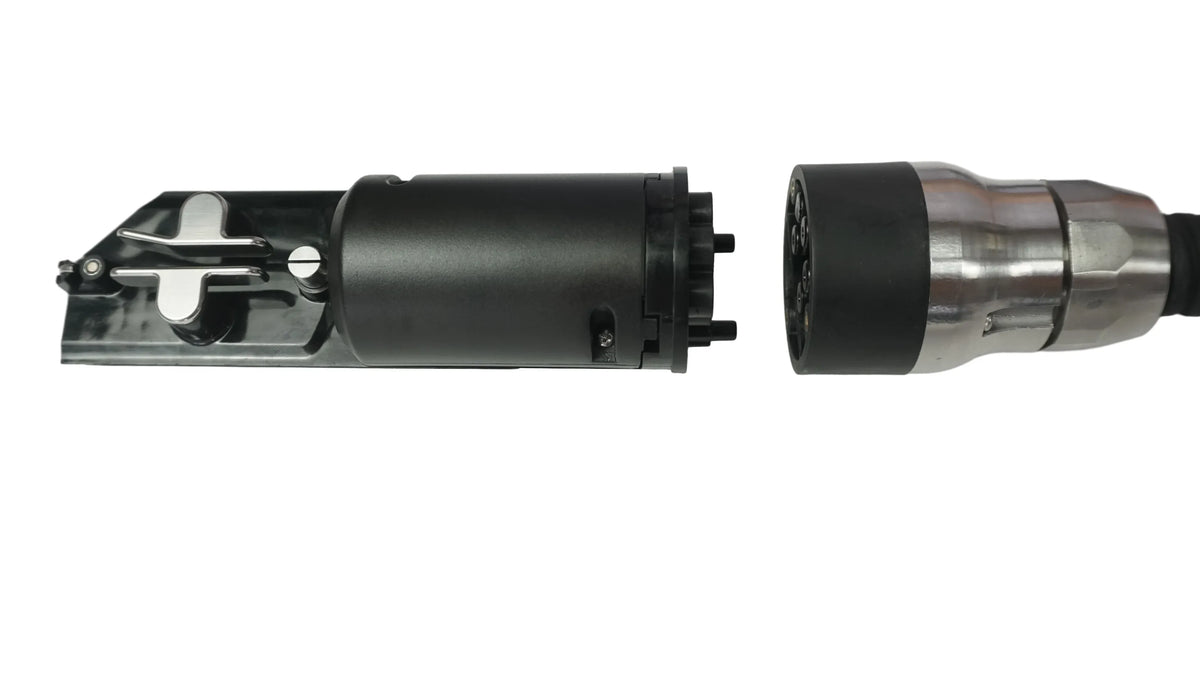

Plug and Play Printhead Module

A patented plug and play printhead module, that delivers consistent highquality codes throughout the day, due to its temperature-controlled drop generator bottles in all shapes.

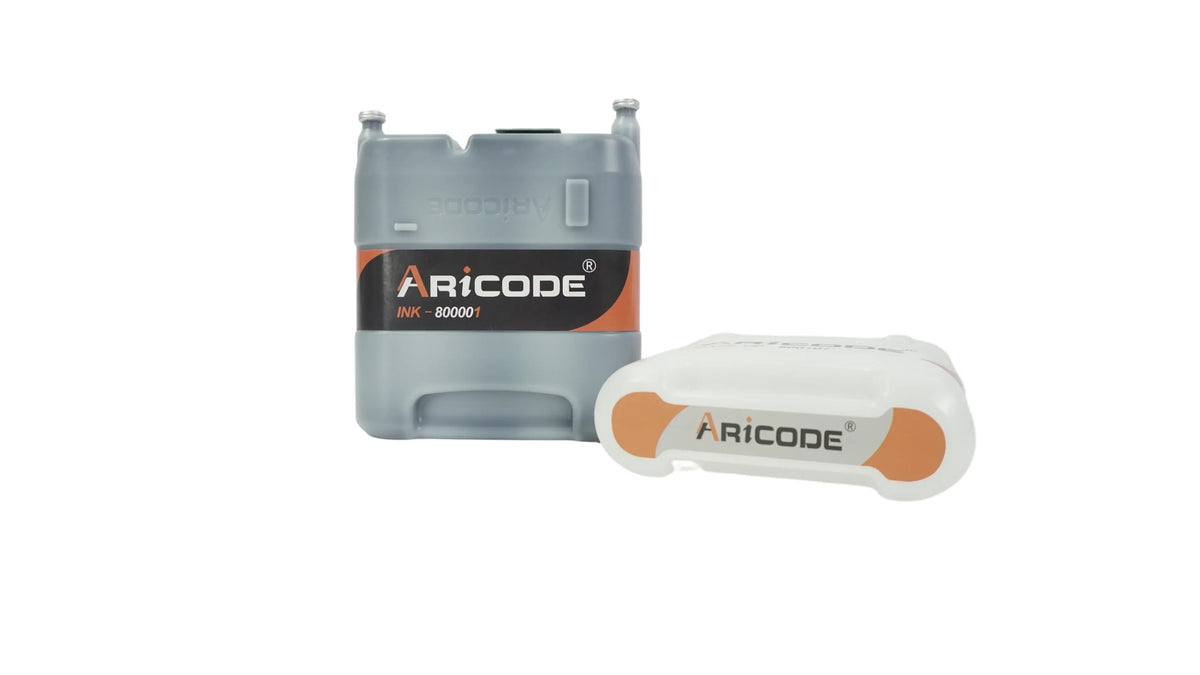

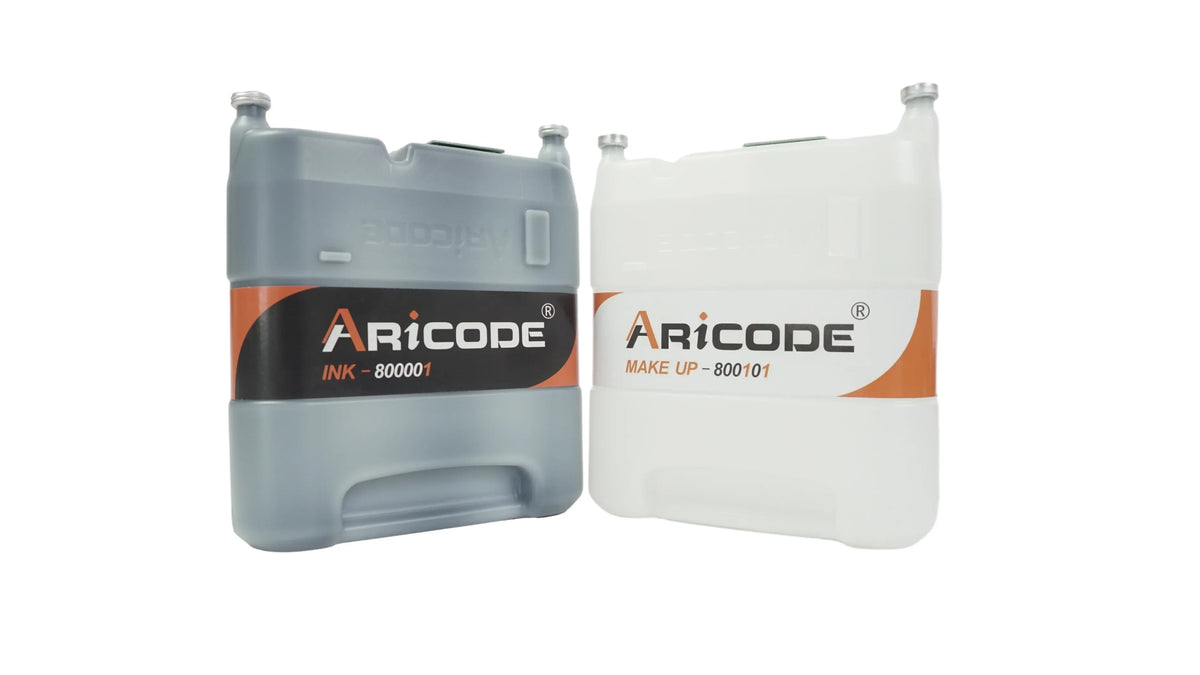

Ink Cartridges

Even our ink cartridges have a patented design to make changing ink or solvent clean and easy.

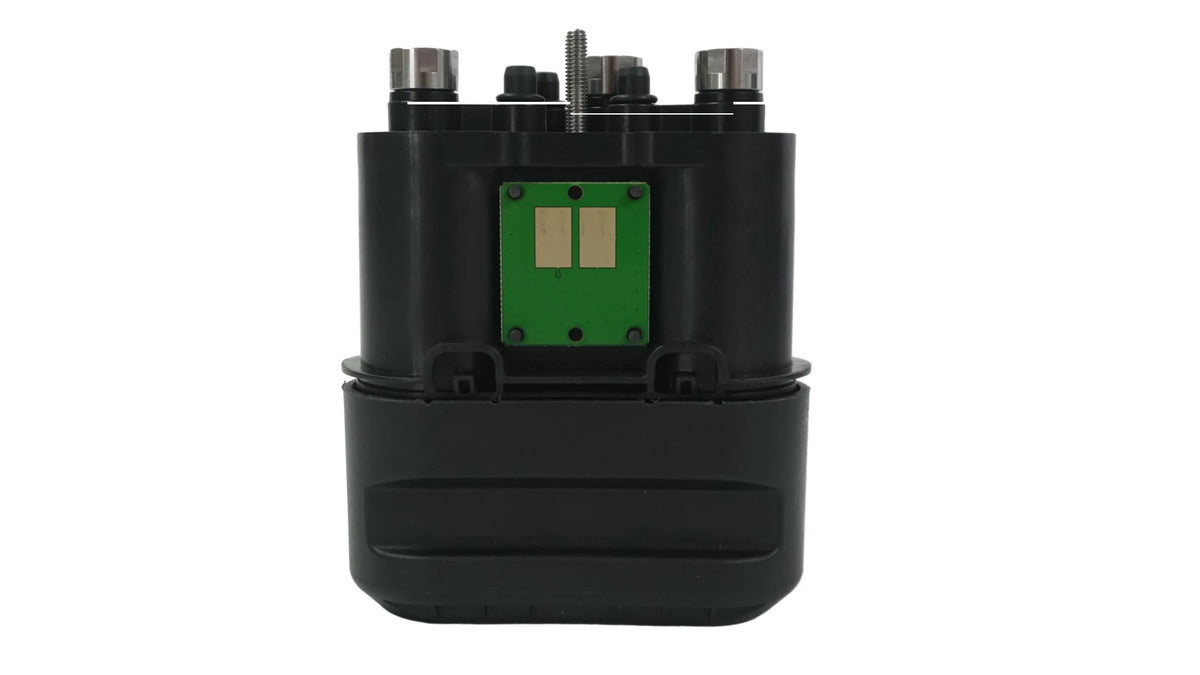

Ink System Module

A patented ink system module that maintains ink composition, delivers ink via a novel pressure damper whilst reducing solvent consumption using patented smart pump control.

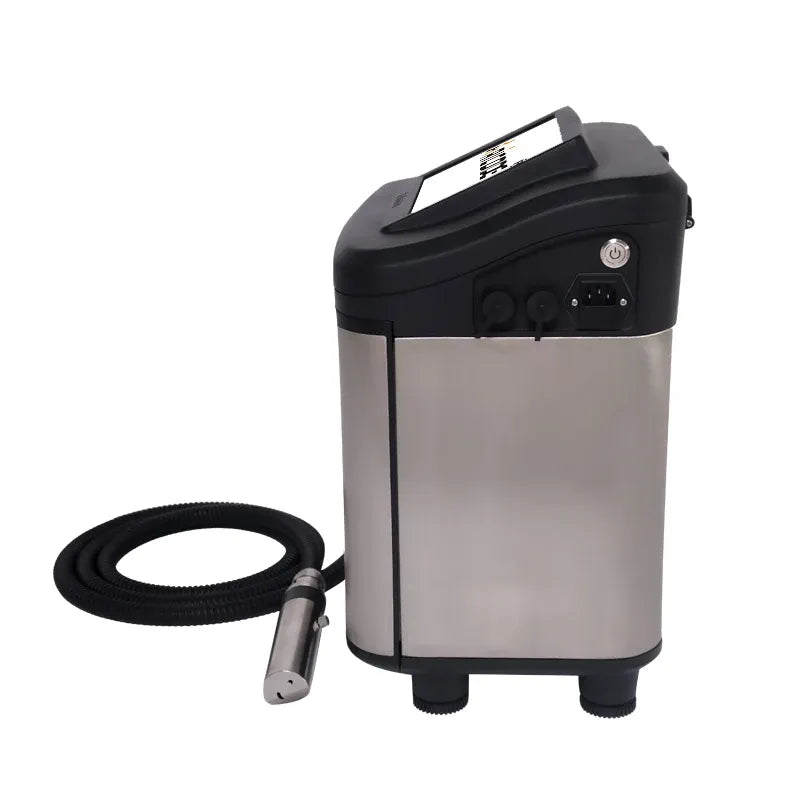

Products Description

Print speed	400m/min(1L 5dots)
Print lines	5 lines (Standard) 8 lines (Optional)
Print dots	34 dots (Standard) 48 dots (Optional)
Max Print height	20mm
High speed availability	Standard
Language	English,Chinese,Russian,German,Spanish,French,Italian,Turkish,Portuguese, Vietnamese,Bengali,Hindi,Korean,Arabic,Persian
Text	Full unicode
Graphics	BMP:Yes
1D Barcode	EAN13:Yes Code 39:Yes Code 128:Yes
2D Barcode	Datamatrix:Yes QR Code:Yes
Touchscreen size	10.4"
Single button start stop	Yes
Min Operating TemperatureMax Operating Temperature	5°C 45°C
Min Humidity Max Humidity	10%RH  90%RH
IP rating electronics	IP65
IP rating cabinet	IP55
Nozzle Sealing Technology	Yes
Nozzle Size	60um
Maximum resolution	100dpi
Conduit length	3m
Cabinet Material	304 Stainless Steel
Size(W*H*D)	400*440*280MM
Weight	21.3kg
Power consumption idle	35Watt
Power consumption printing	40Watt
Peak Power	80
Product detect port	1
Shaft encoder port	1
USB port	1
Ink Cartridge Volume	750ml
Make-up Cartridge Volume	750ml
Webserver	NO440
Cloud Services	NO
Alarm beacon	Option
Ethernet port	Yes
RS232 port	Yes
Printhead(H*W*D)	178*42*42MM
Electrical requirements	AC 100-220V, 50/60Hz, 80W
Product Weight	21.3kg

Product Advantages

1. Clean, modern, smart printhead
- Its performance is as qoodas its looks.
- High gloss finish means easy cleaning.
- The modular design allows use of our precision print head alignment eguipment during manufacturing.
2. Indeal drop formation
- Combine classical physics with modern analytical engineering to deliver ideal droplets.
- Designed by the same man who designed Domino's iPulse drop generator.
3. Excellent print quality
- Computer optimised look-up tables for speed and accuracy.
- Print formats have been optimised for both Chinese and Western characters.
4. Reliable One Button Start and Stop
- Makes use of nozzle sealing technology to leave the nozzle fully cleaned after every stop. Its obvious a seale d nozzle is better than an open one where ink can dry.
5. Service free modular ink system
- Change all the filters by removing the pack and replacing it without the need for a service engineer.
- Filters are a service item, pumps and valves are not, these are cheaper to repair than replace the whole unit.
6. Intuitive User Interface
- Large touchscreen with multitouch user interface, al the functions expected from a smartphone on the screen.
7. Robust cabinet with high IP rating
- Electronics are completely sealed protecting them from dust and water.
- Cabinet is designed to allow washdown.

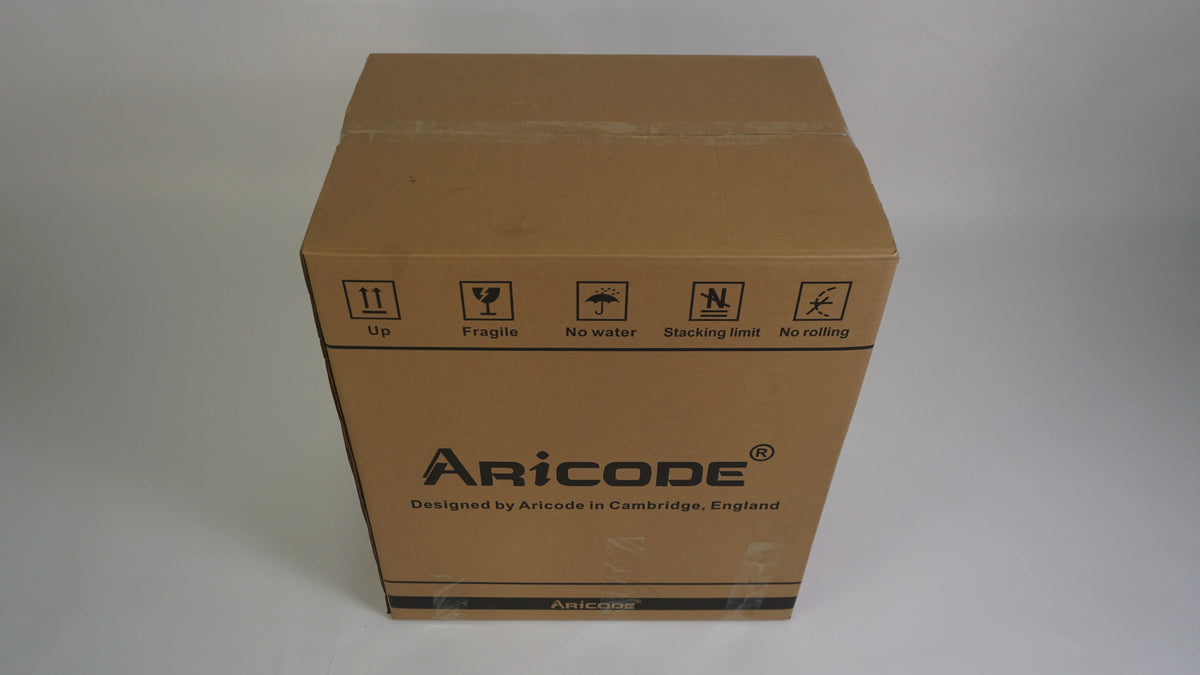

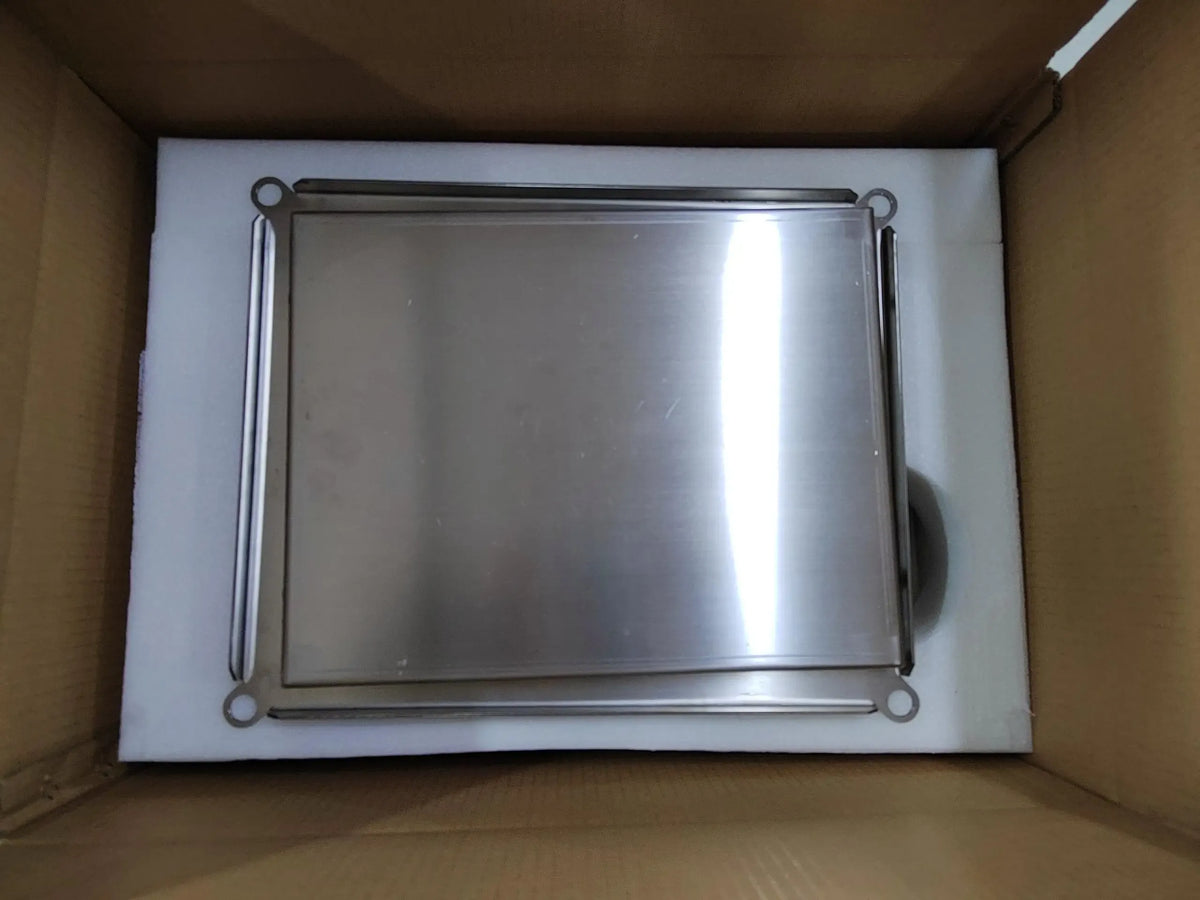

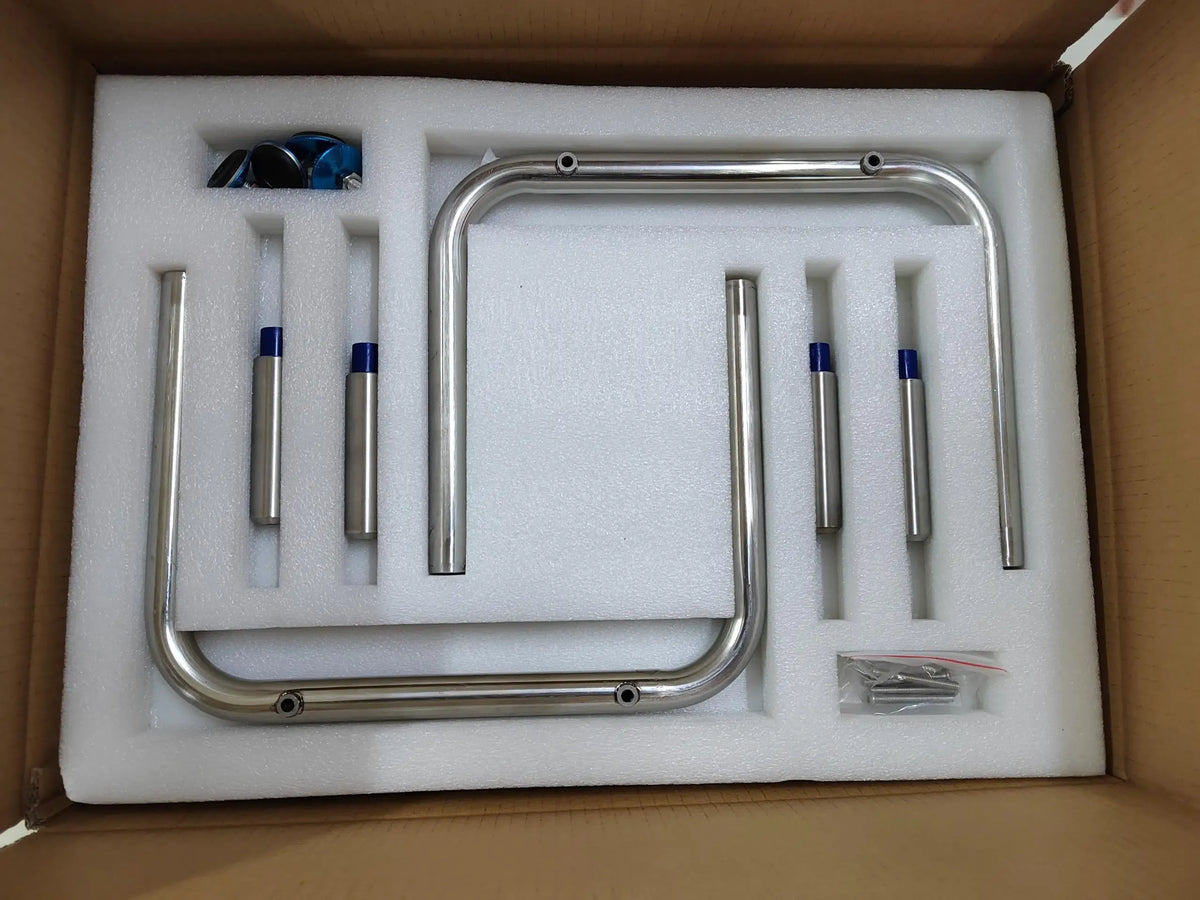

Product packaging
