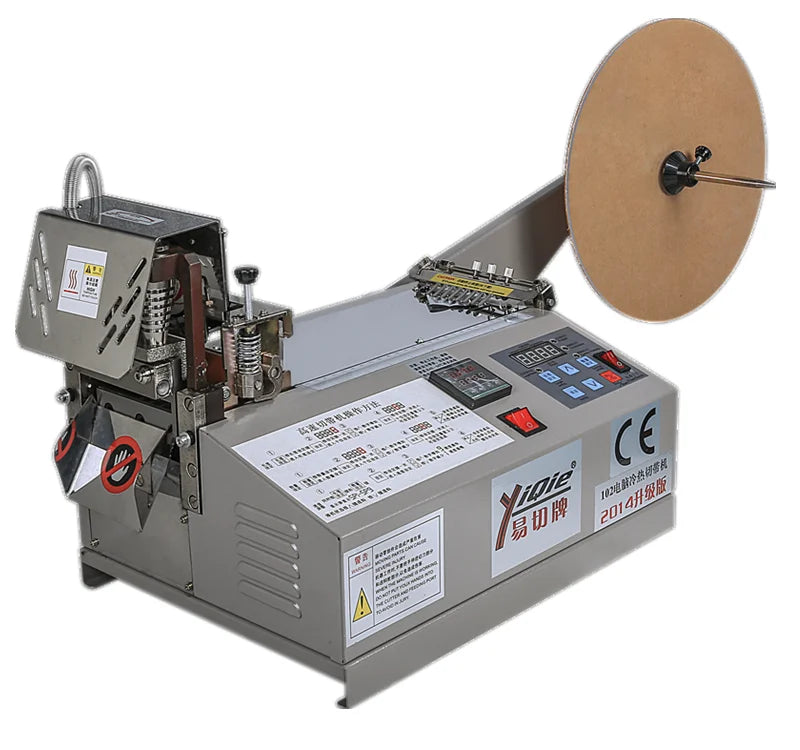

The Crown WL-102A Automatic Hot Knife Ribbon and Webbing Cutting Machine (Vendor: Tidesmit) is an electric, computer-controlled industrial cutting solution manufactured in Jiangsu, China. Designed for high-speed, high-precision processing, this automatic machine utilizes a high-temperature hot knife system featuring an imported high-quality steel blade to deliver flat, smooth, burr-free sealed edges on ribbons, tapes, and straps.

Key Features & Capabilities

• High Speed: Delivers 100 to 120 pieces per minute (based on a 50mm cutting length).
• Stepper Motor Precision: Monitored operations ensure high dimensional accuracy for every cut.
• Hot Knife Cutting: High-temperature heating seals edges on colored ribbons and light textile tapes smoothly without burrs.
• Smart Automation: Simply set the required cut length and quantity for fully automatic operation.
• Safety & Alarms: Features automatic pause and an alarm that triggers once material runs out.
• Memory & Storage: Automatically stores cut-off length, quantity, and speed before shutdown, with support for storing 9 files to reduce setup time.
• Bilingual Controls: Key control area includes clear Chinese and English instructions for straightforward operation.

Technical Specifications

• Brand: Crown
• Model: WL-102A
• Driven Type: Electric
• Automatic Grade: Automatic
• Power: 0.5 KW (Watt)
• Voltage: 110V / 220V, 50/60 Hz
• Cutting Property: Hot cut
• Cutting Width: Max. 100mm
• Cutting Length: 1-99999mm (also specified as 1-9999mm)
• Cutting Speed: 100-120 p/min
• Machine Dimensions (L x W x H): 450 x 350 x 350 mm
• Packing Size: 450 x 350 x 350 mm
• Net Weight: 26 KG
• Place of Origin: Jiangsu, China
• Warranty: One Year

Applications & Materials

The Crown WL-102A is engineered for diverse industrial sectors including apparel, commodities, machinery and hardware, textiles, and packaging. It accommodates a wide variety of materials and shapes:

• Compatible Materials: Zipper, nylon, webbing, trademark, leather, ribbon, adhesive tape, nylon belt, fabric tape, elastic, leather strap, woven belt, nylon buckles, lining, fabric tape without heat seal, plastic zipper, metal zipper, plastic lace, PVC tube, aluminum platinum, and PS material.
• Cutting Shapes: Rectangle, arc, parallelogram, and swallowtail.

Packaging & Maintenance

• Packaging: Consolidated export-standard packaging utilizing paper, wood, and cartons.
• Maintenance: Minimal maintenance required; the cutting blade can be regraded or replaced if it becomes blunt or worn.
