€280,82 €421,23
Color
Ships From

SPECIFICATIONS

Brand Name: Scan Hero

Brand name: Honeywell

Certificate: CE,FCC,RoHS

Certification: CE,FCC,RoHS,UL,KC

Choice: yes

Color: Black/ White

Colour Depth: 32 Bit

Decode Capability: Reads standard 1D, PDF and 2D symbologies

Dimensions (L x W x H): 85 mm x 88mm x 139 mm

Drop: Designed to withstand 1 m drop

High-concerned chemical: none

Input Voltage: 5 VDC ±0.5 V

Interface Type: USB

Model Number: HF680

Novelty: New

Operating Power: 2W (400mA @5V)(typical)

Operating Temperature: -10°C to 40°C (14°F to 104°F)

Optical Resolution: 1280 x 800 pixel

Origin: Mainland China

Pitch, Skew: +/-60°, +/-70°

Print Contrast: 20% minimum reflectance difference

Product Type: Bar Code Scanner

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 100 scans/second

Scan angle: Horizontal: 47°; Vertical: 30°

Scanning Light Source: Natural Light + LED

Signal Connection Type: none

Standby Power: 0.85 W (170 mA @ 5V)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Time to market: Mar-13

Type: Barcode Scanner

Weight: 278 +/-10g

semi_Choice: yes


HoneywellHF680 2D Hand-free Area-Imaging USB Scannerqrcode bar code qr code 2d barcode scanner

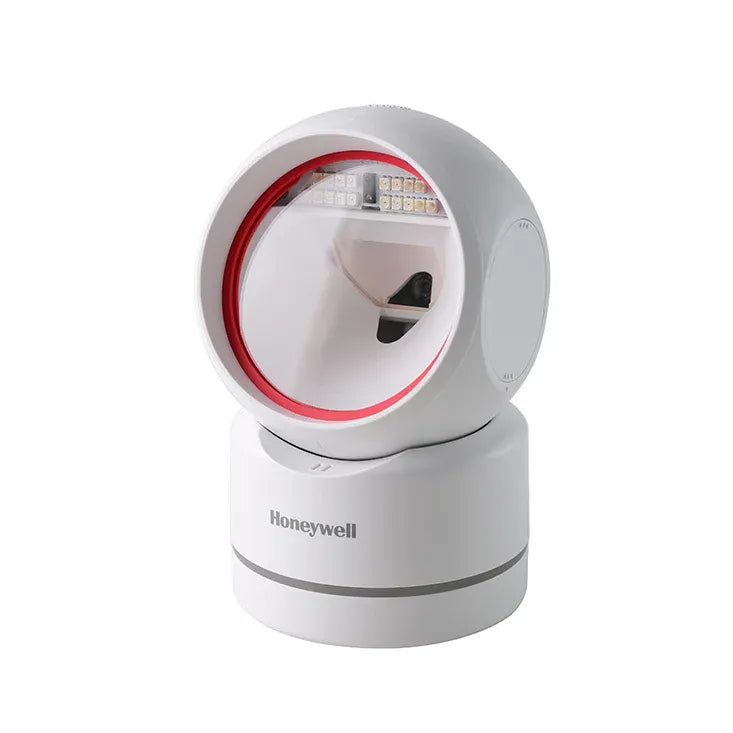

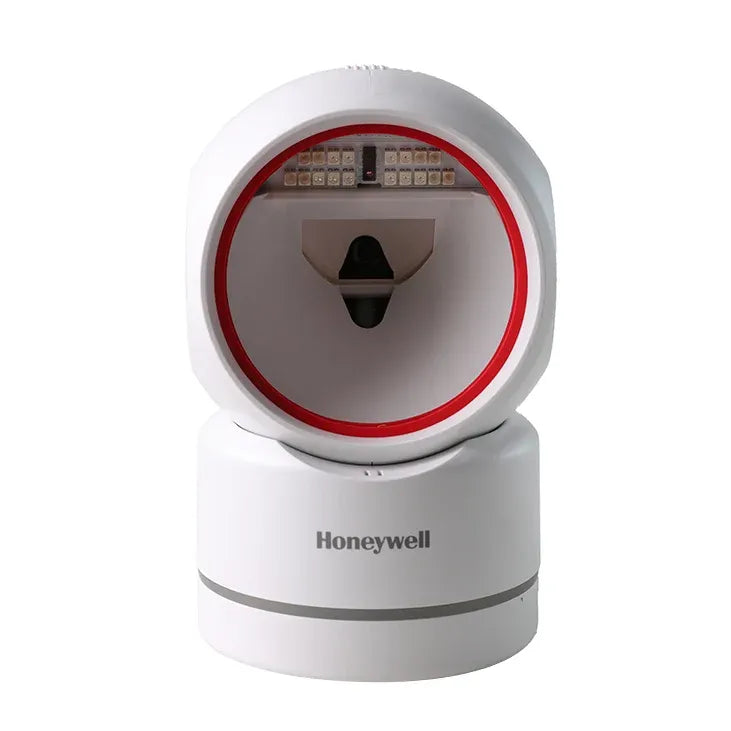

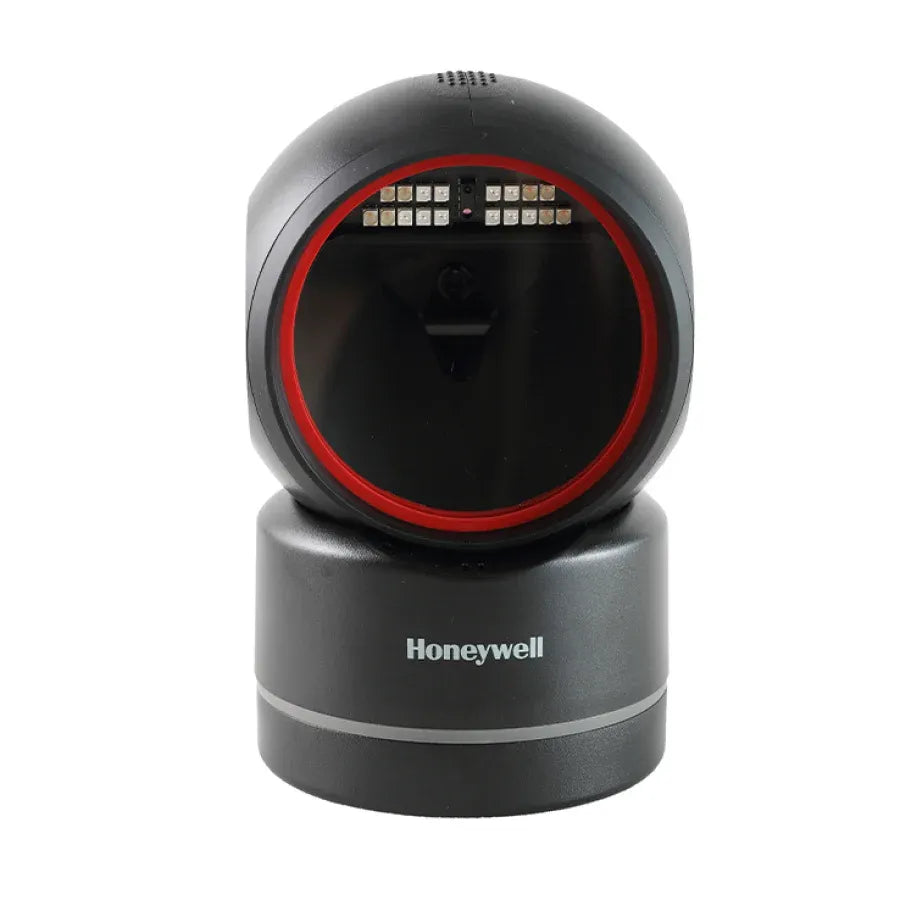

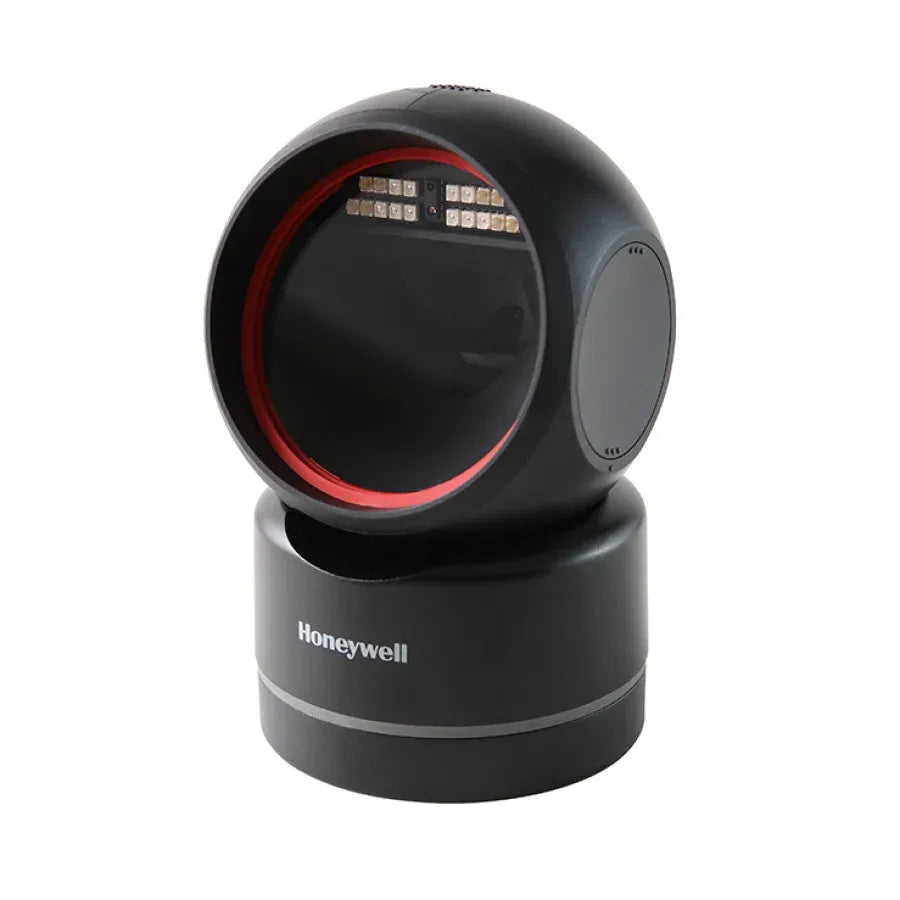

Honeywell HF680 is a 2D area-imaging scanner that can easily read various standards of 1D, PDF and 2D Symbologie.

With a revolutionary design, this rugged and durable product enhances productivity and performance for the customer.


Physical

Dimensions (L x W x H): 85 mm x 88mm x 139 mm

Weight: 278 +/-10g


Electrical

Input voltage: 5 VDC ±0.5V

Working: 2.0 W (400 mA @ 5V)

Standby: 0.85 W (170 mA @ 5V)

Host interface: USB, RS-232


Environmental

Operating temperature: -10°C to 40°C (14°F to 104°F)

Storage temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 0% to 95%RH, no condensation

Drop: Designed to withstand 1 m drops

Illuminance: 0-100,000 Lux

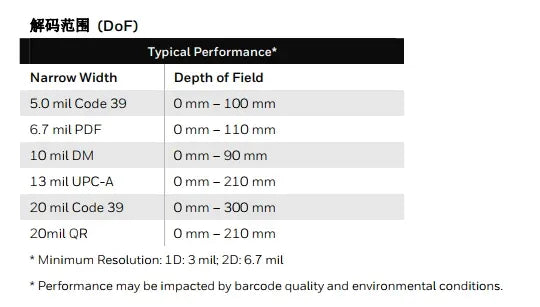

Scanning Performance

DPI: 1280 x 800 pixel

Motion tolerance: Up to 2.5 m/s for 13 mil UPC at optimal focus

Scan angle: Horizontal: 47°; Vertical: 30°

Print Contrast: 20% minimum reflectance difference

Pitch, Skew: +/-60°, +/-70°

Decode Capability: Reads standard 1D, PDF, 2D Symbologie

Note: Decode capabilities dependent on kit configuration.


User-friendly LED lighting design:

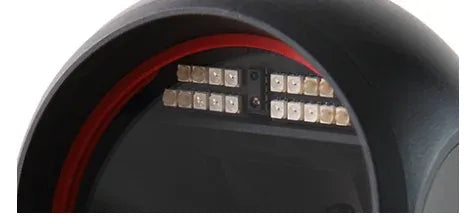

• The distributive illumination of 18 recessed LED lights in the scan window prevents eye strain.

When the product is not in use, lighting will automatically turn off.

Lighting stays on when the product is in intermittent use. This ensures the best user experience.

Great decoding performance:

• The IR design can deliver accurate and efficient sensing and decoding, effectively preventing repetitive scanning.
• Instantly, as the barcode flashes through the scan window, HF680 can capture the image and start decoding, delivering a very smooth decoding experience to the user.

Support for decoding in various extreme conditions:

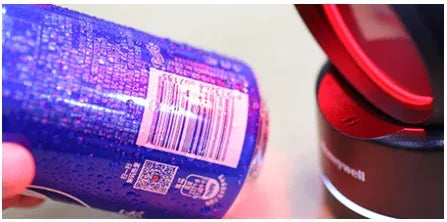

• HF680 can read 3-mil barcodes, barcodes covered with water droplets, bent barcodes, damaged barcodes that contain complete information, lengthy barcodes, highly-dense QR codes, and inverse barcodes.

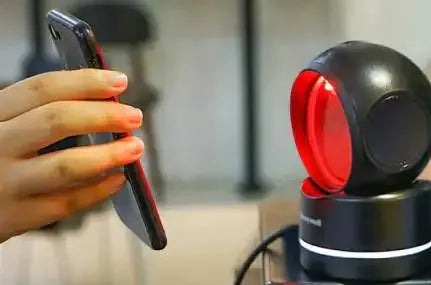

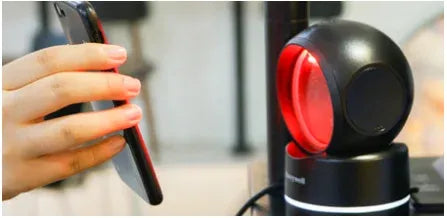

• It can read barcodes on LCD and OLED screens with minimum brightness. When the mainstream smartphone screen’s brightness is 10% or more, HF680 can quickly read the barcodes.
• It can scan barcodes on paper with a print contrast of at least 20%. Even when the printing quality is too poor, HF680 can still help the user decode at a desirable speed.

Lengthy useful life:

• All key components, which are theoretically designed, pass strict testing. In a simulated user environment, the product lasts more than 40,000 hours (or more than three years).
