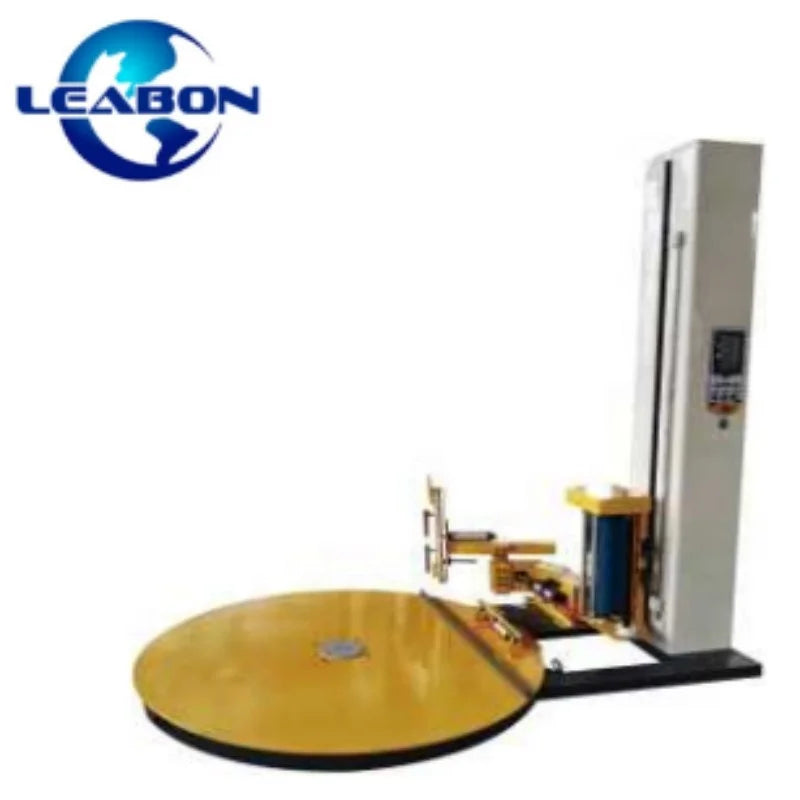

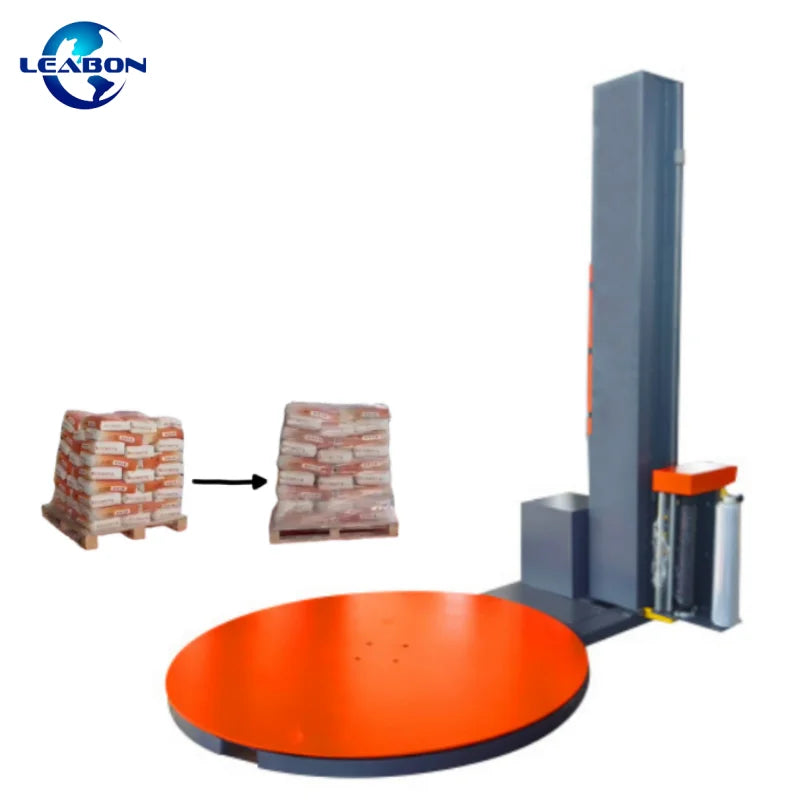

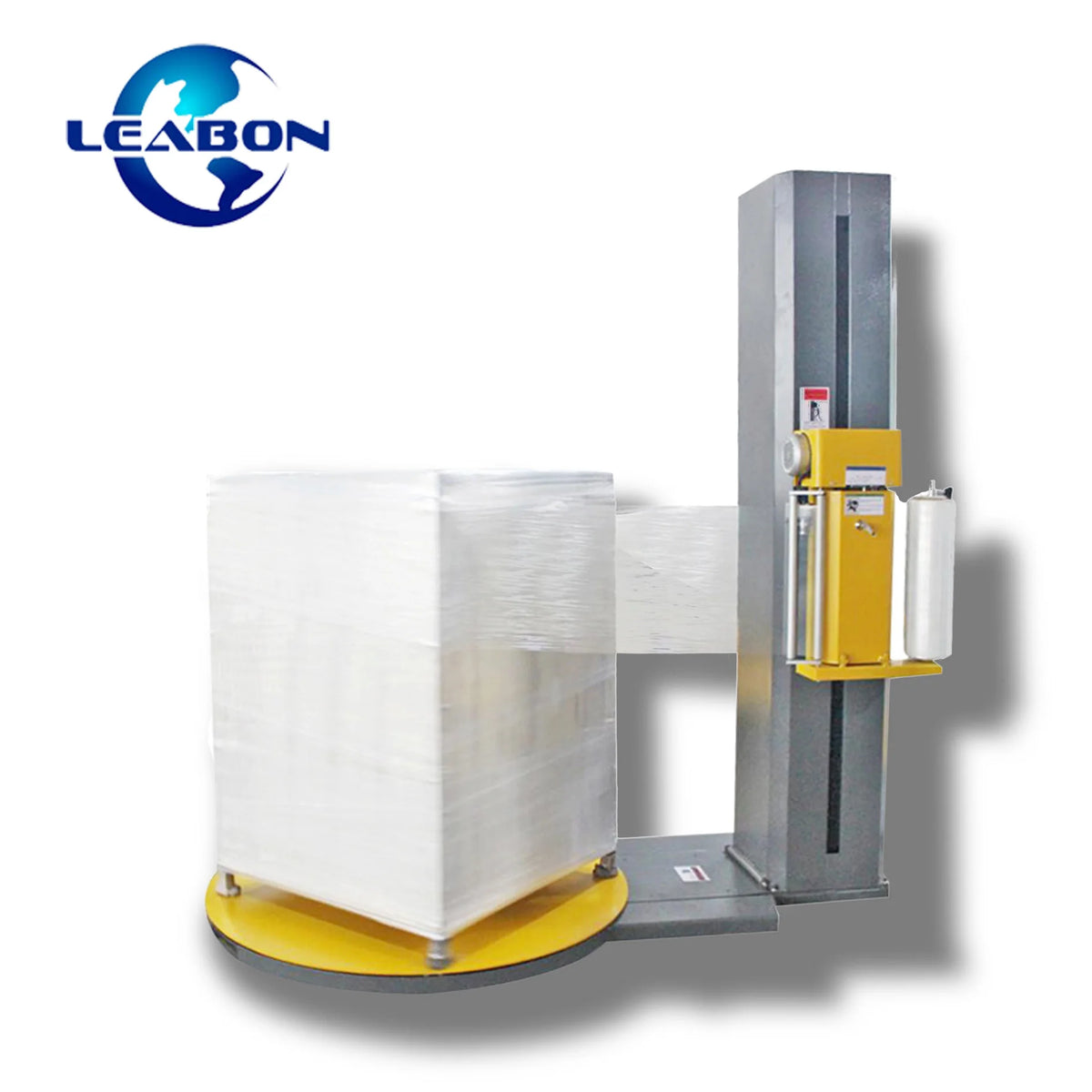

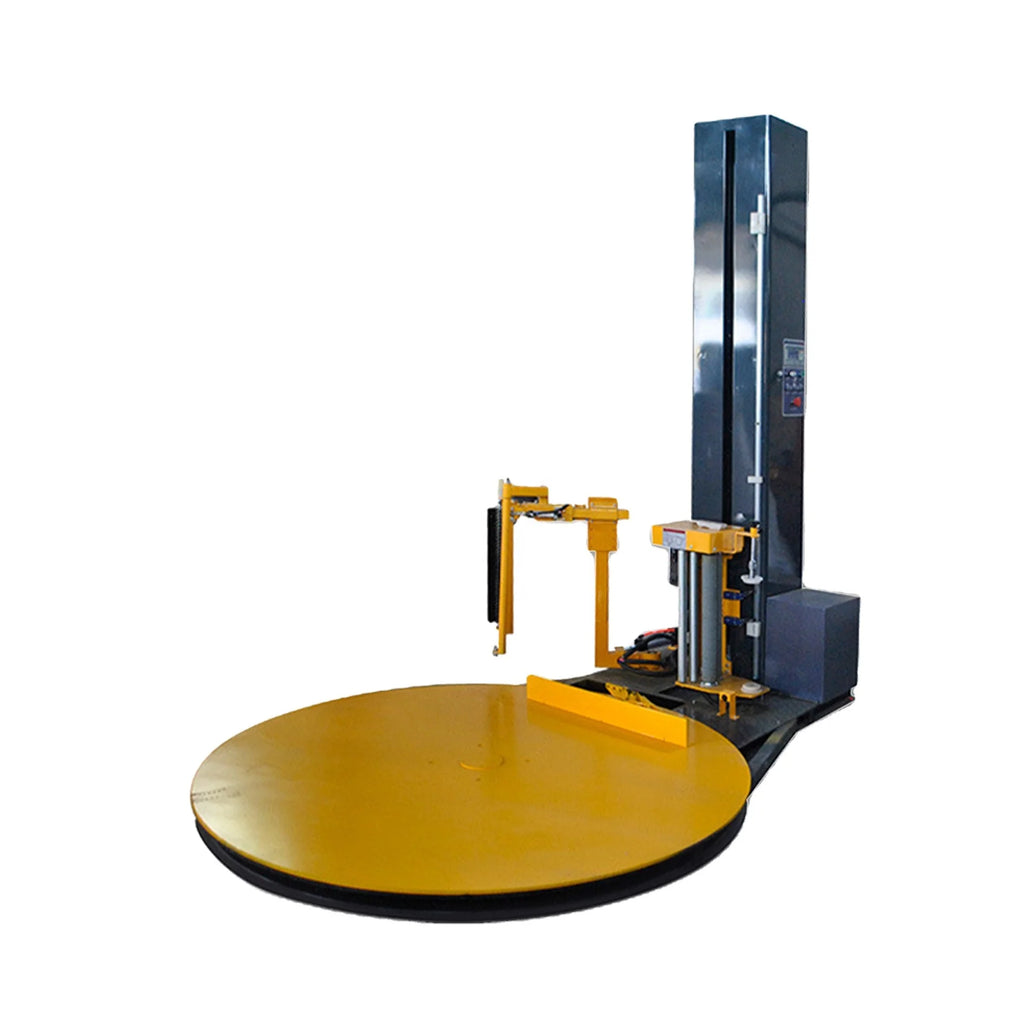

The Tidesmit Pallet Wrapping Machine Automatic Turntable is an industrial automatic packaging solution designed for secure and efficient film wrapping. Featuring an automated turntable design with a 1500 mm turntable diameter, 1650 mm overall turntable size, and 85 mm turntable height, this hydraulic-driven machine handles a maximum load weight of 800 kg to 1500 kg, with a turntable load-bearing capacity ranging from 2000 kg to 3000 kg. Built in Henan, China, it delivers an adjustable wrapping speed of 3-12 rpm (0-12 rpm), an up/down speed of 0-5.5 m/min, and a packaging efficiency of 20-40 loads per hour (or 30 loads/hour), minimizing manual intervention while securing pallets safely.

Key Features & Technical Capabilities

• Film System: Features a constant force film system, a pre-fix film device, and a 200% pre-stretch rate (1 meter stretches to 3 meters) to optimize film usage and reduce packing costs.
• Compatibility: Accommodates 500 mm film width, 250 mm film diameter, 76 mm film paper core, and 15 kg film weight. Packaging materials include plastic and wood; packaging types include cartons and film.
• Controls & Operation: Equipped with an intuitive operation panel, five-mode product memory, soft start/stop function, adjustable speed, intelligent alarm, stop at original position, and optional remote start machine.
• Safety & Core Components: Includes a comprehensive safety protection system, machinery test report, video outgoing-inspection, and core components featuring a PLC, engine, bearing, gearbox, motor, pressure vessel, and gear. Optional top pressure device is available.

Technical Specifications

• Product Type: Pallet Wrapping Machine (Automatic Grade)
• Dimensions (L x W x H): 2550 x 1650 x 2485 mm (Machine size: 2330 x 1500 x 2448 mm)
• Turntable Diameter: 1650 mm (1500 mm turntable size)
• Turntable Height: 85 mm
• Packing Height: 2000 mm
• Turret Diameter: Customizable
• Voltage: 380V (also referenced as 220V configuration)
• Power: 1.49 kW
• Driven Type: Hydraulic
• Machine Weight: 650 kg (Machine weight: 620 kg / Whole machine weight: 1500 kg)
• Warranty: 1 Year

Applications & Industry Fit

Engineered for automated industrial packaging lines, this pallet wrapping machine is suited for operations across multiple sectors, including food, beverage, commodity, chemical, machinery and hardware, and apparel industries.
