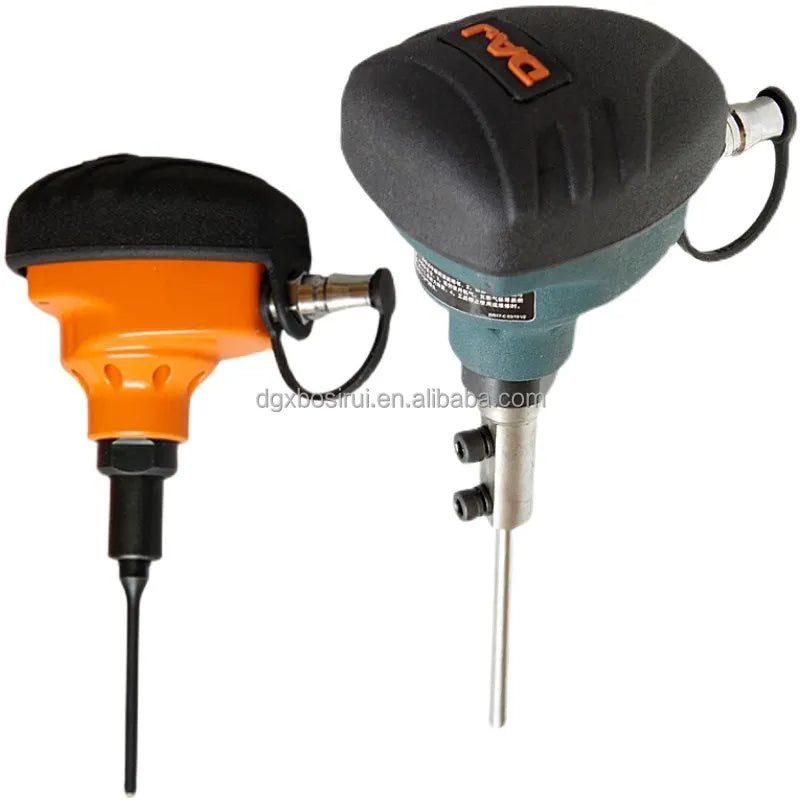

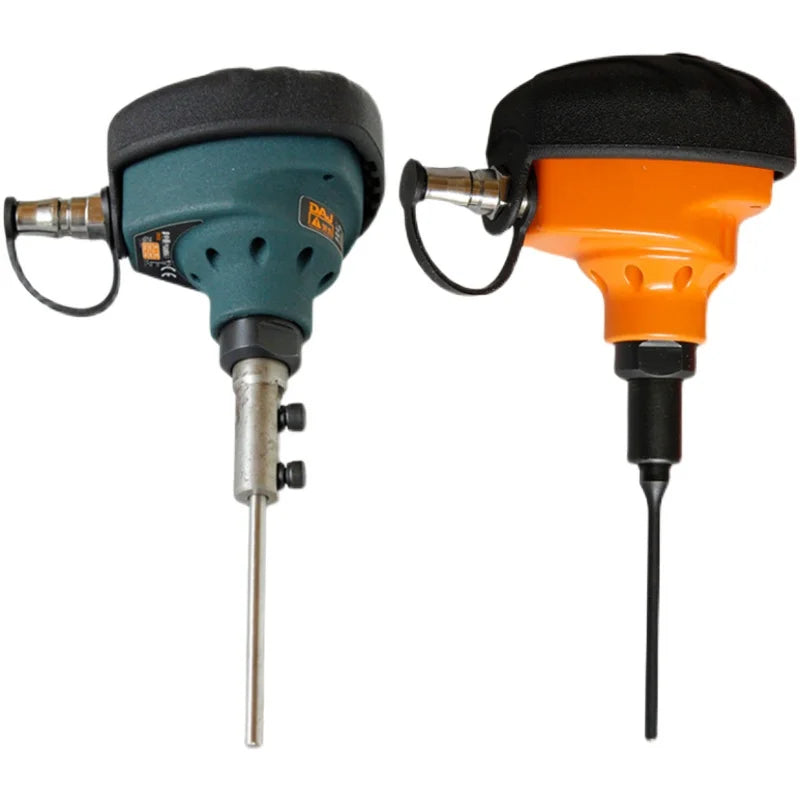

Hand Pneumatic Hole Stripping Machine for Die Cutting Corrugated Cardboard Carton Kraft Paper

520

€209,17 €313,76

Hand Pneumatic Hole Stripping Machine for Die Cutting Corrugated Cardboard Carton Kraft Paper

Name: Hand Pneumatic Hole Stripping Machine for Die Cutting Corrugated Cardboard Carton Kraft Paper
Brand: Tidesmit
SKU: 3:-1#520
Price: 209,17 EUR
Availability: InStock

€209,17 €313,76

SPECIFICATIONS

Marketing Type: New Product 2020

Packaging Material: Paper

Packaging Type: Cartons

application: Machinery & Hardware

automatic grade: Automatic

brand name: bosirui

core components: PLC,Motor,Pump

dimension(l*w*h): 160*260*120

driven type: Hydraulic

key selling points: Easy To Operate

machinery test report: Provided

place of origin: Hebei, China

type: Other

video outgoing-inspection: Provided

warranty: 3 Months

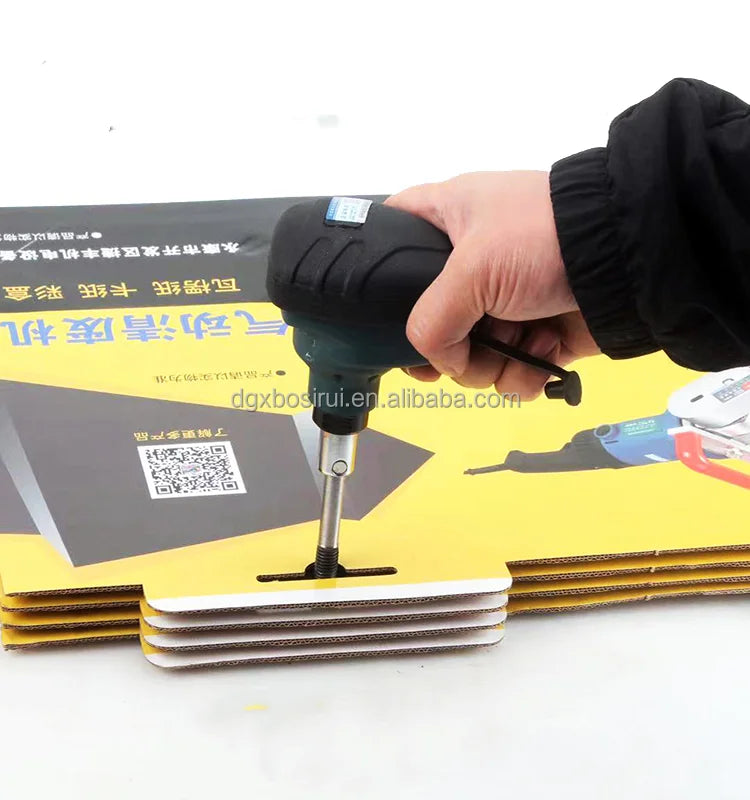

Special-shaped corrugated cardboard box die-cutting waste stripper Pneumatic hand-held circular inner hole waste paper stripper

399a

883 8c9f2021c828115

name	Hand-held pneumatic cleaning machine
Features	Assist in manual cleaning of waste in the inner hole to improve efficiency
Dimensions	11270115mm
The smallest diameter that can be cleaned	1.5mm+
The narrowest width that can be cleaned	2.0mm+
Operating mode	Trigger start, impact and beat
Intake pipe diameter	8-12mm
working pressure	0.6MPA
net weight	0.68kg

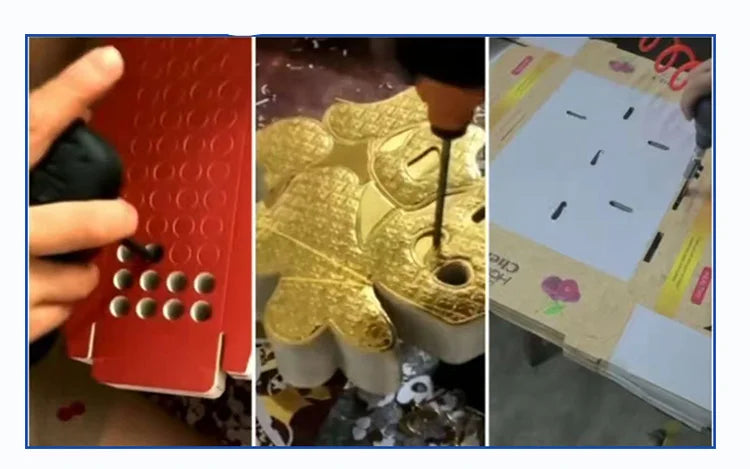

Airplane holes, round holes, long holes, square holes, all in one machine!

Failure Phenomenon	Reason Analysis	Elimination Method
Switch (air leak)	Switch blocked	Clean the switch spare parts inside Change O-ring
	O-ring damaged
Side bar air leakage	1.O-ring damaged in air cylinder	Change O-ring
Stripping power got less	1. Air pressure not enough 2. Lack of lubricant oil 3.O -type Stripping pin damaged 4.Front edge of stripping pin got worn	Adjust the air pressure higher Add lubricant oil Change O-type stripping pin Change stripping pin
Stripping Power got stronger	Buffer cushion damaged	Change buffer cushion
intermittent stop	1. lack of lubricant oil 2. Air pressure not enough 3. Stuff blocked in the pin 4. Thrust module broken 5. Stripping pin broken 6. O-ring worn	Add lubricant oil Adjust air pressure higher Clean the inner stripping pin Change thrust module Change stripping pin Change O-ring
Upper lip got air leakage	O-ring broken	Change O-ring
