SPECIFICATIONS

After-sales Service Provided: 1 Year

Applicable product: card envelop box book paper

Certification: C/E

Main Function: High Speed Printing and Counting

Model: FC-300 with printer

Packaging Material: Wood

Packaging Type: Cartons

Packing material: Wooden Case Packing

Power: 100-240V AC50/60HZ

Product Keywords: Batch Counting Printing Systems

Product name: Paper Card Dispenser and Printing

Usage: counting and card issuing machine

Voltage: 220V

Weight (kg): 55

application: Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles

automatic grade: Automatic

brand name: Worth-It

core components: PLC,Motor

dimension(l*w*h): 880*640*460mm

driven type: Hydraulic

key selling points: Easy To Operate

machinery test report: Provided

place of origin: Guangdong, China

type: Other

video outgoing-inspection: Provided

warranty: 1 Year

Products Description

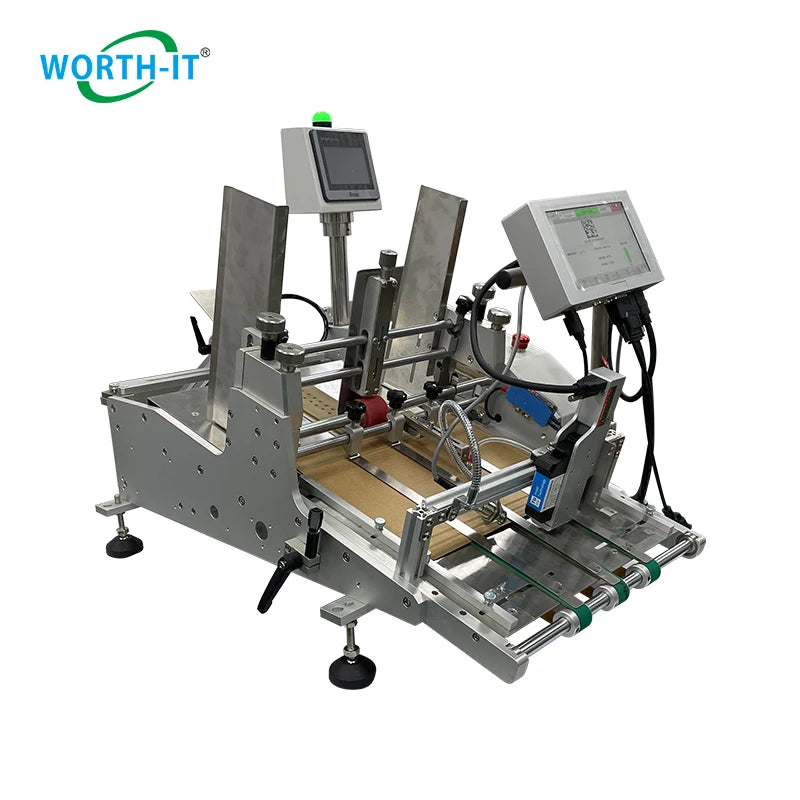

Factory Direct Seal Card feeder Card Leaflet Label Paper Envelop Instruction Color Box counting machine Friction Feeder

The automatic card Feeder issuing machine is widely used in the printing and packaging industry, It can be used as a separate card counting or a packaging line for various packaging equipment. Such as: automatic bagging machine, pillow packaging machine,vertical packaging machine, automatic conveyor, automatic shrink packaging machine.

This new-type friction feeder machine can better suits for counting and printing needs,it can feeding,counting and printing product information at the same time,such as date,QR code...and so on.

Item	FC-300P
Max.Speed	10-160 M/min,depends on product
Product Thickness	01-10mm
Product length	min 45mm
Product width	60-300mm
Voltage Power	220V/50HZ 0.45KW
Control system	Servo Motor+ PLC Control+ Touchscreen
Machine Dimensions:	970X600x620mm
print distance	2mm to 5mm
Print speed	120m/min at 300DPI
print height	min 1mm / max12.7mm
Dimension Controller	192* 113*37.6mm / head
Holster	177.5*91.5*54.6mm

Machine outline

Advantages

Our friction feeder machine advantages		Normal banding machine
1, PLC Control System , enable expansion online connection on production line , Brand OEM on Free	√
2, Accurate counting, with imported fiber optic sensor	√
3, Easy operate, various data can be set and saved on the touch screen	√
5 , High speed 10-160M/min	√
7, Auto alarm, the machine will shut down if meet Multi-card, leaky card or no card	√
8,Multi functions selection, single, multiple or continuous card issuance functions are available	√

Delivery

Machine always have stock , we can make delivery with 1-3 days after get payment .

before delivery we will take machine test video and package photo to customer check and confirm , and provide machine use manual , operation video and Routine maintenance.

when you received the machine and meet any operation question , we can online video call support you every step of machine operate.

After-sales Service

1. One-year warranty guarantee

2. Professional after-sales team, integrates technology and practical experience to provide technical support.
3. 24-hour service, provide effective solutions within 24 hours.
4. Worry free after-sales, provide support to escort customer’s normal production. Free service during the warranty period. Free technical training with lifelong.

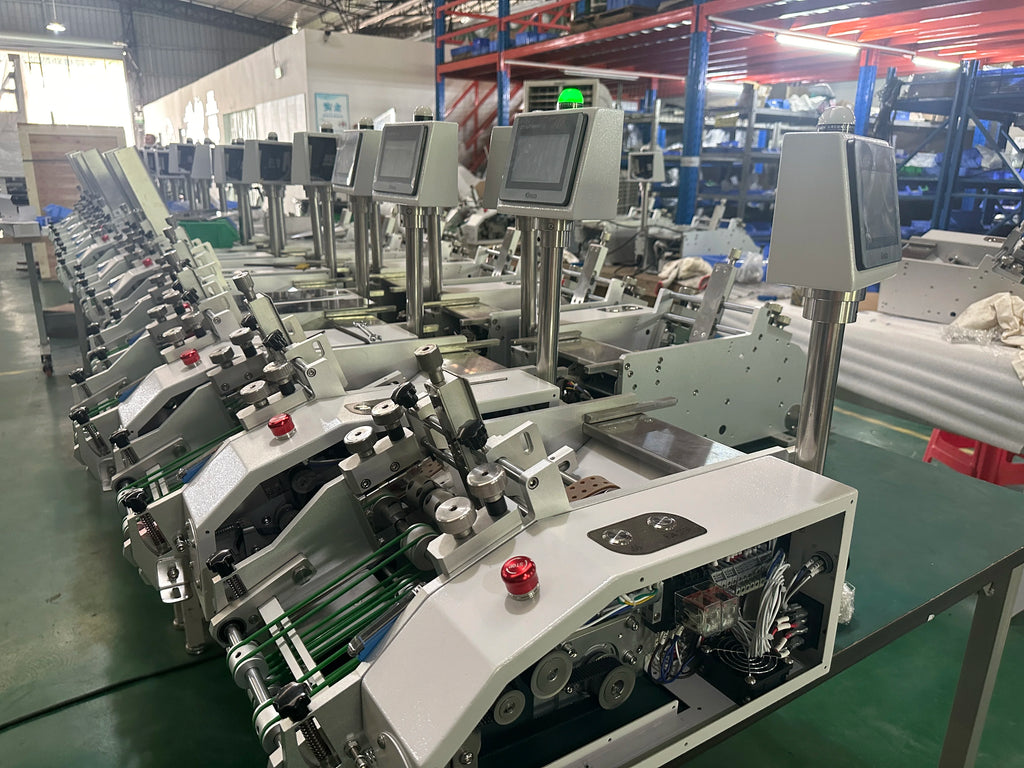

Workshop

Feeding Demonstrations

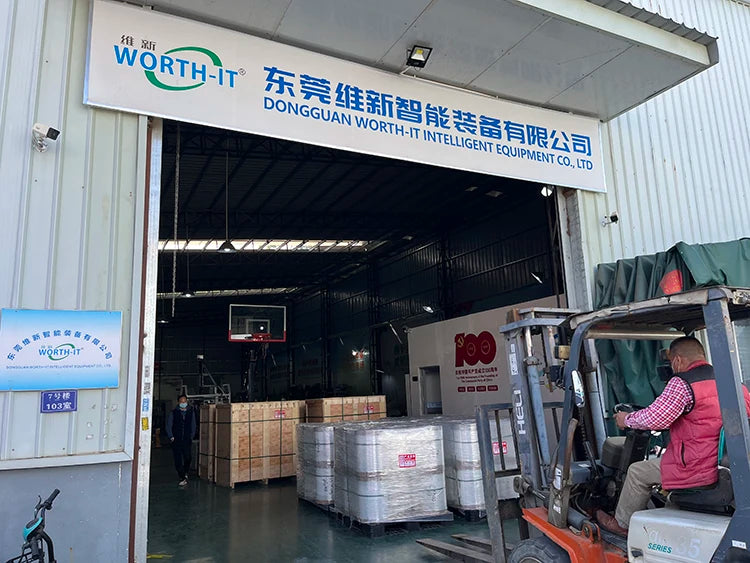

Company Profile
