SPECIFICATIONS

After-sales Service Provided: Video Technical Support

Application: computer satin ribbon webbing label tape Cuting Machine

Cutting length: 1-99999mm

Cutting materials: Paper,Film,Non-woven Fabric,Composite Rubber Foam, Metal Sheet

Cutting width: 1-95mm

Function: Timing belt elastic cotton tape face mask cutting machine

Keyword: Paper Cuting Machine tape roll to sheet cutting machine

Name: Paper Cuting Machine tape roll to sheet cutting machine

Packaging Material: Plastic,Paper,Metal,Glass

Packaging Type: Cartons,Bags,Film,Foil,Belt

Product name: computer satin ribbon webbing label tape Cuting Machine

Usage: paper processing,textile processing,Rubber Foam, Metal sheet

Voltage: 220 V

Weight (kg): 28

application: Commodity,Textiles

automatic grade: Automatic

brand name: YIZE

core components: electric

dimension(l*w*h): 560*420*400MM

driven type: Electric

key selling points: Easy To Operate

machinery test report: Provided

place of origin: Henan, China

type: motor

video outgoing-inspection: Provided

warranty: 1 Year

Upgrade automatic hot and cold cutting machine, imported double blade, hot and cold integrated, can cut multiple strips at the same time, diversified cutting effect, Wide range of applicable materials, saving time and effort: zipper, threaded belt, Velcro,belt, washable label, webbing, barcode label,thermal paper,printing film,adhesive sticker.

1. Cutting is efficient and precise, can cut five shapes: cut flat, oblique sharp, parallelogram, trapezoid, arrow

2. Temperature adjustable

3. Hot and cold cutting

4. Multi-purpose machine, the cutter angle is adjustable, can cut 20 degrees, 30 degrees, 45 degrees, etc., can also cut the blade to cut, the cutting effect is diversified

5. Section flattening

6. Automatically collect after cutting, to avoid scattering of materials, no need for manual secondary finishing.

7. The discharge port is equipped with a drag motor, which automatically drags the material to avoid the material being smeared. The thick material can be cut.

Features

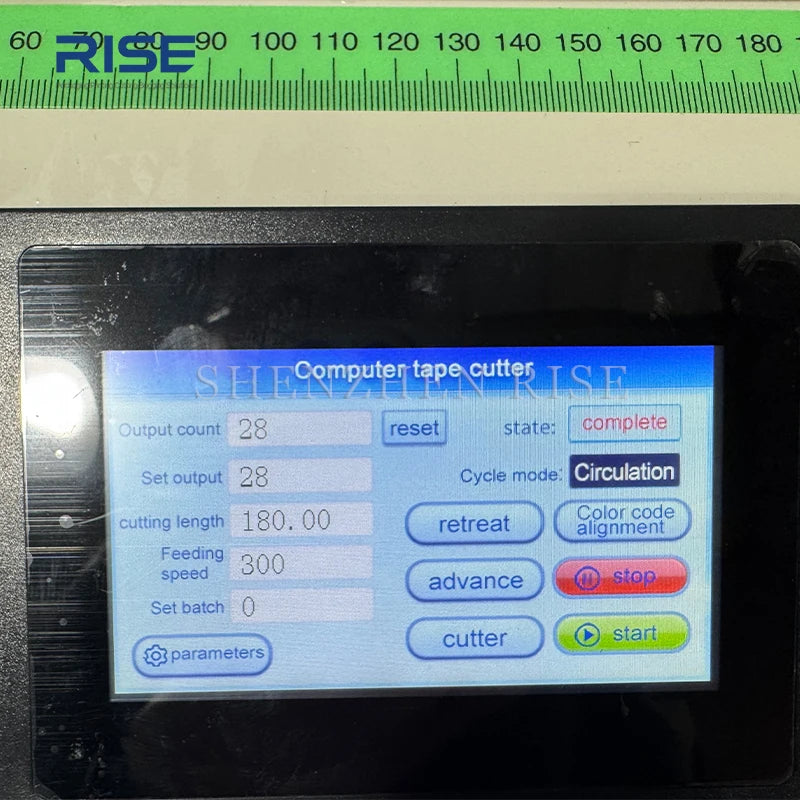

1. Simple operation panel

Simple panel, simple operation, Chinese and English switching, LCD screen

2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate

3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting

4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.

Parameters of the tape cutting machine
Model	RS-100LR	RS-100B
Voltage	220V, 50/60hz	220V, 50/60hz
Power	0.58KW	0.4KW
Speed	110 times/min	700m/s
Cutting width	1-95mm	1-95mm
Cutting length	1-99999mm	1-99999mm
Maximum temperature	500°((adjustable)	500°(adjustable)
Weight	28kg	28kg
Contact us for more models ,customized also available.

Why choose RISE？

----- Roll-to-Sheet Cutting Machine

High Precision: Utilizing a servo motor and high-precision encoder, each sheet is precisely the same length. Chip-Free Cutting: Unlike laser or blade cutting, which produces no debris, this is crucial for cleanliness-critical industries such as electronics and medical. High Efficiency: Continuous high-speed operation makes it ideal for high-volume, standard-size sheet production. Tool Options: Depending on the material properties, a variety of cutting tools are available: straight/cutting blades, circular blades, and cold cutters.

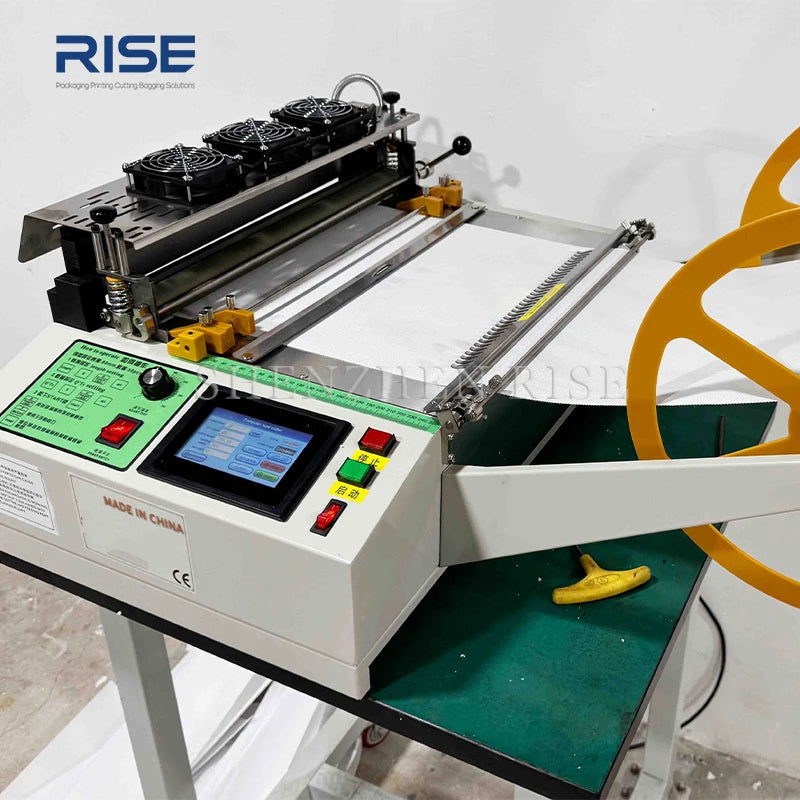

Details of the sheet Cutting Machine

Widely application for tape cutting machine

Widely used in all kinds of webbing, elastic band, nylon belt, threaded belt, zipper, woven belt, leather, cotton belt, washing label, printing film, various zipper velcro, non-woven fabric, and all kinds of heat sealing Rope tape material.

Warehouse of Plastic foil cut Melt-blown film VINYL pvc roll to sheet cutter earloop eva sheet Non-woven fabric paper sheet cutting machine

Our pvc sheet cutting machine will be packed with standard wooden box to keep machine safe
