SPECIFICATIONS
Appearance color: Black/White
Decoding lighting: 8 red high-brightness LED light sets
Humidity: 10% ~ 90%RH
Indicator System: LED Decode Indicator,Beeper
Model Number: FRD-SN-032
Power Voltage: 4.5-5.5VDC
Product Name: FRD-SN-032 Scanner
Resolution: 1280x 800 pixels
Type: Global Exposure
Weight: About 320g
place of origin: China

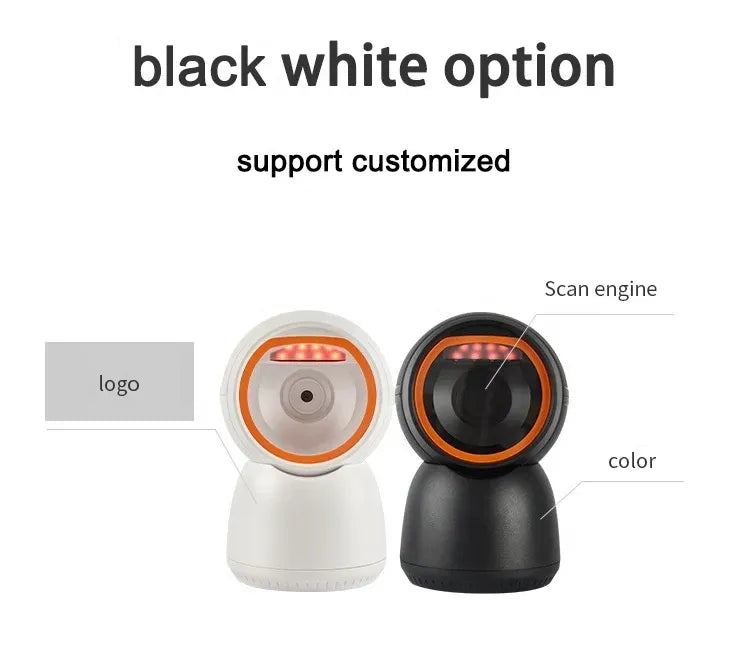

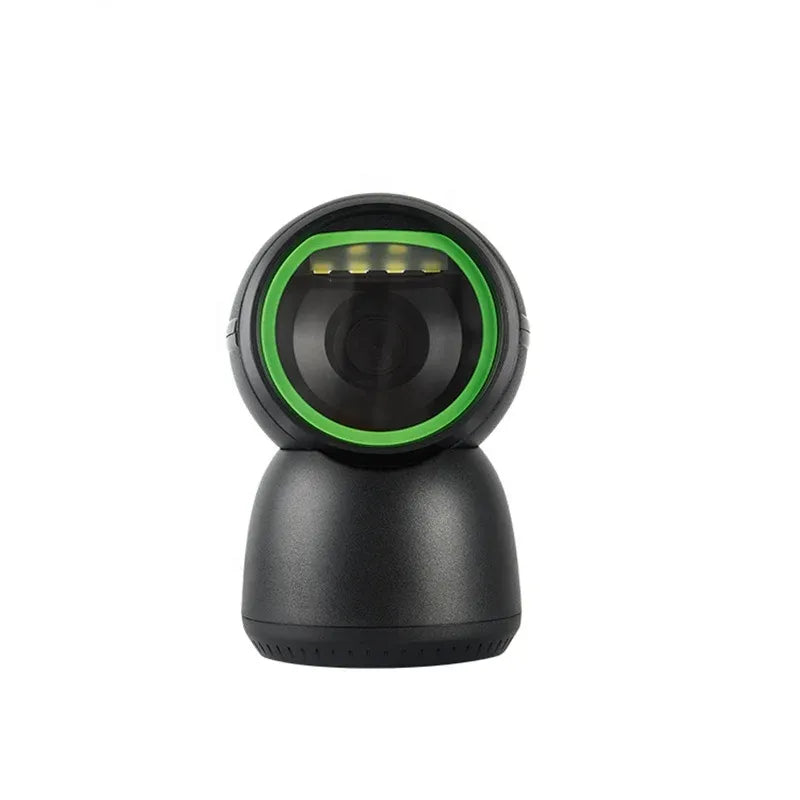

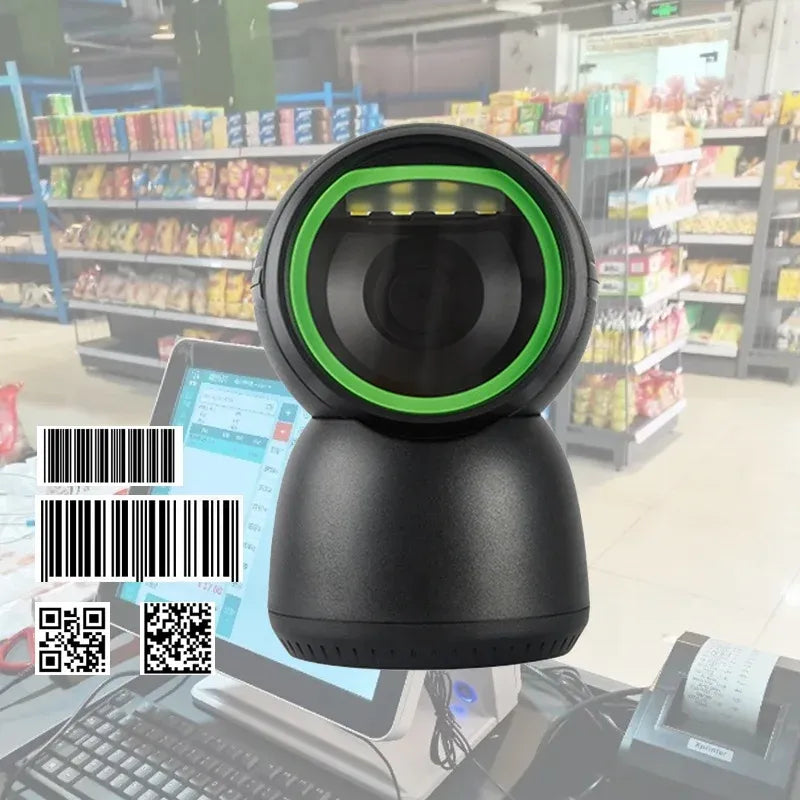

FRD-SN-032 Desktop Barcode Scanner (Support customized logo)
* Suitable for use scenarios with high intensity and fast requirements

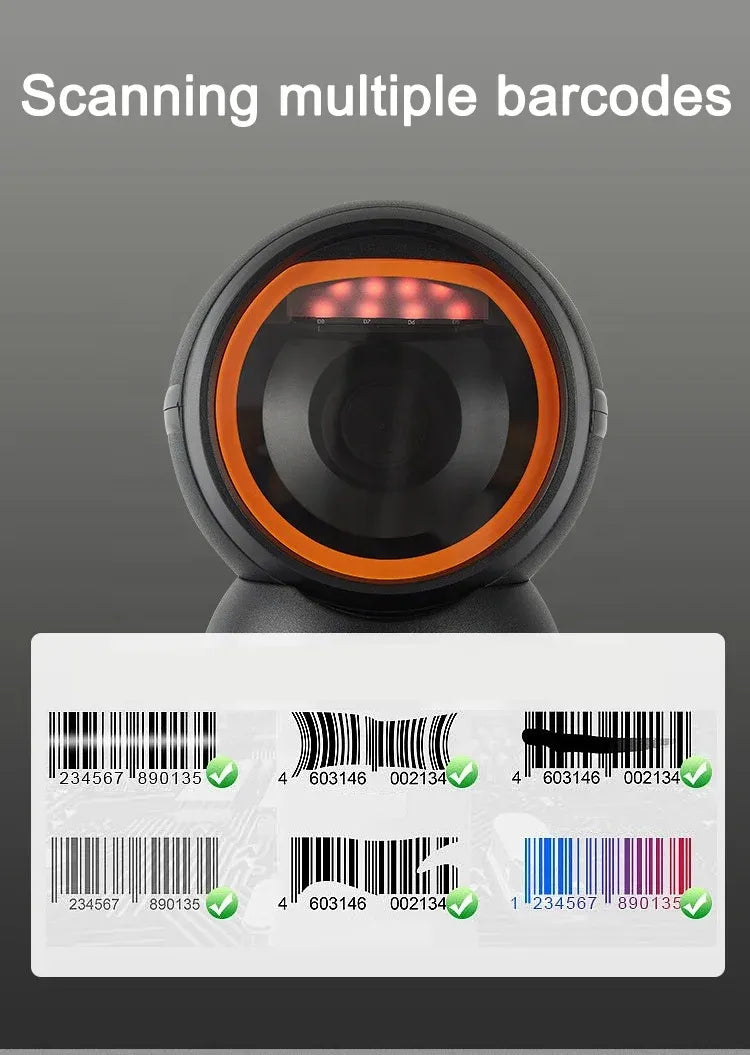

* Supports most barcode types on the market
* Custom configuration of scanner functions
* Lighting LED automatically switches to sleep and wakes up to working state in seconds
* Global exposure imaging solution to enhance motion reading capabilities
* It can still be used after being dropped to the cement floor from a height of more than 1 meter

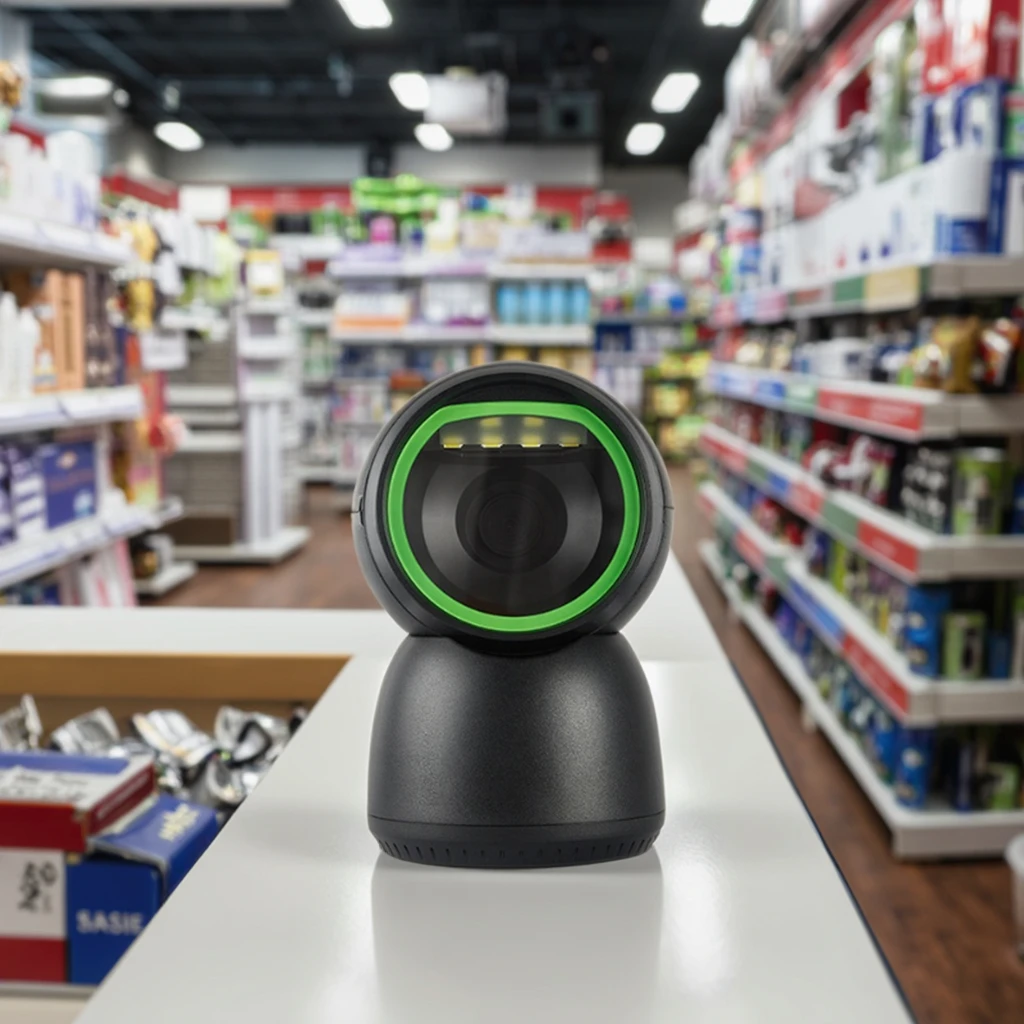

The FRD-SN-032 scanner is a desktop barcode scanning model launched for general industry applications. It has a compact and convenient appearance and does not take up too much space on the counter. It is suitable for different levels from convenience stores to large supermarkets.
In terms of performance, the FRD-SN-032 desktop barcode scanner can scan most barcodes on the market, covering application
industries such as retail, supermarkets, medical, municipal administration.It has long-term reliability requirements and can be used all-day. And it won’t reduce the performance of your scanning device at all.
For large stores, how to improve the efficiency of clearing goods is crucial. The FRD-SN-032 scanner can help you accelerate the closed-loop business and improve efficiency. The FRD-SN-032 product has multiple configurations and supports conventional USB and RS232 communication methods.
SPECIFICATIONS |
|
|
|
Model |
FRD-SN-032 |
|
|
Barcode Type |
1D: Codebar,Code128,Code39,Code39,Code93,Code11,EAN13,EAN8, GS1-Databar,GS1-128（EAN-128）,Interleaved 2 of 5,Matrix 2 of 5,Industry
2 of 5,UPC-A,UPC-E,ISBN,ISSN |
|
|
|
2D: PDF417, Data Matrix, QR Code,Micro PDF417,Micro QR Code, Aztec Code |
|
|
Barcode Min Precision |
1D: 4 mils/0.102mm;
2D: 8.3 mils/0.210mm; |
|
|
Reading Distance |
1D: 0mm-230mm(EAN-13-barcode density: 0.33mm/13mil)
2D: 0mm-170mm(QR code-barcode density:0.508mm/20mil) |
|
|
Type |
Global Exposure |
|
|
Sensor Type |
CMOS image sensor |
|
|
Resolution |
1280x 800 pixels |
|
|
Field of View |
H: 60°V: 40° |
|
|
Reading angle |
slope ±65°,Deflection angle: ±65°, Rotation angle: 365° |
|
|
contrast value |
above 0.15/15% |
|
|
Power Voltage |
4.5-5.5VDC |
|
|
Consumption Current |
Reading 220mA
Stand by:170mA |
|
|
Indicator System |
LED Decode Indicator,Beeper |
|
|
Ambient Lighting |
0 ~ 100000 lux(fluorescent lamp) |
|
|
Decoding lighting |
8 red high-brightness LED light sets |
|
|
Weight |
About 320g |
|
|
Dimension |
98mm*95mm*153mm |
|
|
Temperature |
Working Temperature: 0℃-50 ℃ |
|
|
Humidity |
10%-90%RH No condensation |
|
|
Fall resistance |

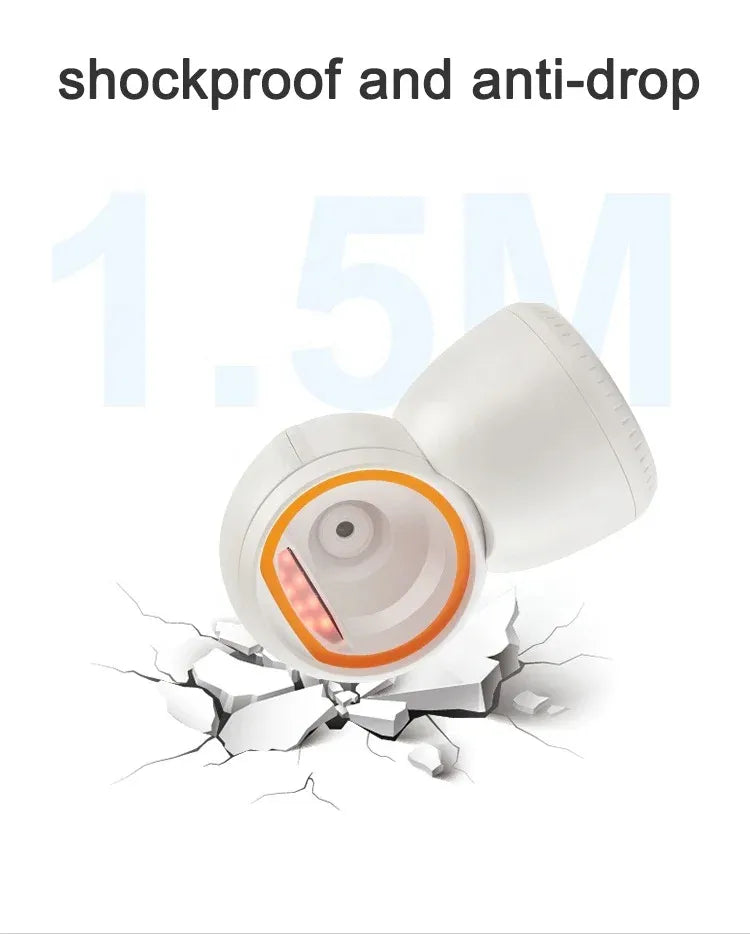

withstand multiple drops from 1.5 meters to concrete ground |
|
|
Appearance color |
Black and Green (or Orange);White and Orange |
|
|
Communication Method between Scanner and Terminal Device |
USB (HID,COM) or RS232(Optional) |
|
|
Port Choice between Scanner and Terminal Device |
USB(A type) or D-Sub 9 Female(Optional) |
|
|

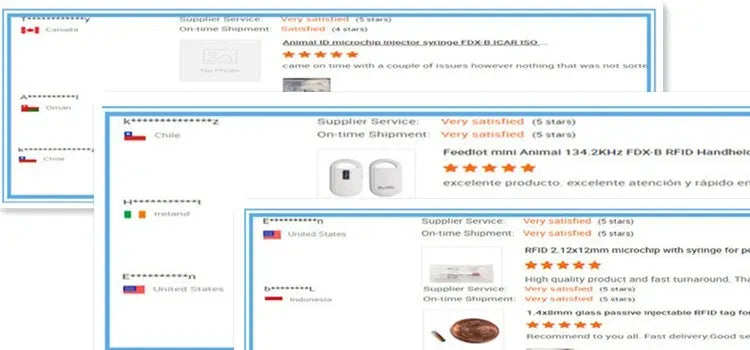

Real comments from our customer as below link:
