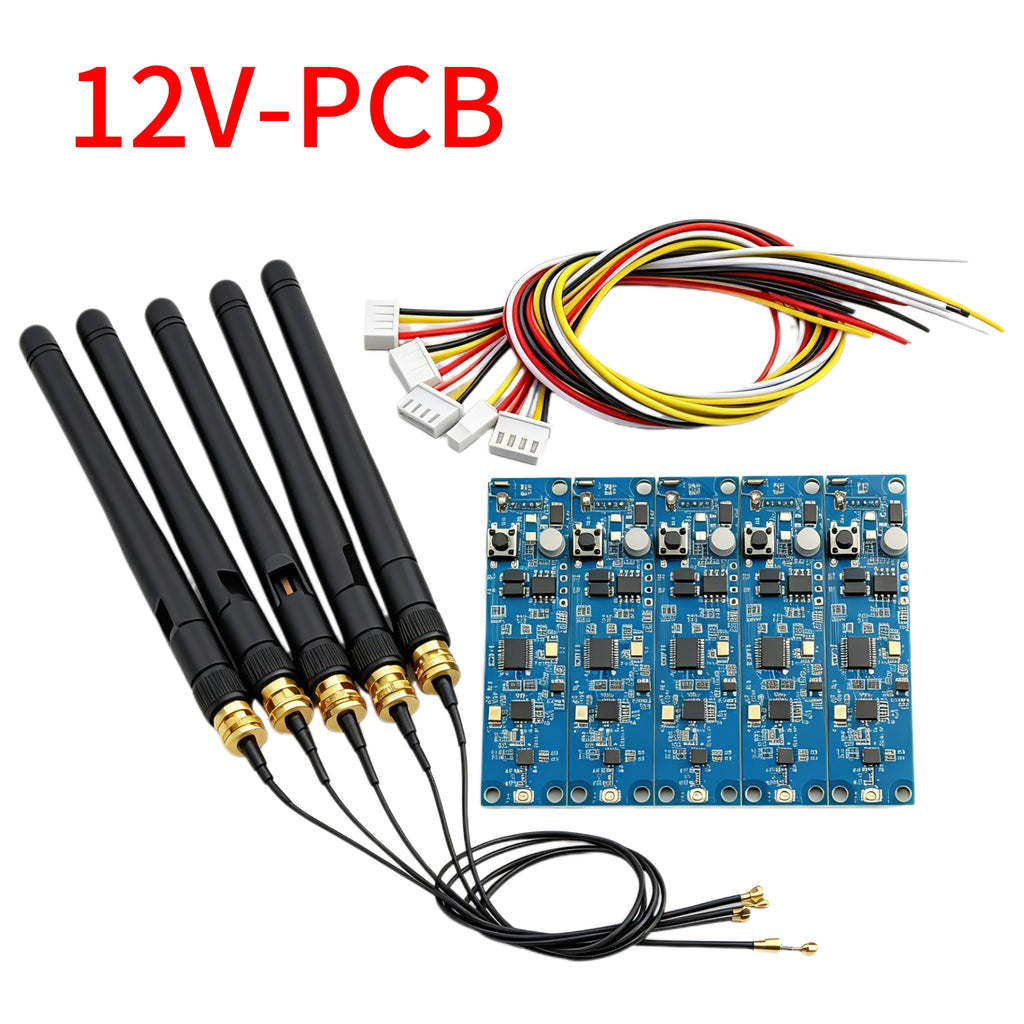

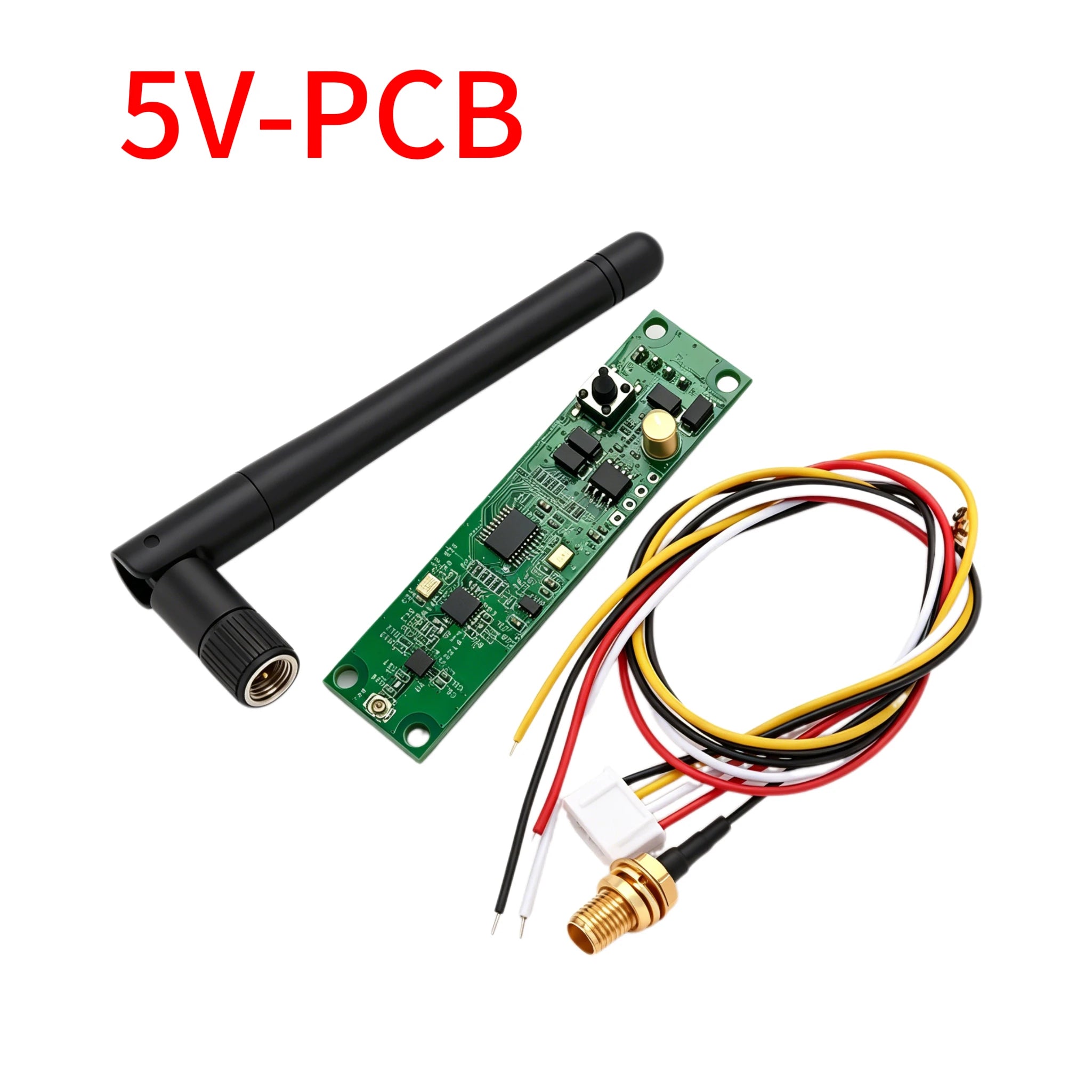

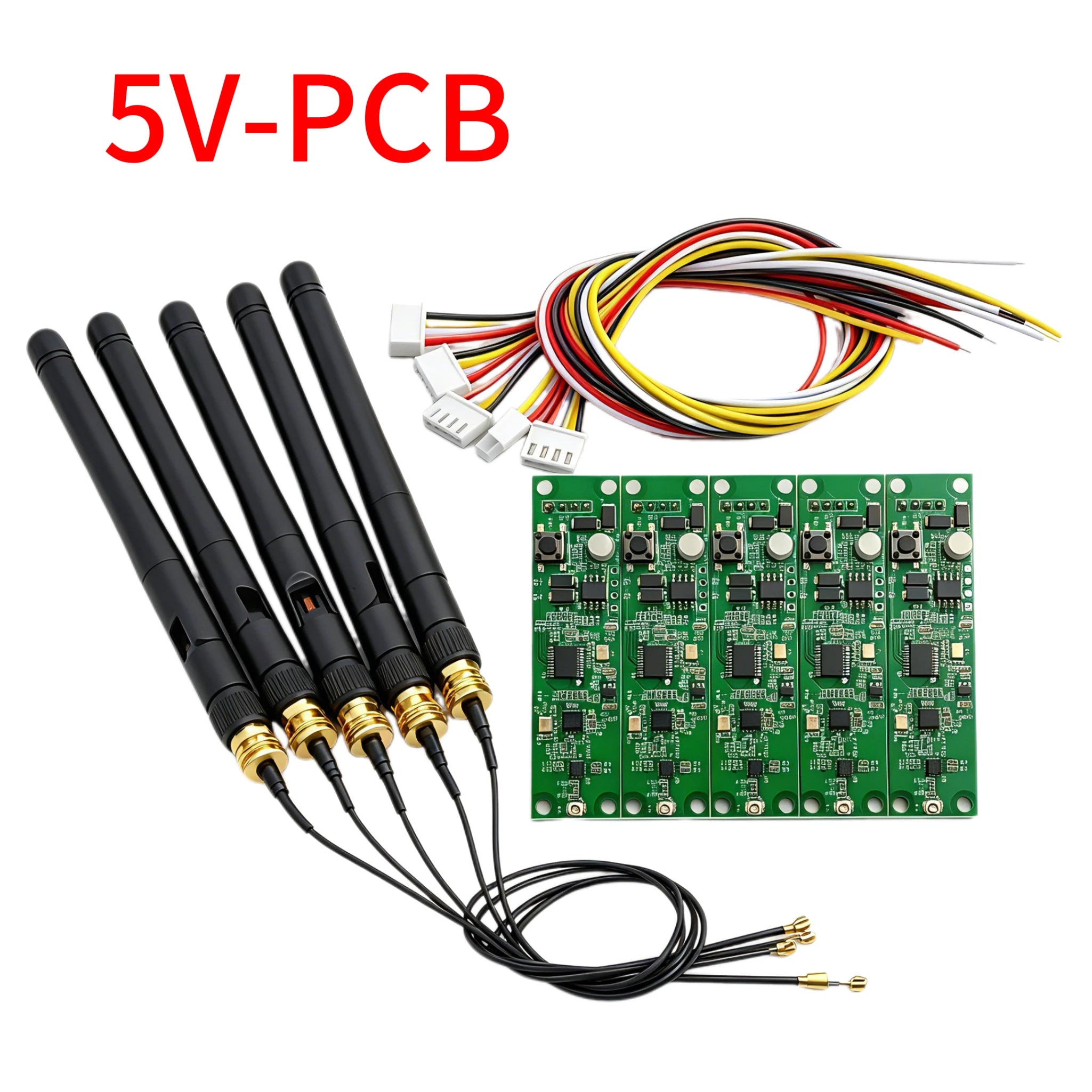

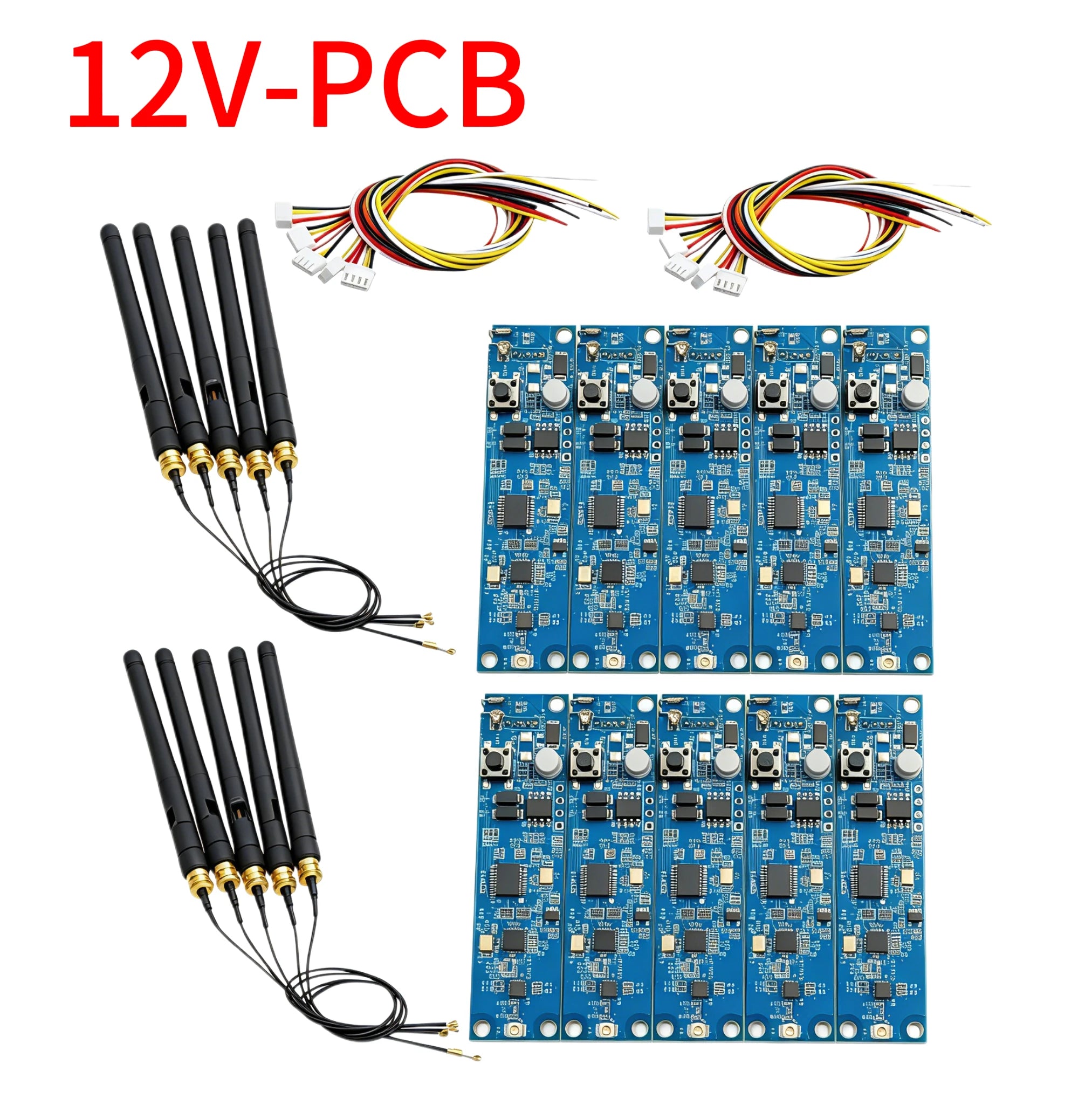

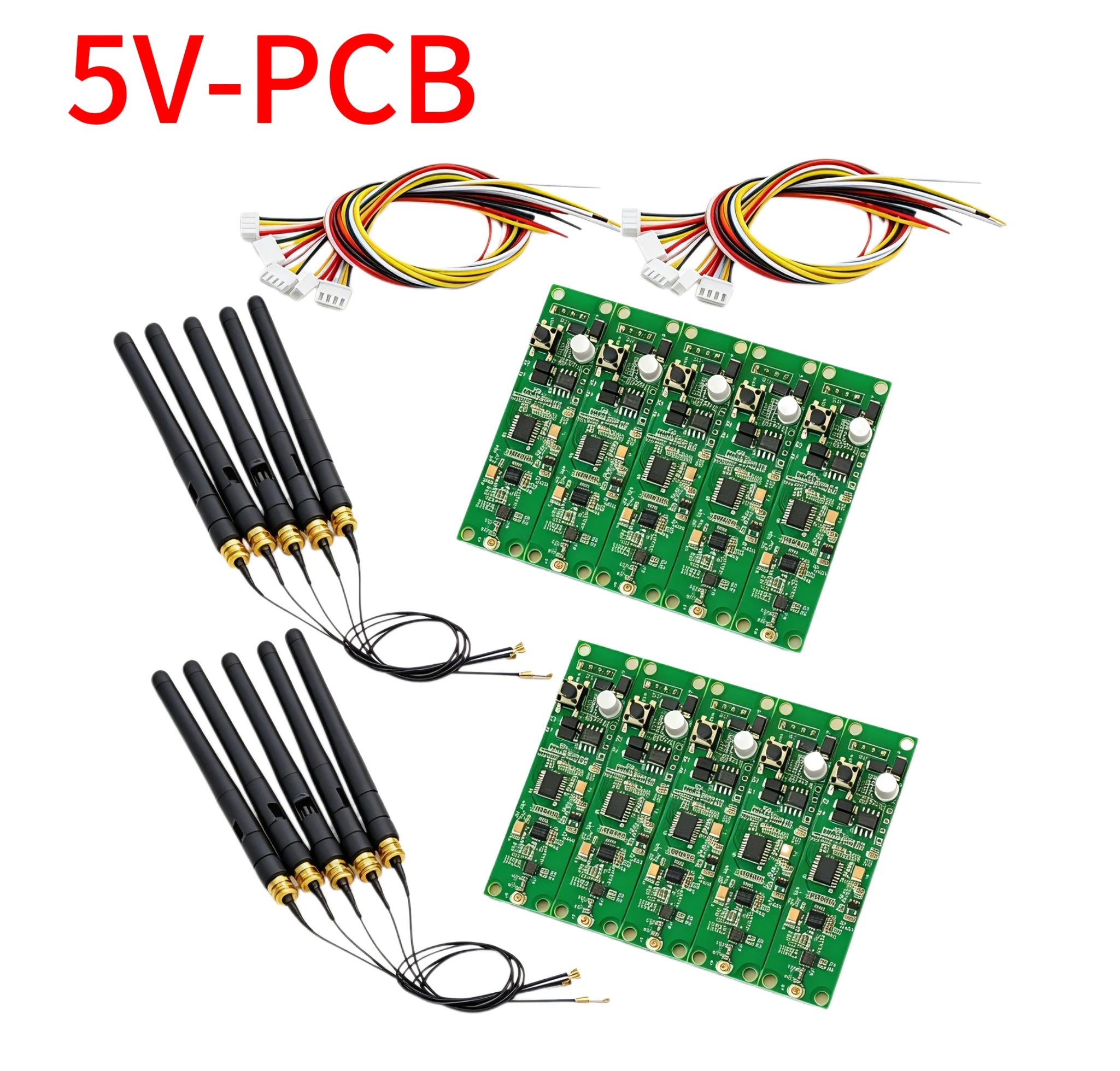

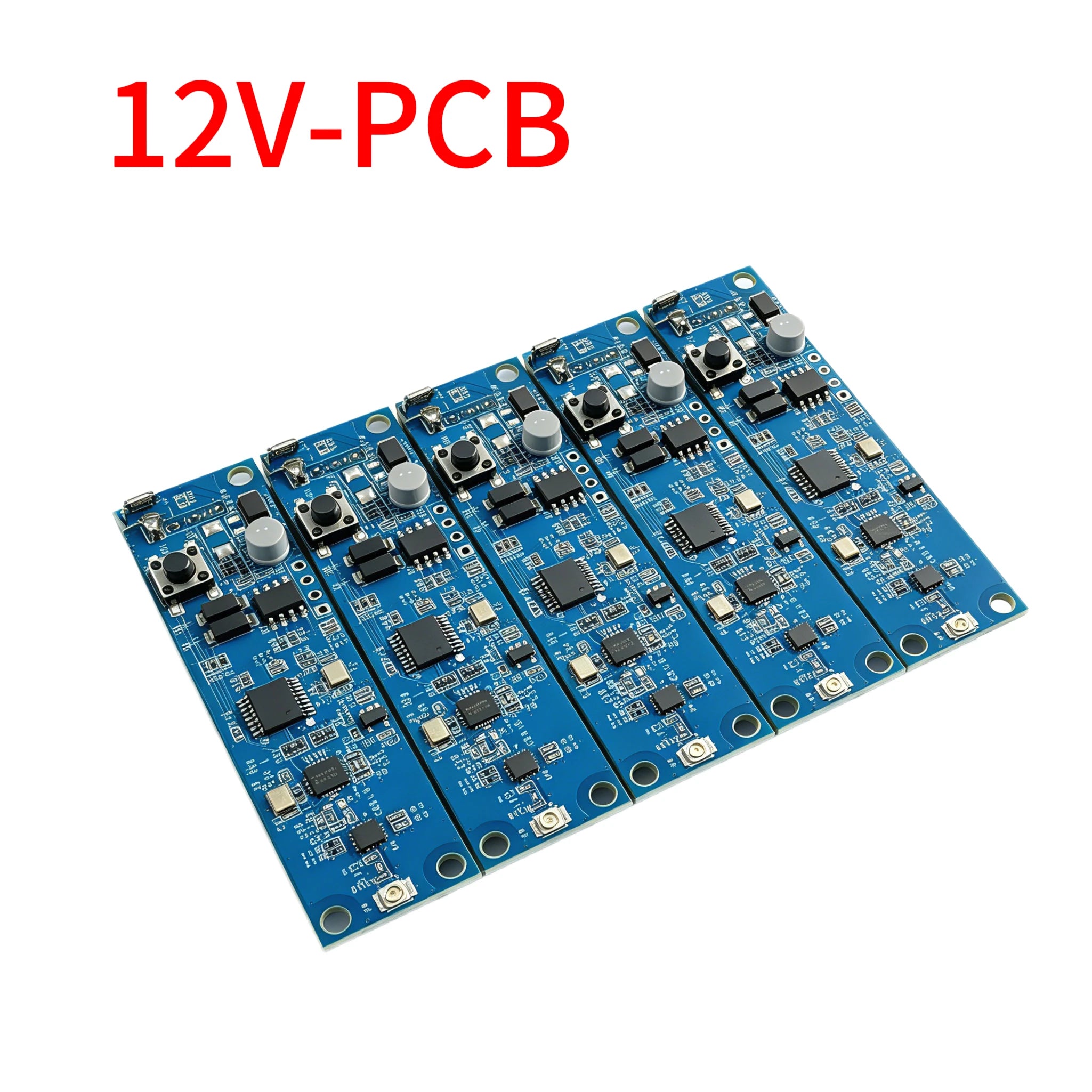

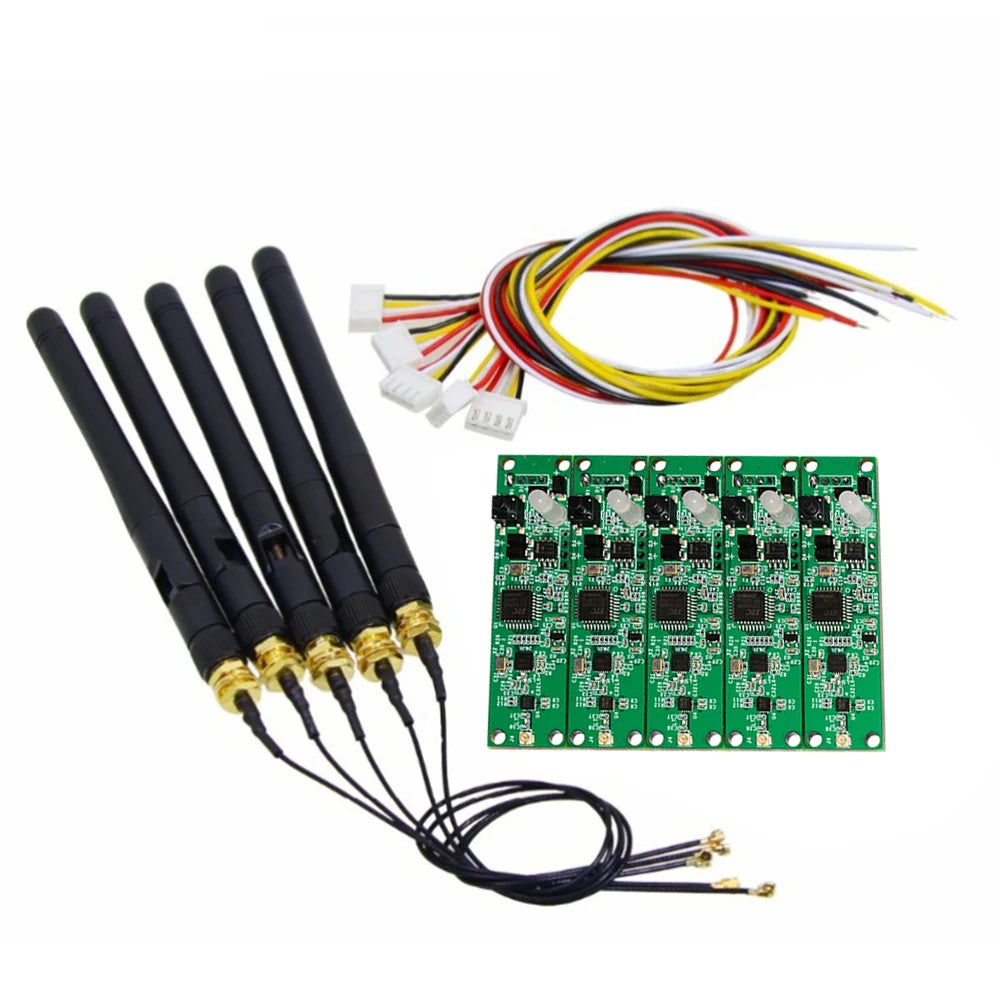

A9 2.4G ISM DMX Wireless Controller PCB Module 2 in 1 DMX512 Transmitter Receiver For Stage Light Built-in DIY 485EE
DMX512 PCB 5pc
Sale price
€71,78
Regular price
€99,38
Skip to product information
A9 2.4G ISM DMX Wireless Controller PCB Module 2 in 1 DMX512 Transmitter Receiver For Stage Light Built-in DIY 485EE
Sale price
€71,78
Regular price
€99,38
SPECIFICATIONS
Brand Name: ICERAY
Certification: NONE
Choice: yes
High-concerned chemical: none
Installation Method: Assembly
Is Batteries Included: No
Is Bulbs Included: No
Is Smart Device: Yes
IsStageLightingEffect'sEquipmentorAccessories: Yes
Item Type: Stage Lighting Effect
Luminous Flux: <60
Model Number: DMX512 WIRELESS
Nominal Voltage: 5V
Occasion: Professional Stage & DJ
Origin: Mainland China
Power (W): 1 W
Power Source: DC
Style: DMX Stage Light

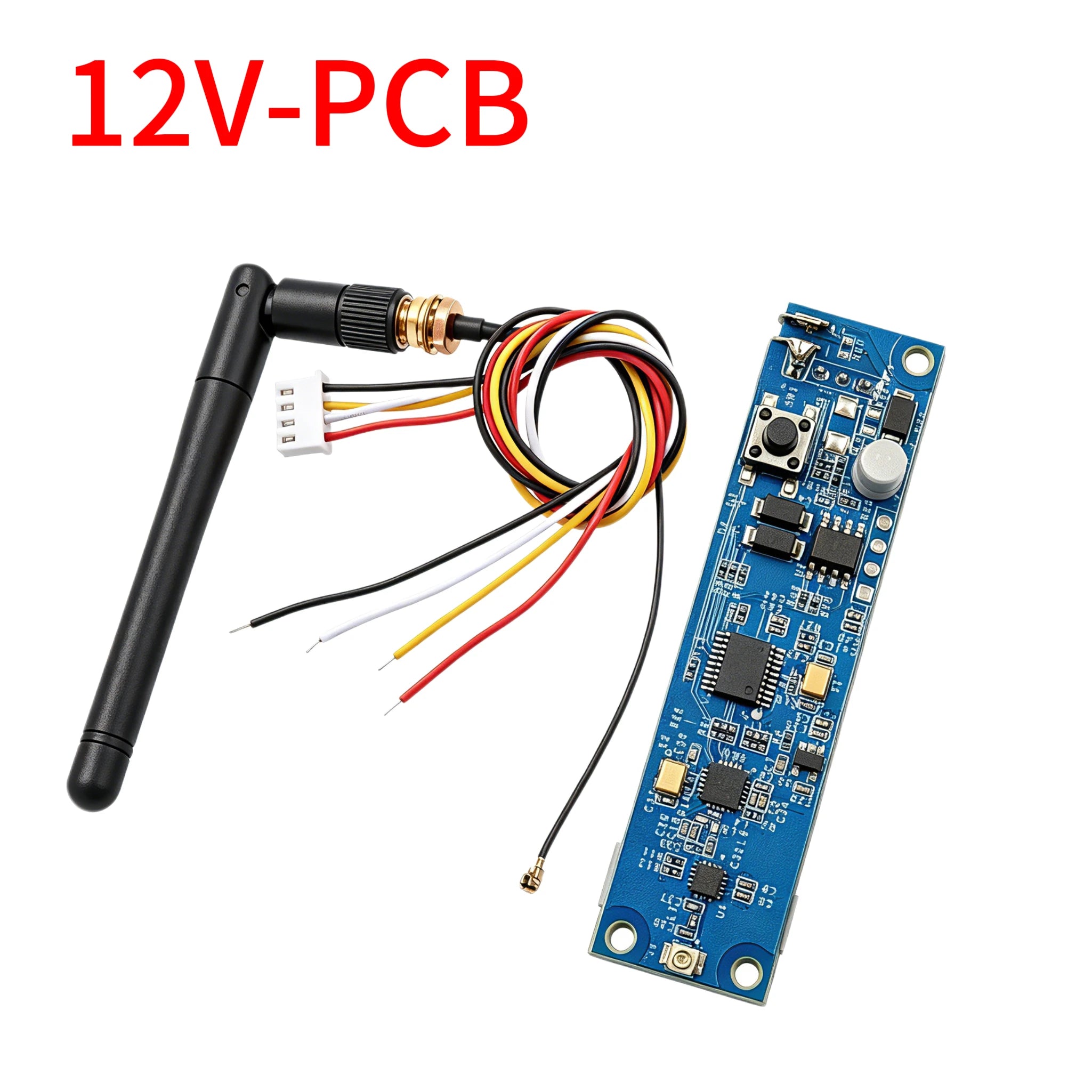

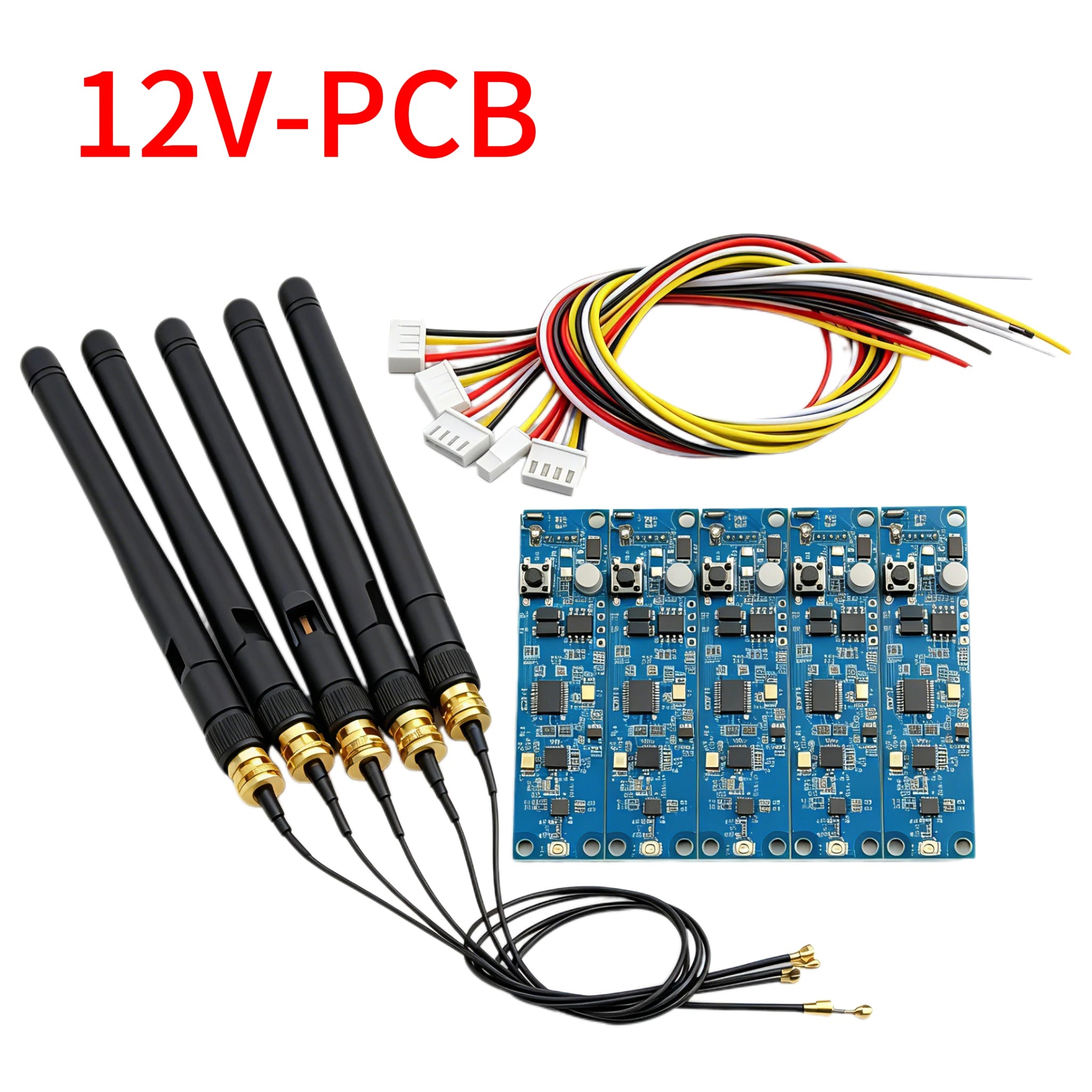

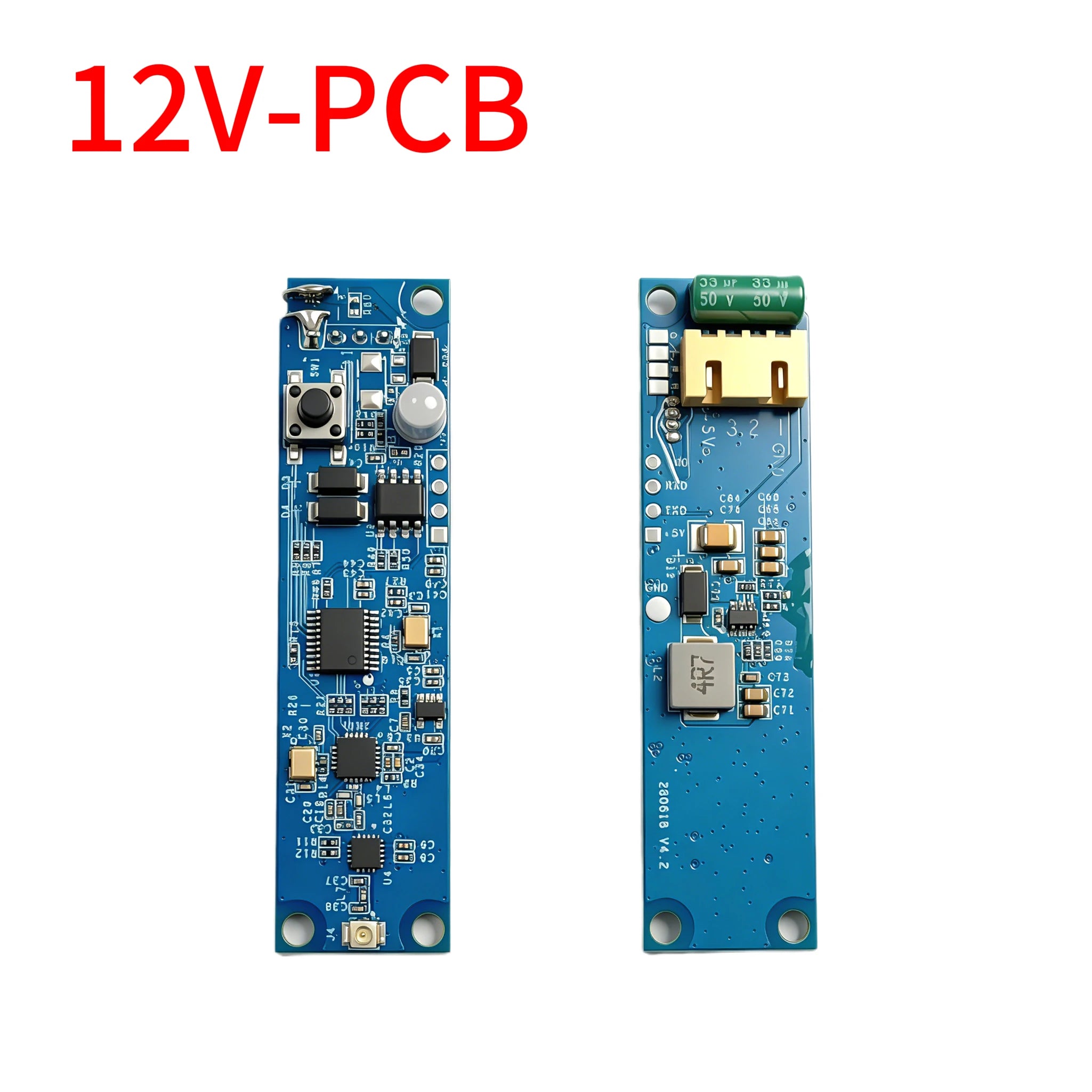

Voltage: 5V/12V-48V
ATTENTON

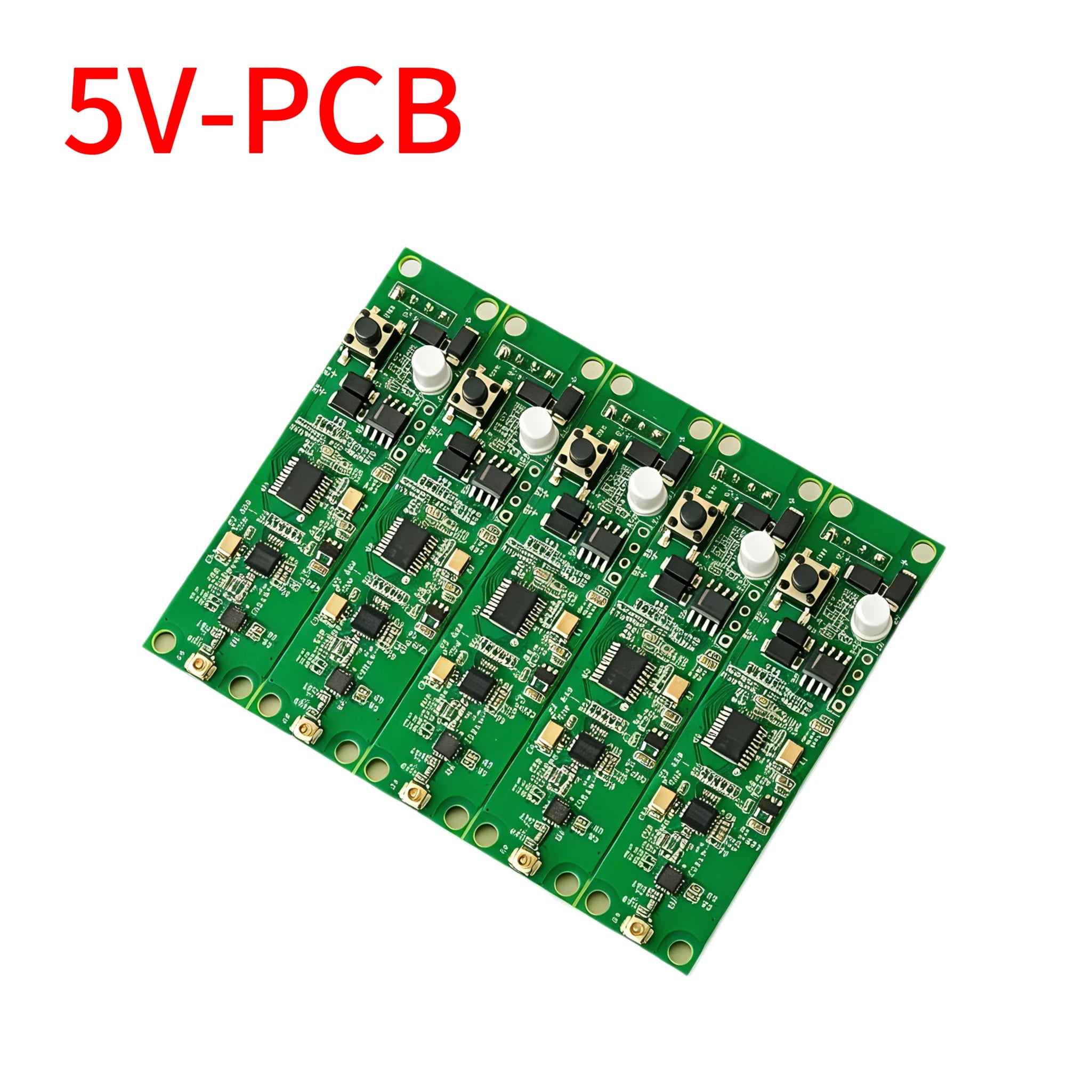

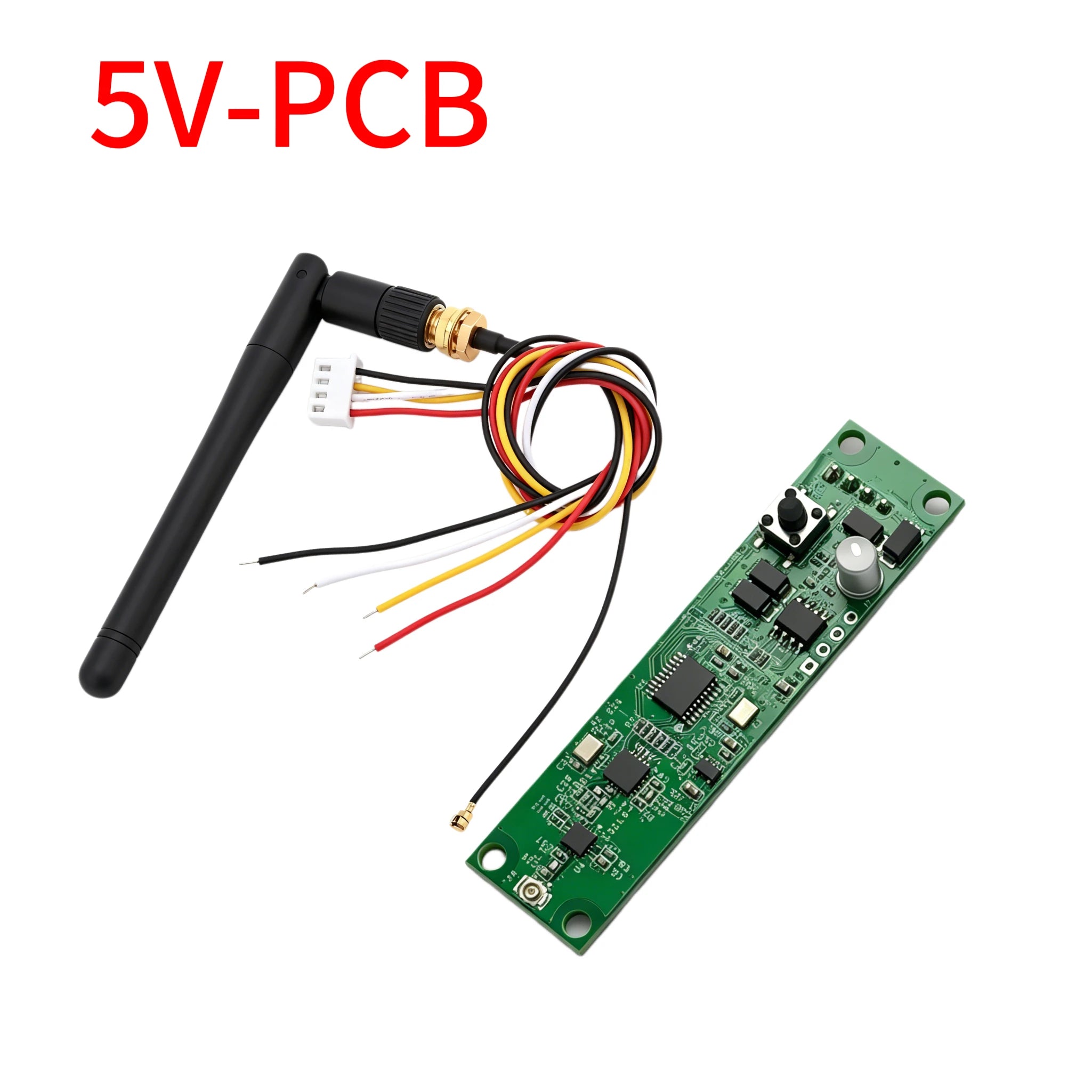

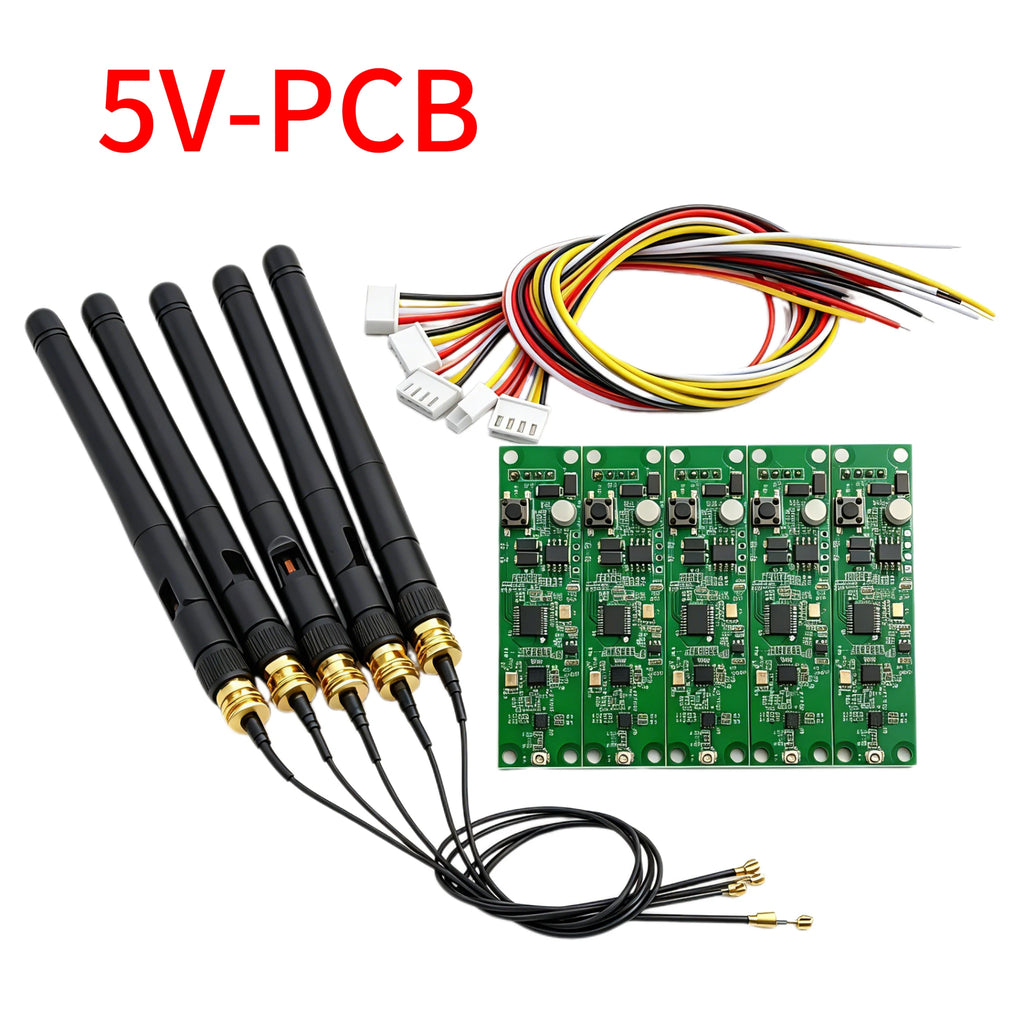

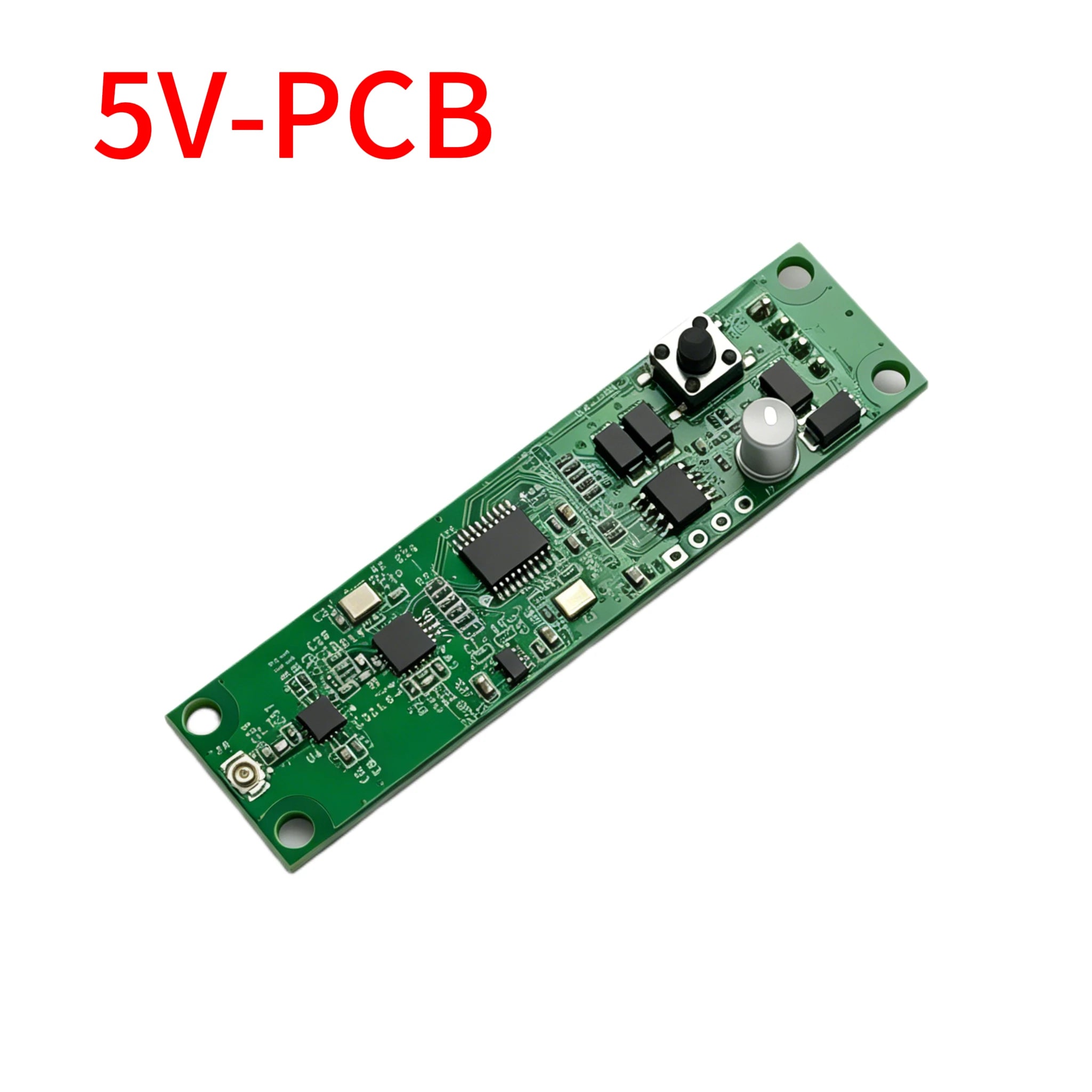

Work Voltage:5V DC

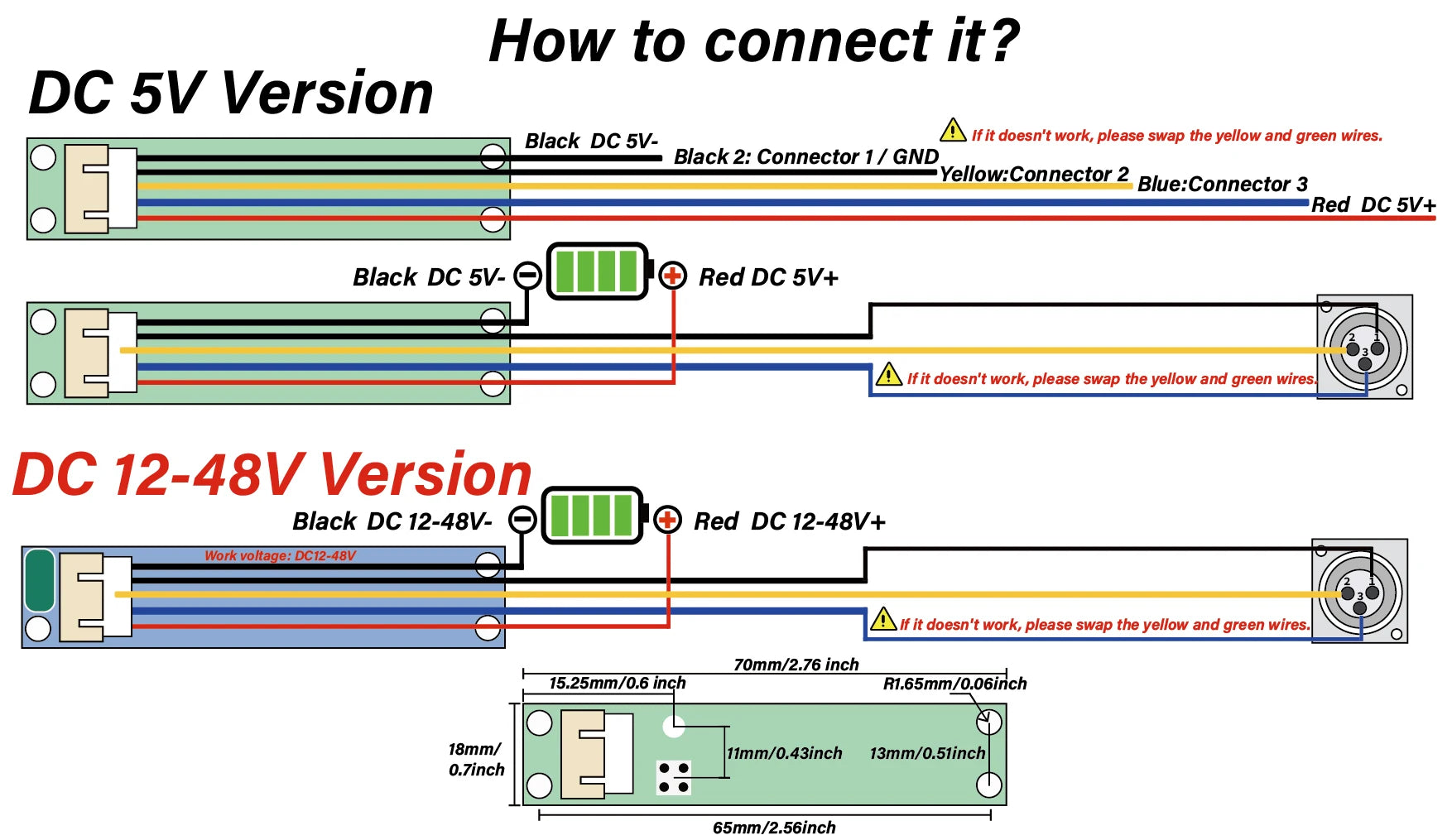

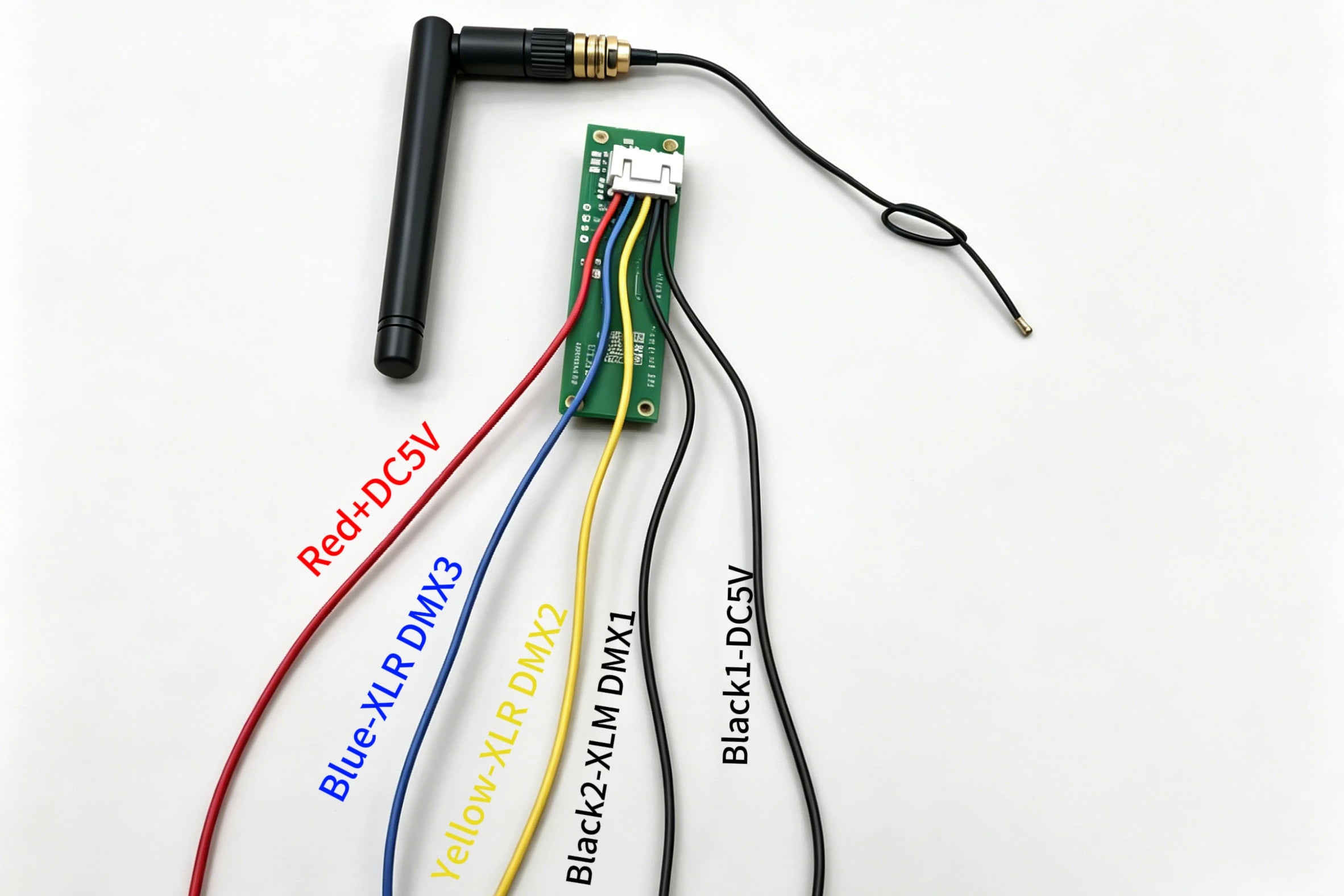

How to Connect the DMX Wireless PCB :
Red wire :5V/12V-48V-DC Black wire:5V/12V-48V-DC Anther Black wire: Connector 1 /GND
Blue wire: Connector 3 Yellow wire: Connector 2
that connection is suit for 99% of the DMX set ,if cannot work ,pls exchange the blue and yellow wire
FEATURES
Tricolor LED displaying.
126 channels jumping frequency automatically.
7 groups ID code settable.
Small size, easy to suit for interior of accessed lighting.
SPECIFICATIONS
Input voltage: 5V/12V-48V DC 500mA MIN
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: 3pin female plug
OPERATING MANUAL
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press key 1 time to indicate ID setting, press again to set IC.
Working condition:
LED constant lit up: no DMX or wireless signal.
Red LED flash: transmitting.
Green LED flash: receiving total 126 channels, it's searching automatically.
ID Code- "1-7" groups ID code, press "KEY" for setting.
Establishing Communication:
Power on.
Communication was established correctly .
