SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: MJJC

Certification: CCC,ce,EMC,FCC,LVD,ROHS,CE,RoHs

Choice: yes

Color Temp(K): 6000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: SANAN

LED Chip Model: COB

LEDs Number/M: 360

Luminous Flux: 249-2000

Model Number: Sensor Stair Light Kit

Nominal Voltage: 24V

Occasion: Living room,Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Motion

Power Source: DC

Specifications (light beads / m): 360

Strip type: COB

Voltage: 24v

Waterproof: No

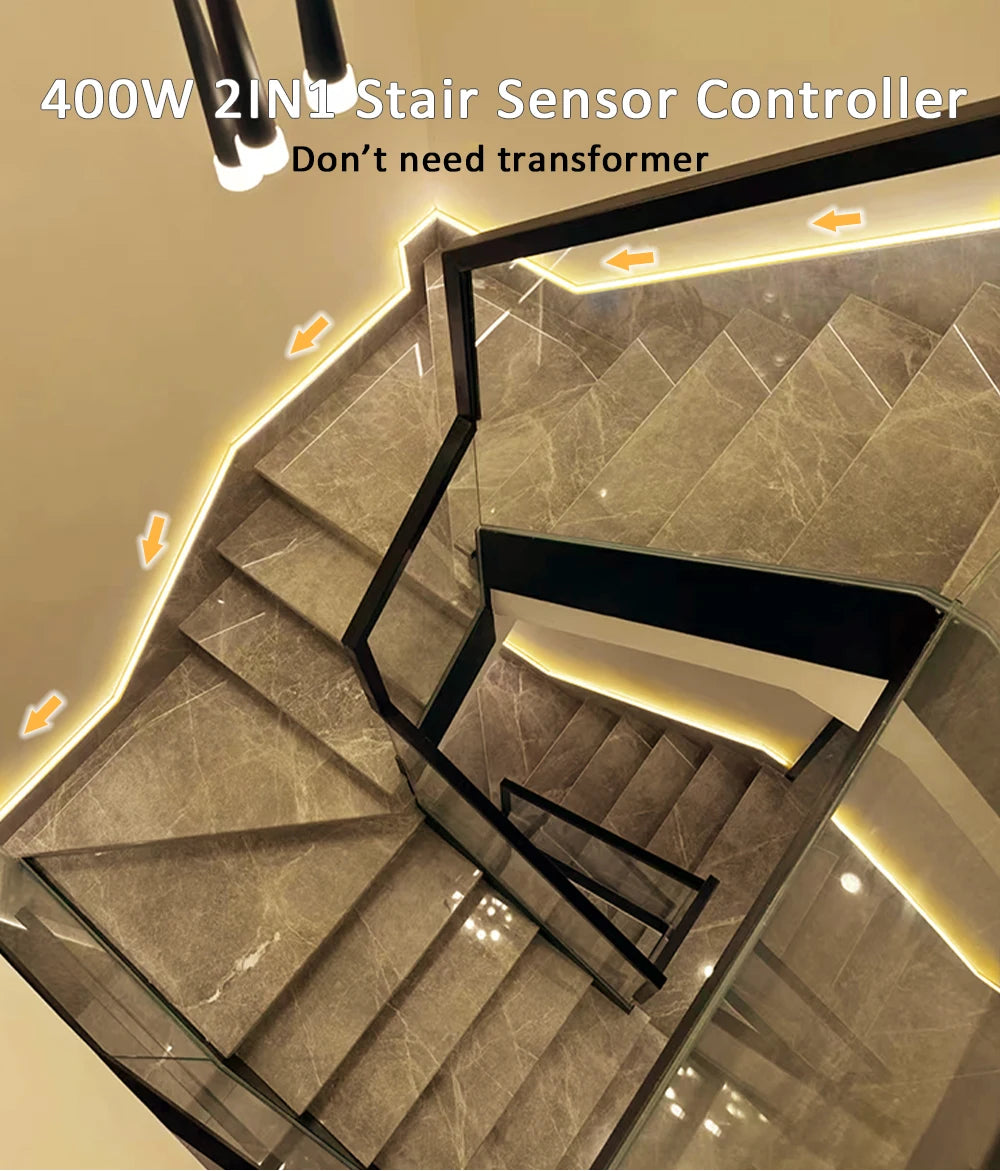

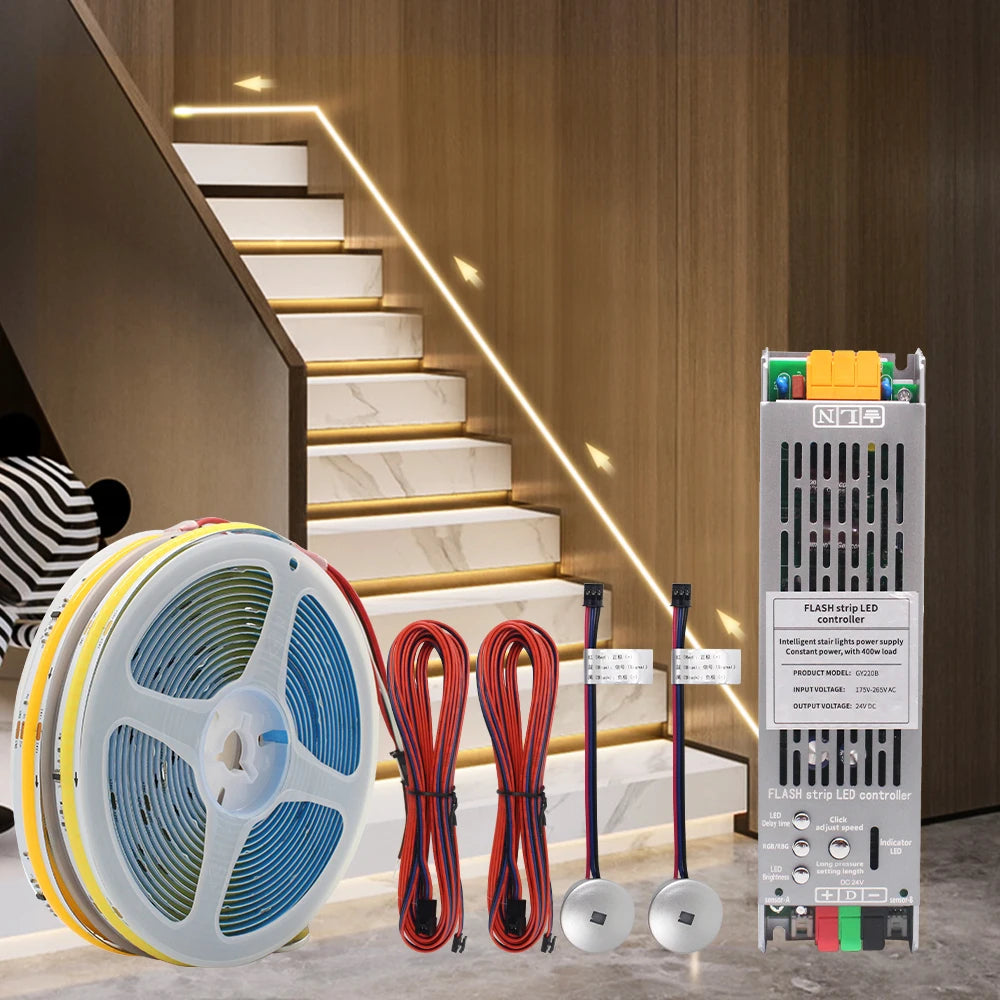

New Products: Intelligent stair light controller with motion sensor

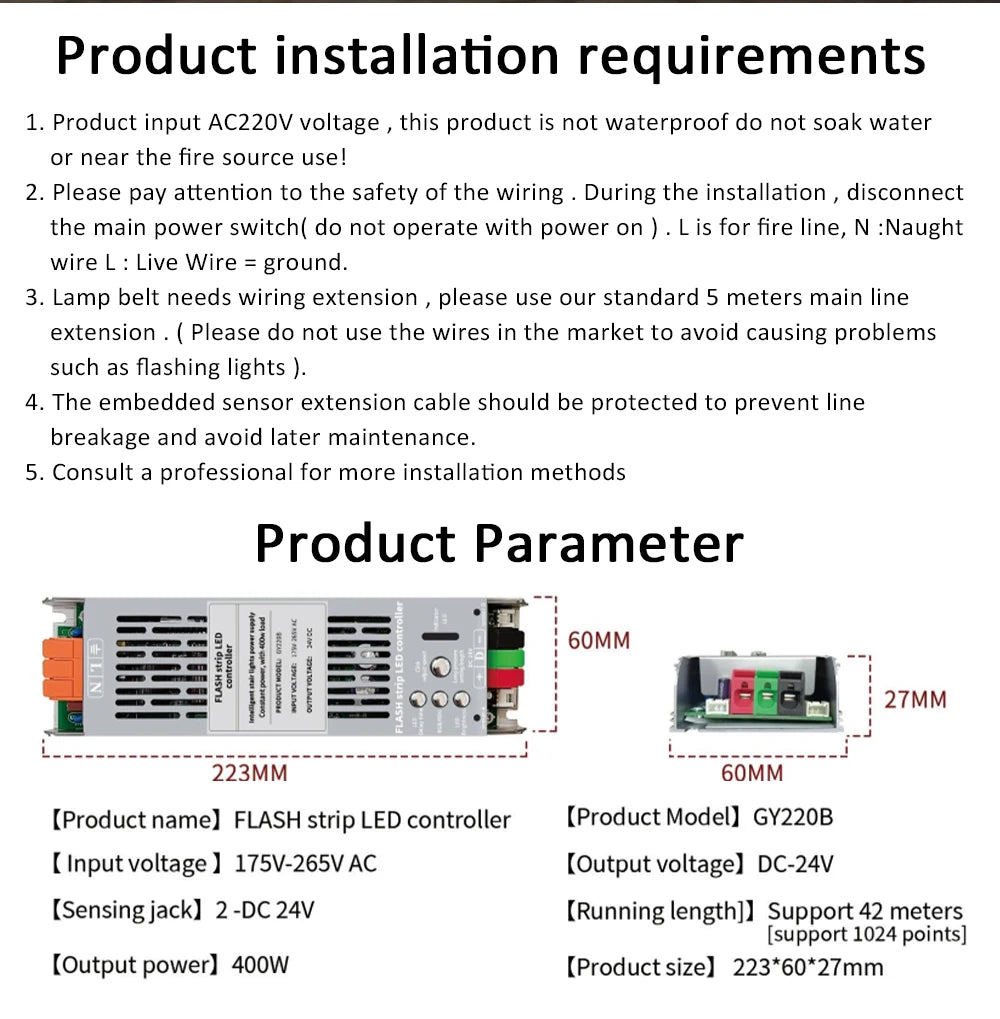

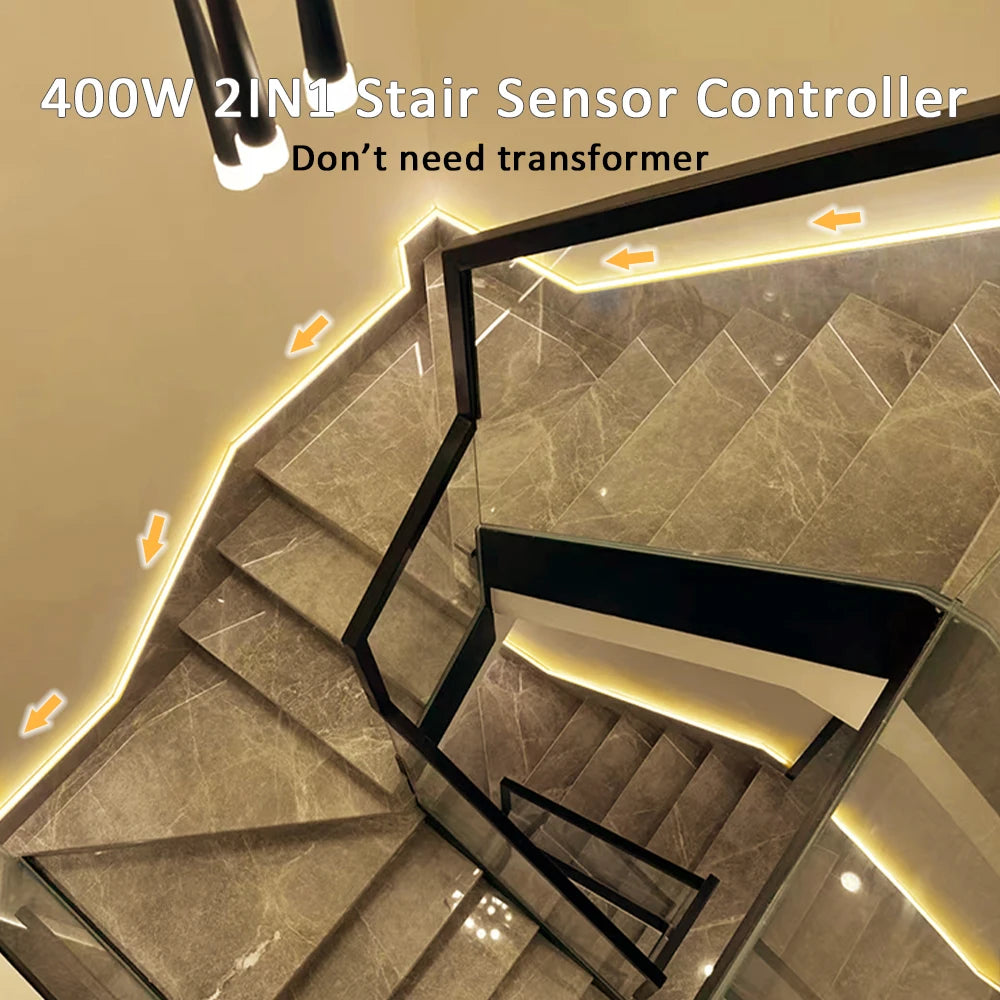

Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient.

Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working)

Output: DC 24V

Max Power: 400W

Product size: 223*60*27mm

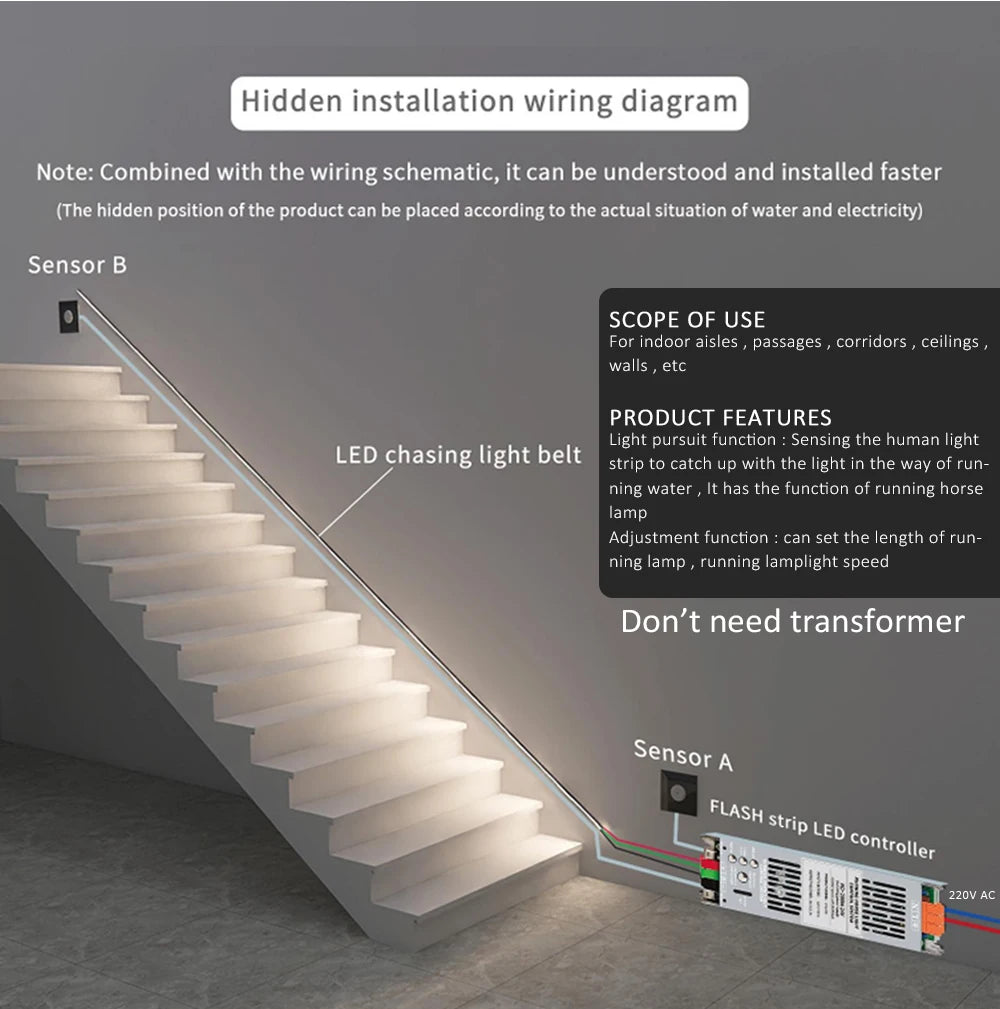

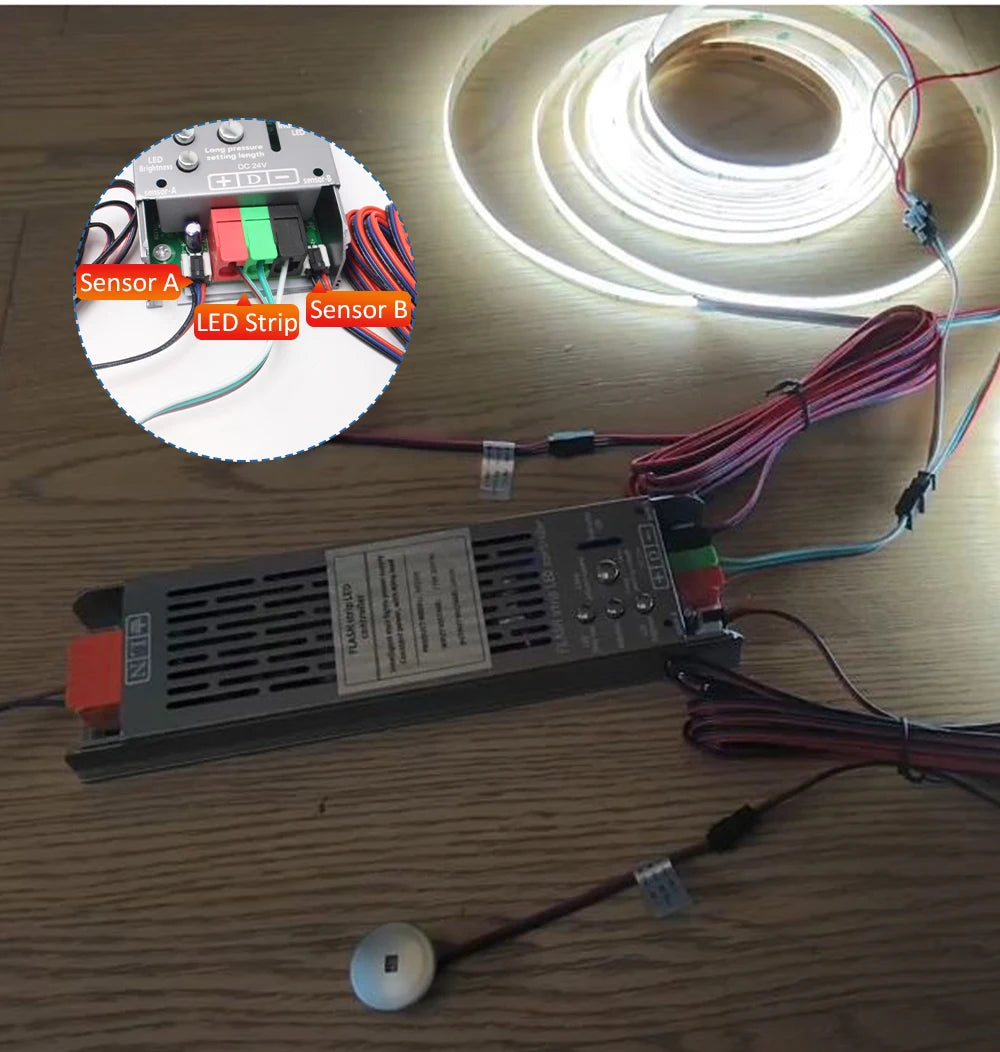

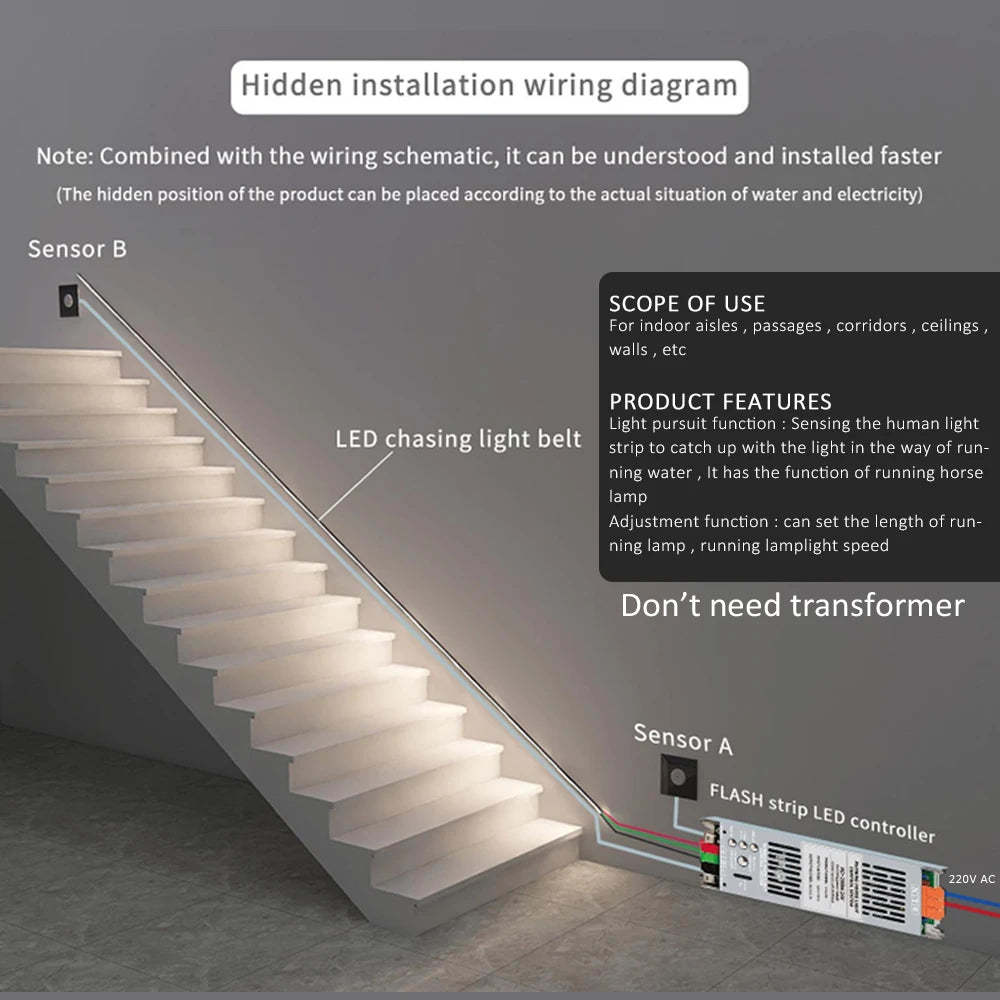

Sensor A: Used for Upstairs

Sensor B: Used for Downstairs

2pcs Extension Cable Length: 5Meters ( Sensor to controller)

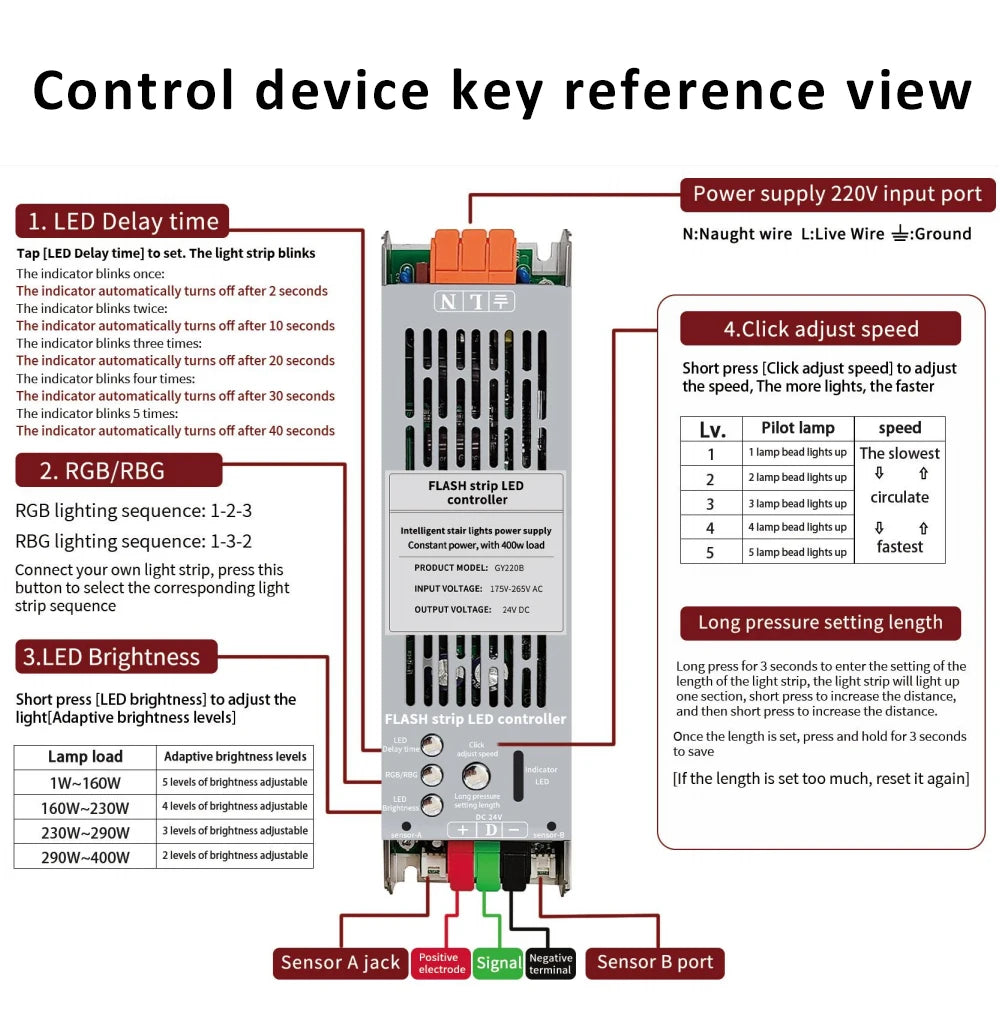

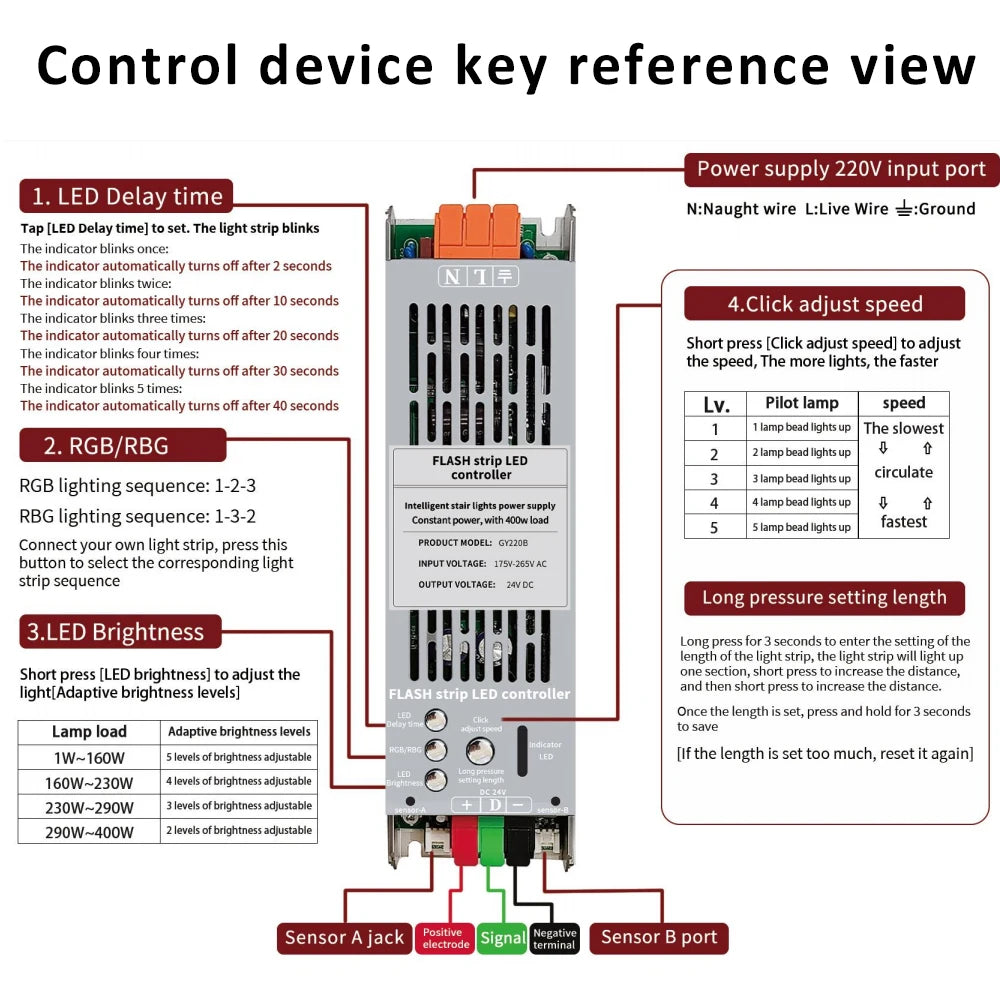

Function:

1.   Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable)

2.  Brightness & Speed is adjustable

3.  Pixel Number is adjustable, Max. up to 1024 Pixels.   Strip Length Max. up to 42 Meters.

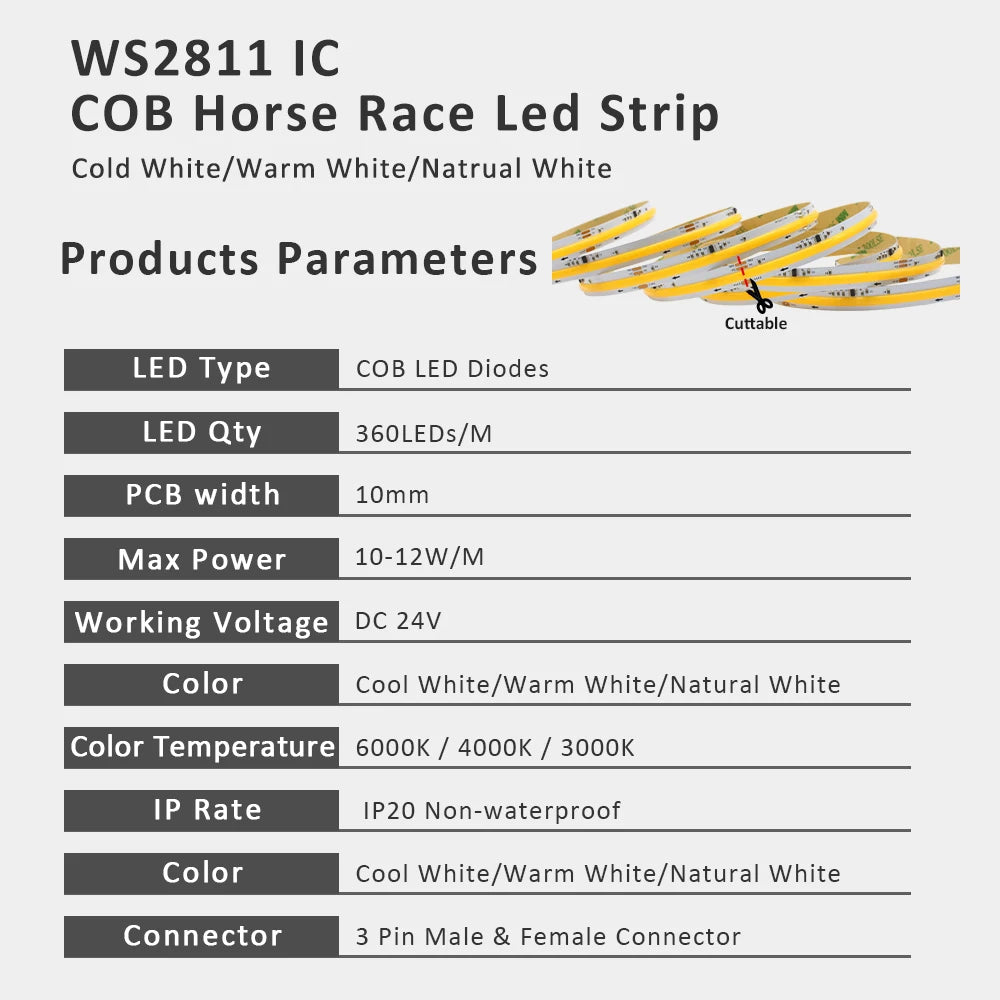

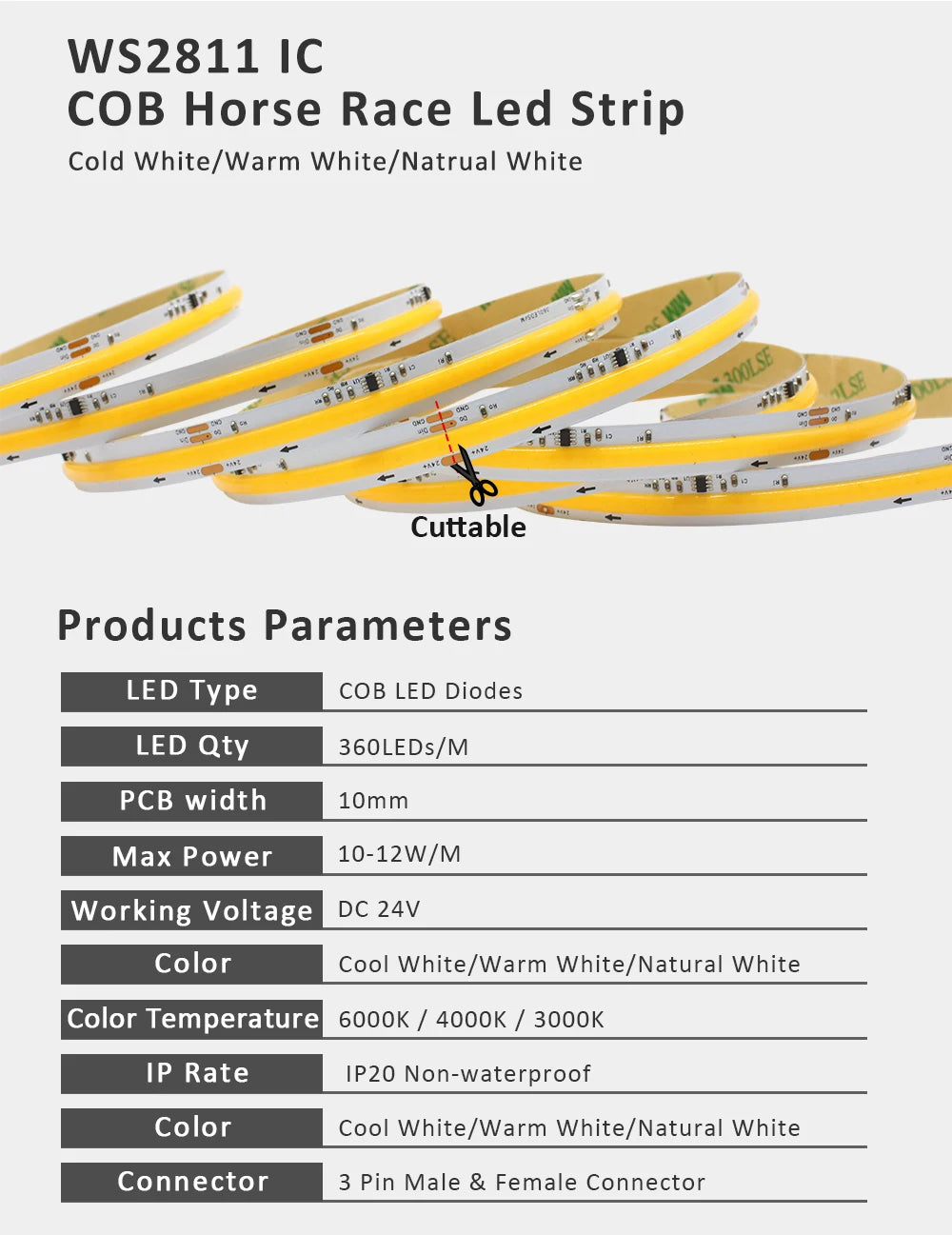

Compatiable SPI Led Strip Light:

Working Voltage: 24V

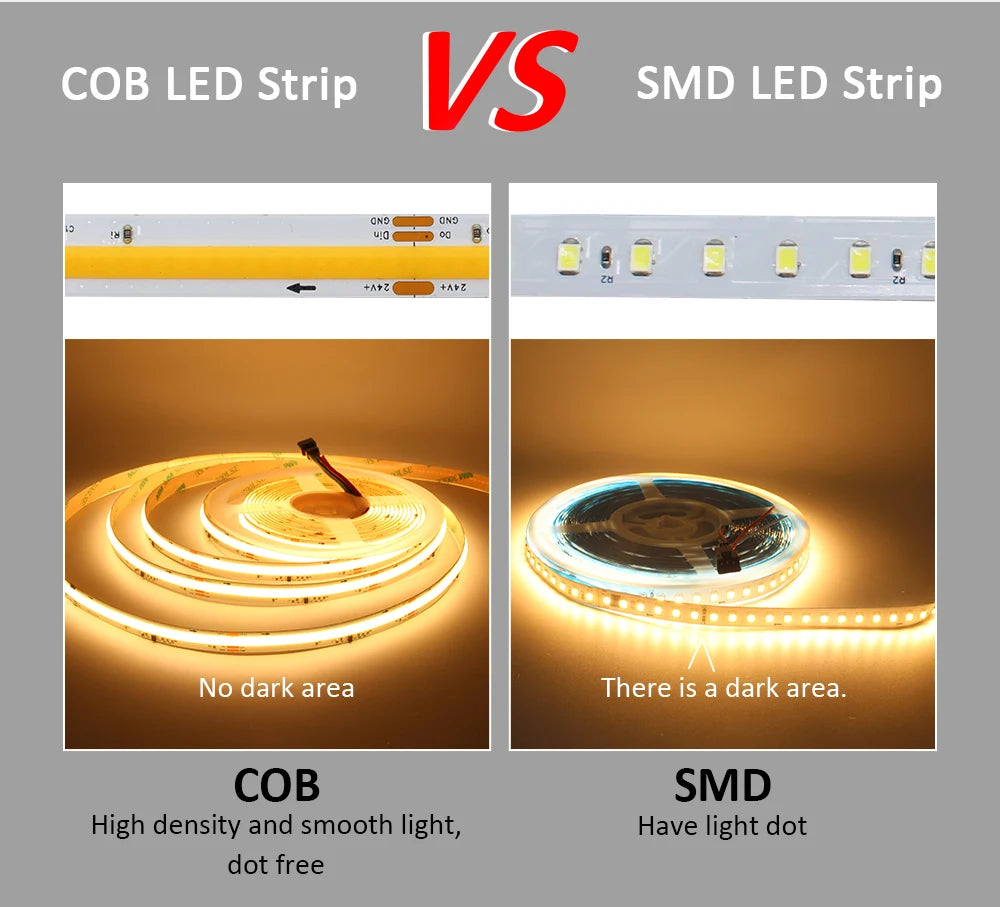

LED Type: COB

Chips Qty: 360 Chips/meter

Length: 5M/10M/15M

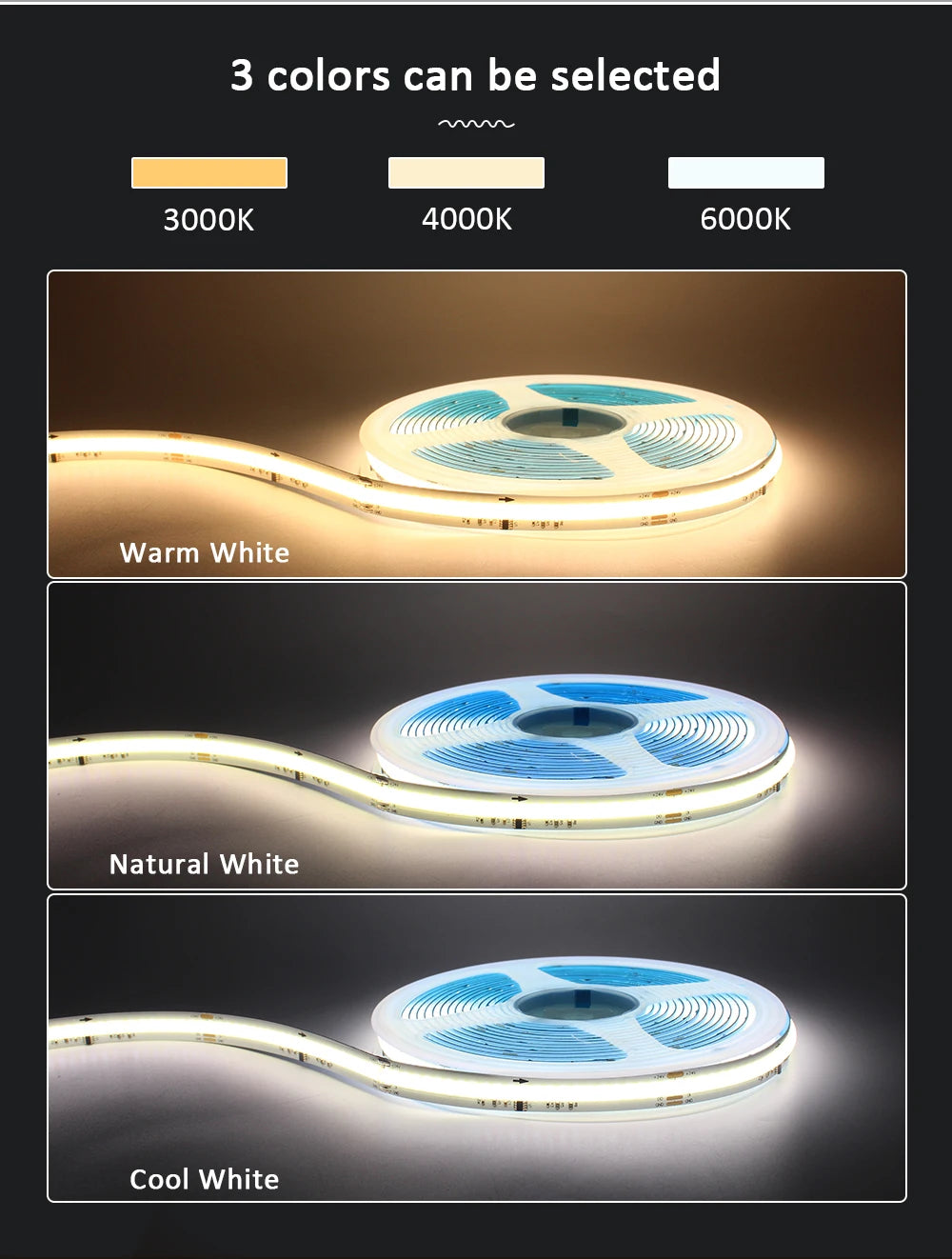

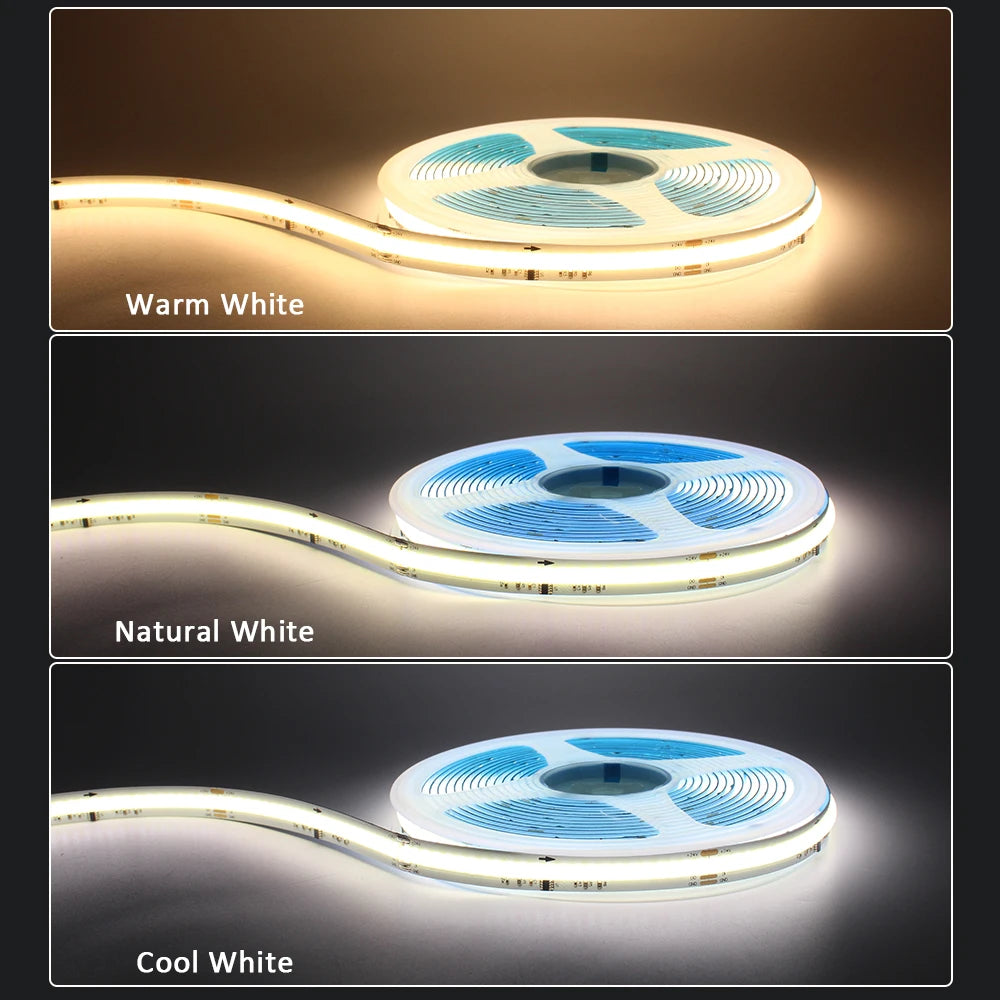

Color: Warm White 3000K, Natural White 4000K, Cool White 6000K

PCB Width: 10mm

Strip Wire:

Red Wire--- Postive +24V

Green Wire ---- GND signal wire

White Wire ---- Negative -24V

NOTE:

 You must read the User Manual for Setting when testing. IF not, Only half led strip working.  THAT IS NOT Quality Problem!!!

     Step A:  Set Pixel Number make sure all diodes are working for the whole led strip.

     Step B:  Set Strp Order through Pressing RGB/RBG button

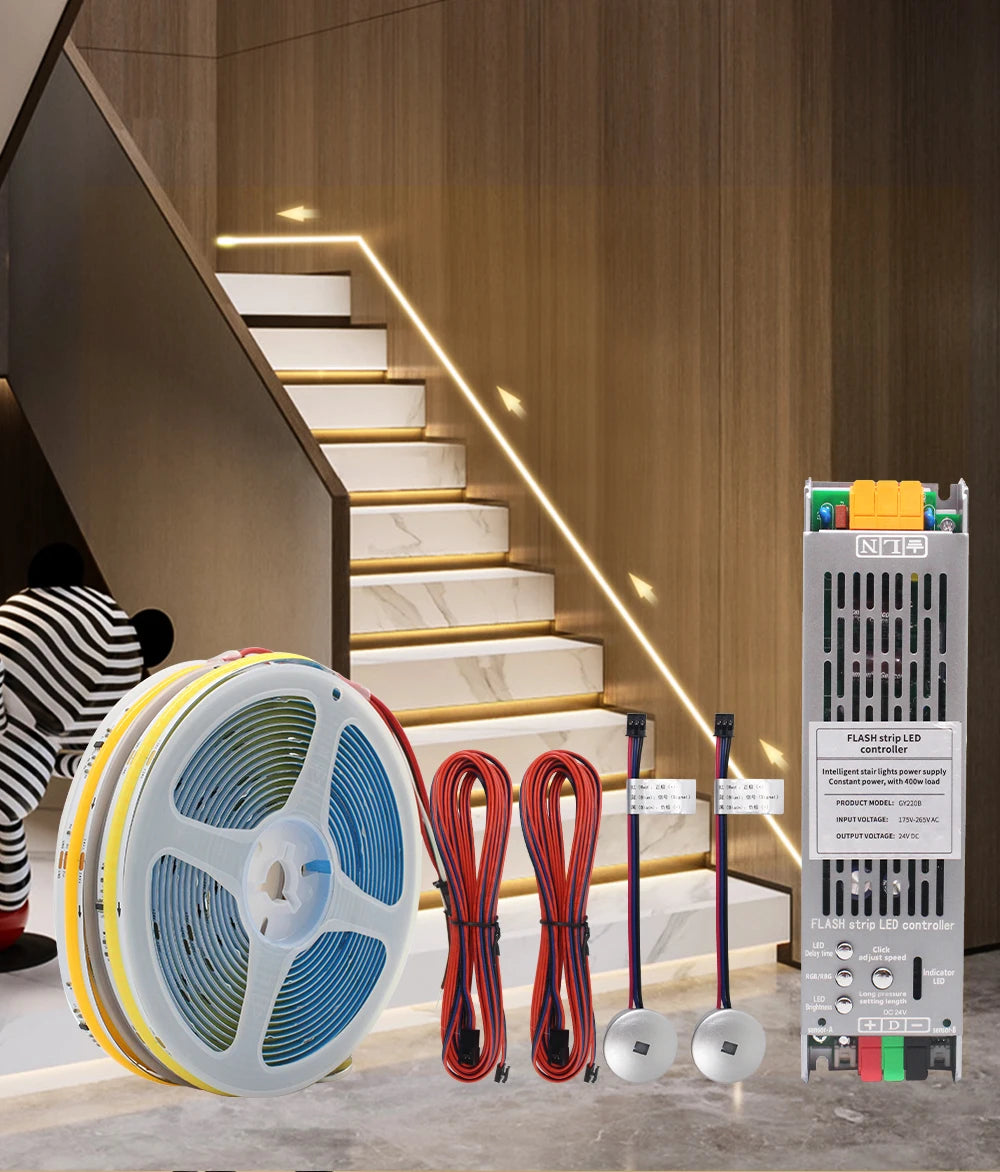

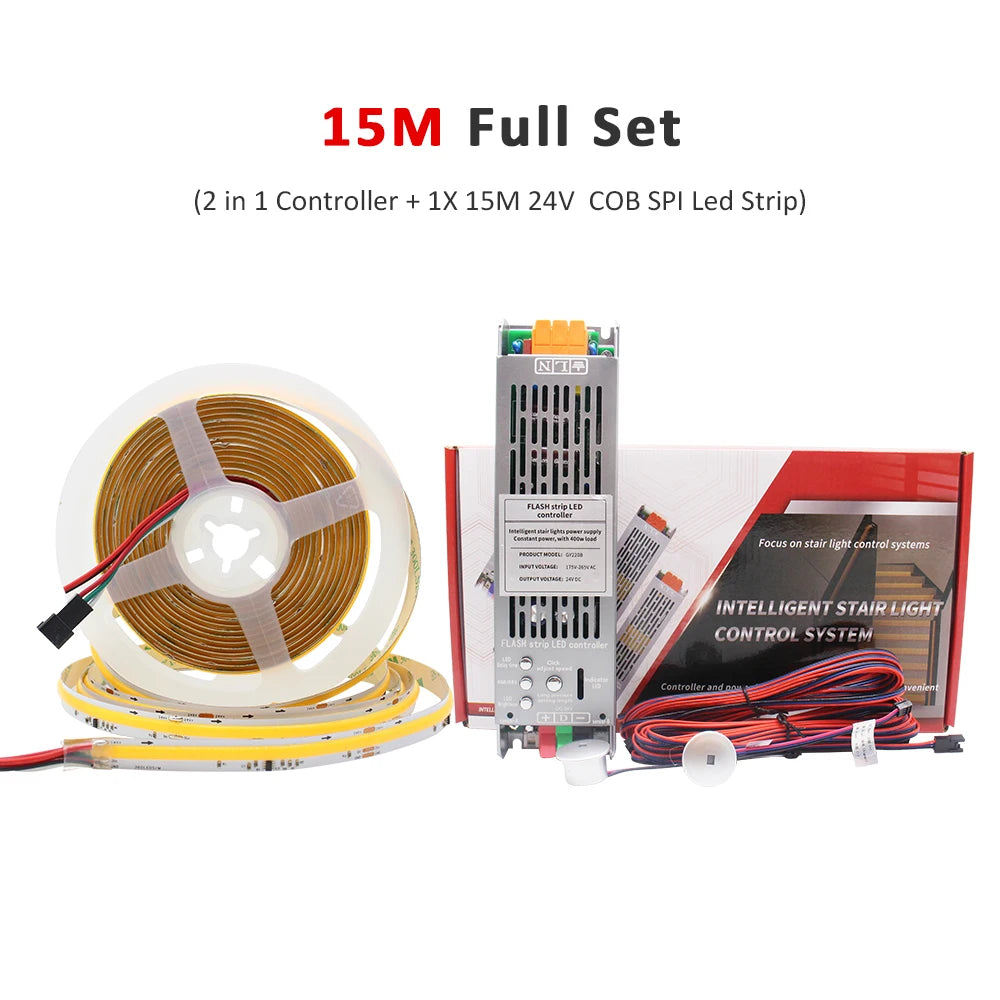

Package Including:

1 x 2 in 1 24V 400W Stair Light Controller with Motion Sensor

1 x 24V SPI COB Led Strip Light
