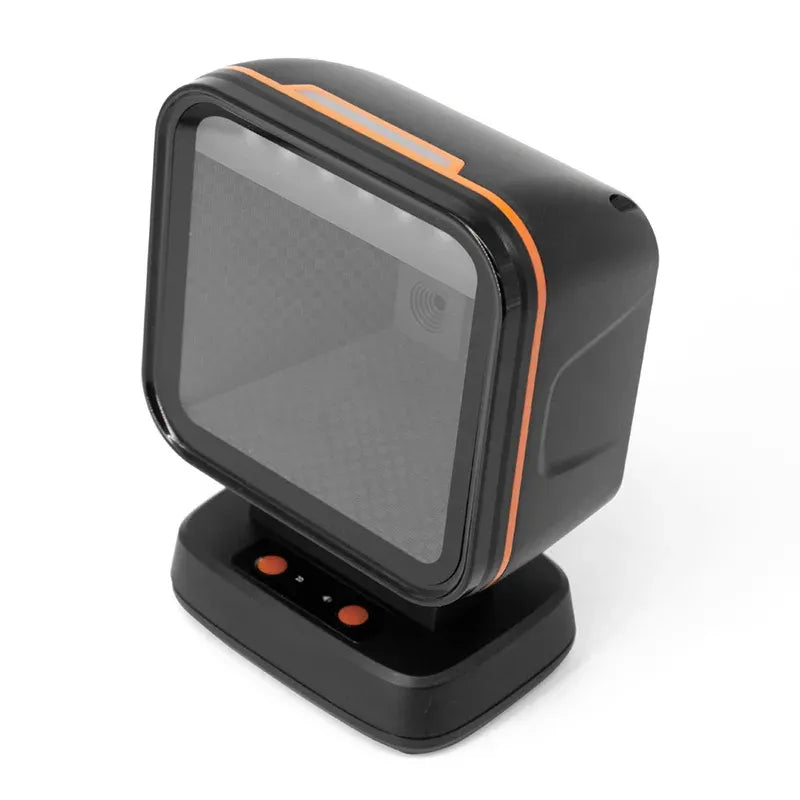

Product features:

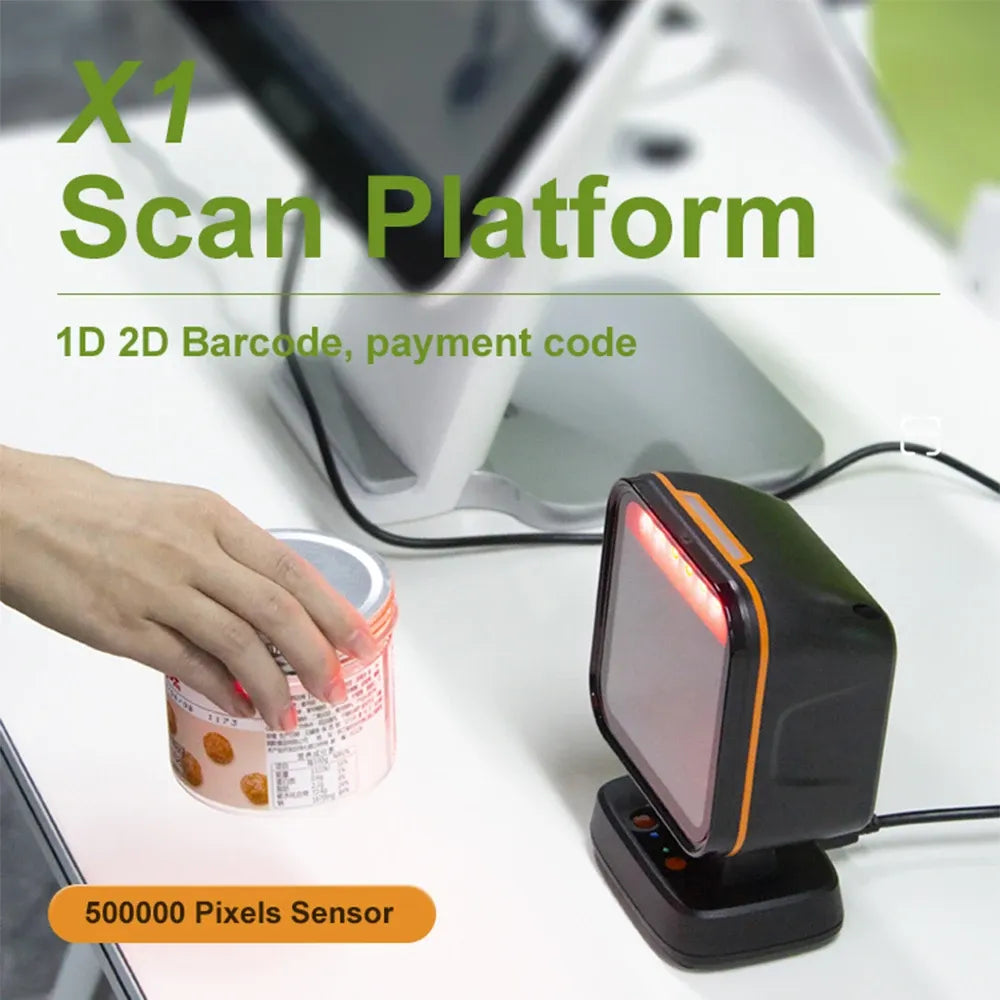

1. Equipped with a new 500,000 global exposure CMOS scanning engine

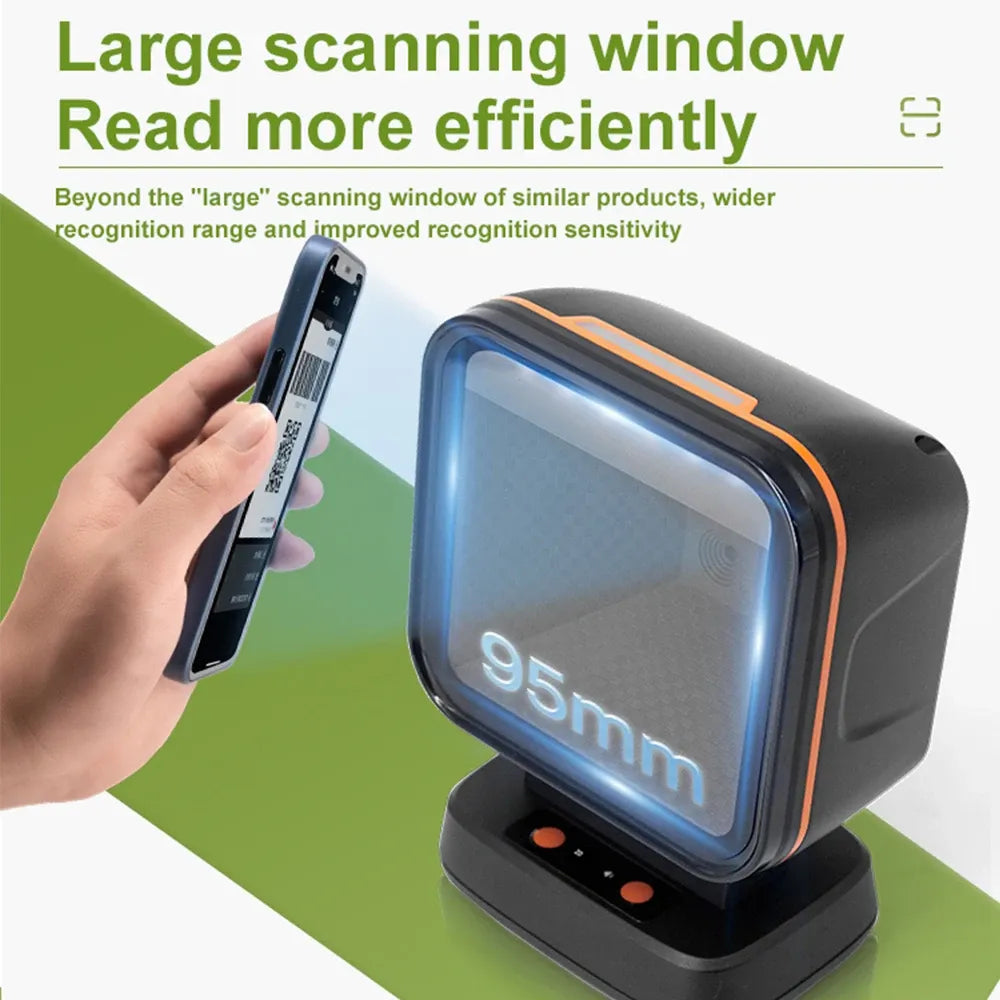

2. Larger scanning window, easier to read barcodes

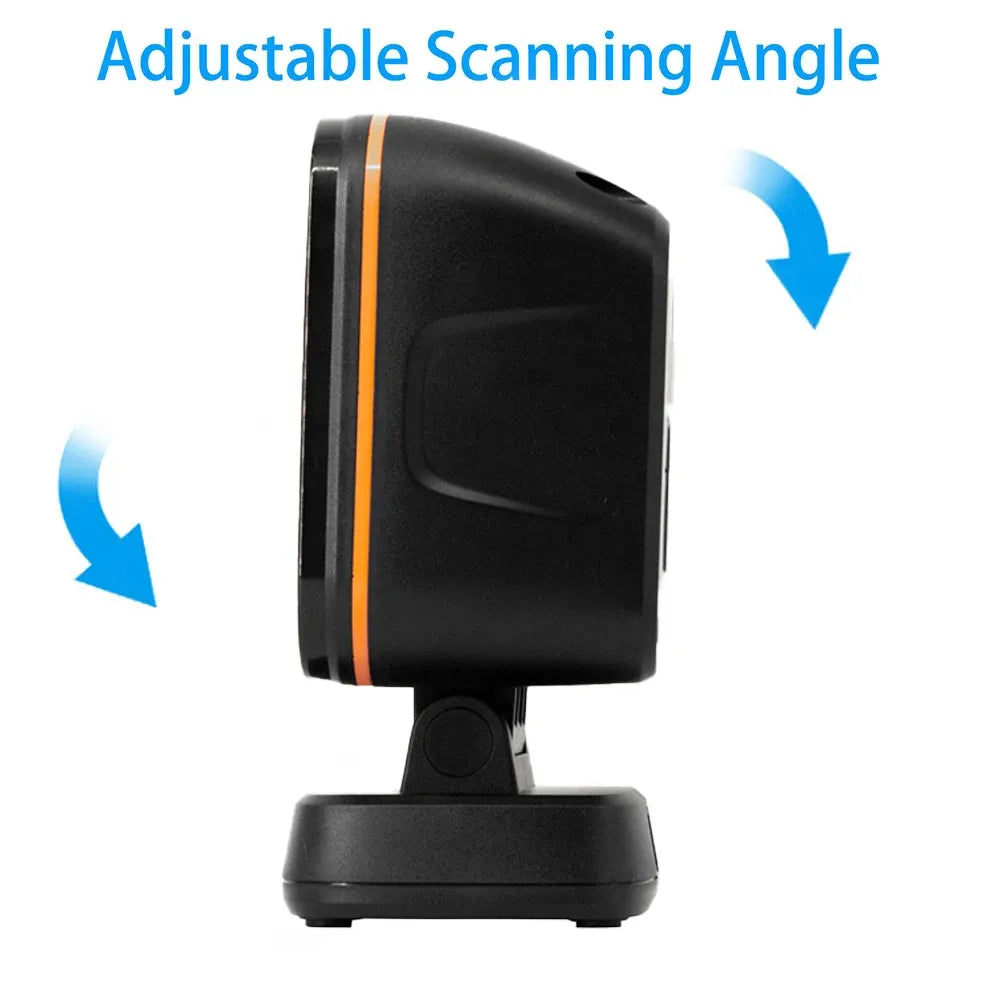

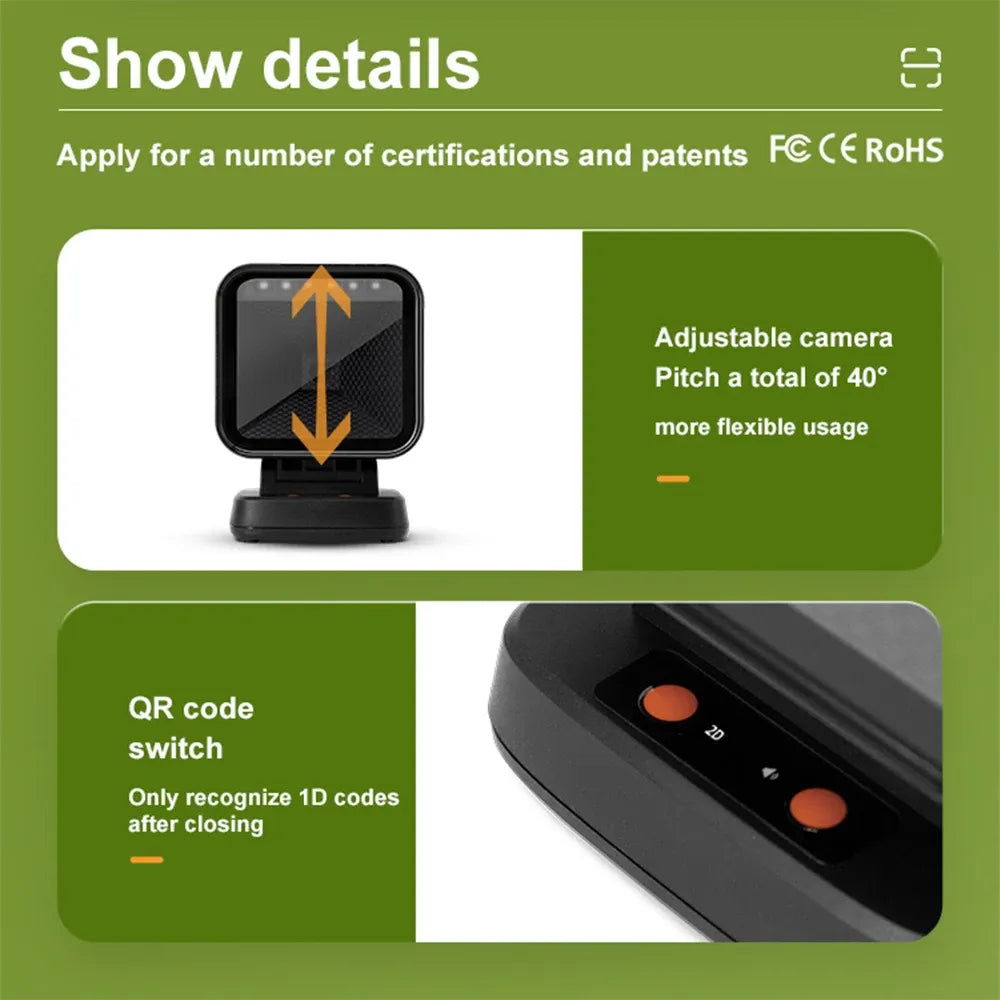

3. Adjustable angle, flexible and easy to use

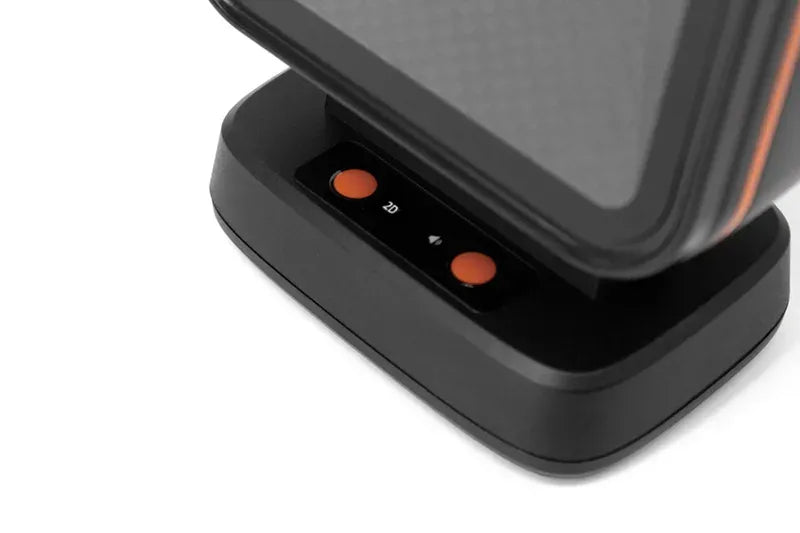

4. Common function buttons, easier to setup

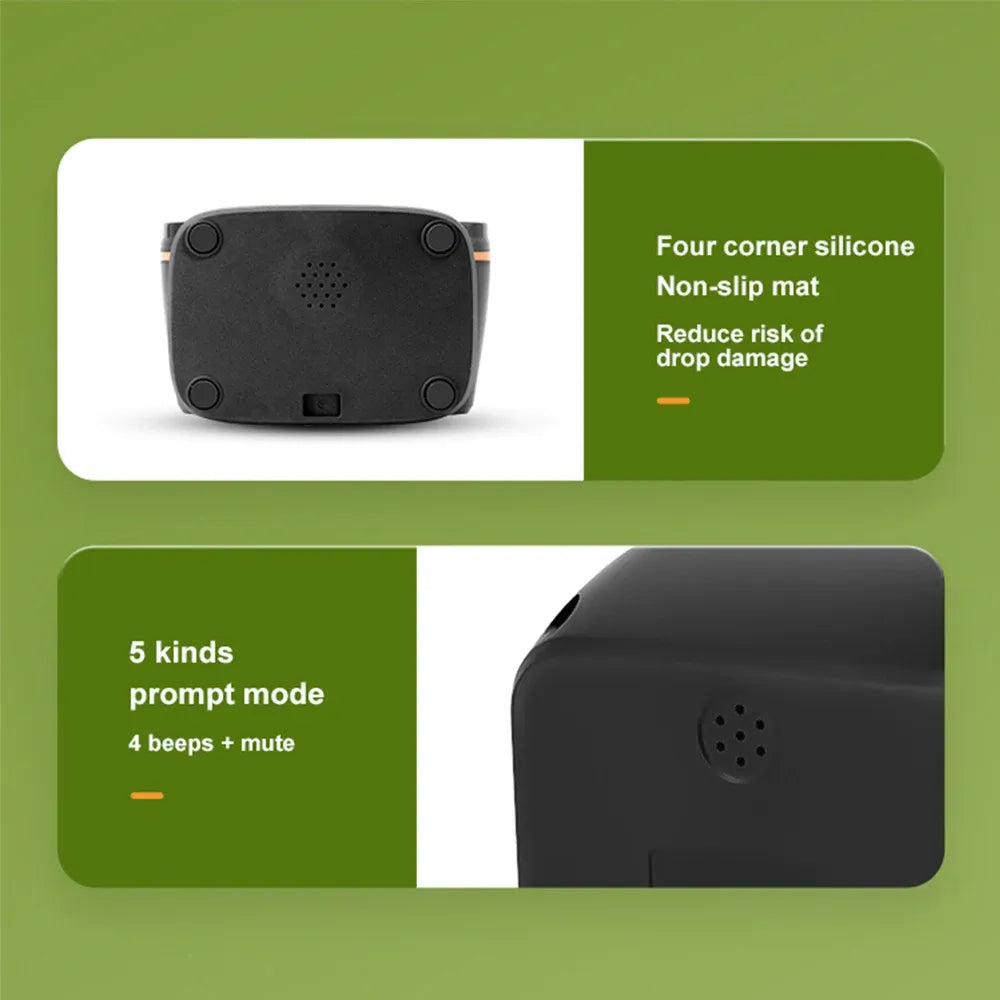

5. 5 different styles of prompt sound, soft and bright LED indicators

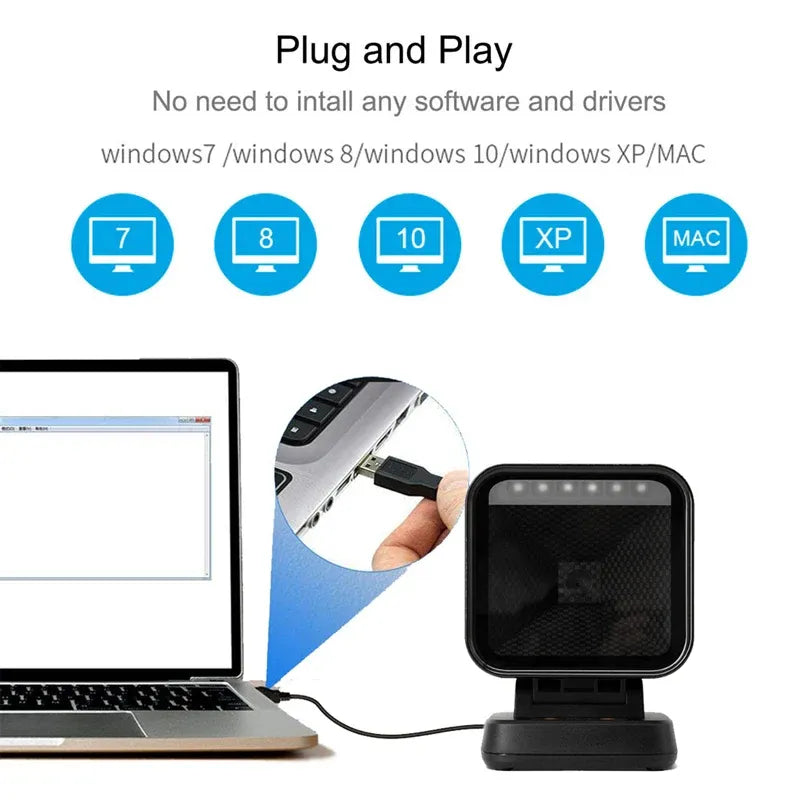

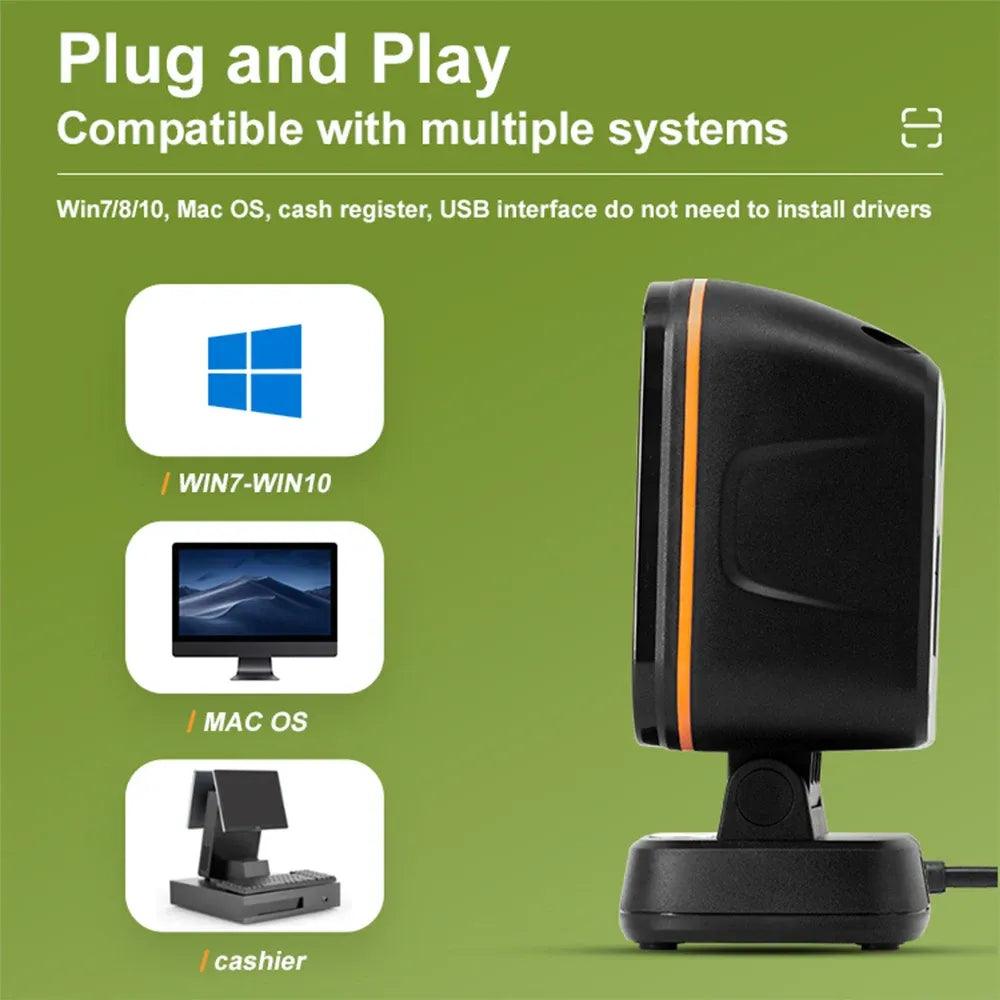

Multiple interfaces, strong compatibility, support a variety of systems and cash registers

Physical parameters:

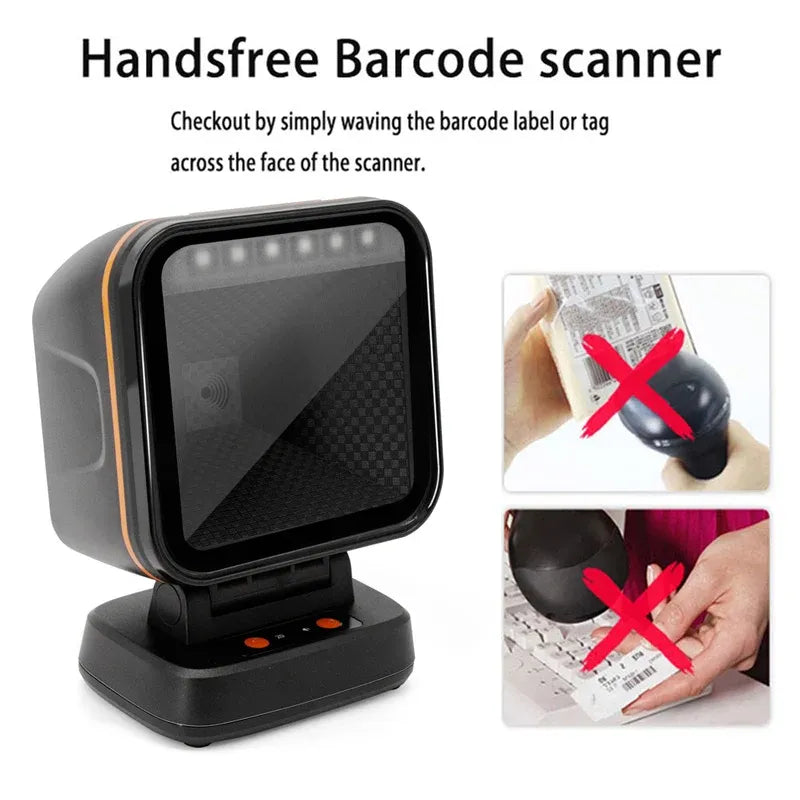

Scan mode: Auto-sensing/continuous scanning

Communication interface: USB-HID keyboard, USB-COM virtual serial port, RS232 serial port

Interface type: USB TYPE-B

Prompt mode: Buzzers, LED lights

Set up way: Press the button to set, manually scan the setting code in turn

Shell material: ABS+PC

Cable standard: Straight line 1m

Exterior dimensions: 122mm×160mm×76mm

Weight: 312g (without cable)

Performance parameters:

Scan type: CMOS global exposure

Differentiation: 800*600

Light source: 617nm red LED

Scan angle: ± 60°, ±54°, 360° (left and right, front and back, rotation).

Scan rate: 20 cm/s

Field of view angle: 48° (H) x 30° (V)

Print contrast: Minimum 20%.

Decoding Types:

1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite

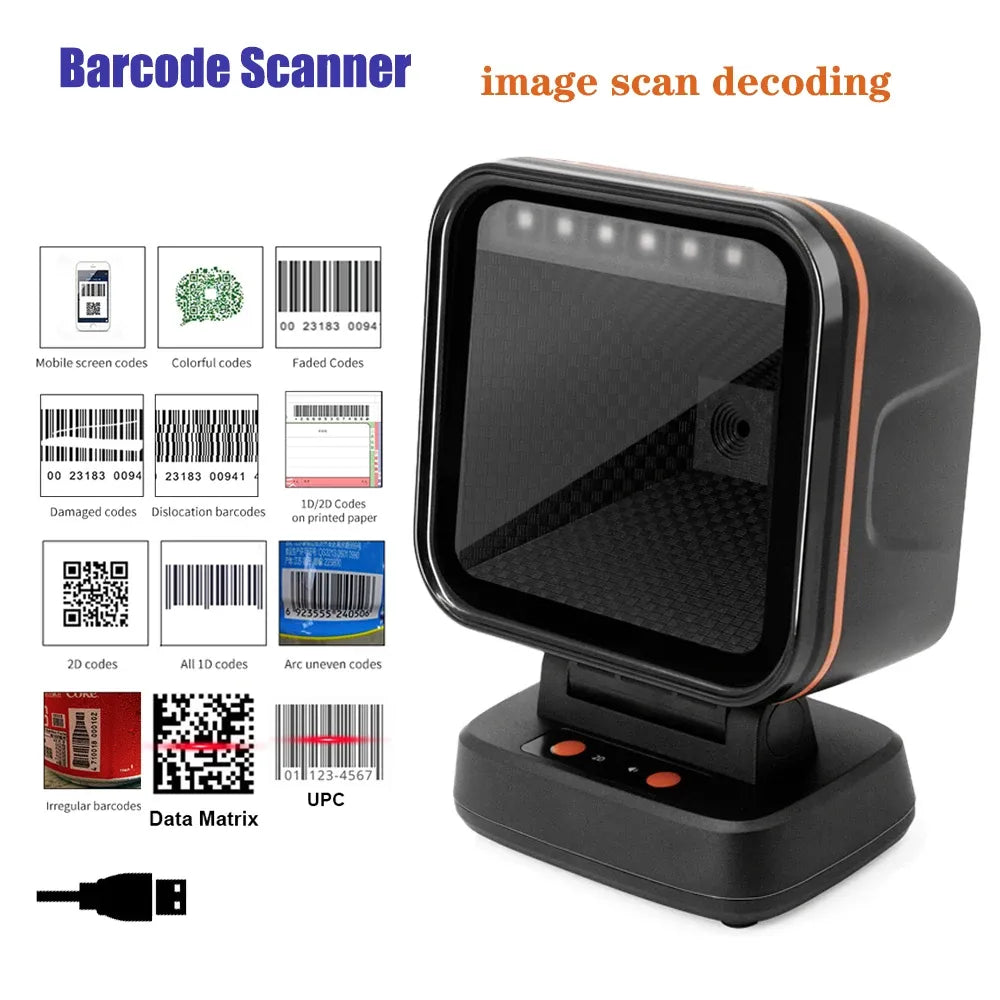

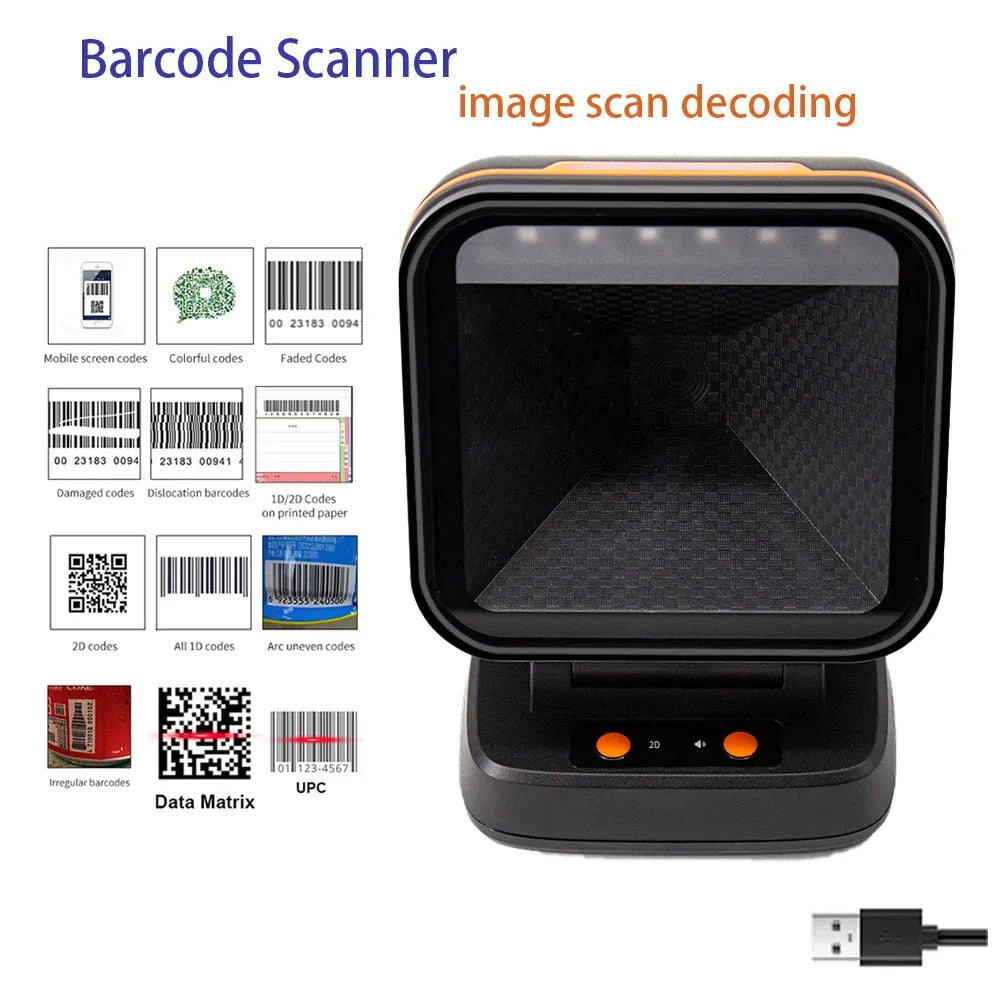

2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile phone screen reading

Minimum resolution: 4 mil

Electrical parameters:

Input voltage: DC 5V±10%

Current: Working: 240 mAh; Standby: 190 mAh

Environment parameters:

Temperature: 0°C-50°C (working); -20°C~+70°C (storage).

Humidity: 5%-95% non-condensing
