SPECIFICATIONS

Brand Name: z3x easy jtag

High-concerned chemical: None

Material: Other

Model Number: z3x easy jtag

Origin: Mainland China

Pieces Included: 1

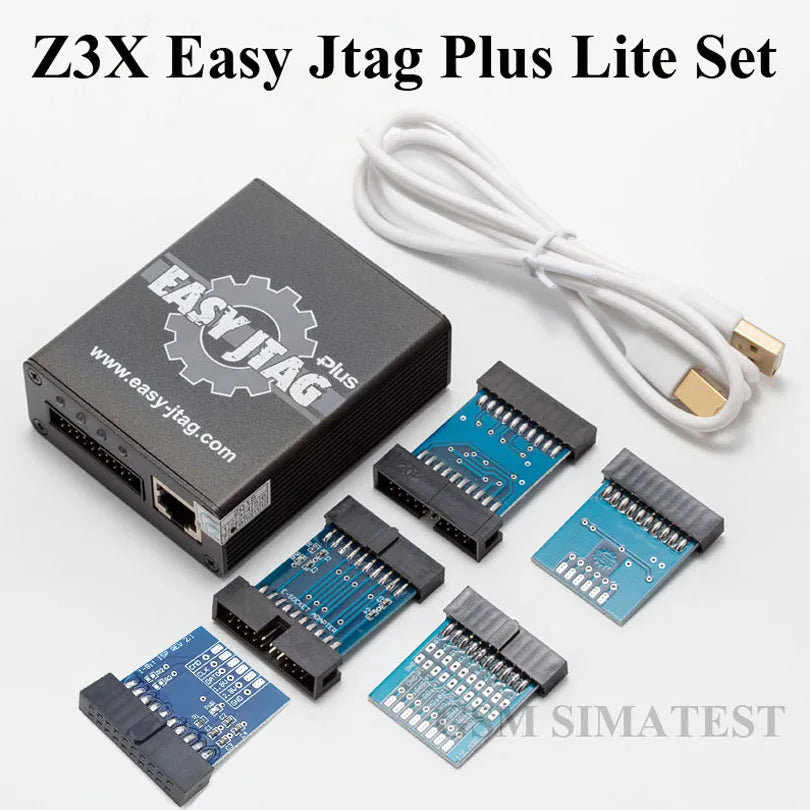

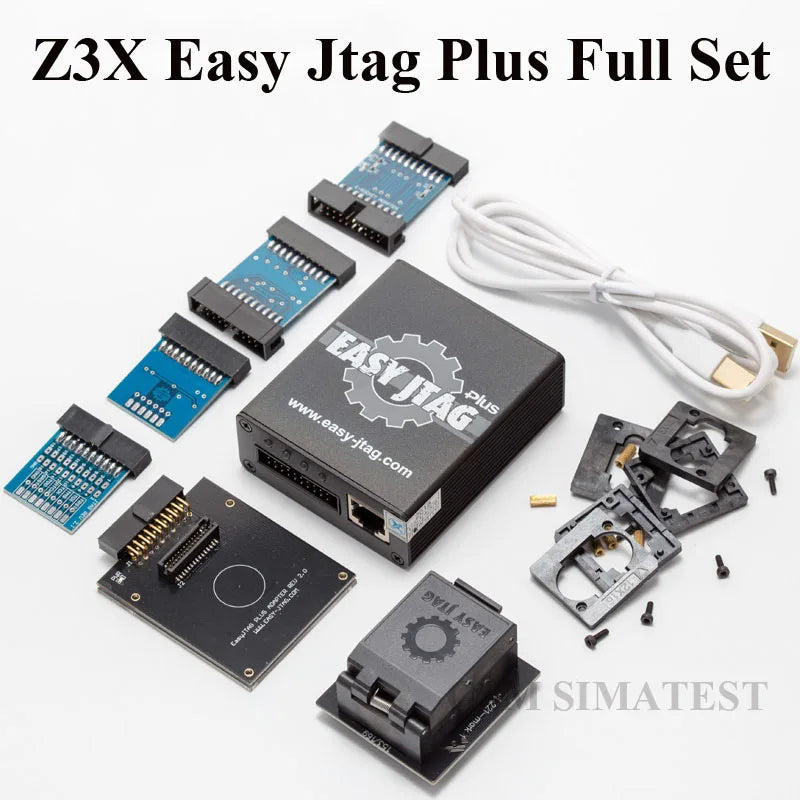

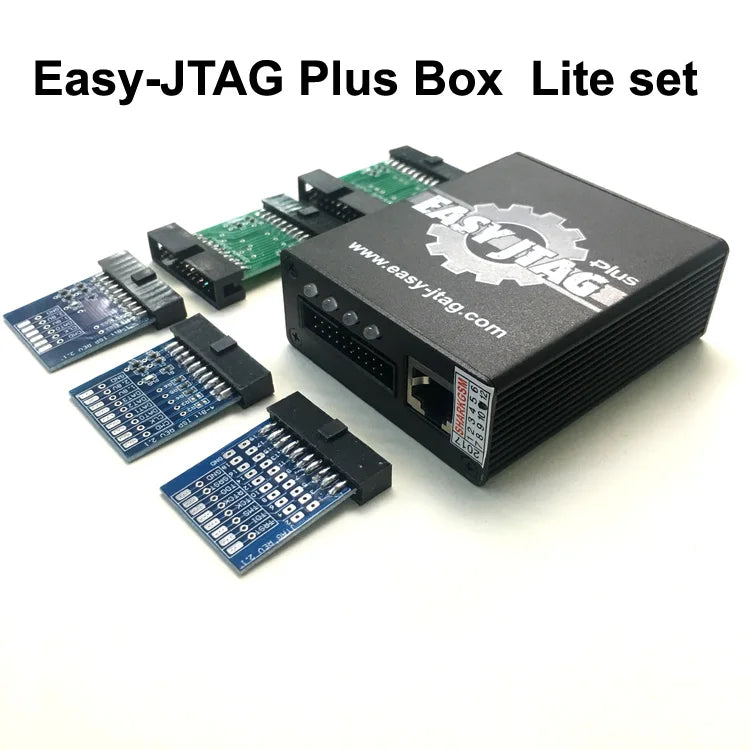

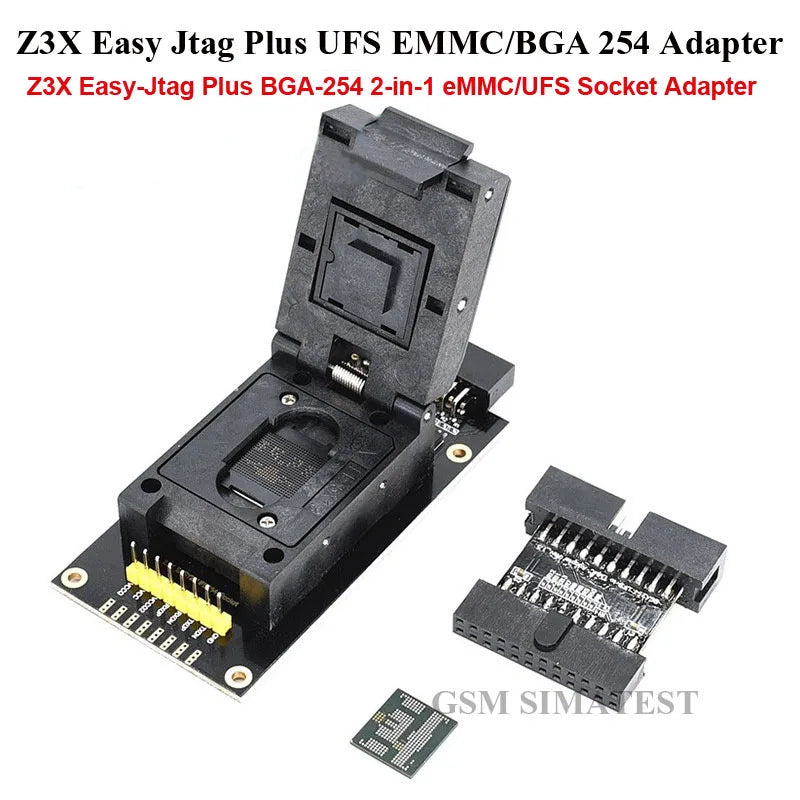

Product Name: Z3X Easy Jtag Plus Box,  Z3X Easy-Jtag Plus Lite Set, Z3X Easy-JTAG Plus Full Set , UFS BGA 254 Socket Adapter

Work environment: Working independently or with an adapter

Easy-Jtag Plus is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and much more protocols.

Easy-Jtag Plus - Outstanding features:

One click device repair

Boot repair

Data recovery

eMMC firmware repair

Partition management

eMMC service operations

SPI memory programming

Easy-Jtag Plus - Hardware features:

Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)

Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)

Updated power management subsystem – full digital PWM with ADC control

Added Micro-USB connector (if additional power required)

Added VCC and VCCQ switch with overcurrent protection

Updated USB device interface: USB 2.0 480 Mbps (high speed)

Integrated ISP engine: Z3X high power pro engine (4 MB/s)

ISP support 1 and 4 bit* connection

Added eMMC 8-bit high-speed interface up to 42 MHz

Integrated NAND* engine: NFC with 4 KB RAM buffer and ECC

Integrated M-PHY* interface

Integrated SPI engine: up to 21 MHz clock for popular SPI memory flash IC

Integrated self-test core that excludes 90% faults in production

Integrated CCID card reader for Z3X Software Use

Easy-Jtag Plus - Hardware benefits:

Box to Host PC speed increased up to 40 MB/sec

JTAG Interface speed increased by 20%

eMMC 1 Bit ISP Speed increased up to 4 MB/sec

eMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **

eMMC 4 Bit Speed up to 18 MB/sec

eMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)

Compatible with 99% host PC systems and OS

Compatibility with old Easy JTAG 1st generation ISP adapters (1 bit)

Compatibility with most of the popular eMMC sockets (with supplied adapters)

Plug and Play for Windows OS 8/ 8.1/10

Full support for Windows XP

eMMC Socket - Features:

Made from high quality materials

Over 10K cycles of lifetime performance

Support for a wide range of eMMC ICs

High-speed up to 40 MB/sec through 8-bit bus

EMI resistant design, low noise components

Integrated power logic (no need for additional power source)

Surge protection - smart fuse driven (0.5A threshold)

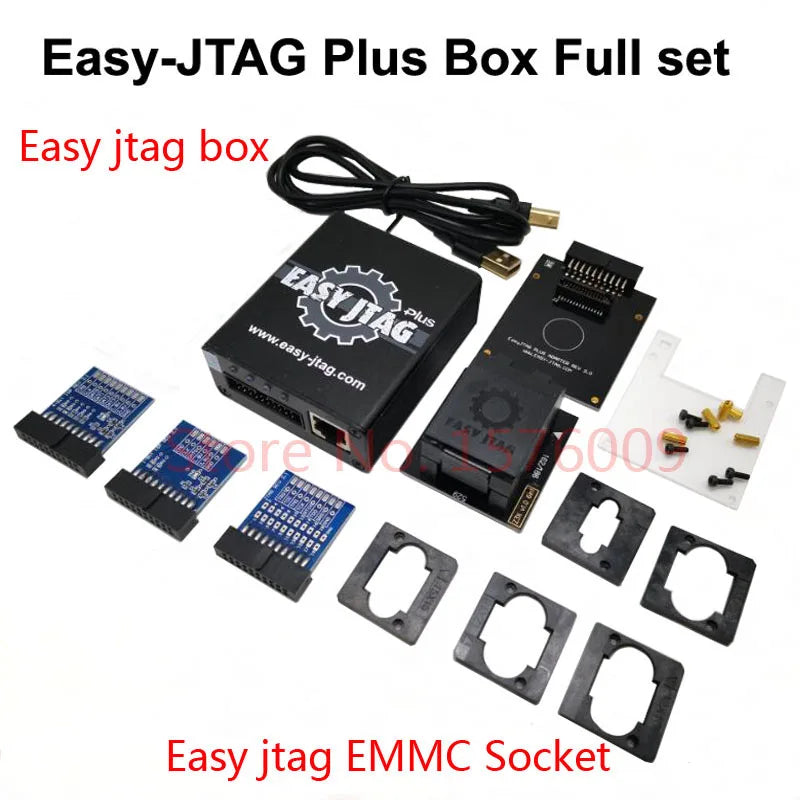

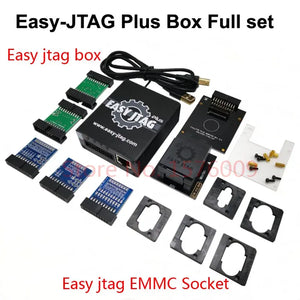

Easy-Jtag Plus Set - Package Content:

Easy-JTAG Plus Box Hardware

Easy JTAG PLUS box smart card + Activation

EMMC socket (BGA153/169, BGA162/186, BGA221, BGA529)

USB A-B cable

Adapter set - 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET

Different package configurations are not the same
